Description

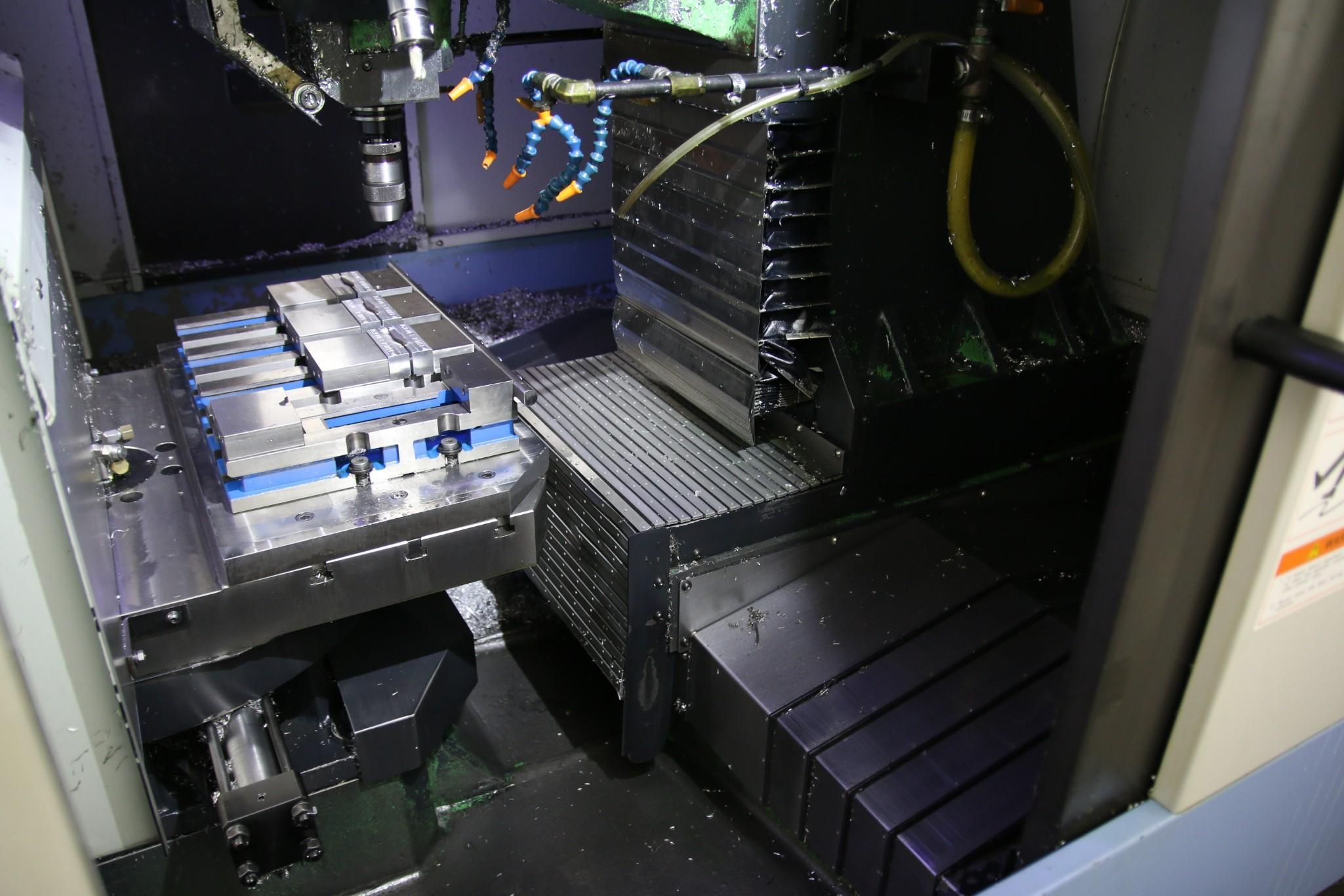

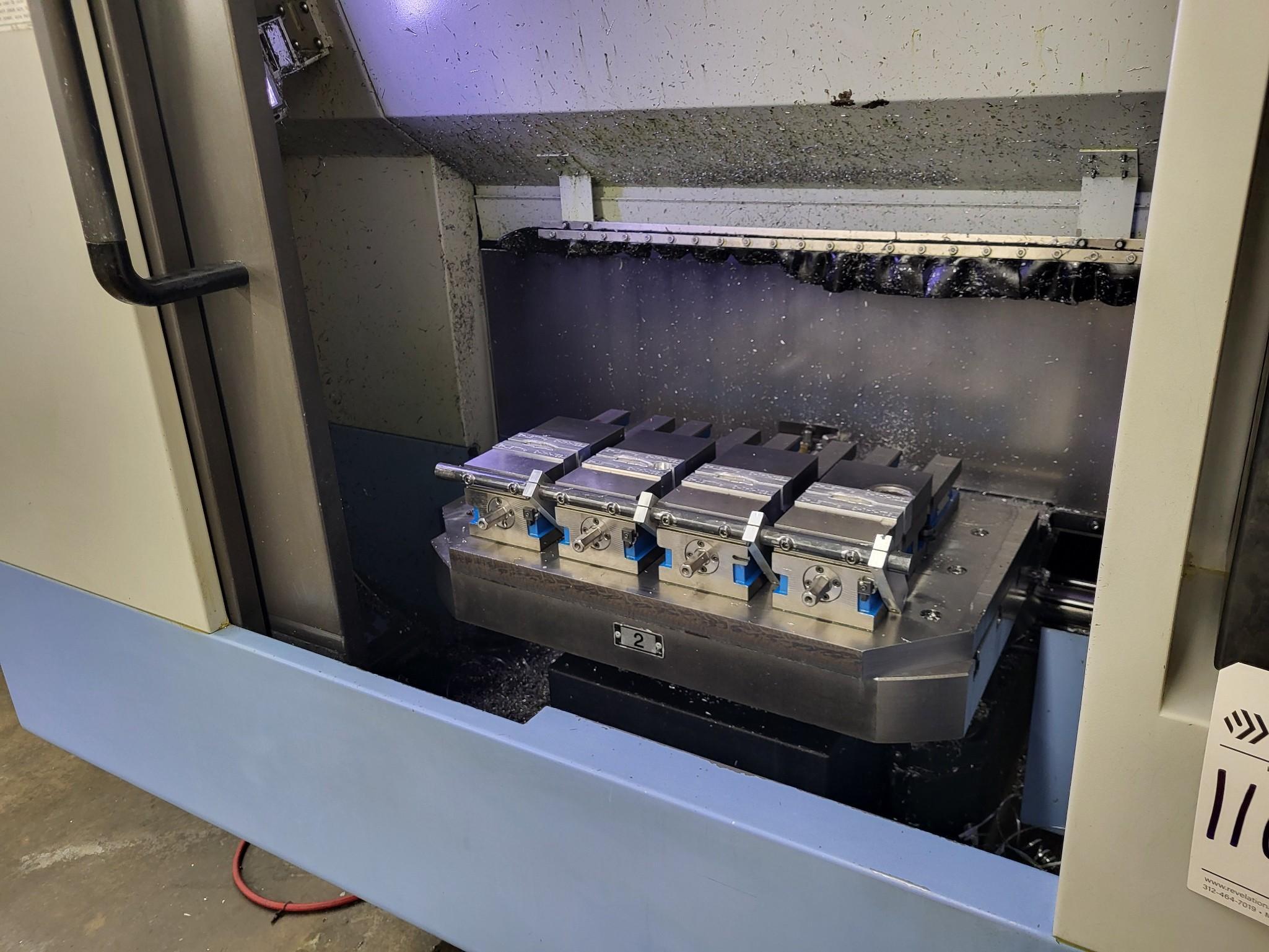

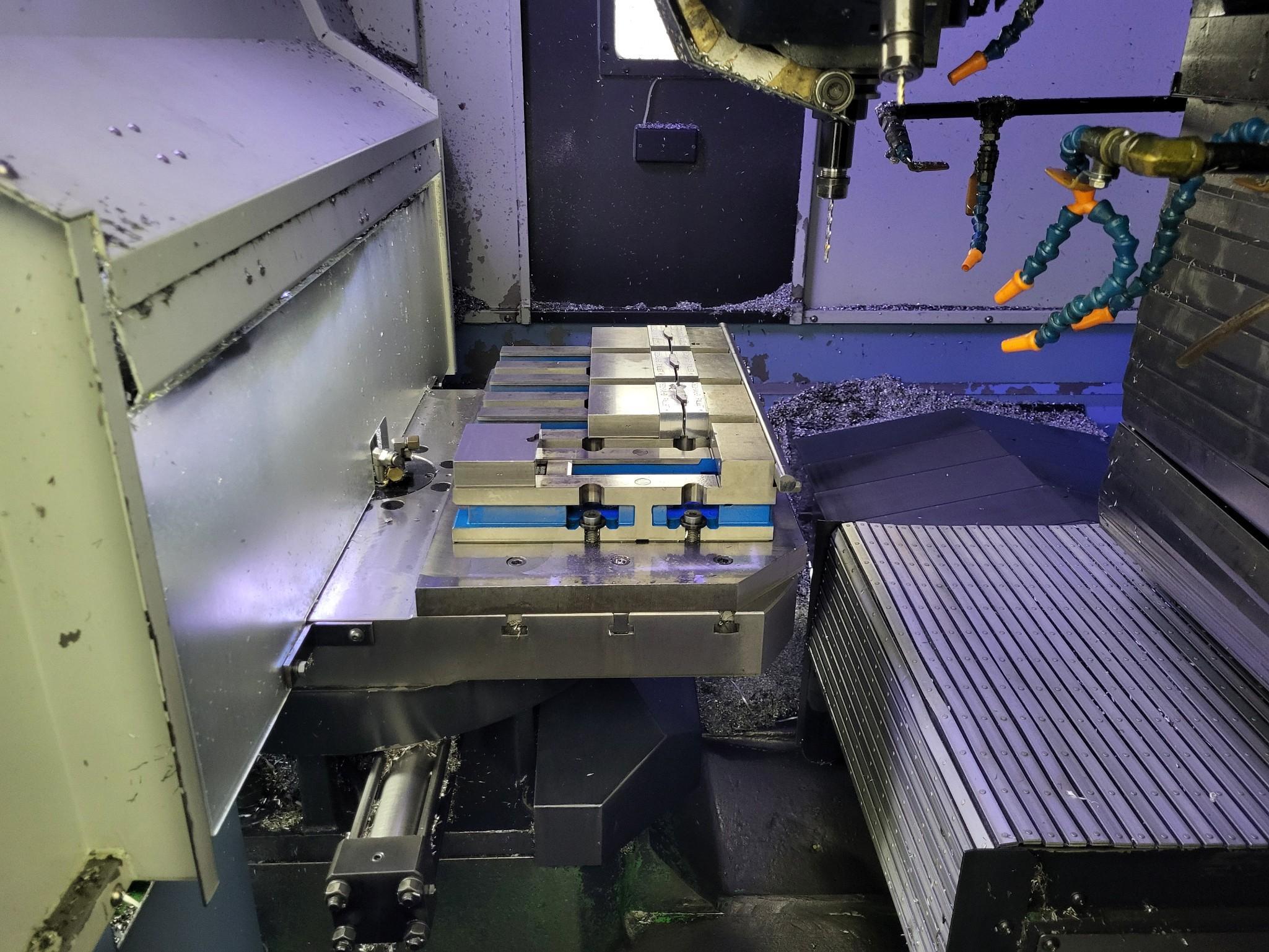

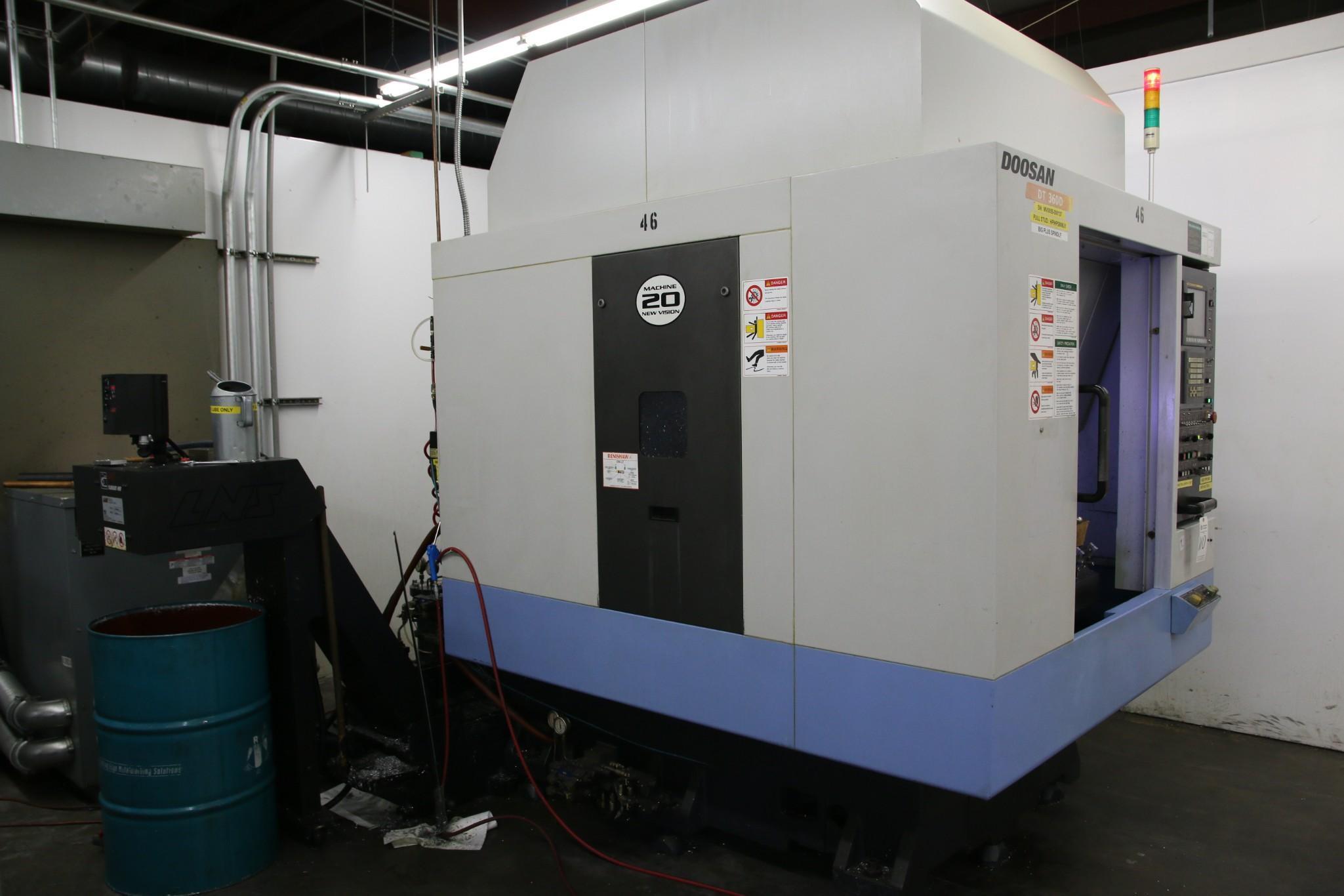

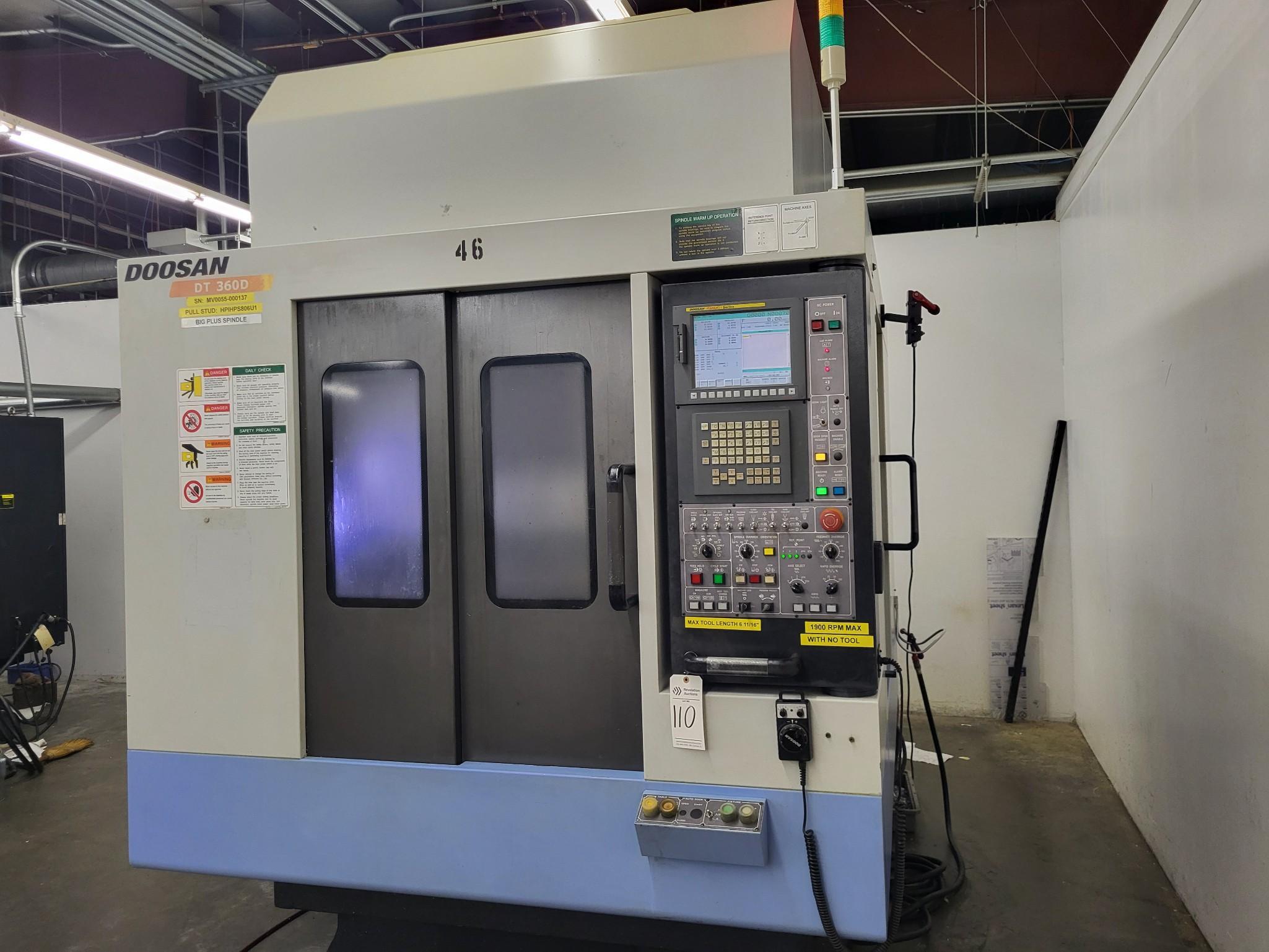

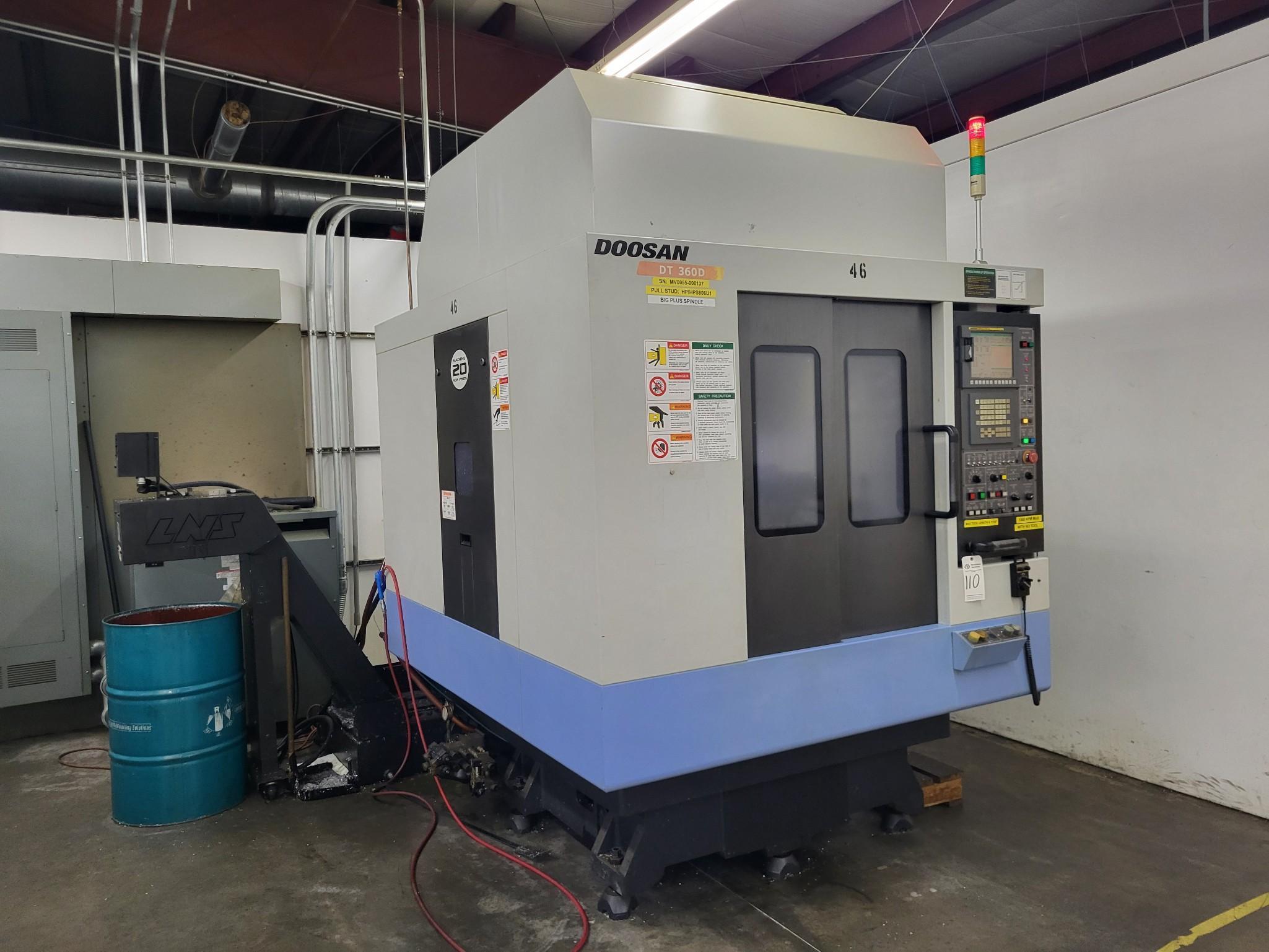

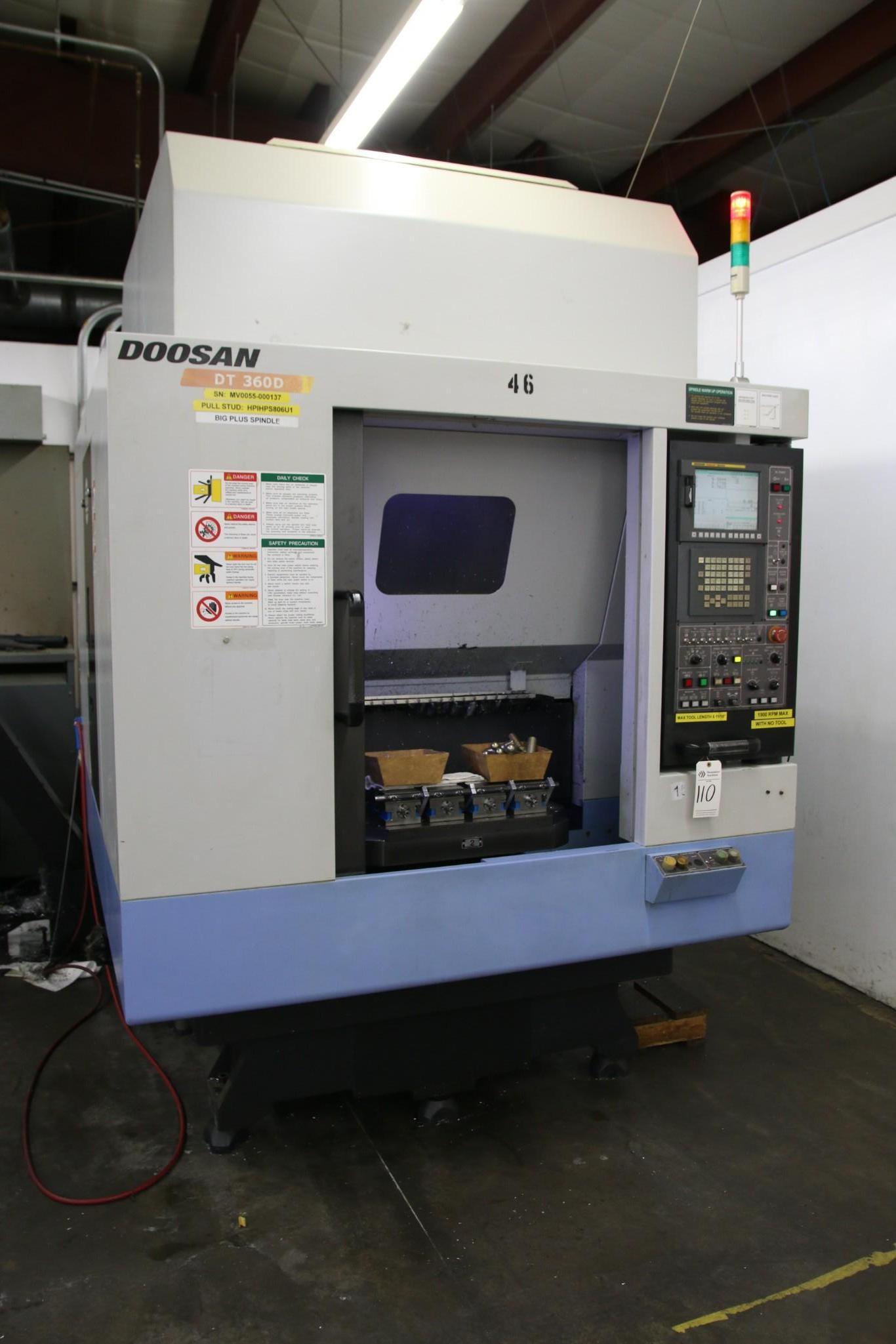

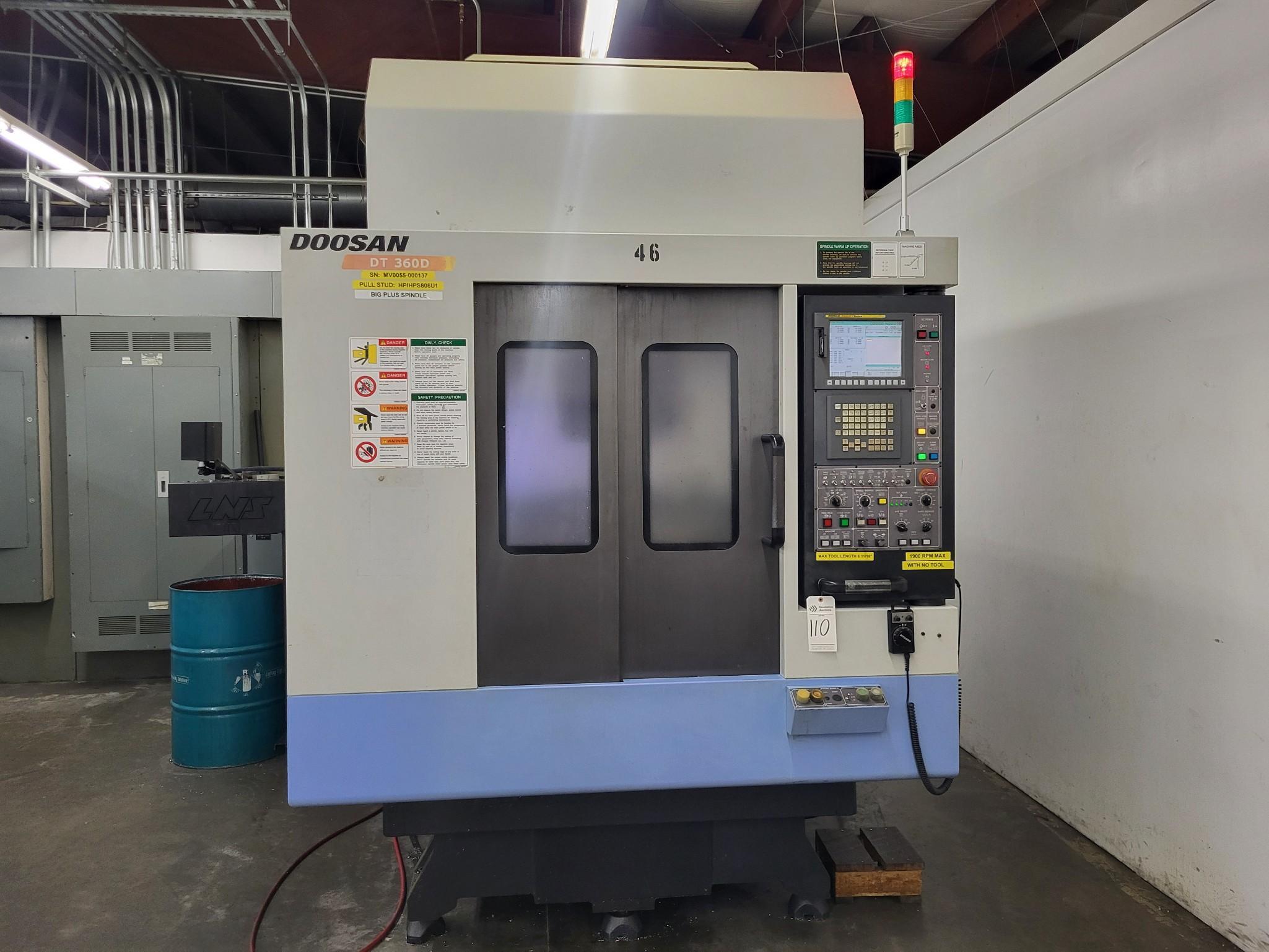

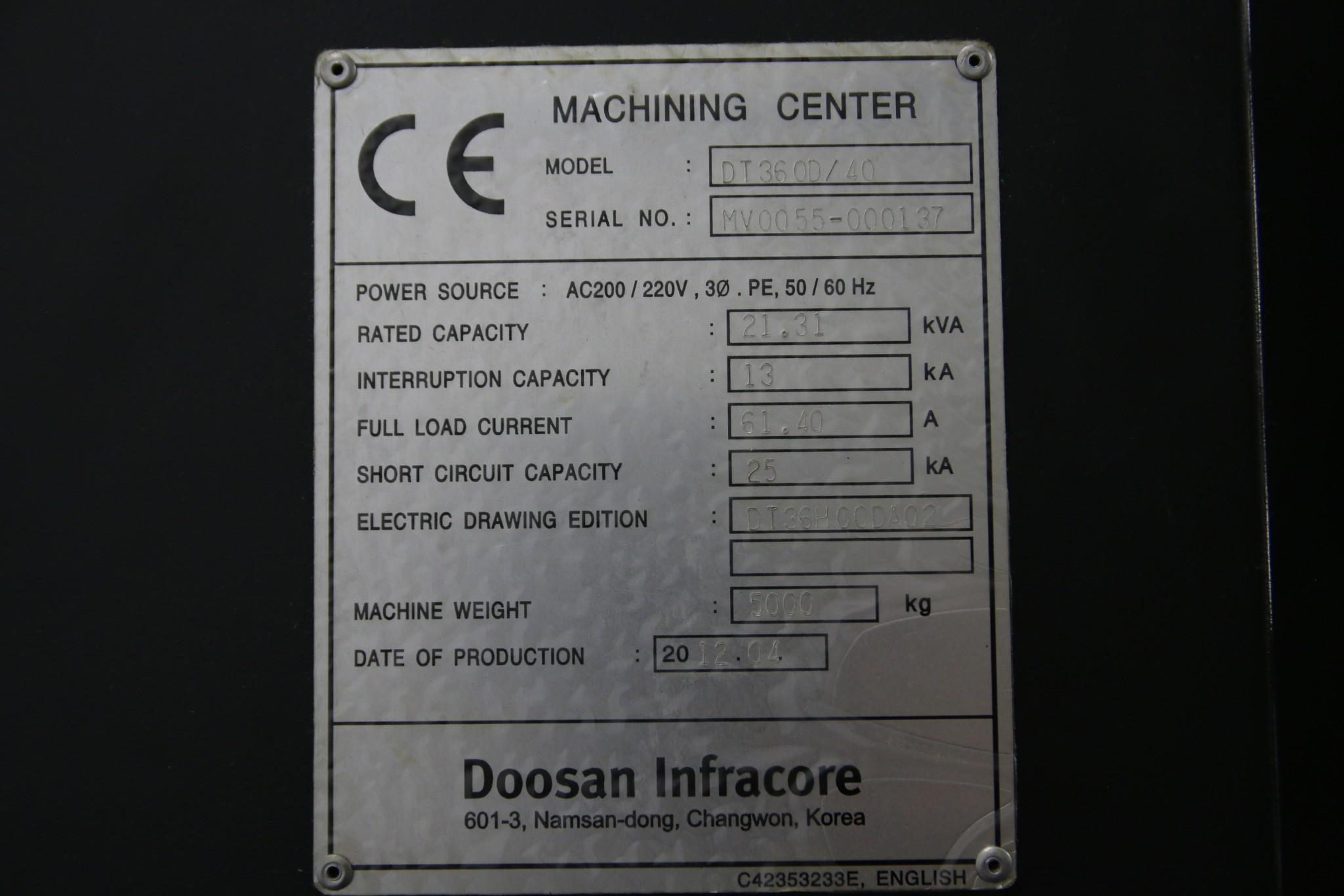

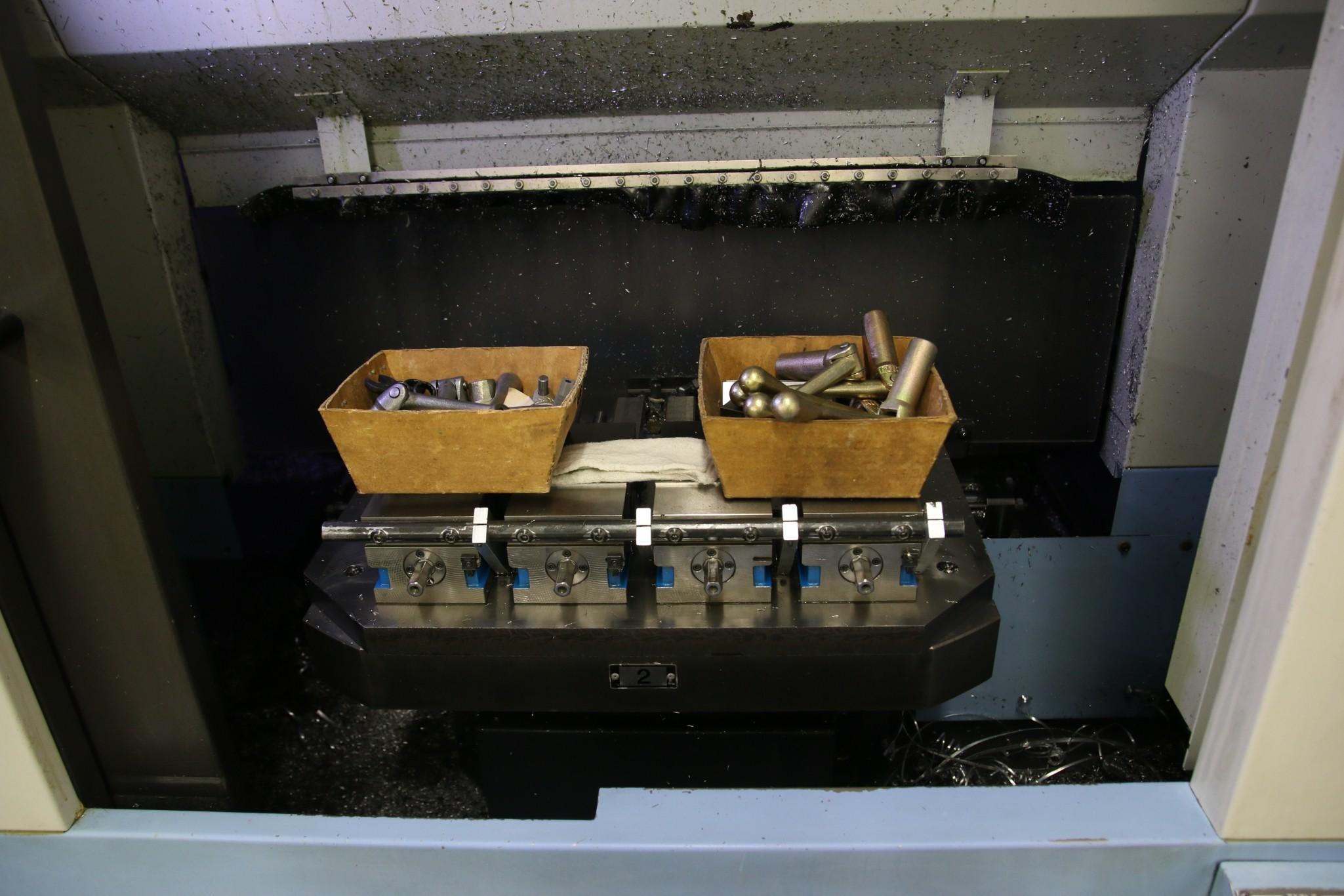

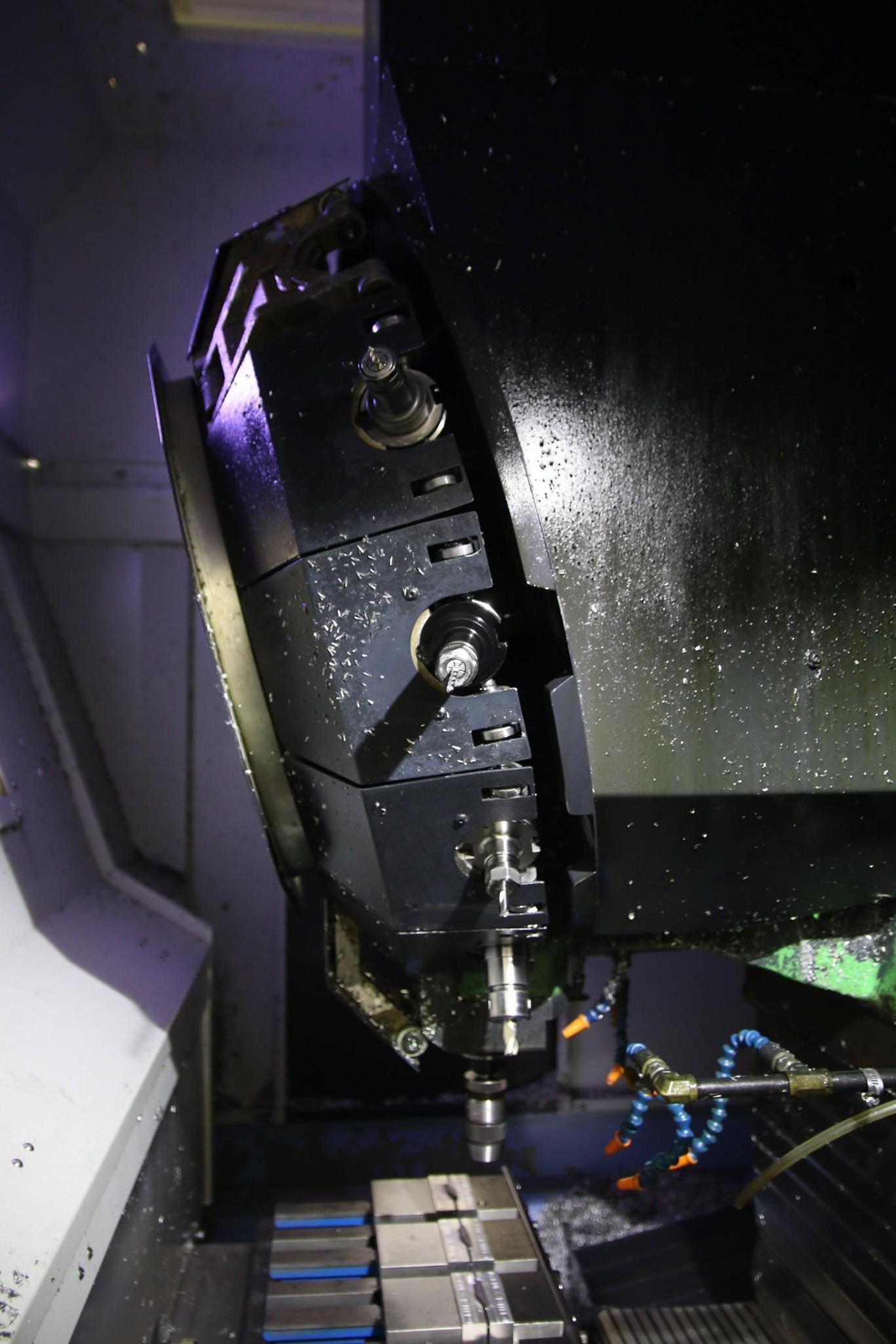

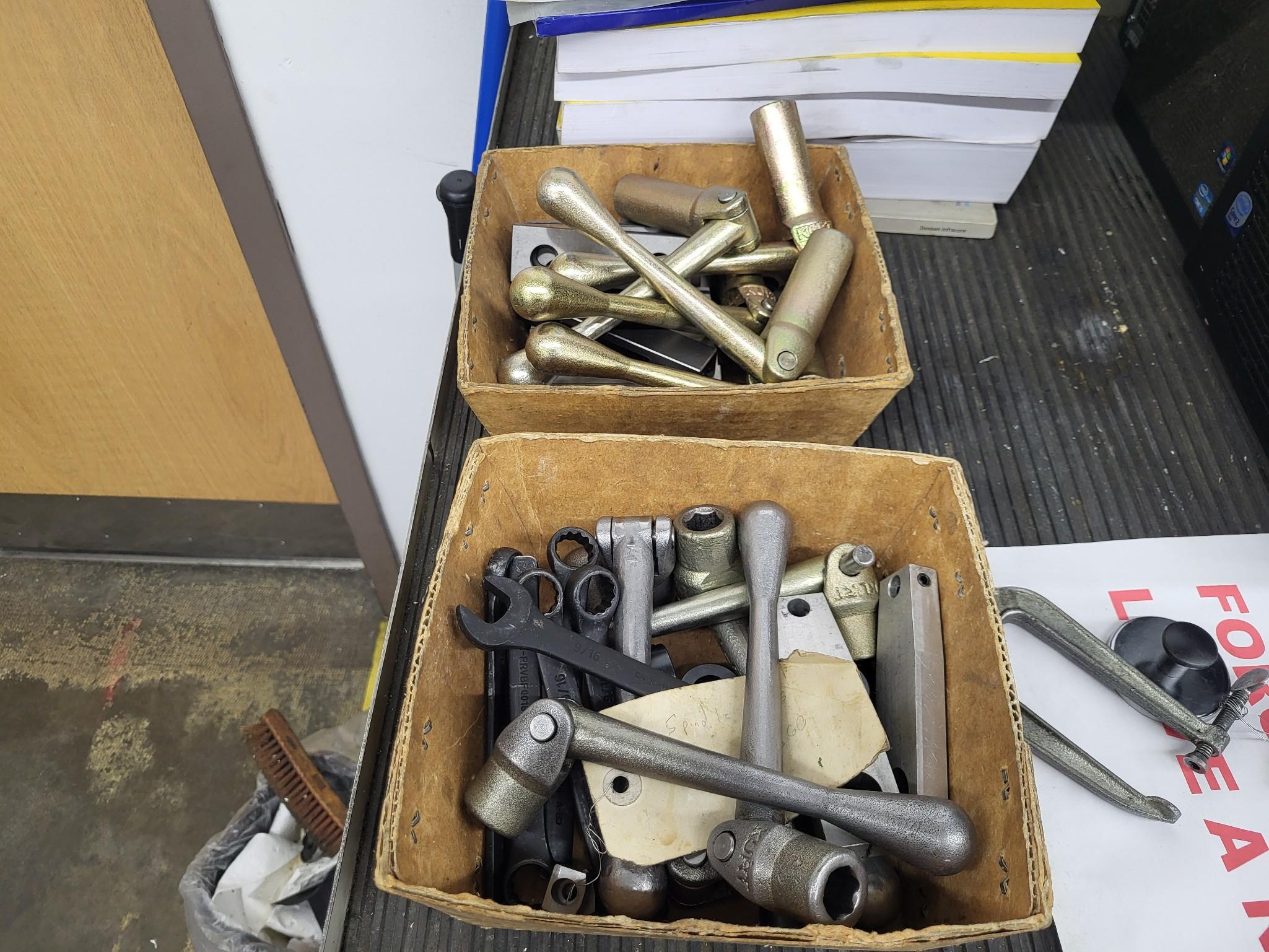

2012 DOOSAN DT 360D 40 TAPER CNC DUAL PALLET DRILL AND TAP, WITH 8 KURT VISES, CNC VMC, VERTICAL MACHINING CENTER, WITH TOOLING INCLUDED SN: MV0055-000137 SPECIFICATIONS: X AXIS TRAVEL 520MM (20.5 INCHES) Y AXIS TRAVEL 360MM (14.2 INCHES) Z AXIS TRAVEL 350MM (13.8 INCHES) TABLE LOADING AREA 600MM X 375MM (25.6 X 14.8 INCHES) ALLOWABLE TABLE LOAD 2-440 LBS SPINDLE NOSE TO TABLE TOP 150MM TO 500MM (5.9 TO 19.7 INCHES) COLUMN TO SPINDLE CENTER 444MM (17.5INCHES) SPINDLE TAPER ISO # 40 SPINDLE SPEED 12,000 RPM AC SPINDLE MOTOR (30 MIN.) 5.5(CONT.)/7.5 SPINDLE TORQUE 47.7N.M. 35.2FT-LBS ARMLESS TYPE TOOL CHANGER: NUMBER OF TOOLS 14 TOOL SHANK CAT 40 TAPER MAX. TOOL DIA. / ADJACENT POTS ARE EMPTY 90MM / 150MM MAX. TOOL LENGTH 200MM (7.874 INCHES) MAX. TOOL WEIGHT 5KG (11.0231 LB) X AND Y AXIS RAPID TRAVERSE RATE FAST 1,890 IPM Z AXIS RAPID TRAVERSE RATE FAST 1,890 IPM MAX CUTTING FEED RATE M/MIN 1 ~ 24000 (945 IPM) MACHINE HEIGHT 2540MM (100.00 INCHES) FLOOR SPACE REQUIRED (L X W) 3850MM X 1902MM (151.6’’X74.88’’) MACHINE WEIGHT 6,613KG. (14579 LBS.) POWER REQUIRED 21.3 KVA / 61.4 AMPS @ 220V VOLTAGE REQUIRED – FANUC 205-235 VOLTS / 3 PHASE COOLANT TANK CAPACITY 200L (53.GAL) LUBRICATION TANK CAPACITY 1.8L (0.47 GAL) HYDRAULIC TANK CAPACITY 13L (3.43 GAL) AIR REQUIRED MPA .54(80PSI)*150(5.3CFM) EQUIPPED WITH: VARIOUS TOOL HOLDERS 8 KUST VISES SHOWN FULL SET OF MANUALS TURBO HINGED BELT CHIP CONVEYOR 42” DISCHARGE All specifications are assumed to be correct but must be confirmed by the purchasing entity. Estimated loading charge = $1750 Tthese are estimates only, actual loading quotes will come from the exclusive rigger we have listed and payment will be made directly to the rigger prior to removal.
