Description

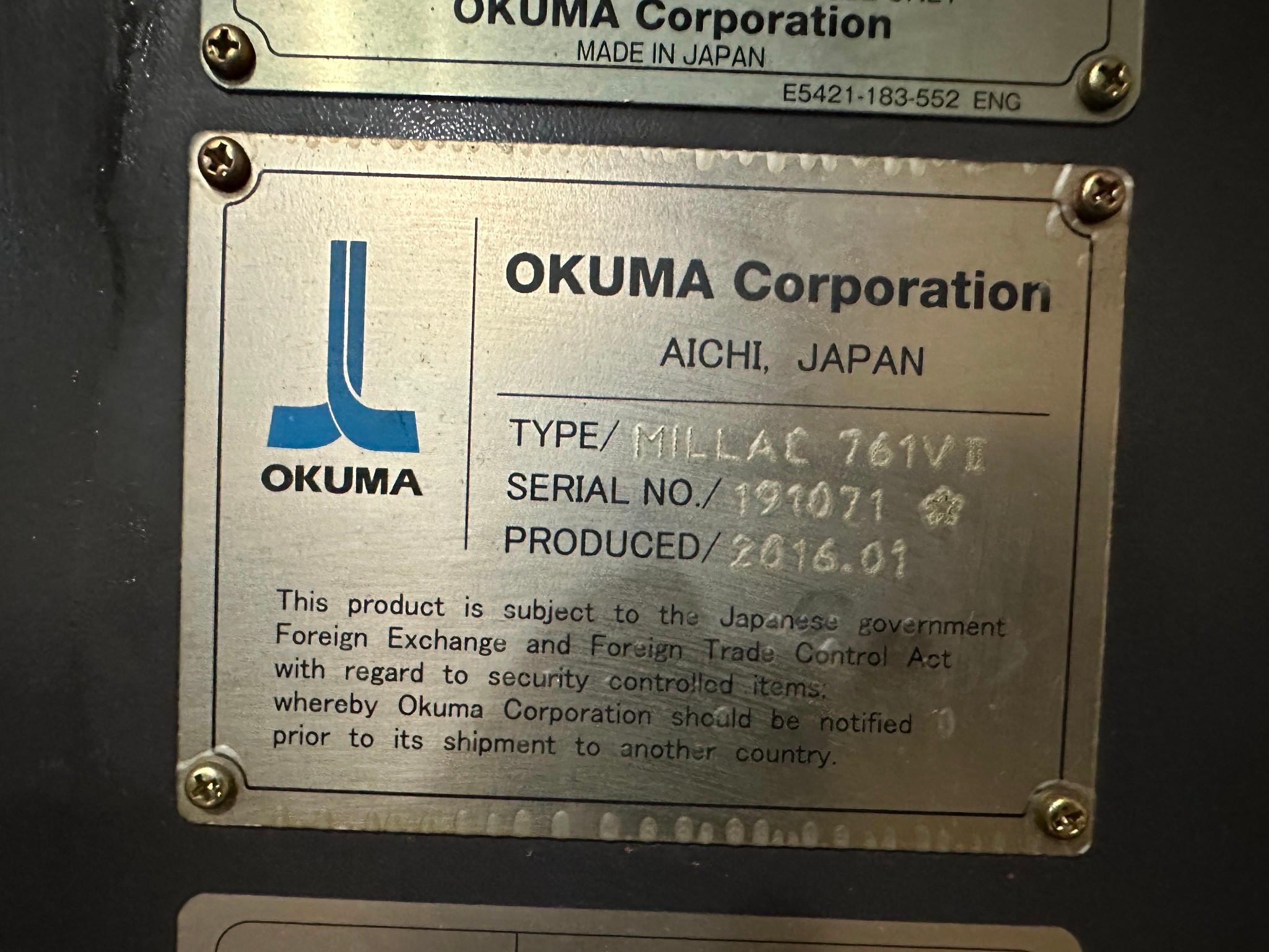

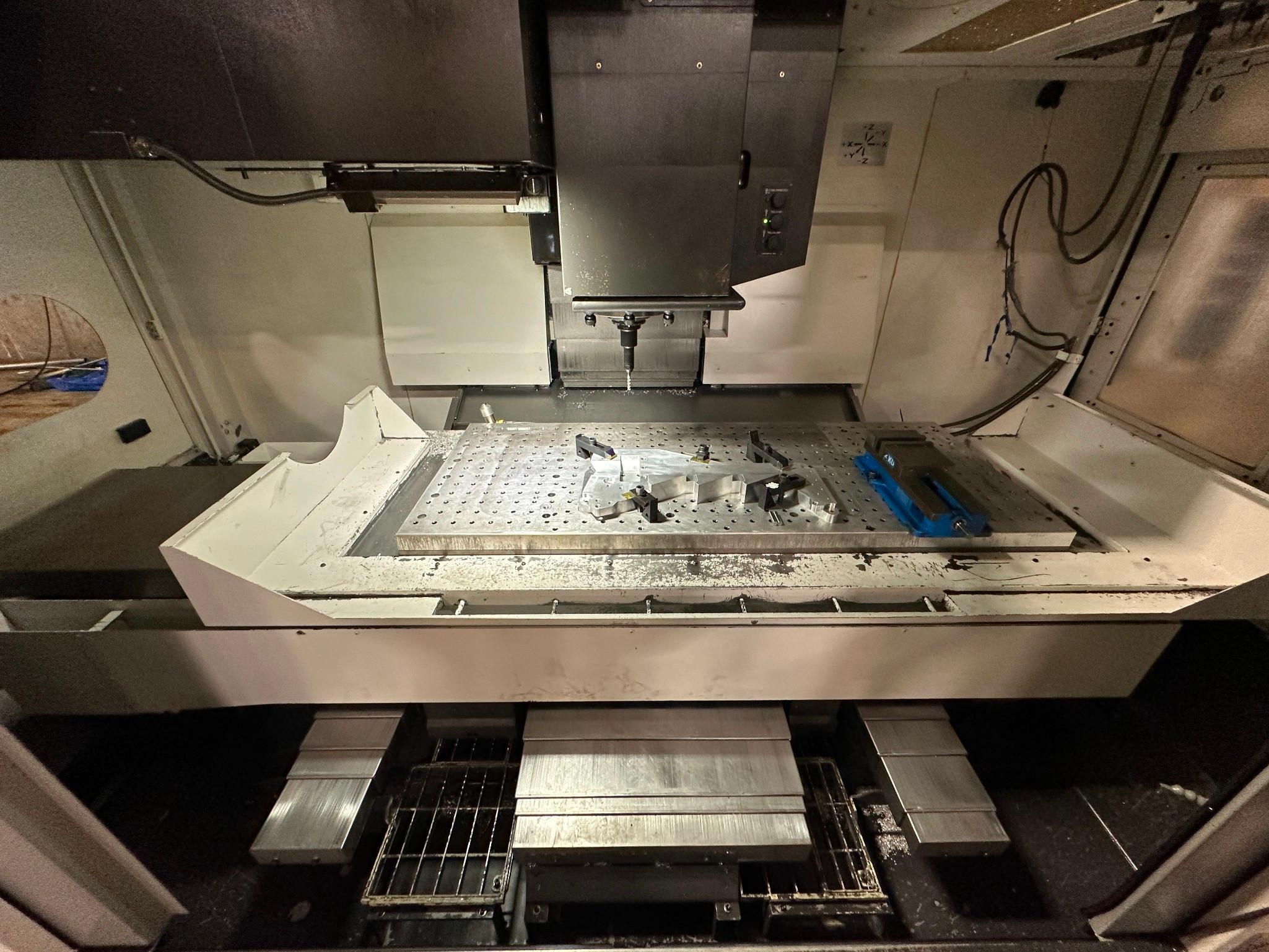

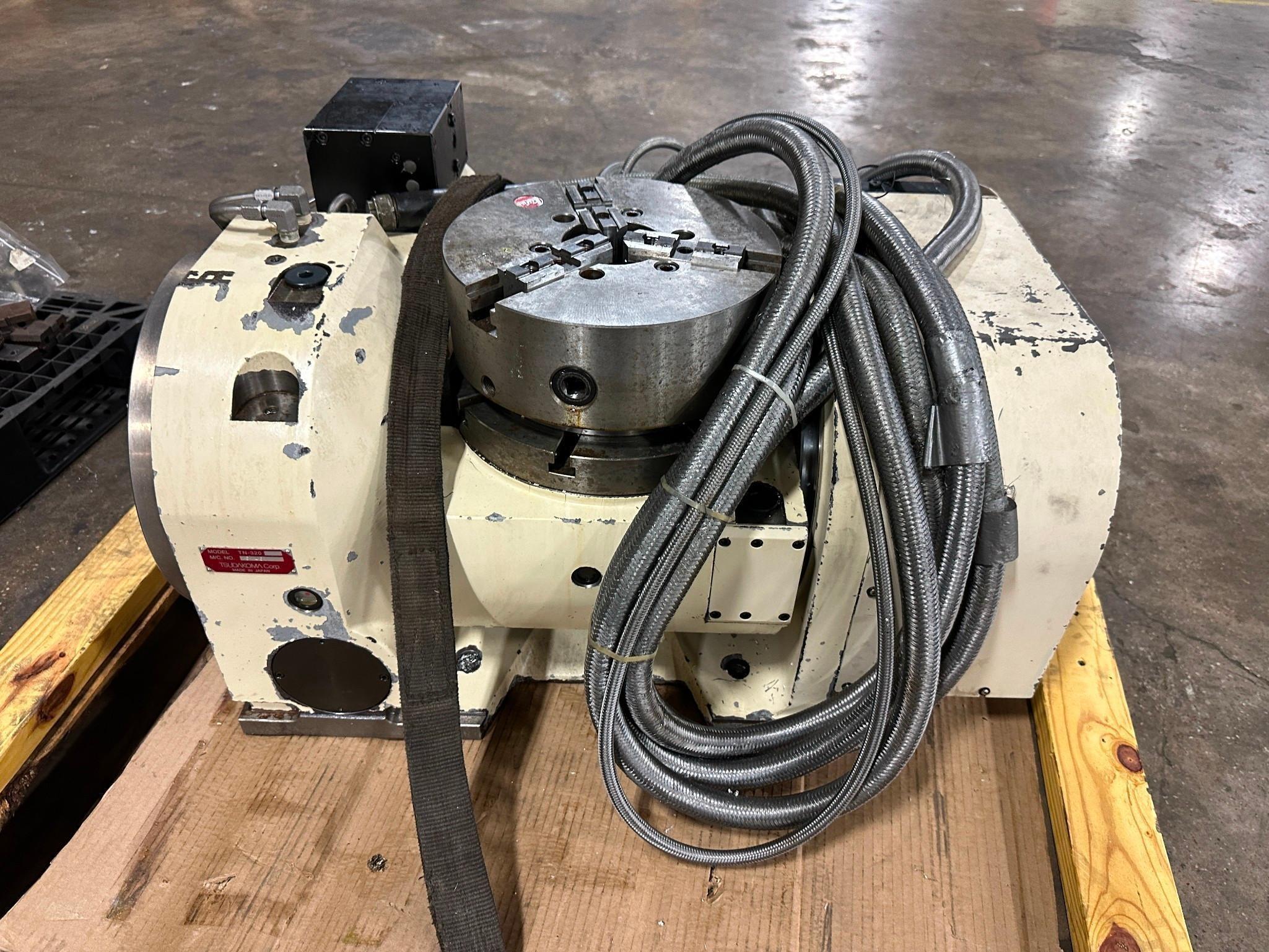

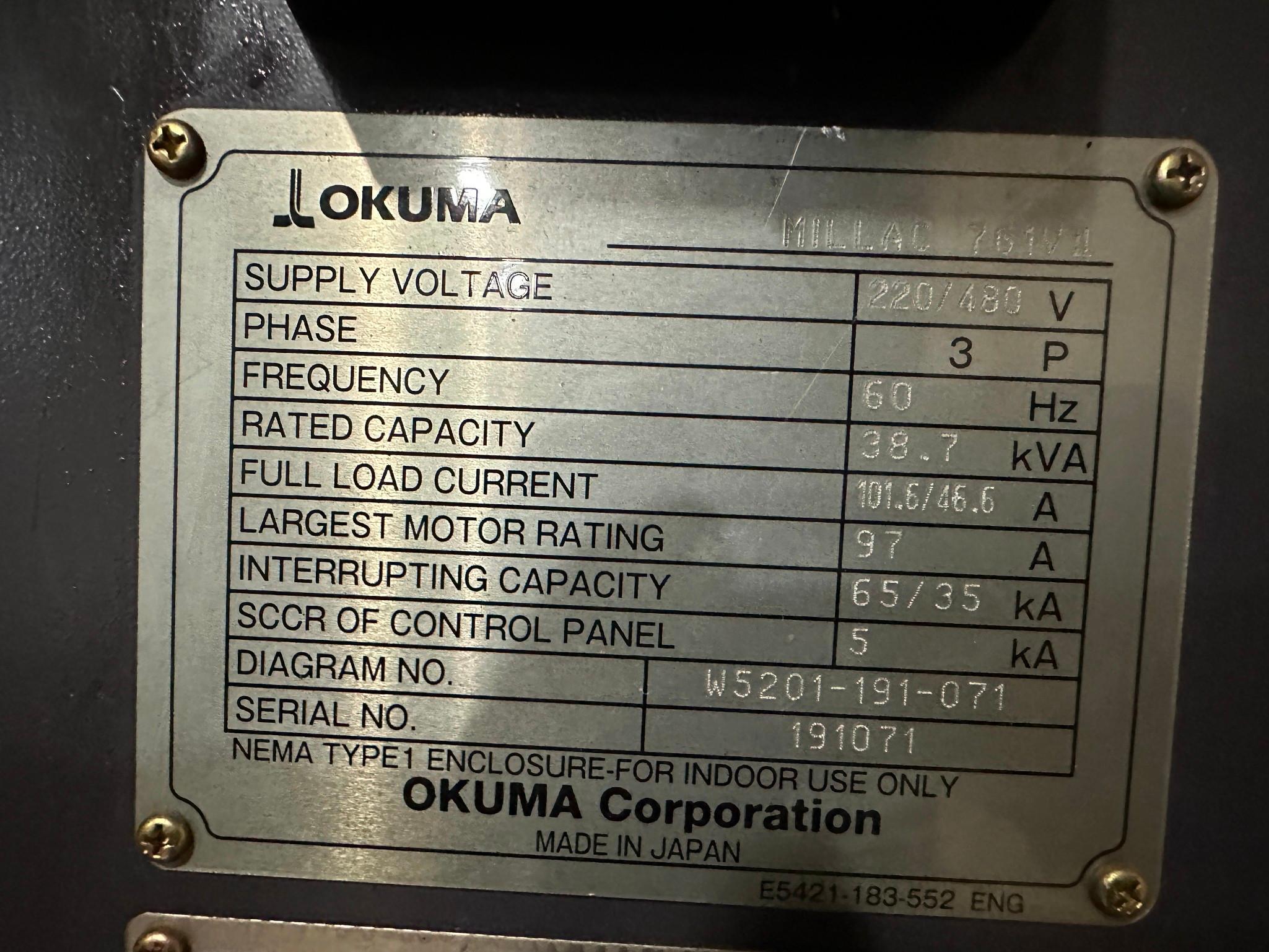

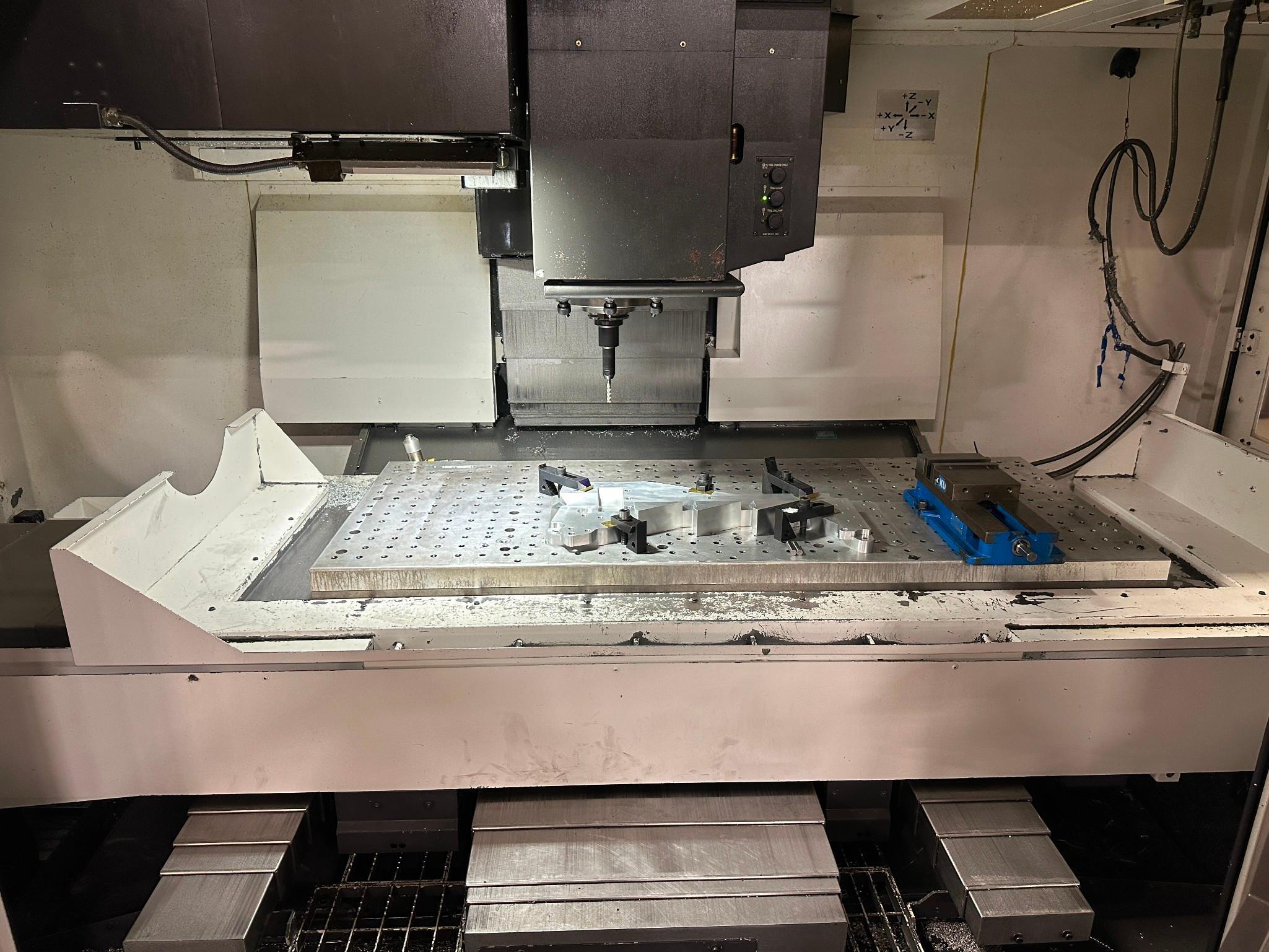

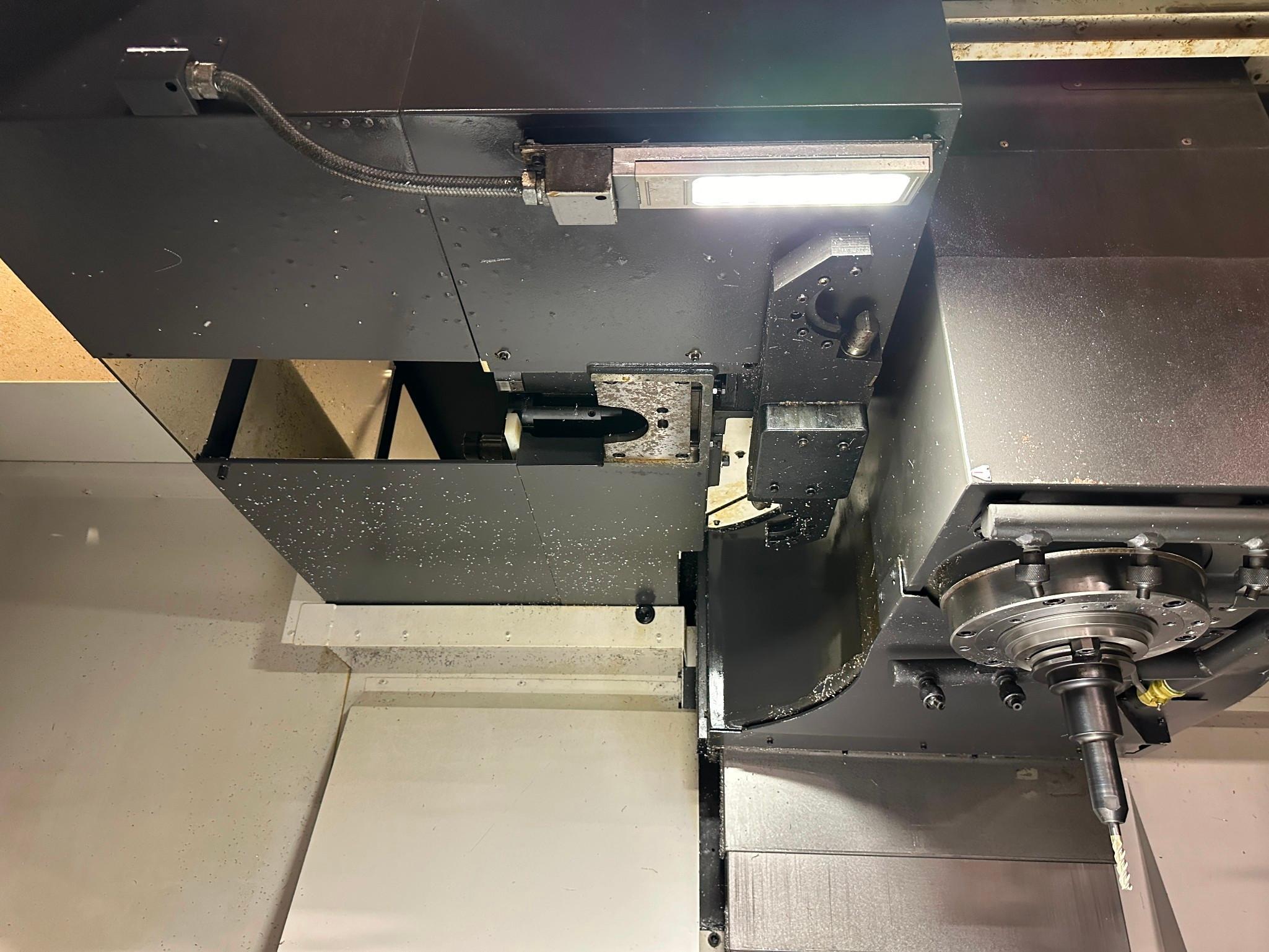

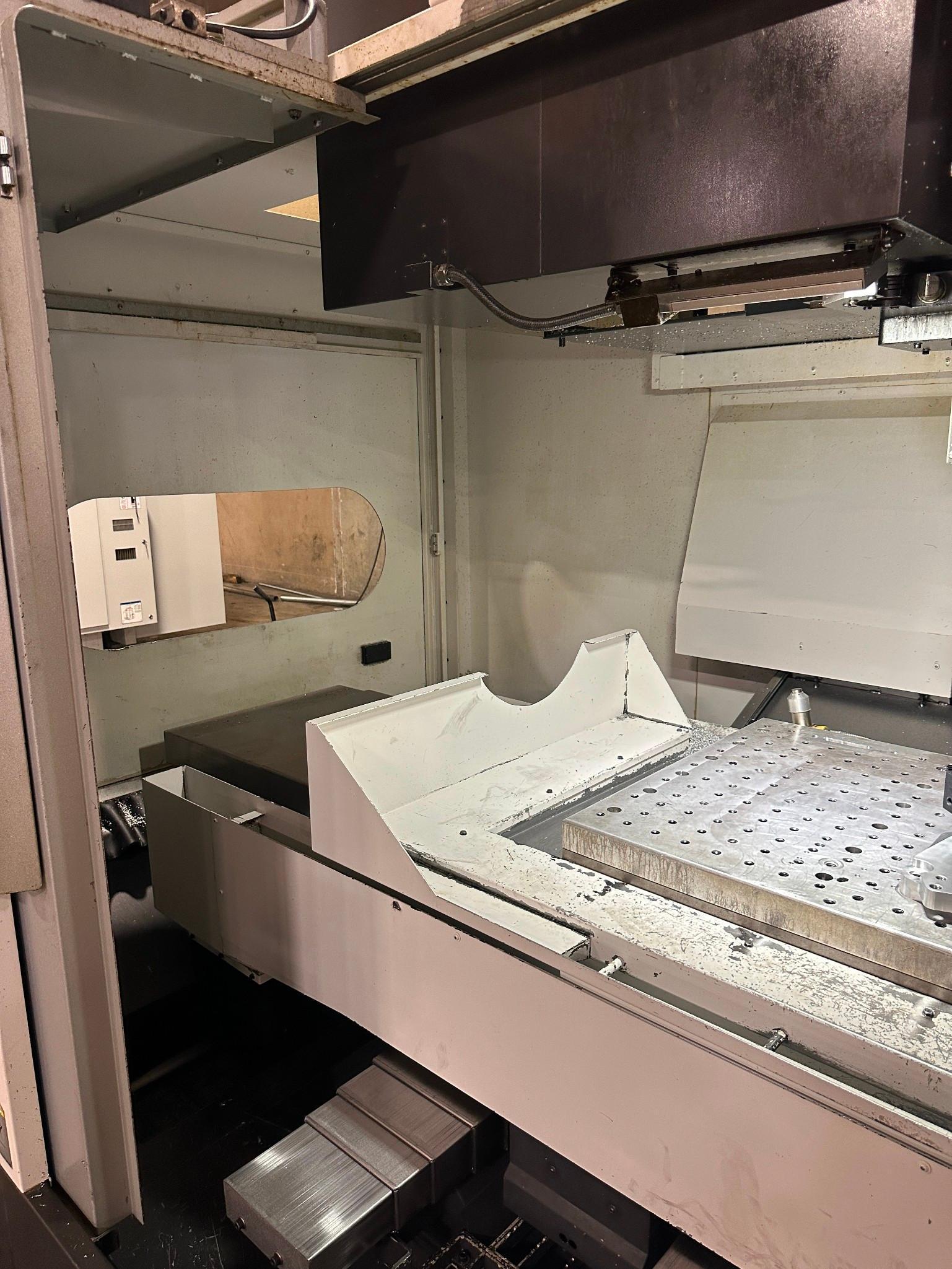

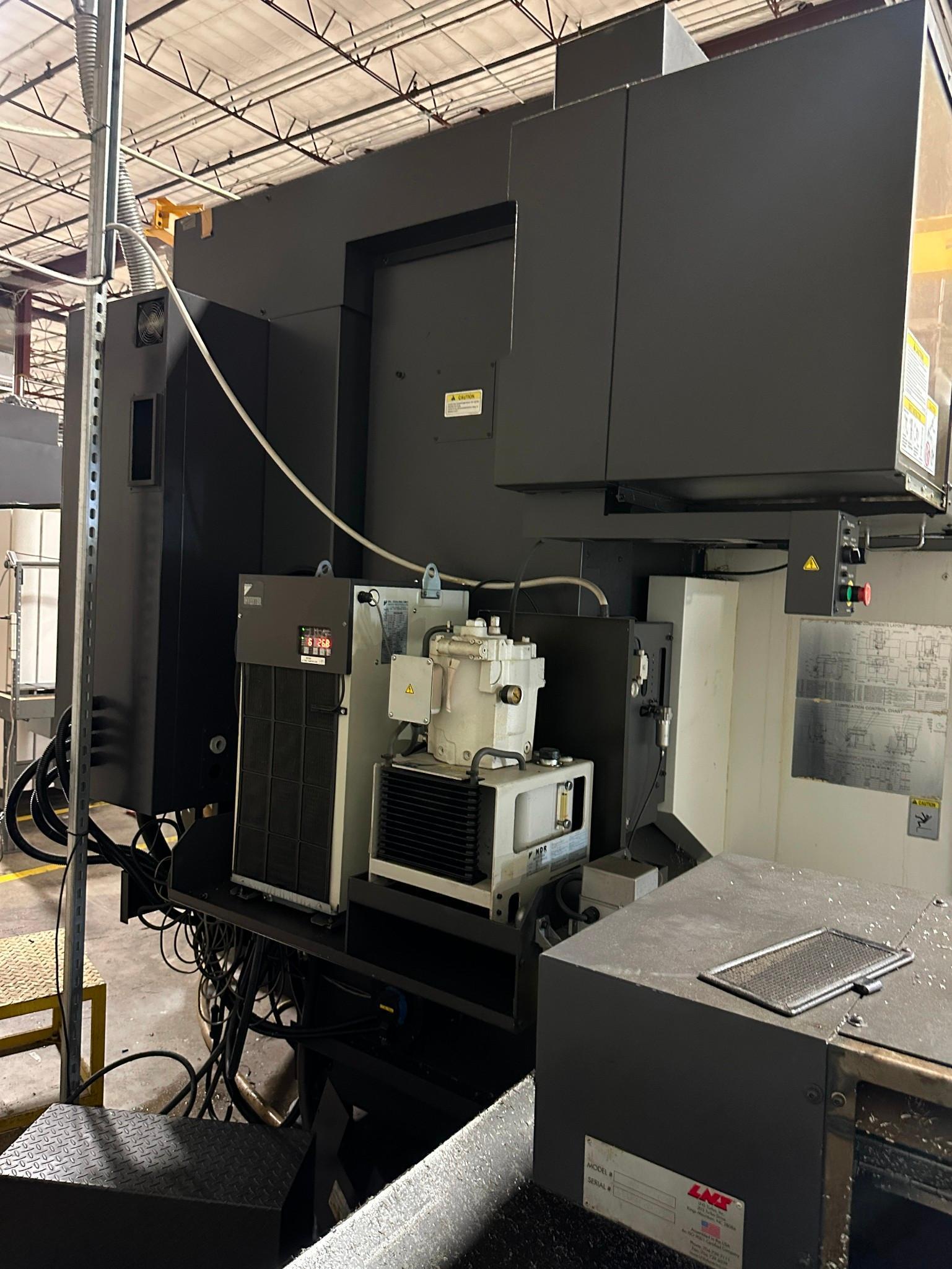

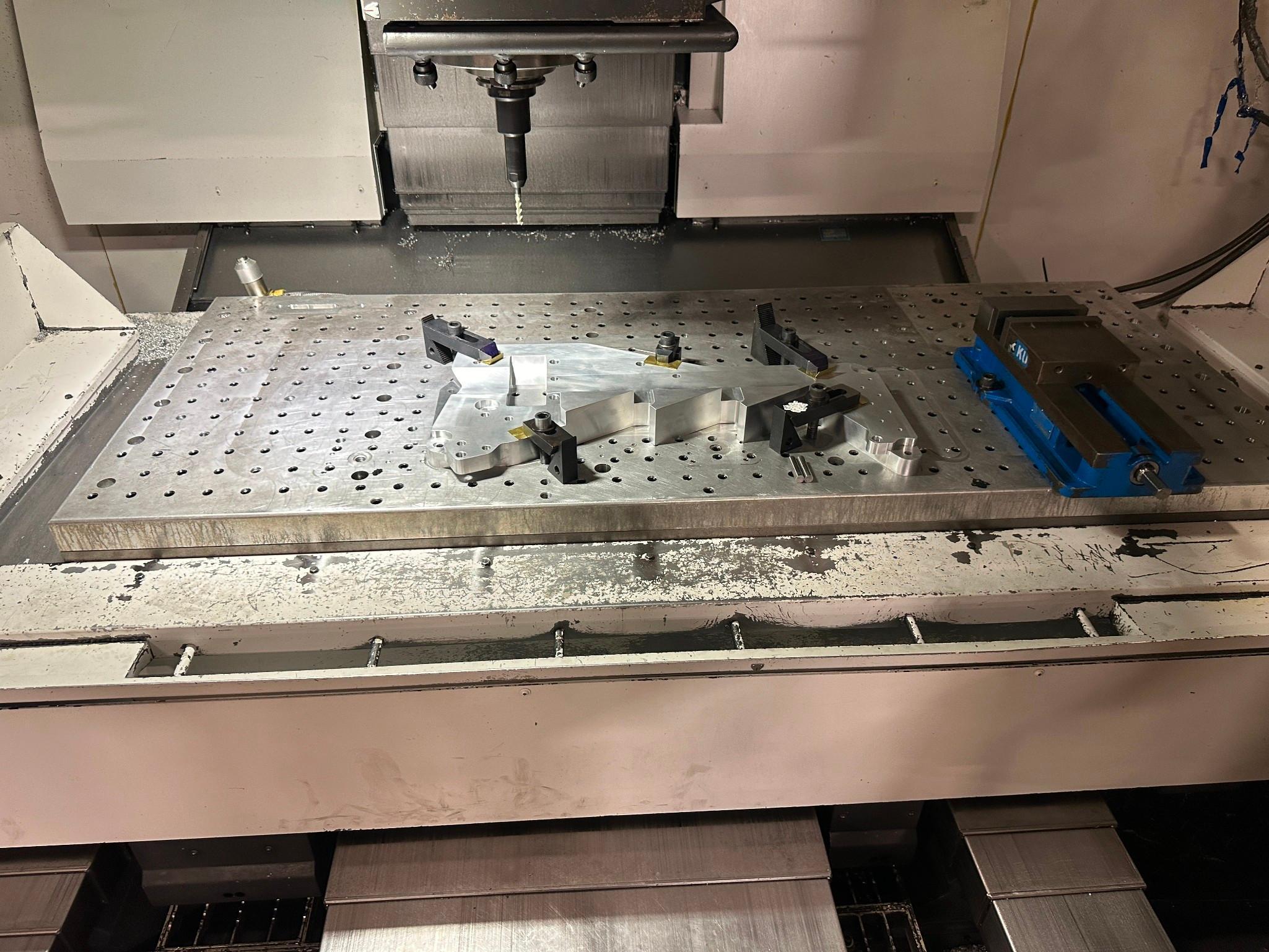

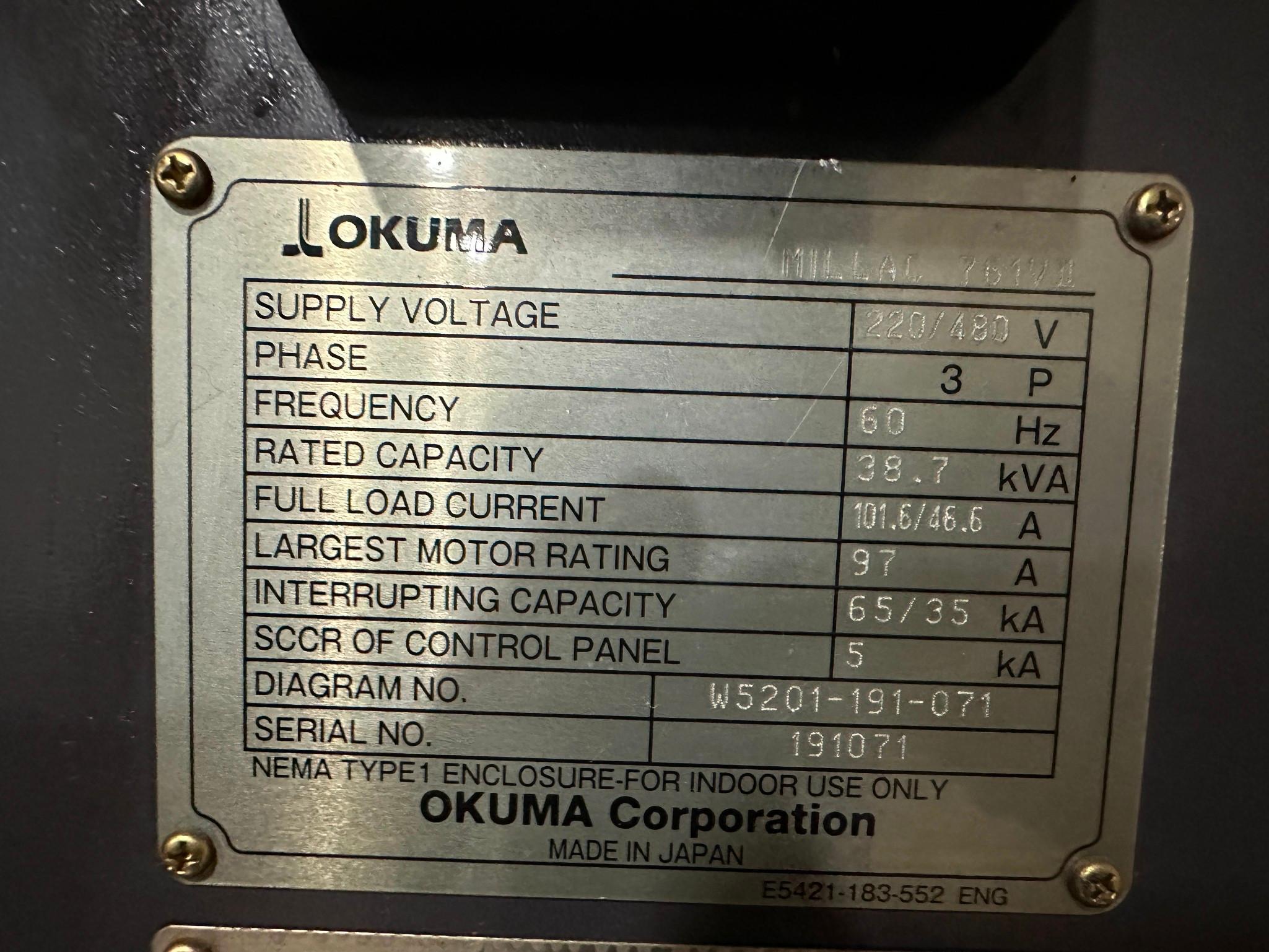

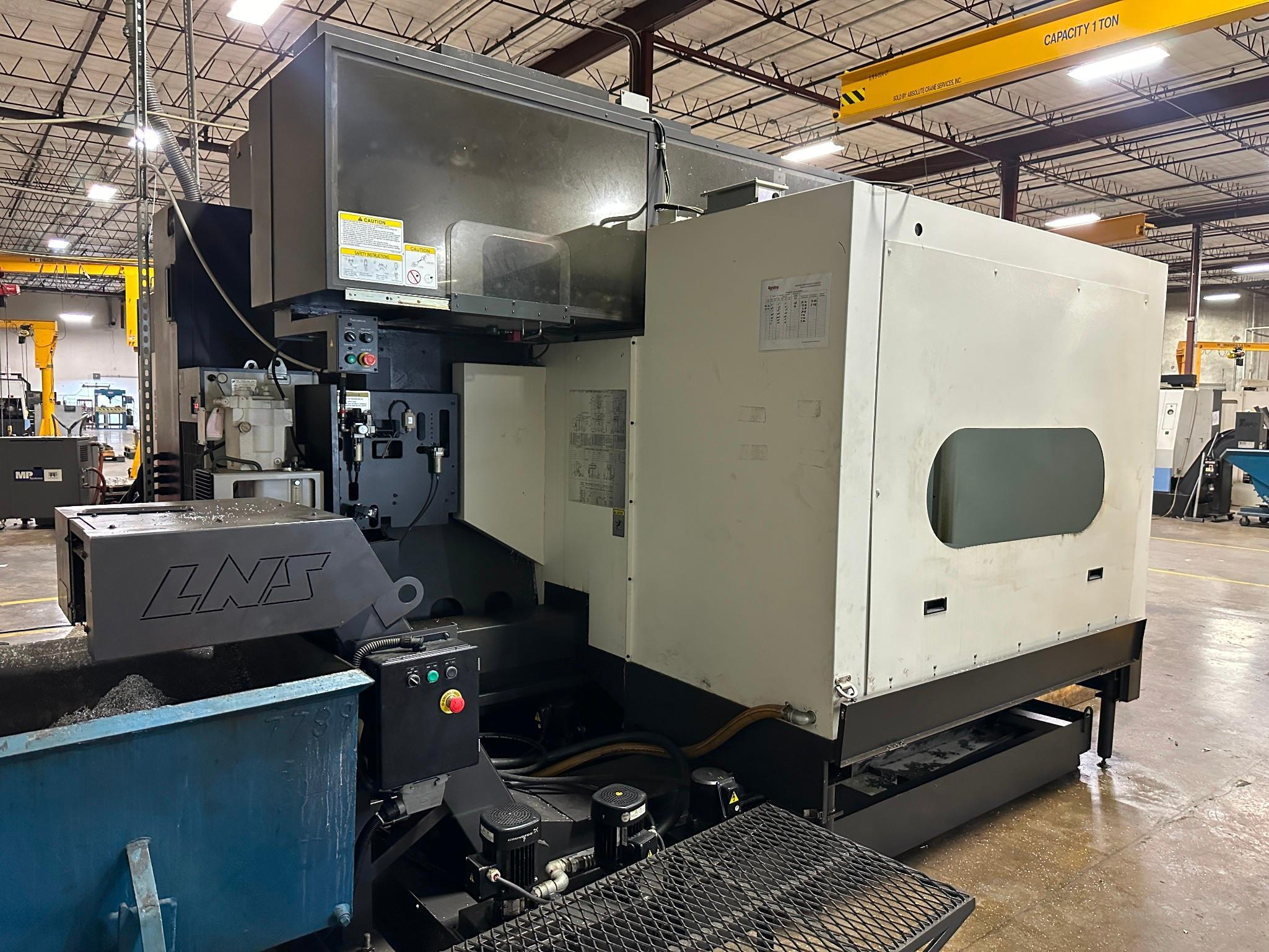

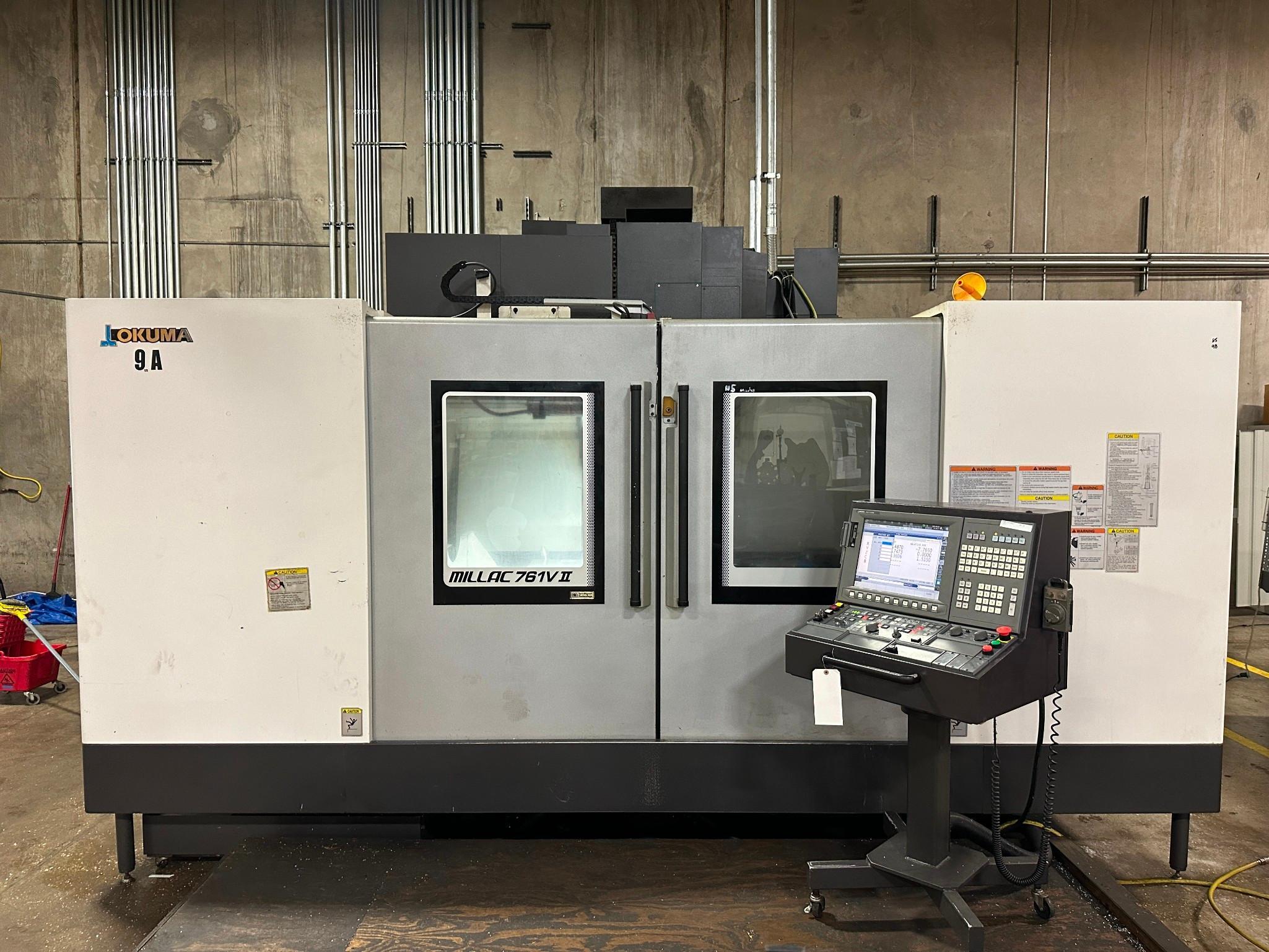

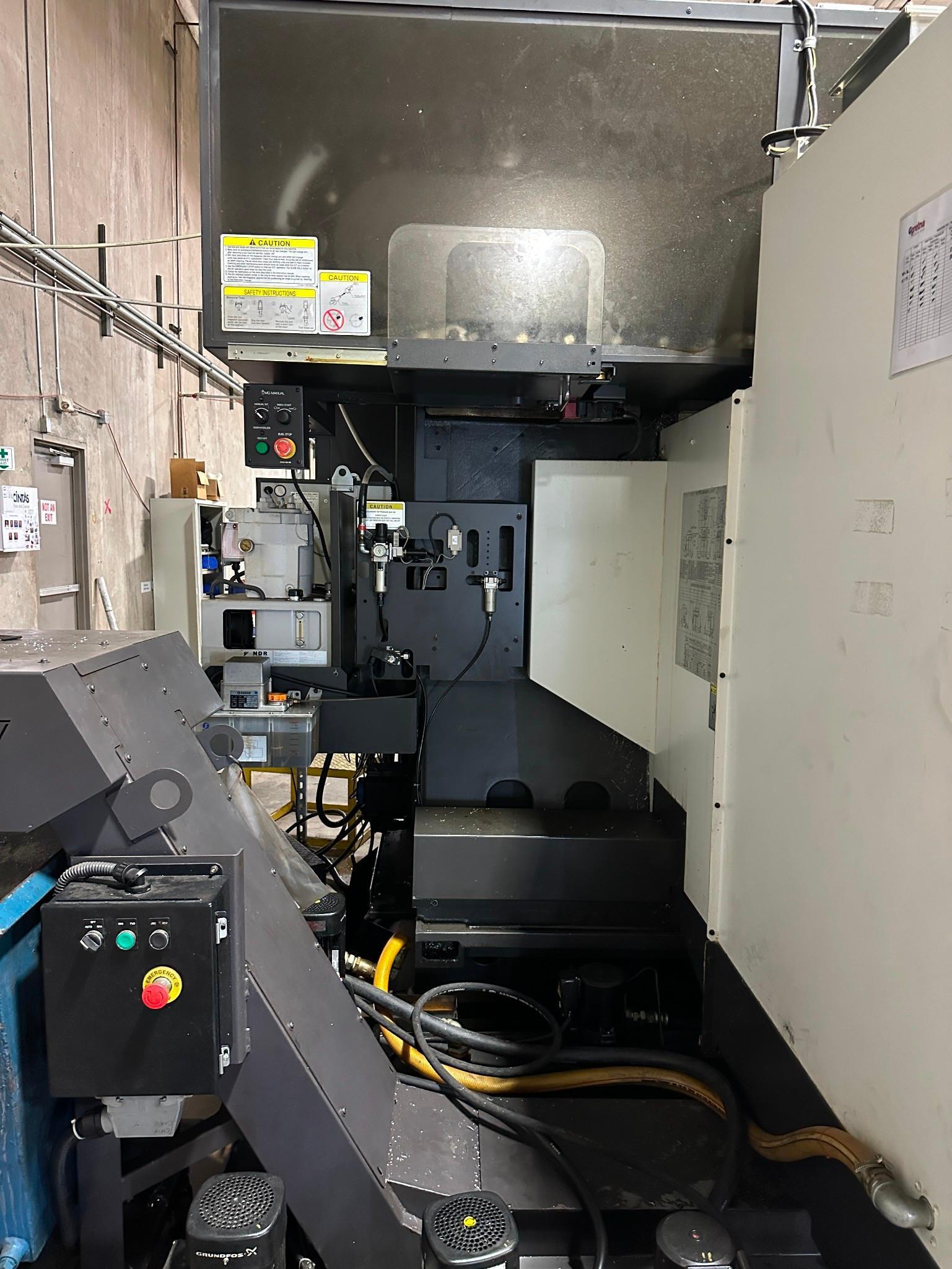

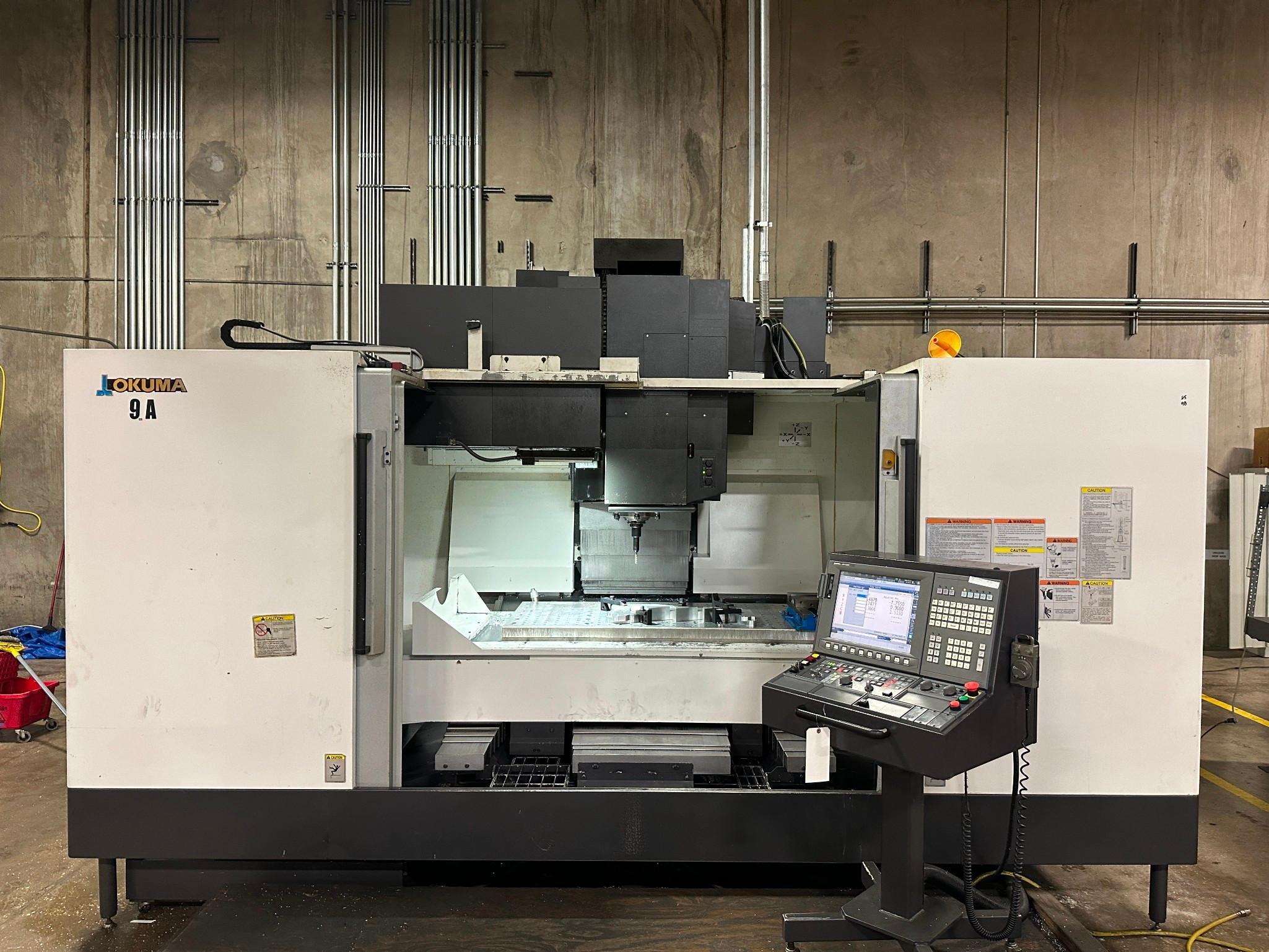

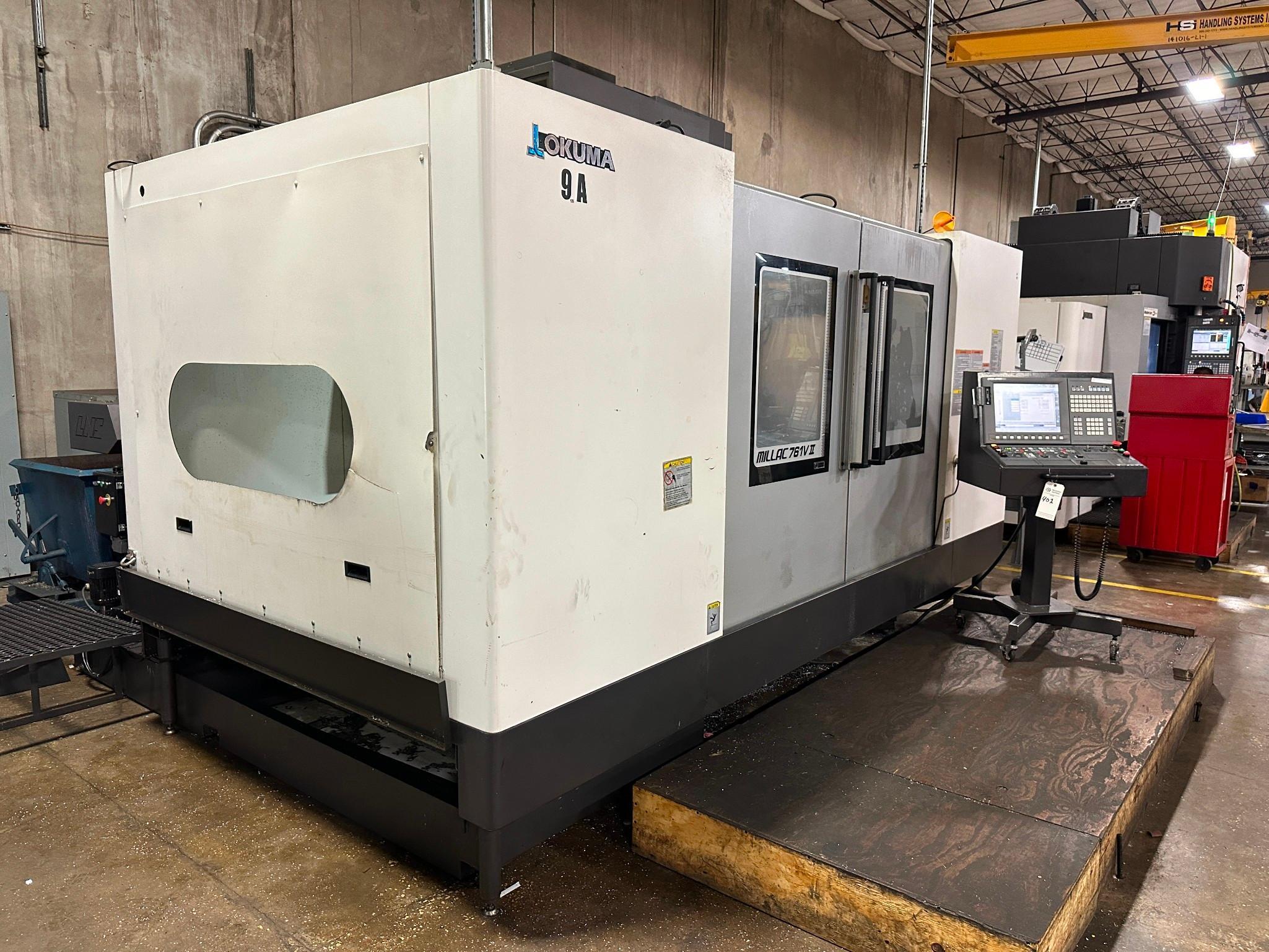

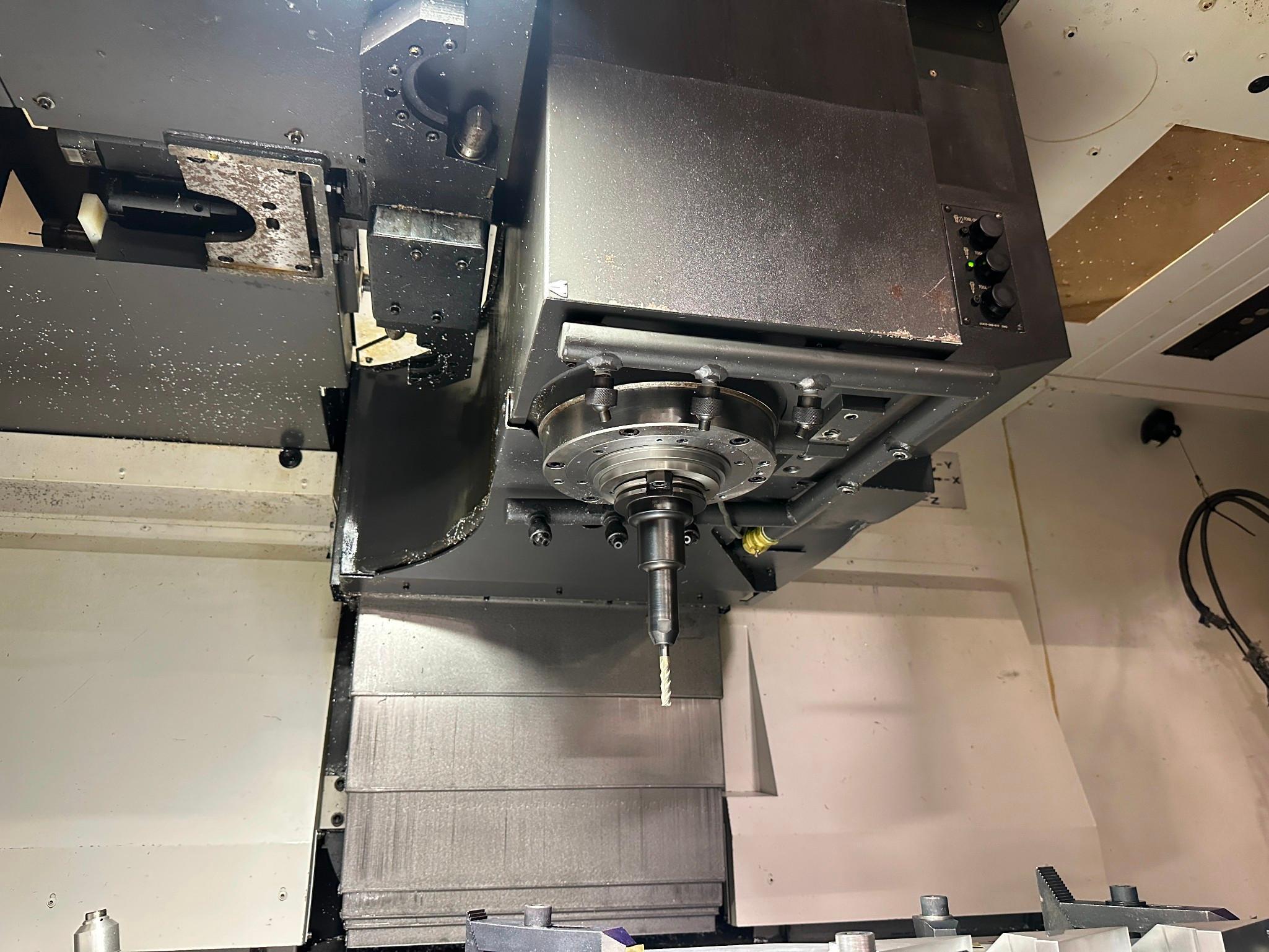

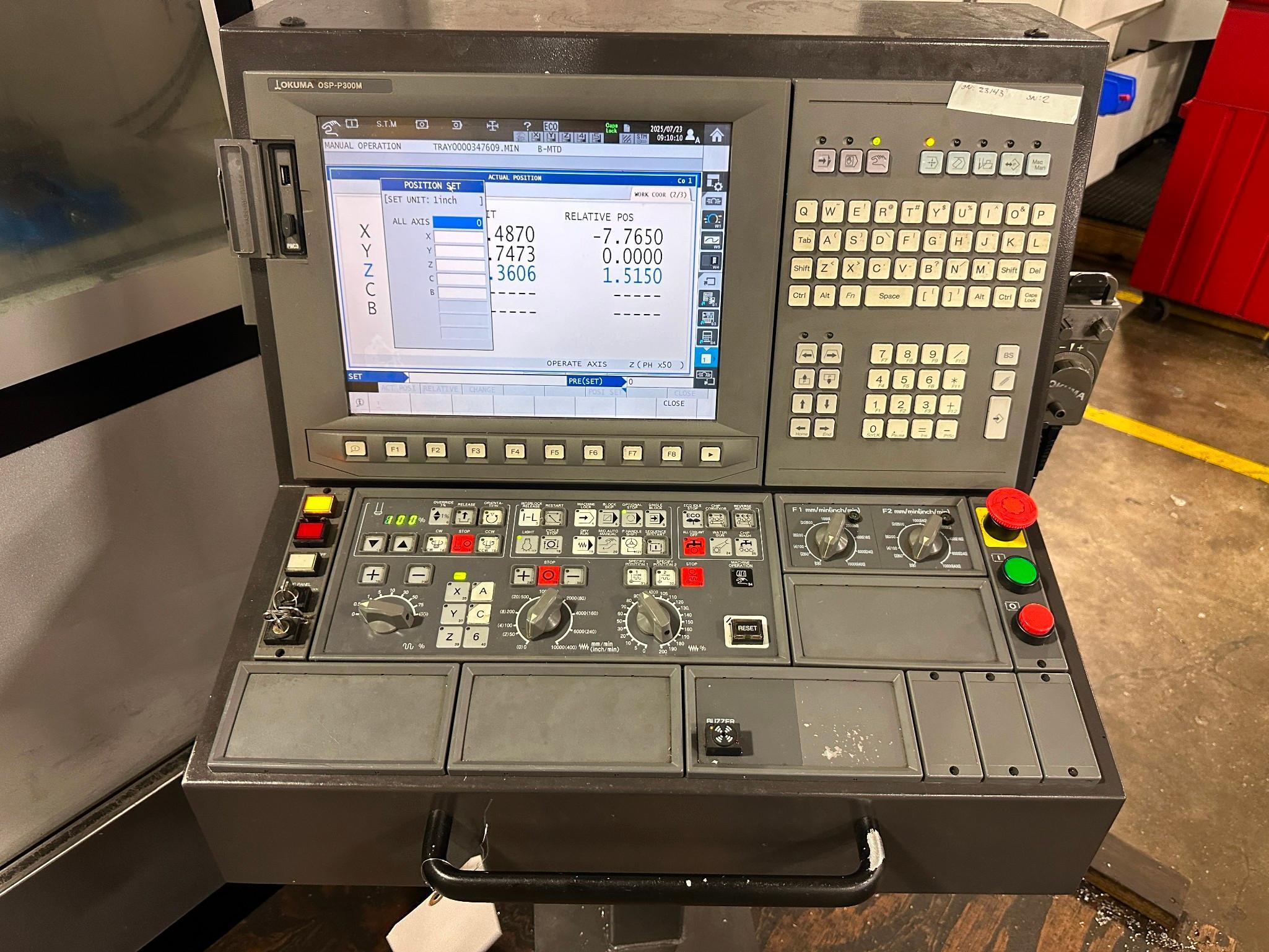

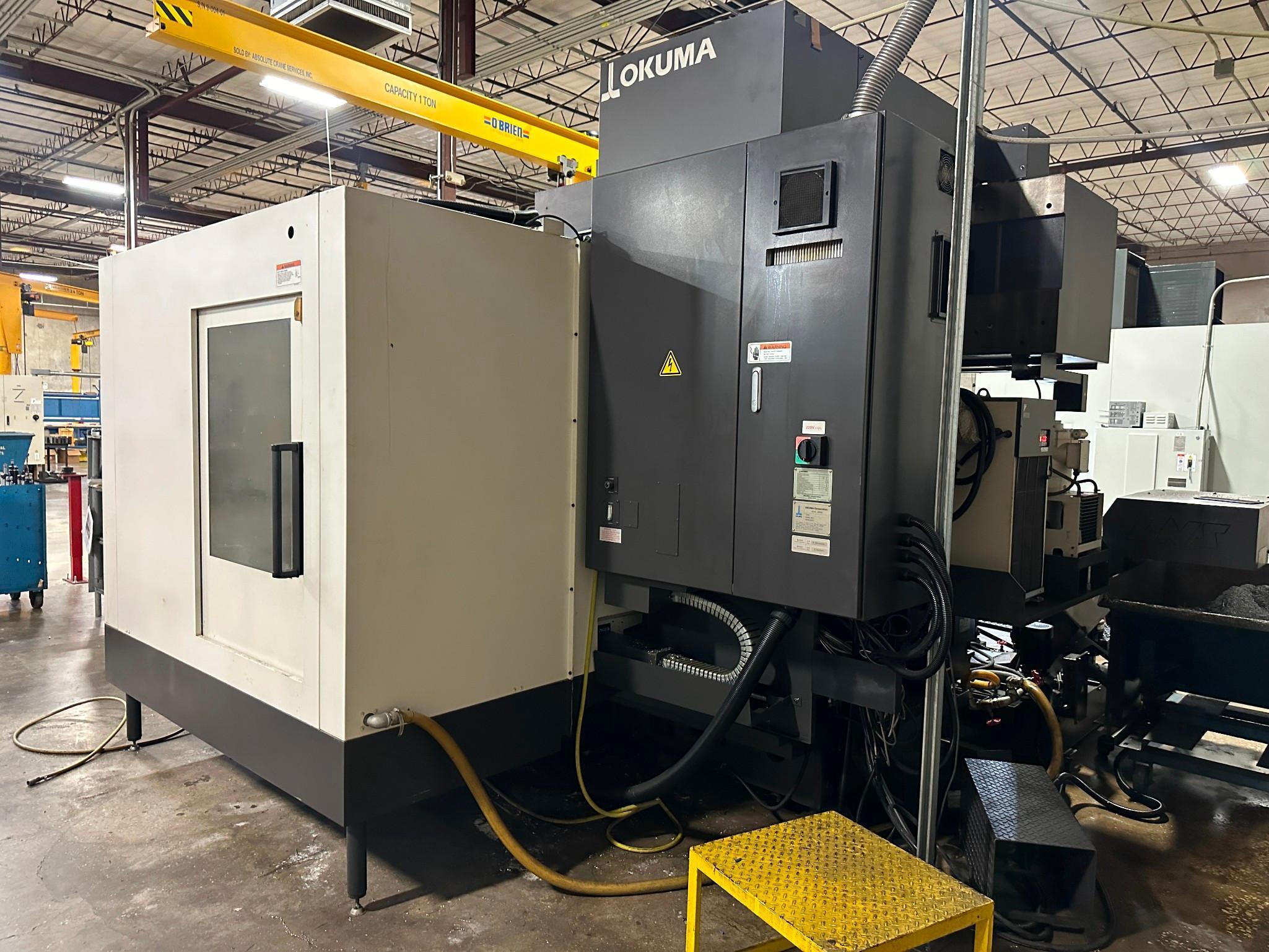

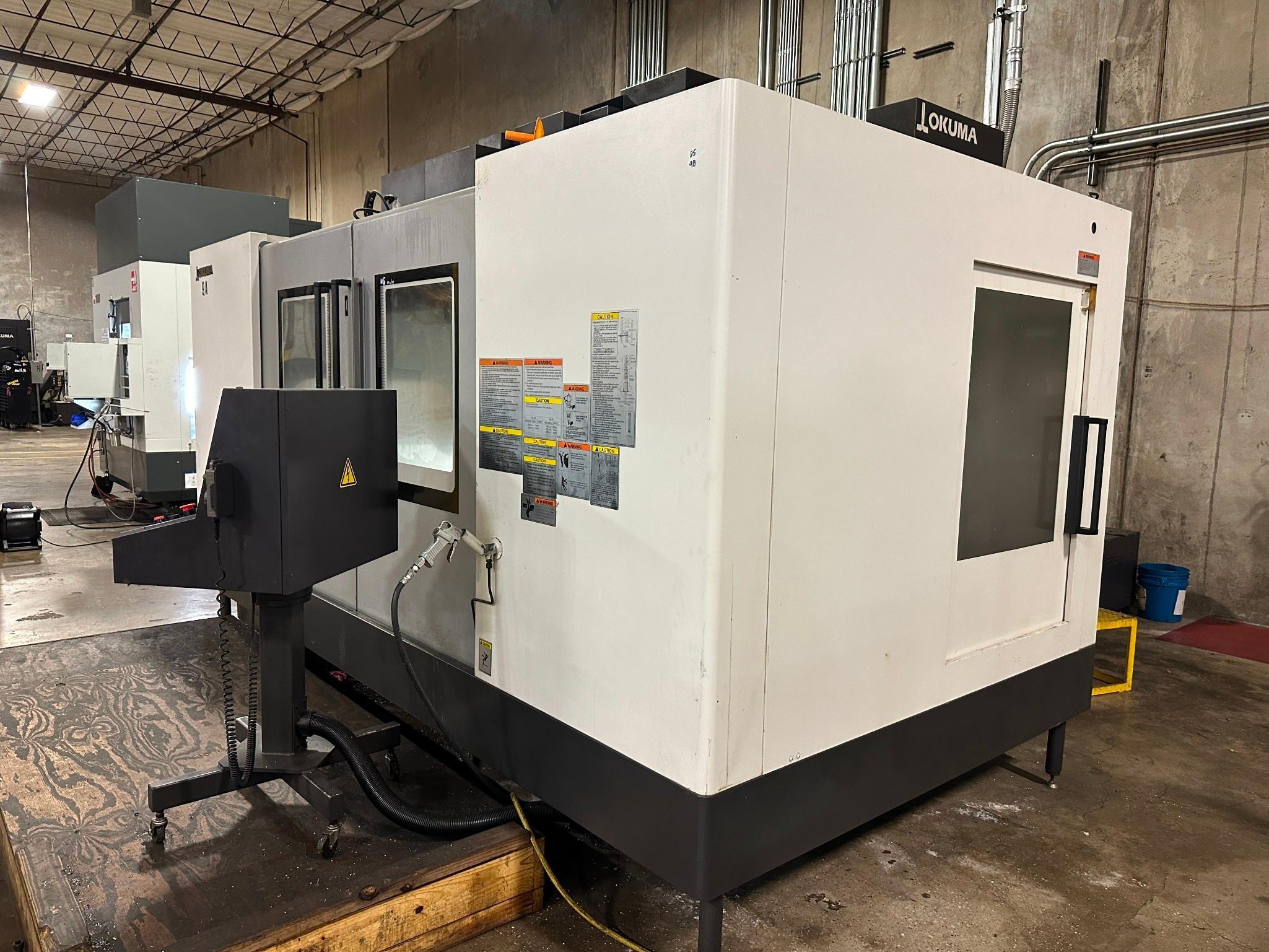

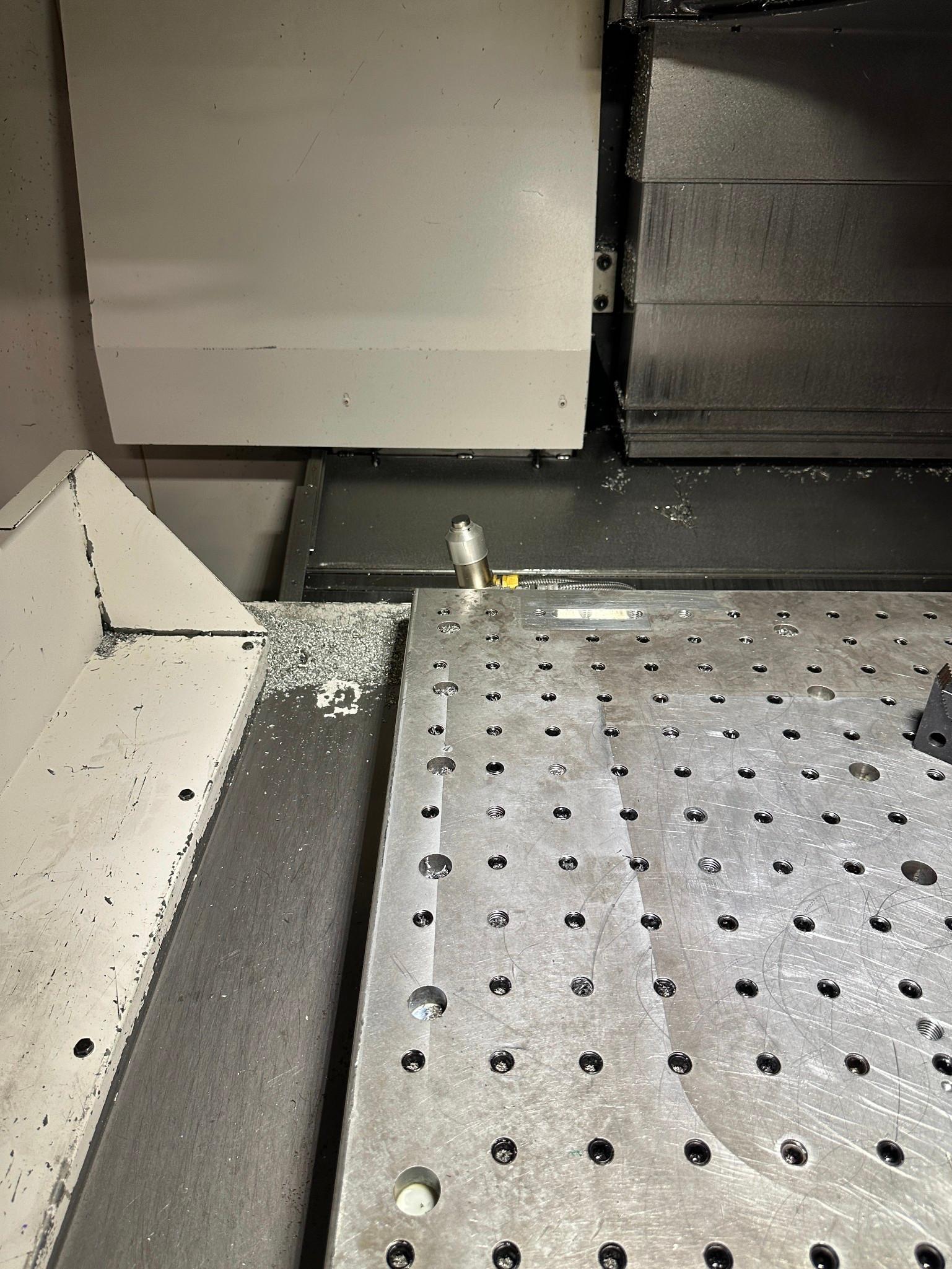

2016 OKUMA MILLAC 761 V II CNC 5 AXIS VERTICAL MACHINING CENTER, VMC, WITH KOMA TN-320 CNC 5TH AXIS TRUNNION TABLE SN: 191071 SPECIFICATIONS: X 60.63″ Y 29.92″ Z 25.98″ TABLE SURFACE TO SPINDLE NOSE 7.87” TO 33.86” TABLE SURFACE TO FLOOR LEVEL 40.55” POWER 35 HP TAPER HOLE CAT50 BIG-PLUS DIAMETER (FRONT BEARING) 3.937” OD. NUMBER OF RANGES 2 (BY AUTO GEAR CHANGE) SPEED RANGE 30-6,000 RPM RAPID TRAVERSE X/Y & Z AXES 630 IPM CUTTING FEEDRATE X/Y/Z AXES 0.1~5,000 MM/MIN MANUAL FEEDRATE X/Y/Z AXES 10~5,000 MM/MIN # ATC 36 SPEED RANGES 2 RANGES (GEAR HEAD) TABLE-W 28.35″ TABLE-L 70.87″ # AXIS 5 LOAD CAPACITY 4,400 LB. PULL STUD MAS II SPECIAL MAX. TOOL DIA. W/ADJACENT TOOLS 4.72” 120 MM MAX. TOOL DIA. W/O ADJACENT TOOLS 7.87” 200 MM MAX. TOOL LENGTH 15.75” 400 MM MAX. TOOL WEIGHT 44 LB. 20 KG TOOL CHANGE SPEED (TOOL‐TO‐TOOL) 2.5 SECONDS EQUIPPED WITH: TSUDAKOMA KOMA TN-320 CNC 5TH AXIS TRUNNION TABLE, 12.6″ TABLE OKUMA OSP-P300M CNC CONTROL OIL COOLING SYSTEM CAT50 BIG PLUS SPINDLE: 6000RPM 36 TOOL ATC SPLASH GUN TOOL BREAKAGE DETECTION THERMAL ACTIVE STABILIZERS (TAS-S & TAS-C) SPARE M-CODES, 8 SETS LNS CHIP CONVEYOR (HINGE) MULTI-TAP TRANSFORMER TSUDAKOMA KOMA TN-320 CNC 5TH AXIS TRUNNION TABLE, 12.6″ TABLE SN: 151461 SPECIFICATIONS: TABLE DIAMETER 12.6″ TABLE HEIGHT 14″ AT 0 DEGREES MAXIMUM MOTOR SPEED 4,000 RPM NOTE: FIXTURING, TOOL HOLDERS AND VISE ARE NOT INCLUDED All specifications are assumed to be correct but must be confirmed by the purchasing entity. Item Location – Houston, TX
