Description

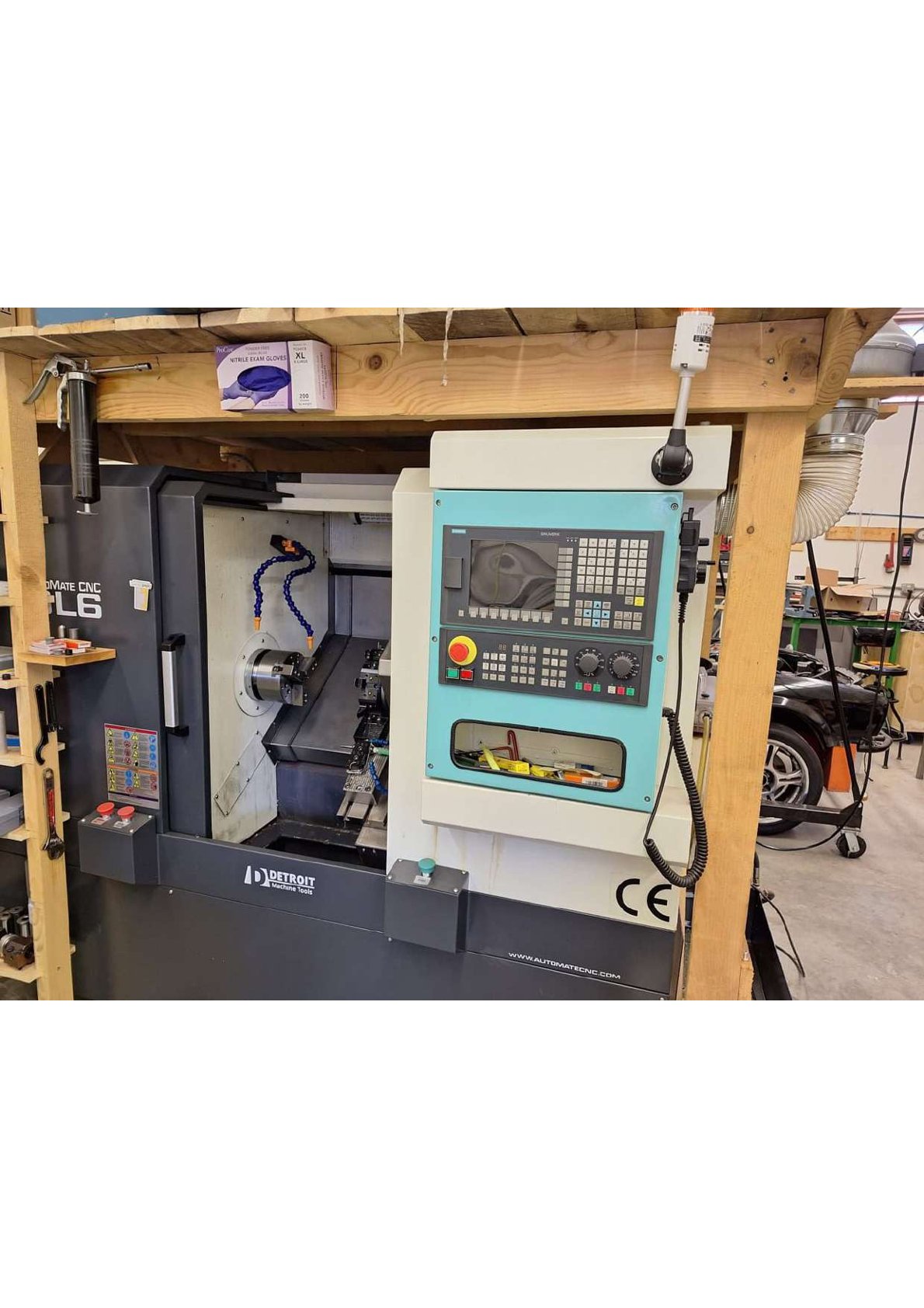

Compact and precise CNC lathe designed for efficient small- to medium-part production. Equipped with Siemens control and bar feeder, offering excellent accuracy, speed, and reliability.

Technical Specifications:

• Year of manufacture: 2017
• X-axis travel: 7.87″
• Z-axis travel: 9.84″
• Distance between centers: 18″
• Max swing over bed: 18.90″
• Max cutting/turning diameter: 9.84″
• Rapid traverse (X/Z): 787.44 / 984.24 IPM

Spindle:

• Bar capacity: 2.00″

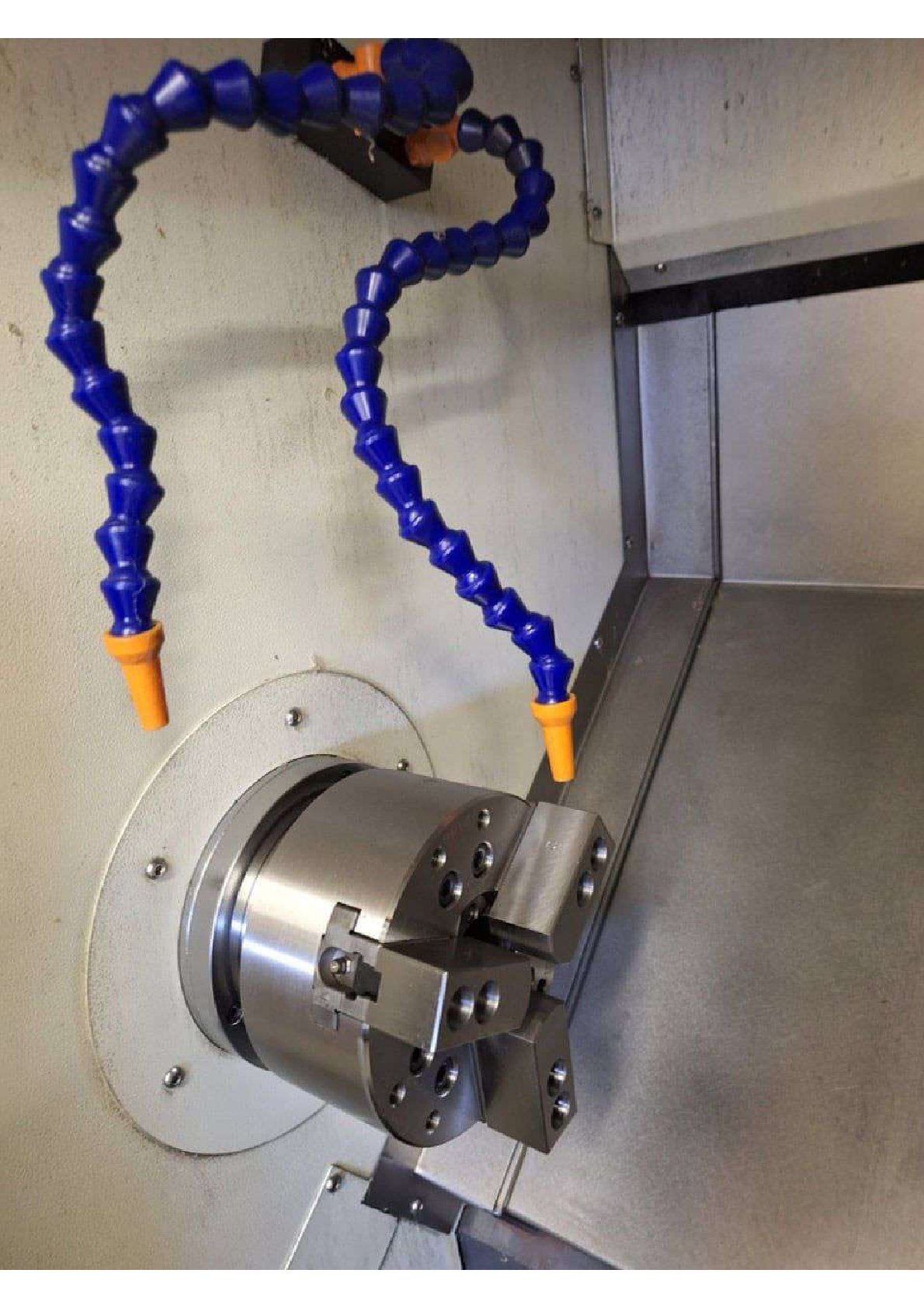

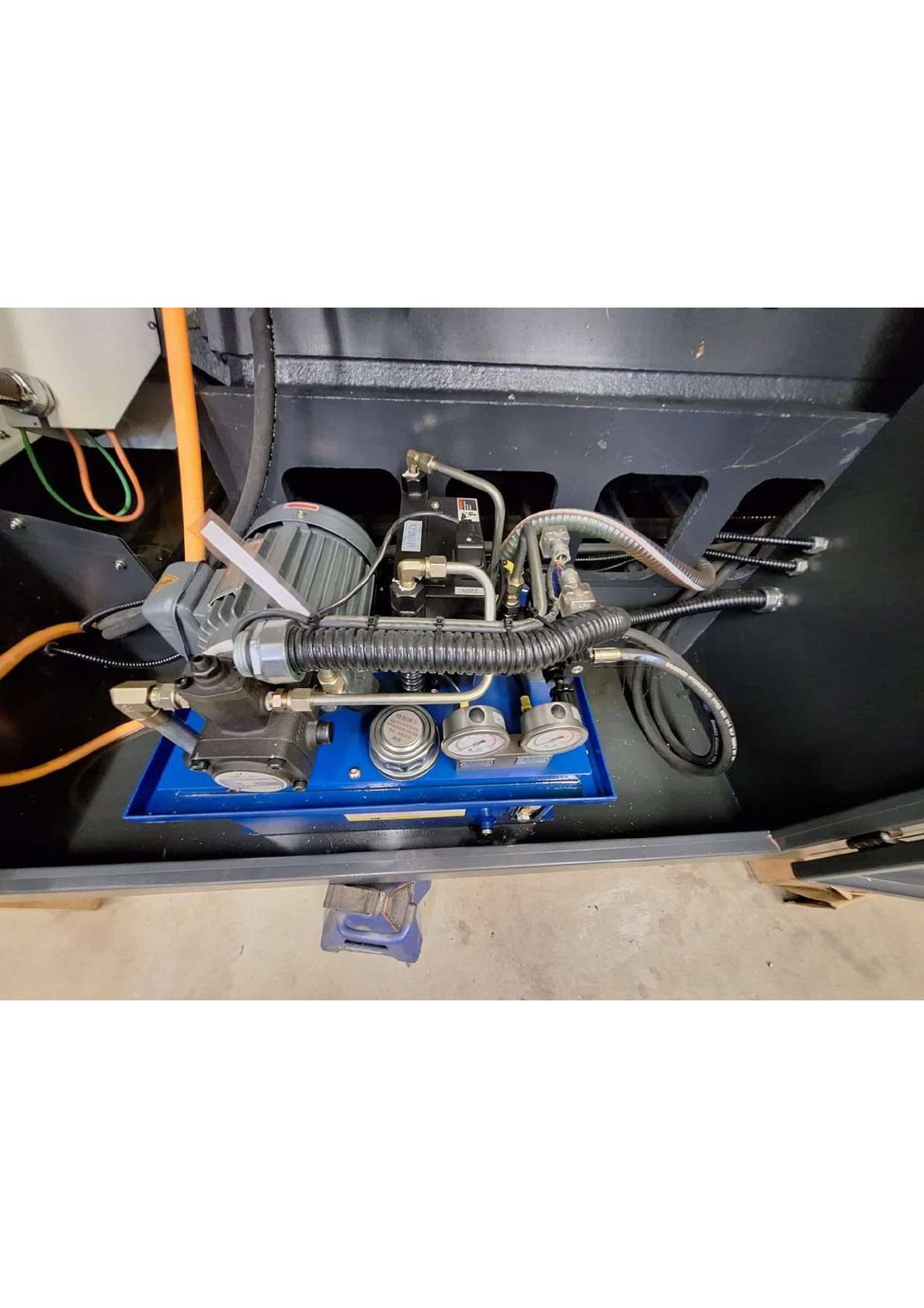

• Chuck size: 6.0″ hydraulic
• Spindle speed: 3,000 rpm
• Spindle motor: 7.5 HP

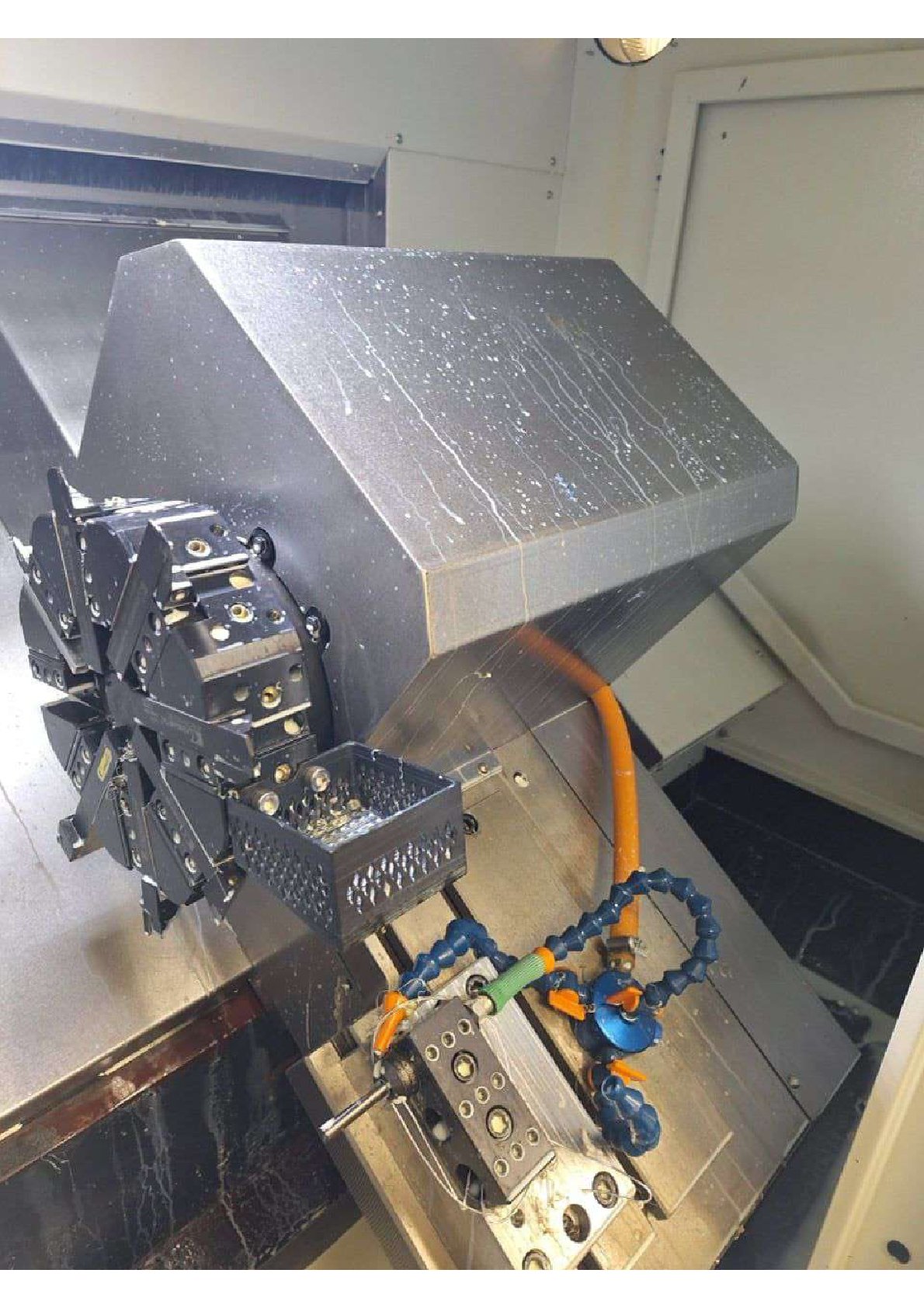

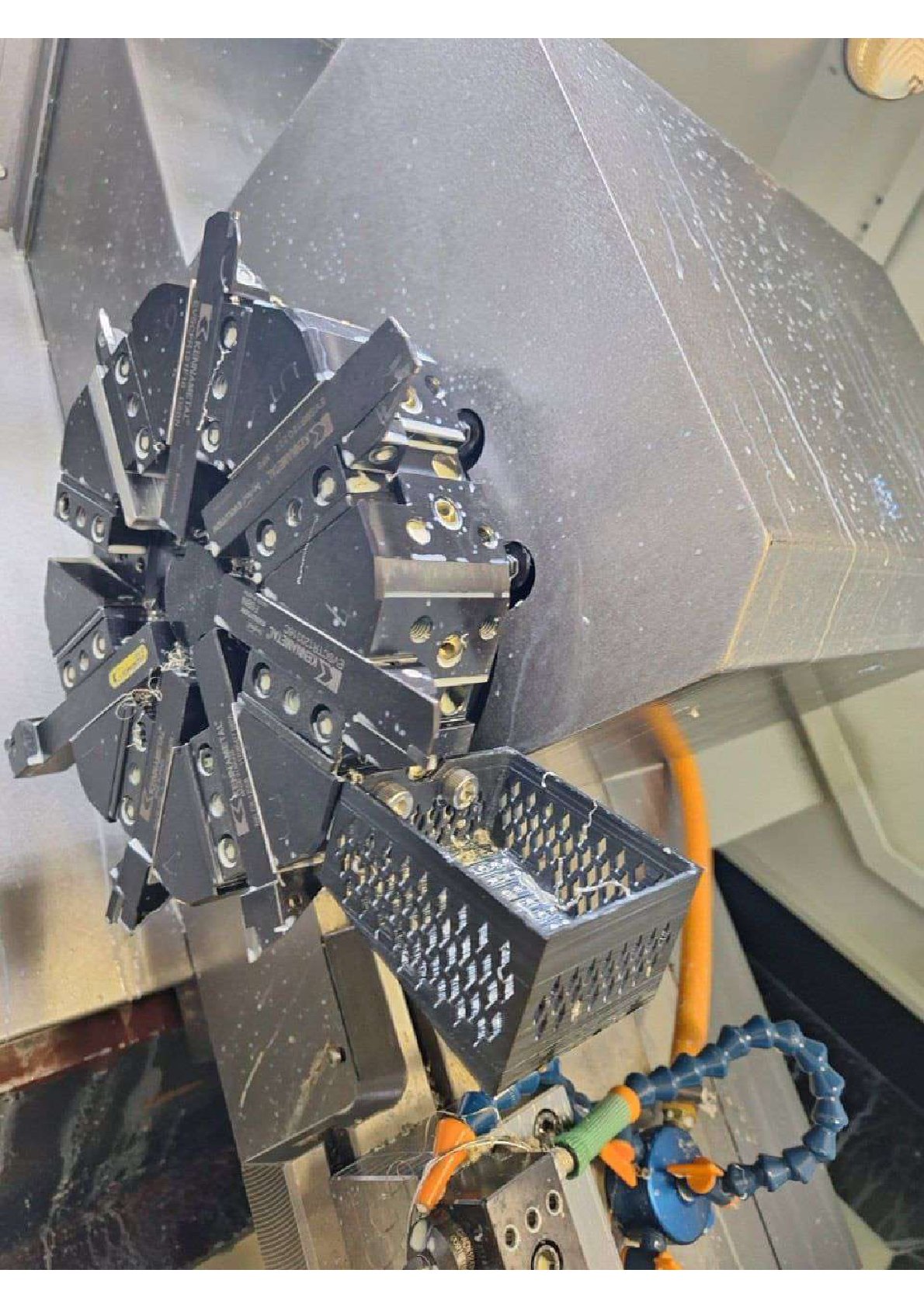

Turret:

• Tool positions: 8
• Turret configuration: Gang tooling

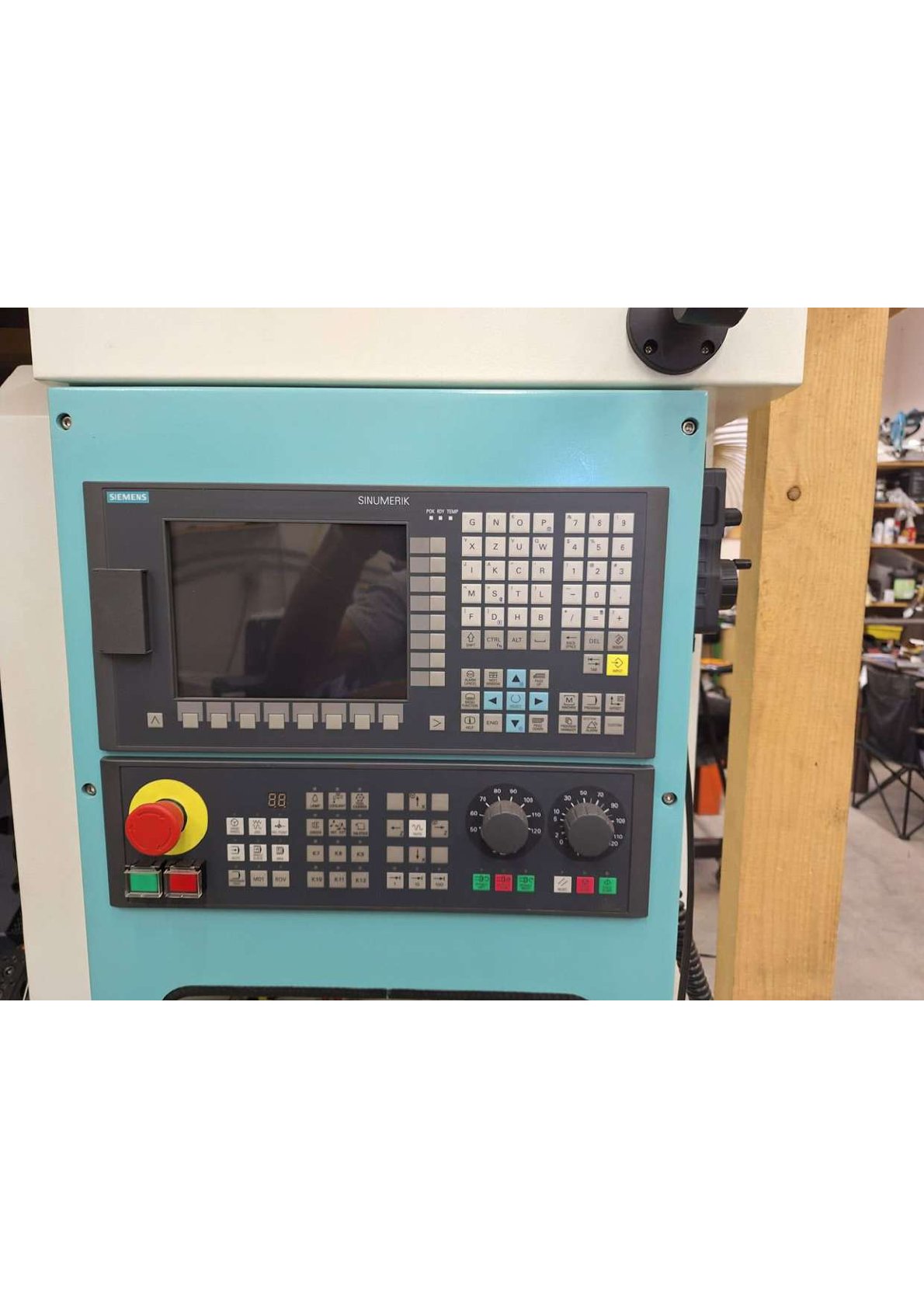

Control:

• Siemens Sinumerik 808D Advanced
• USB and Ethernet/LAN connectivity
• Manual machining plus mode
• Unlocked manufacturer-level access

Equipped With:

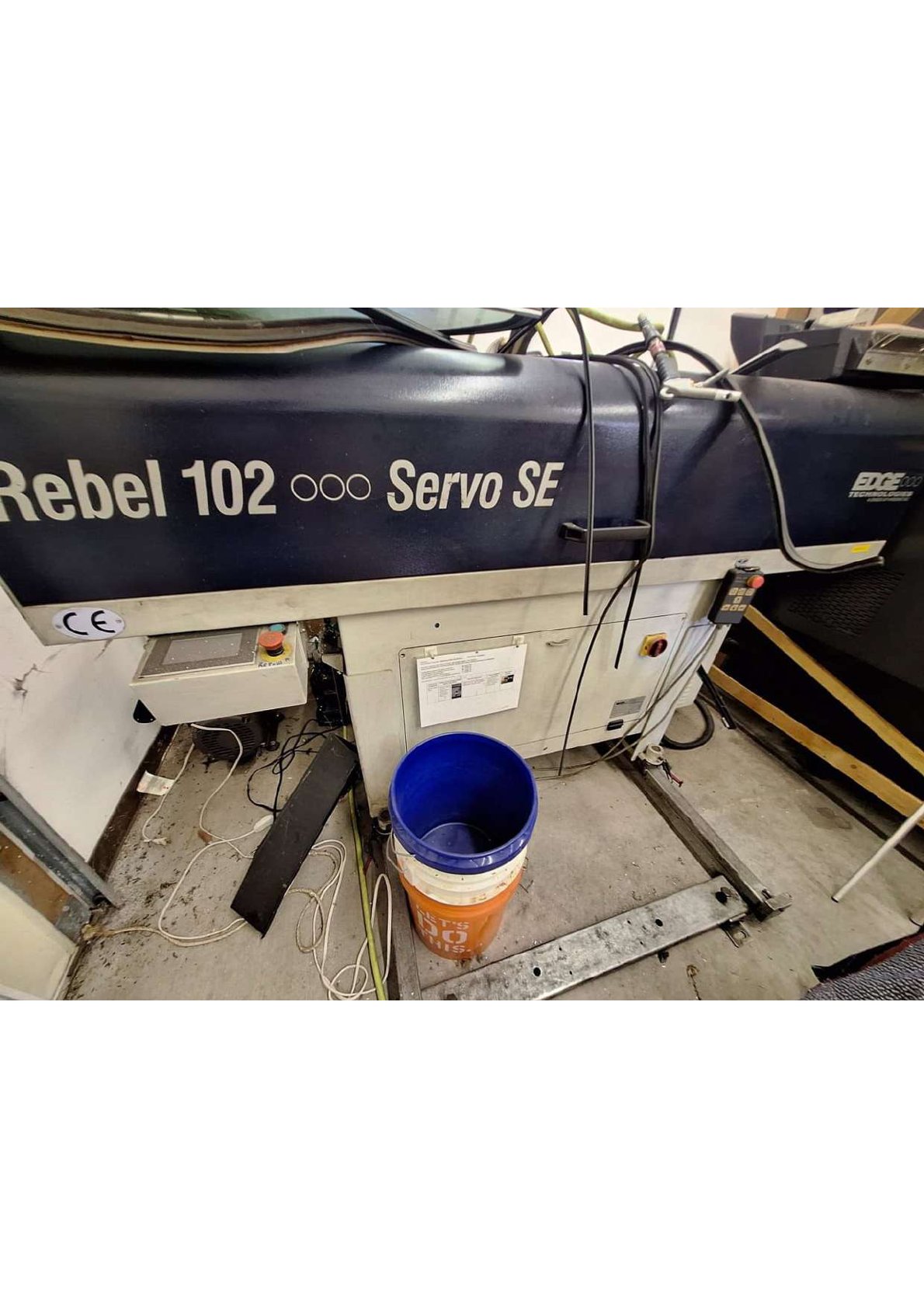

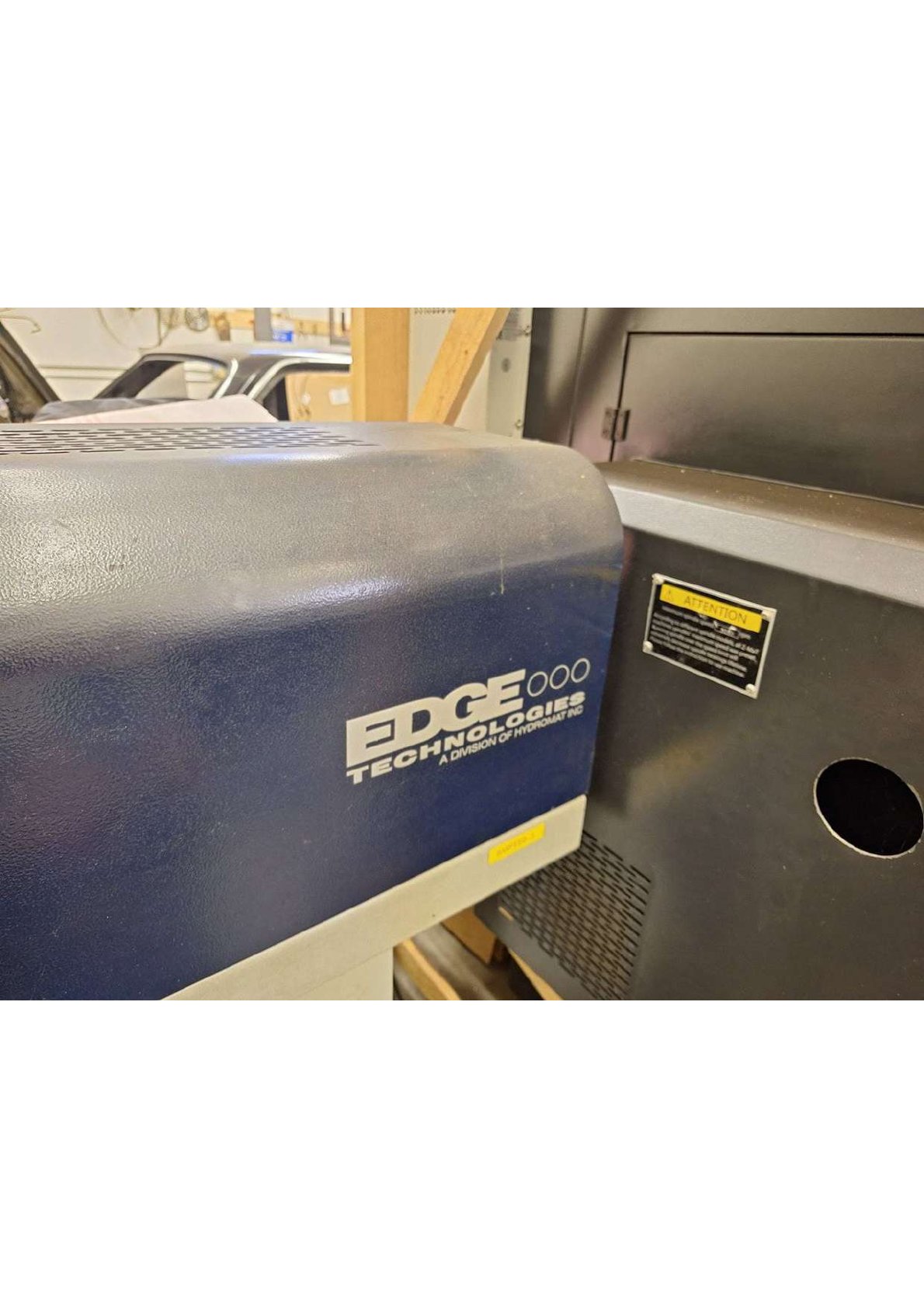

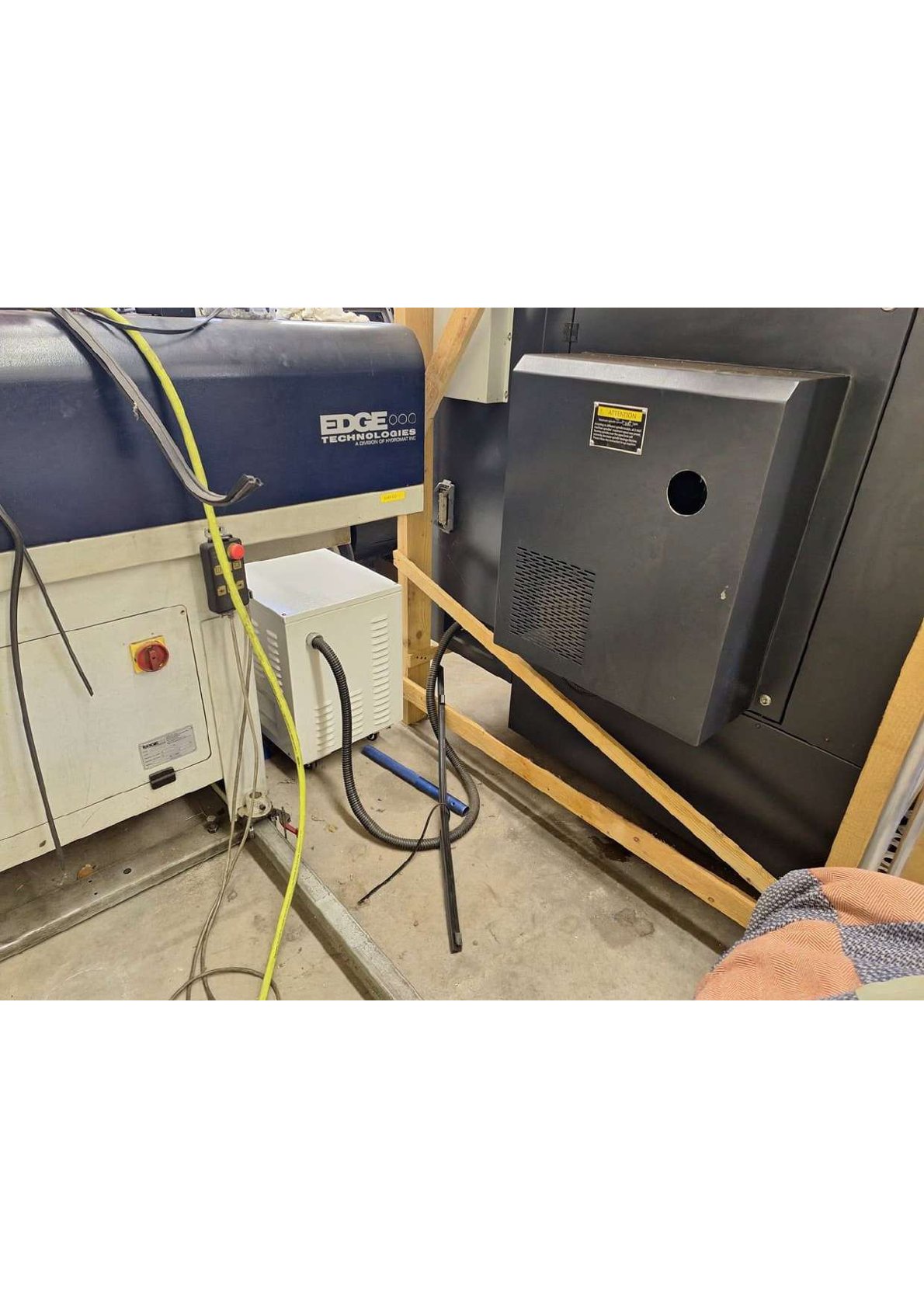

• Edge Technologies Rebel 102 Servo SE bar feeder
