Description

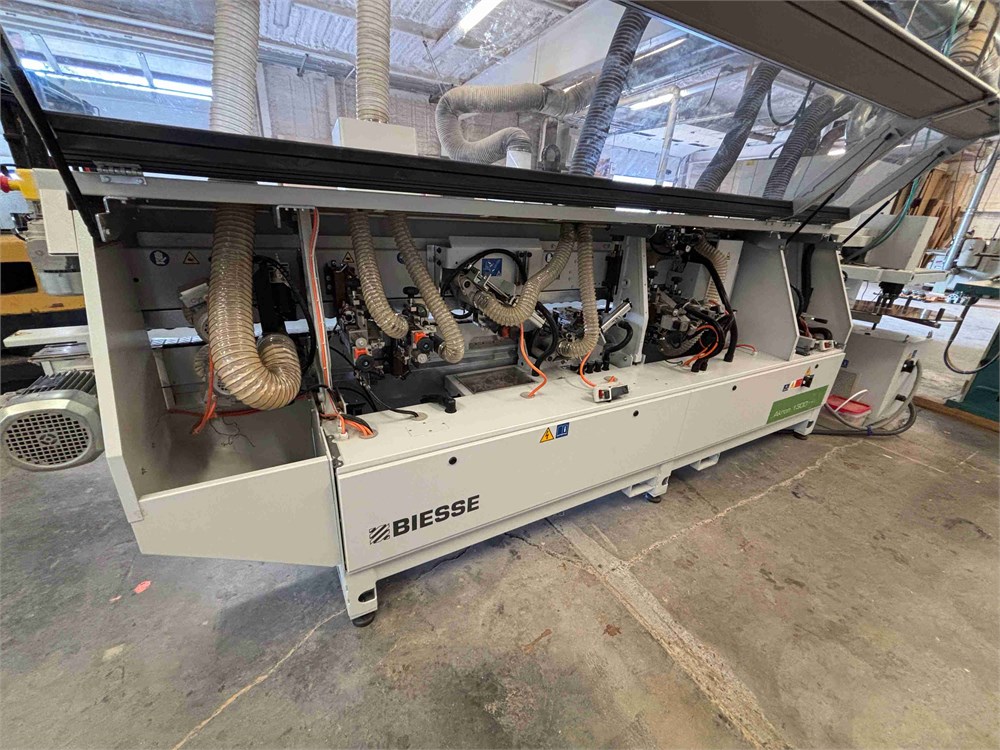

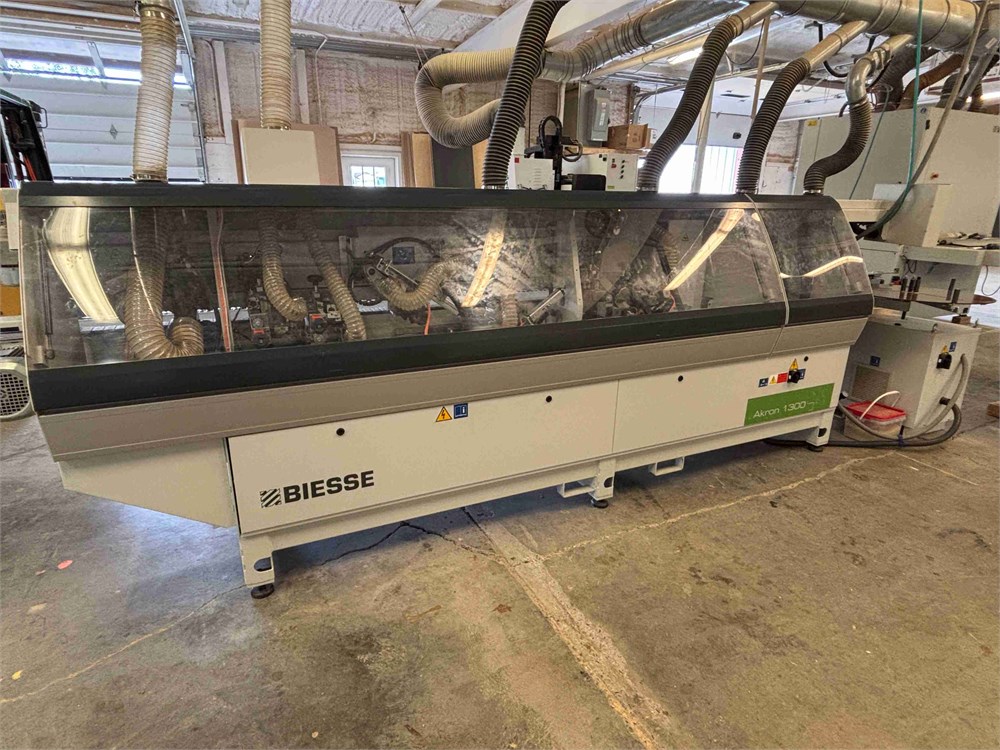

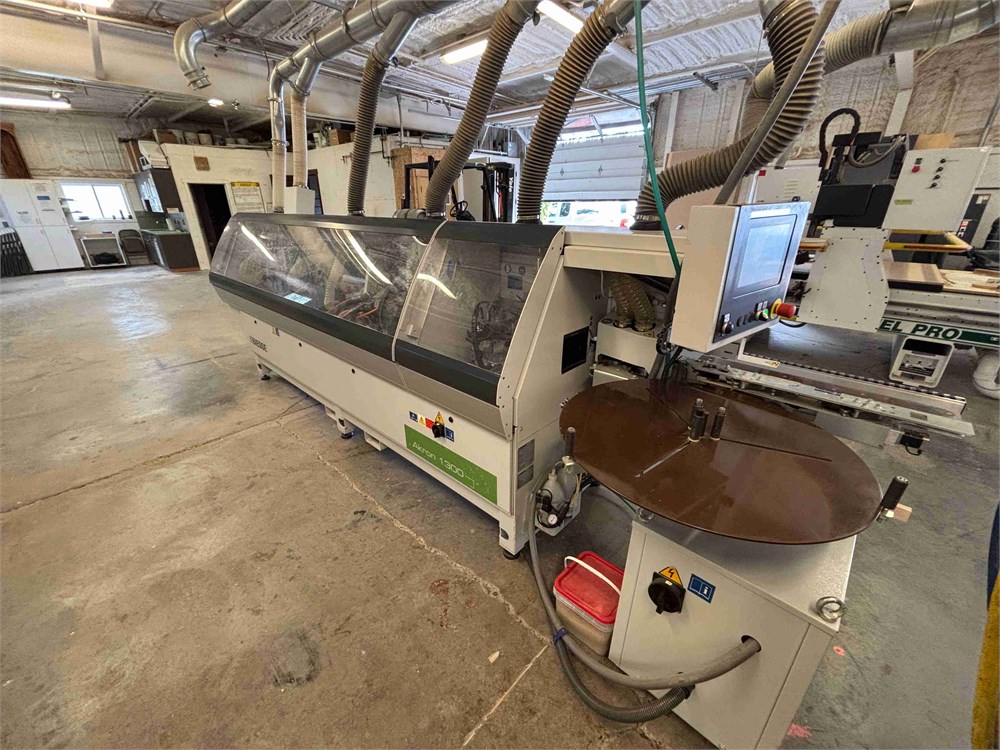

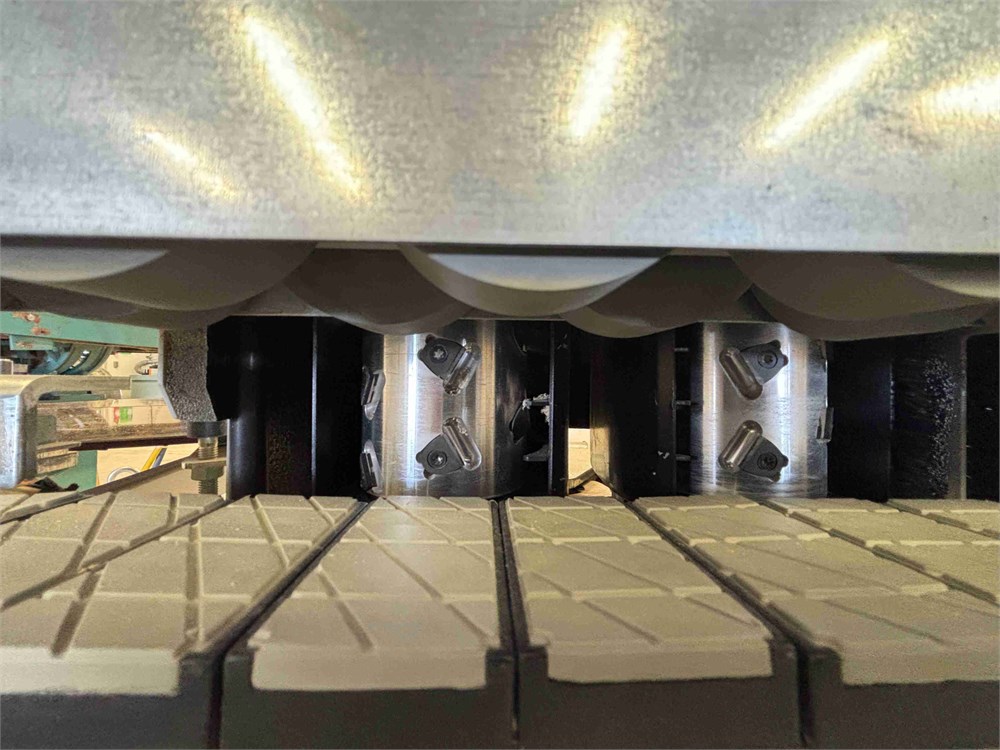

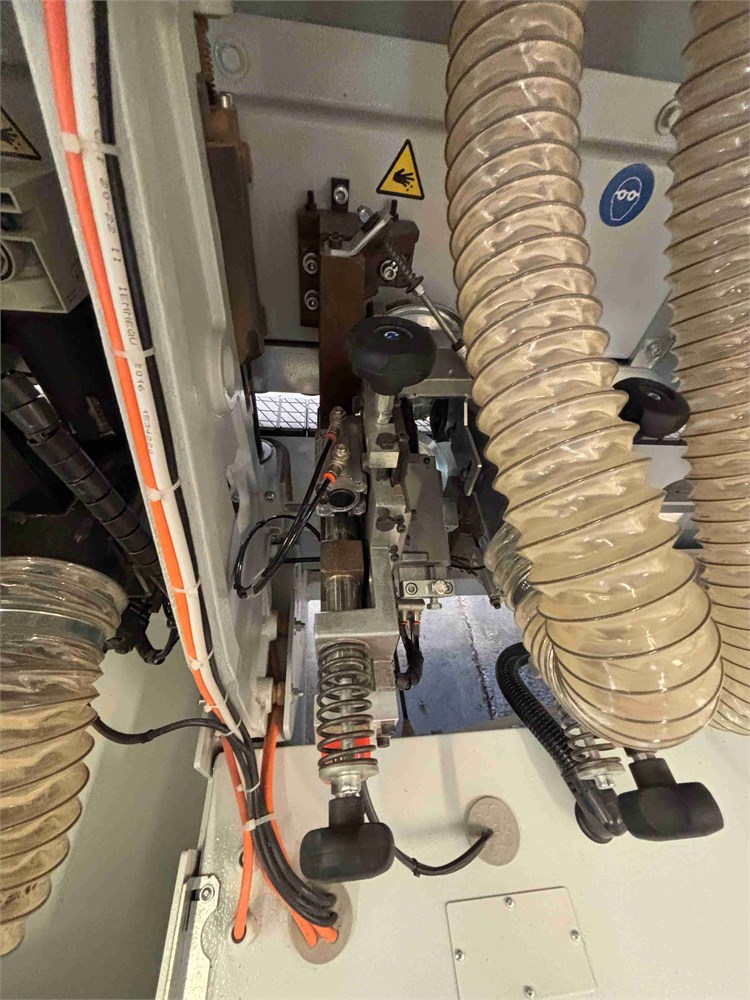

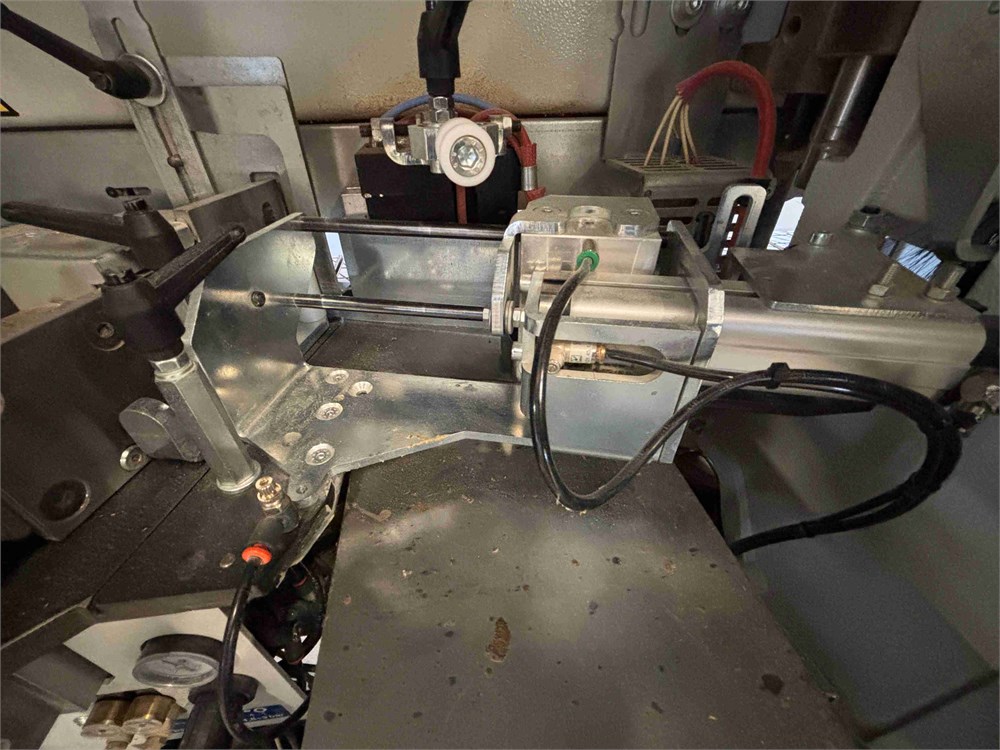

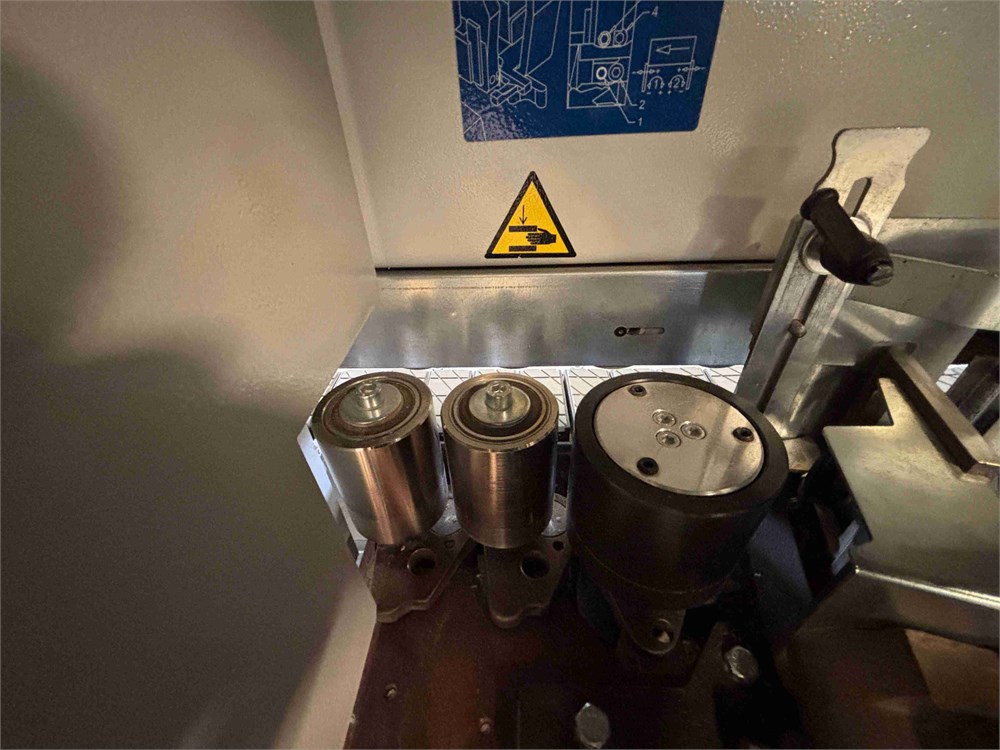

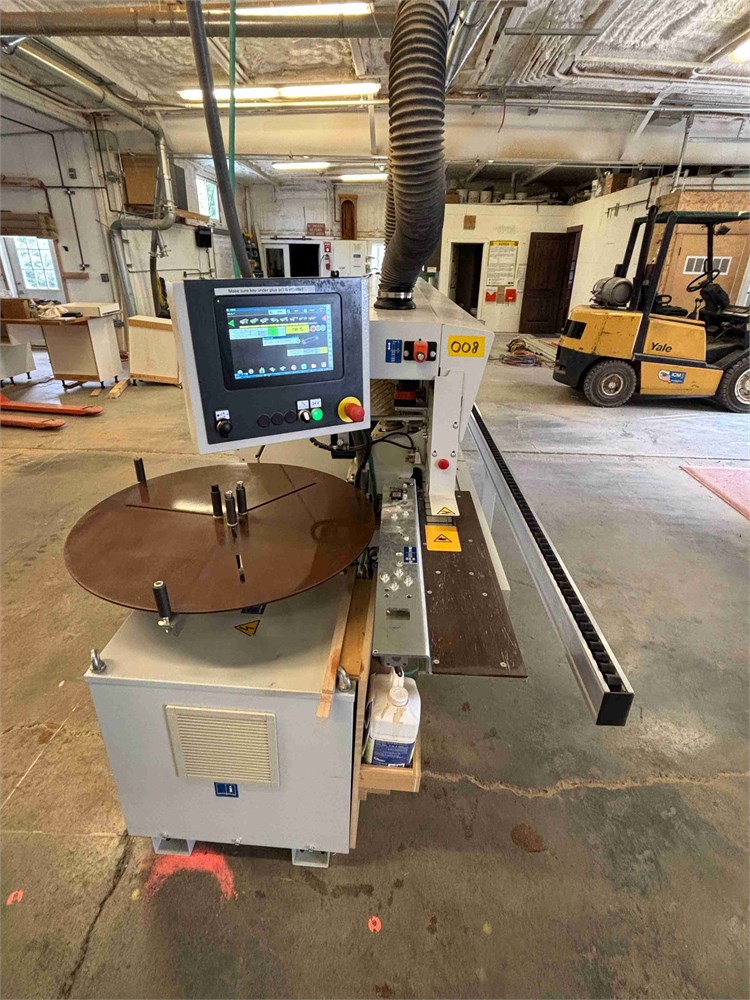

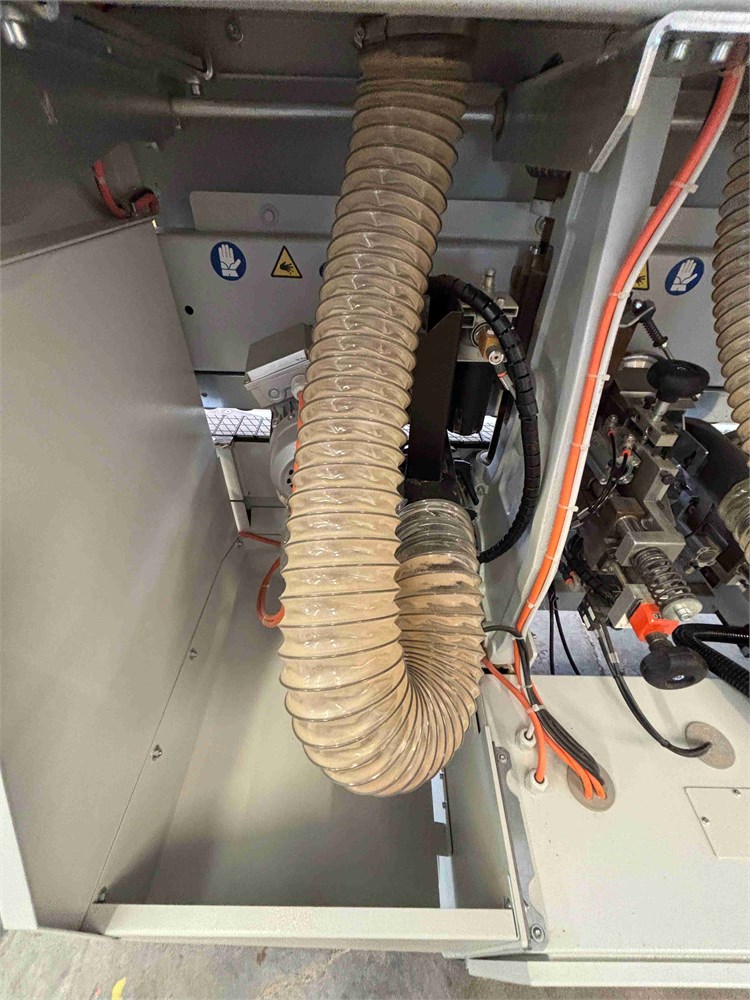

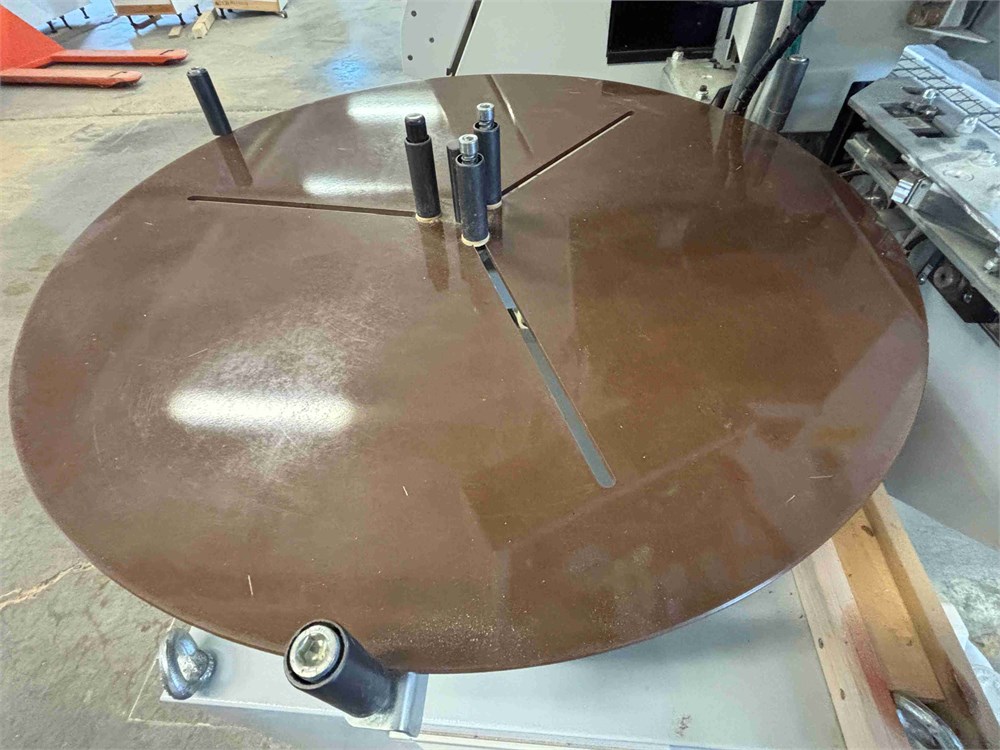

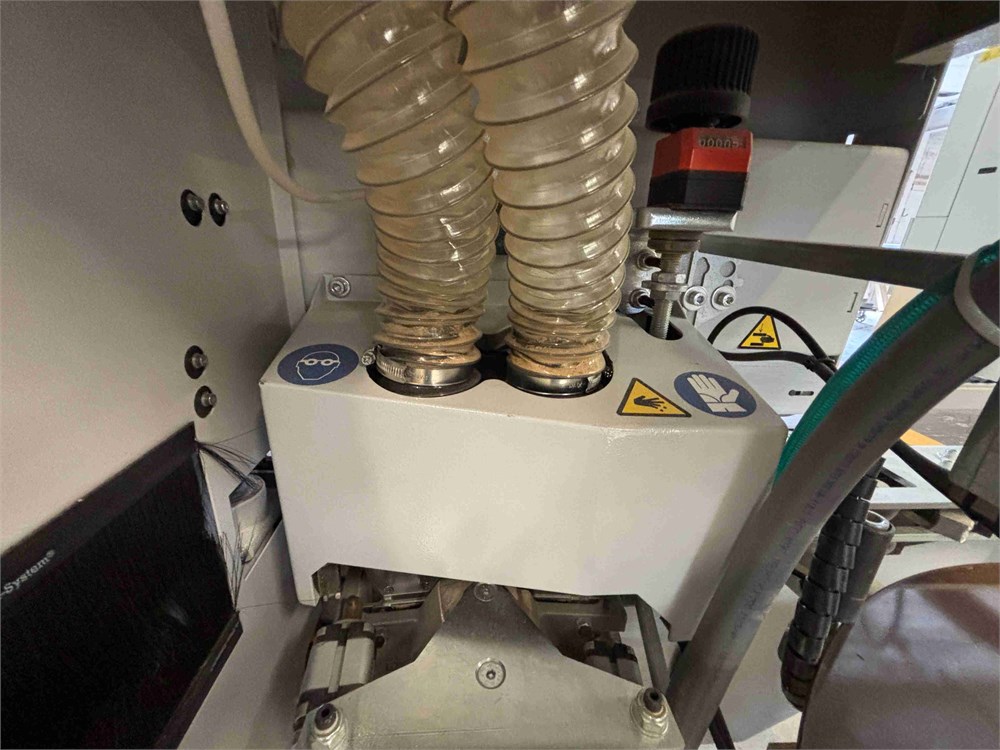

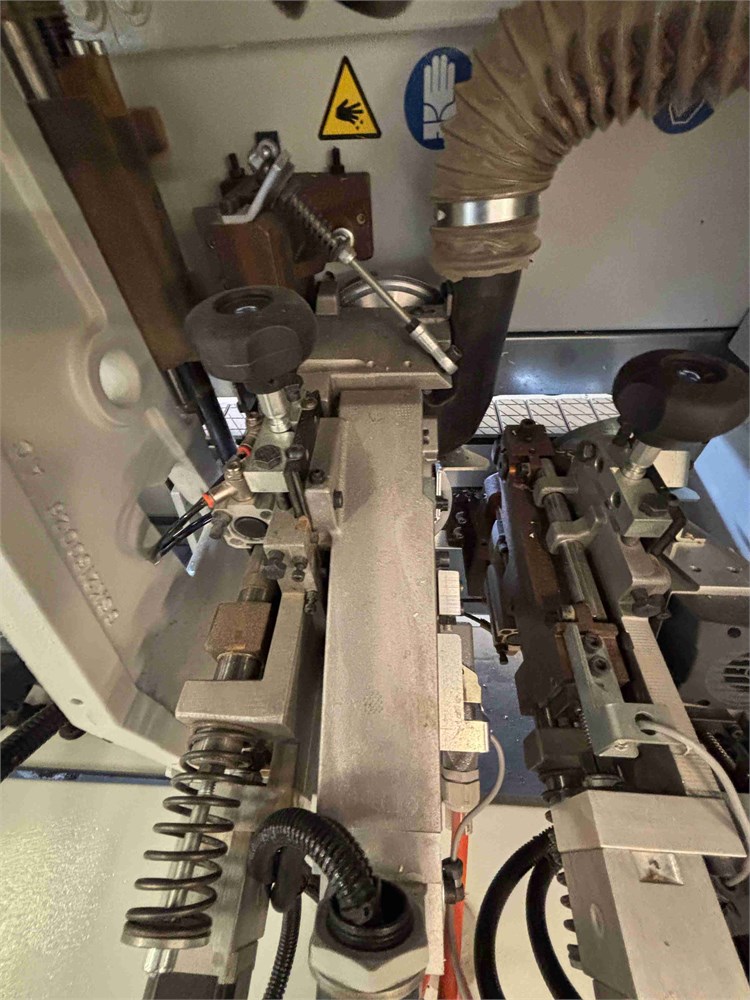

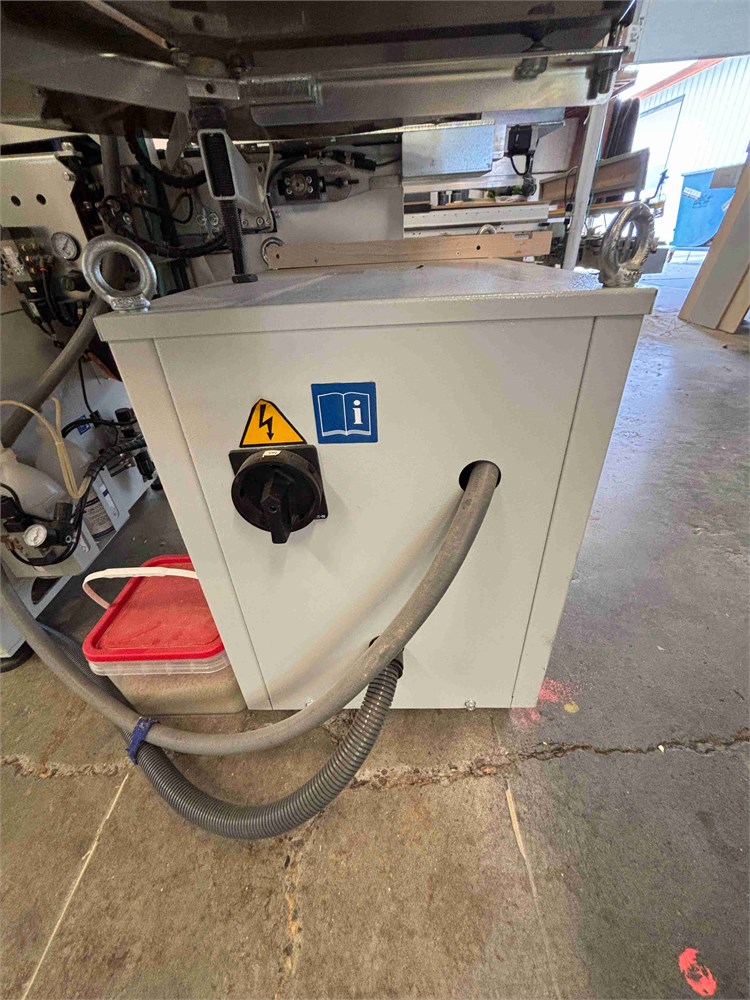

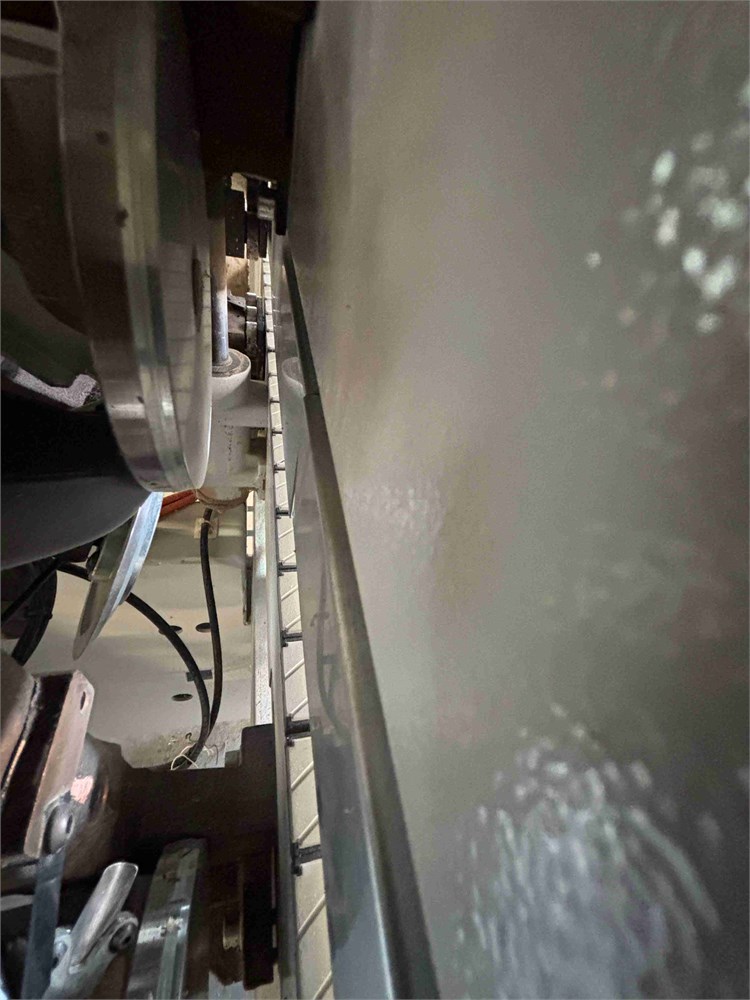

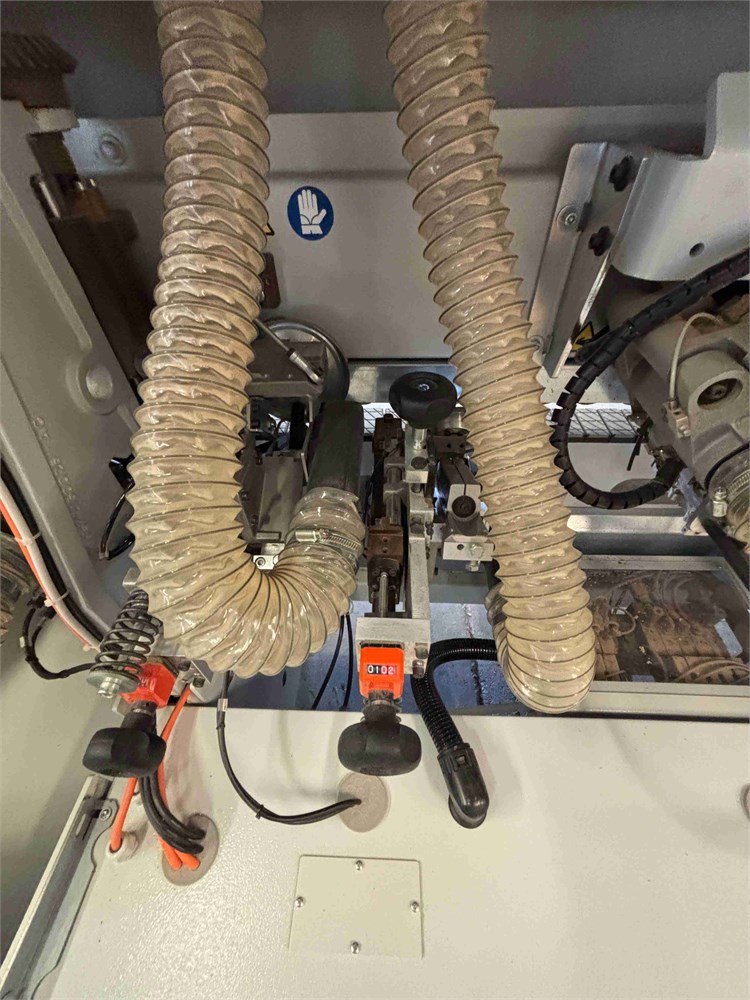

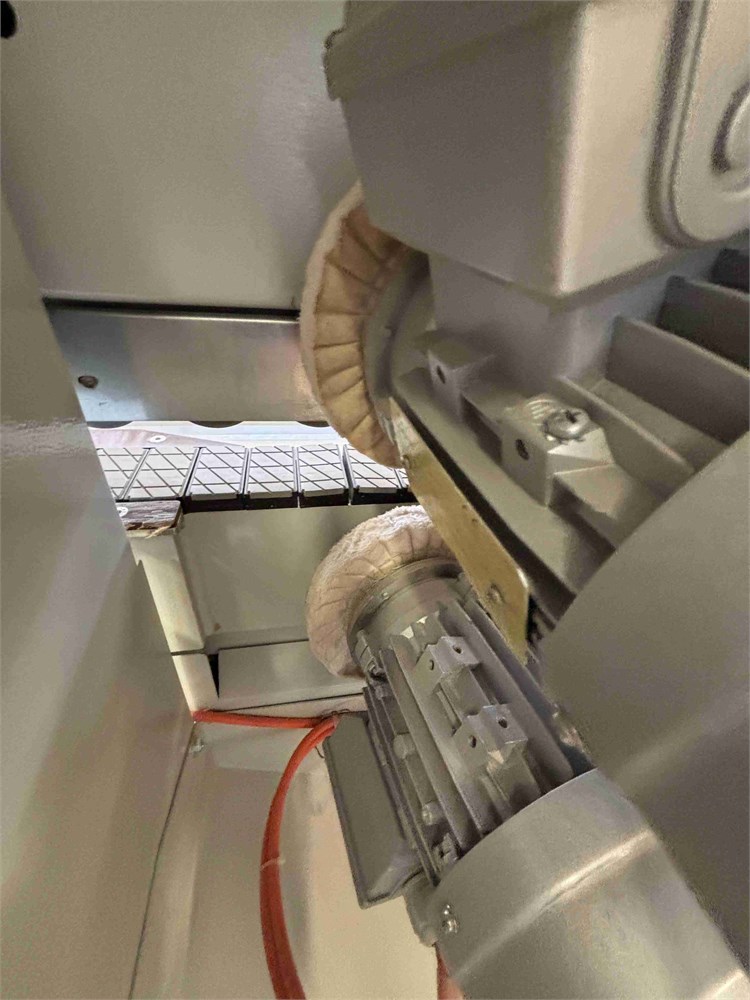

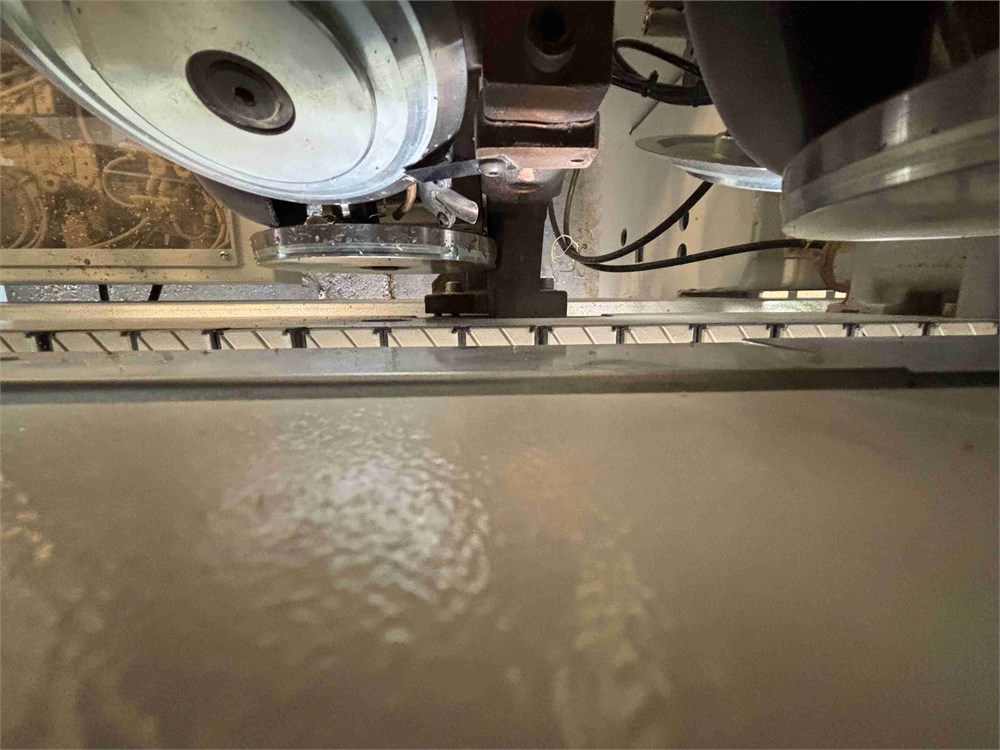

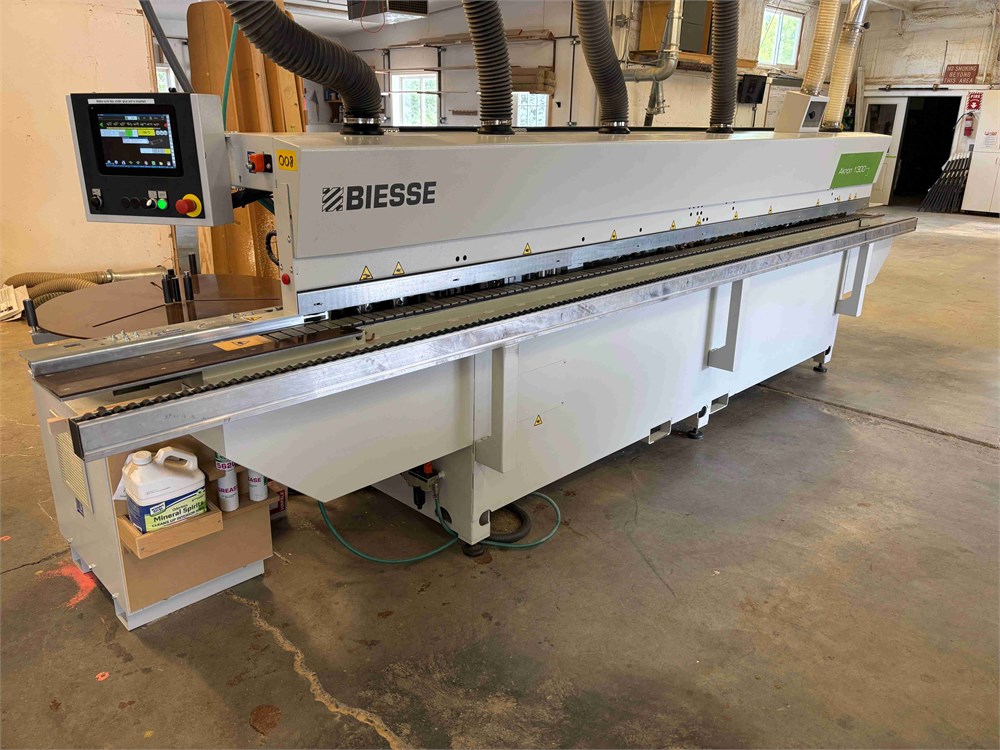

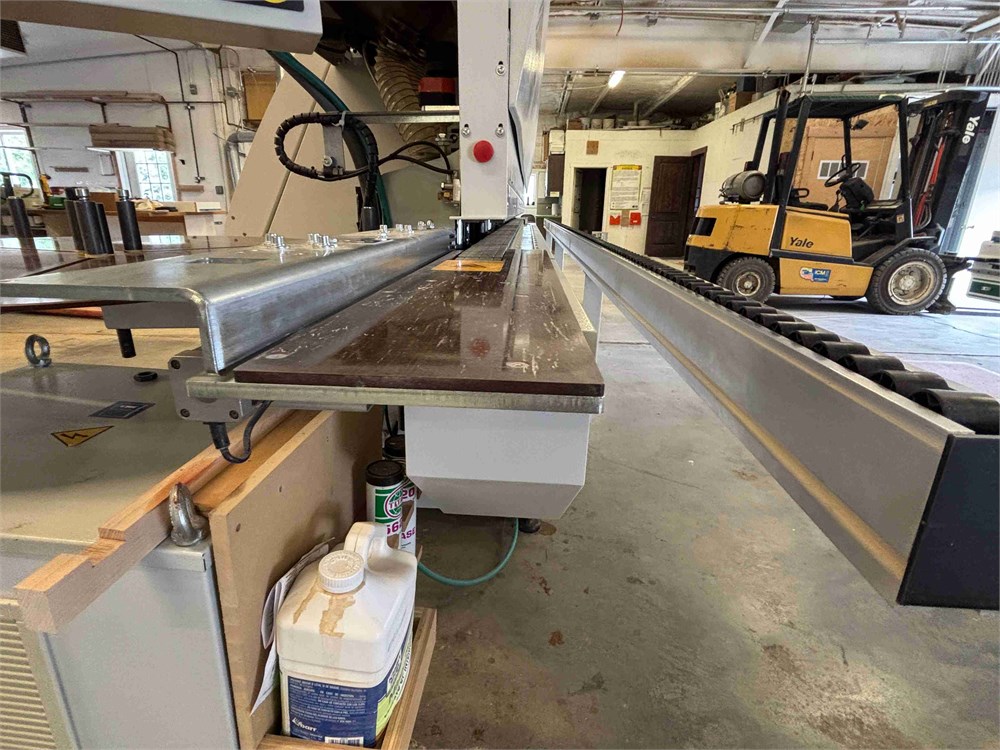

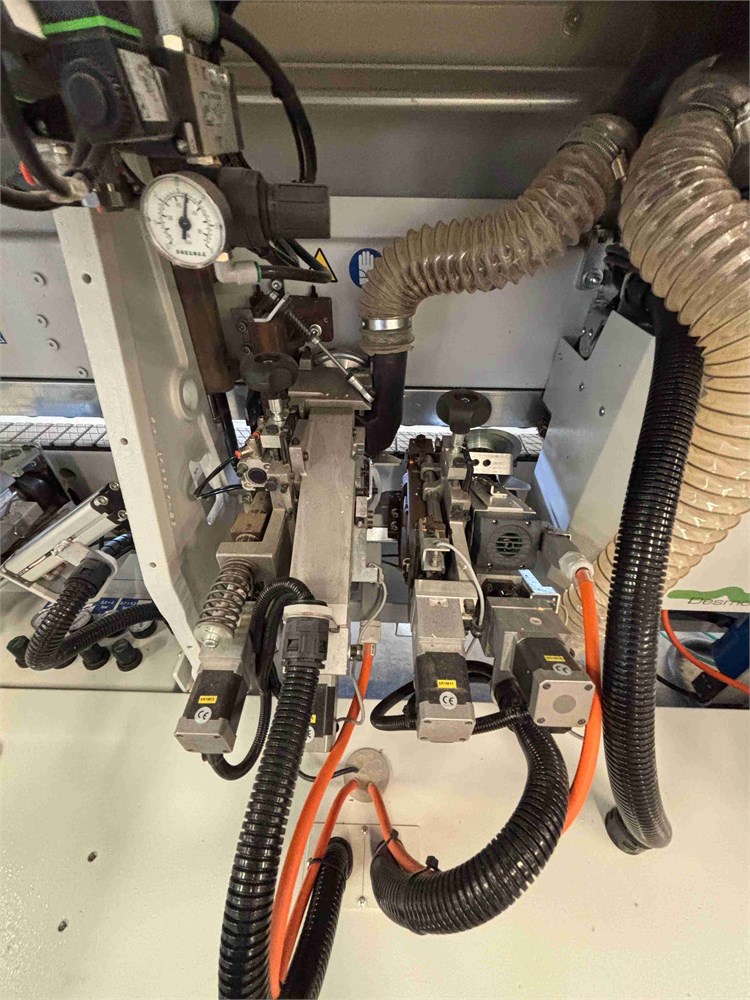

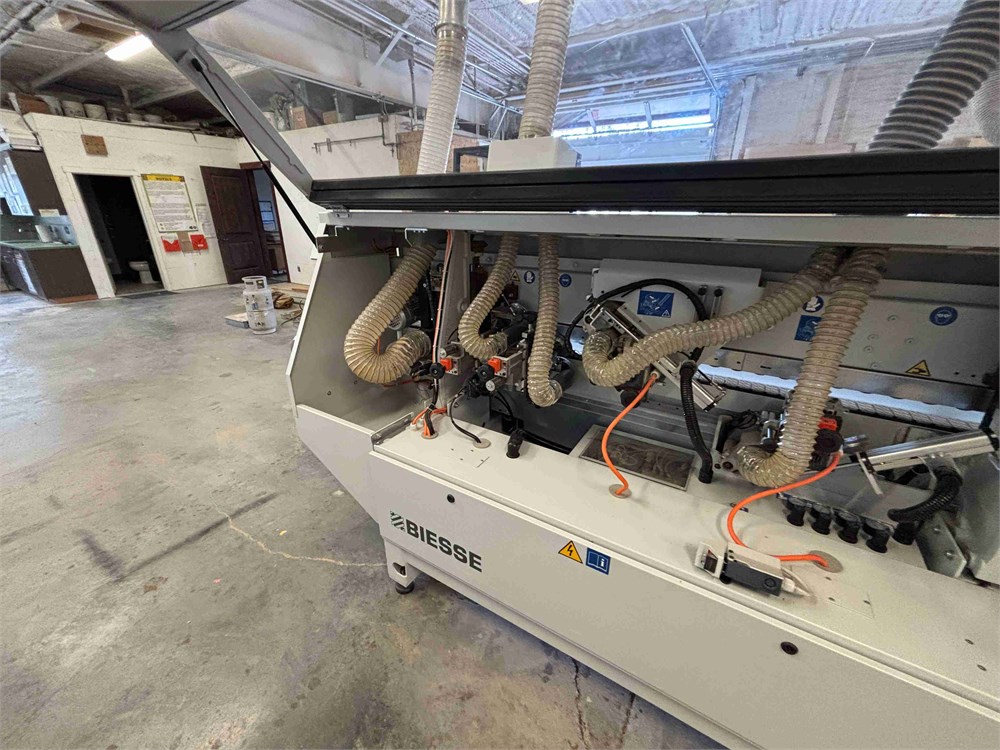

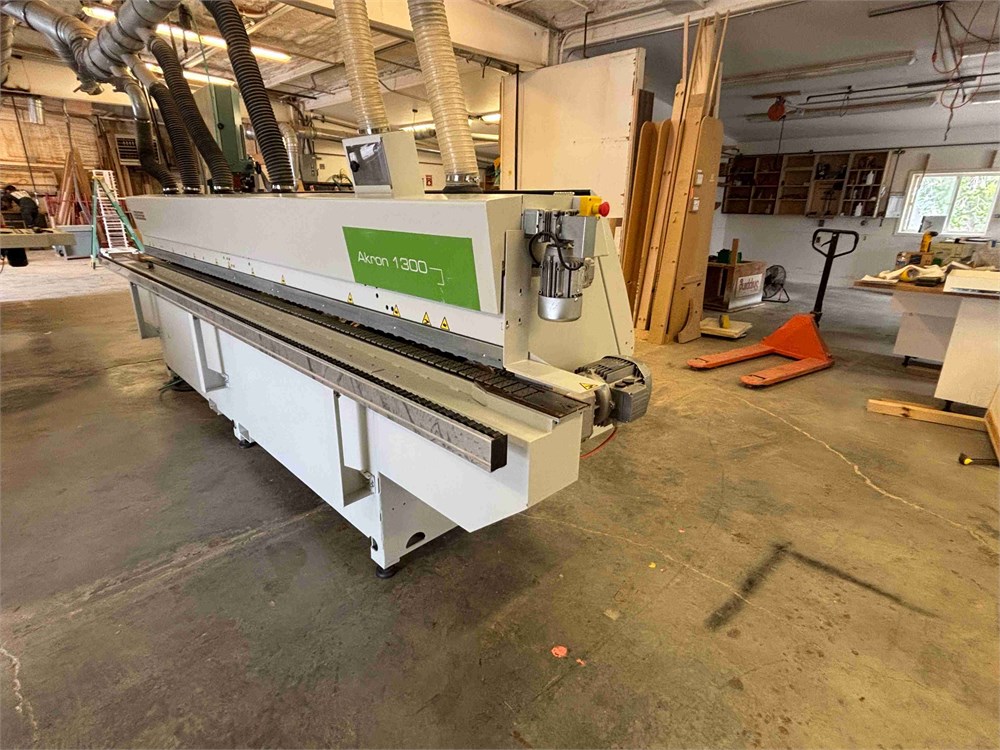

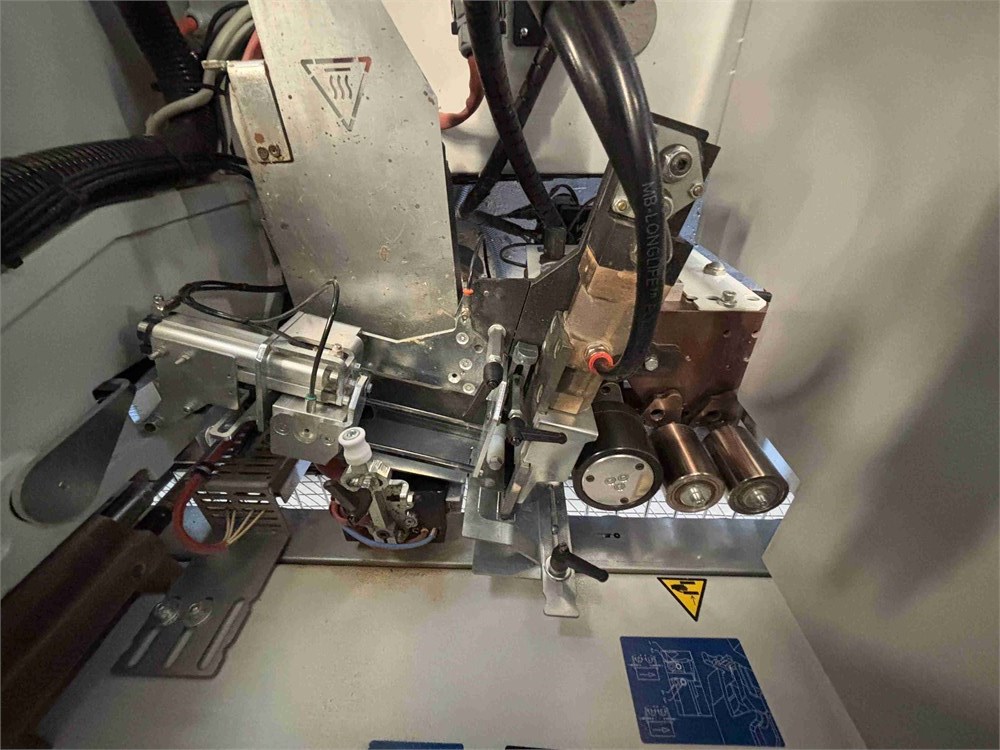

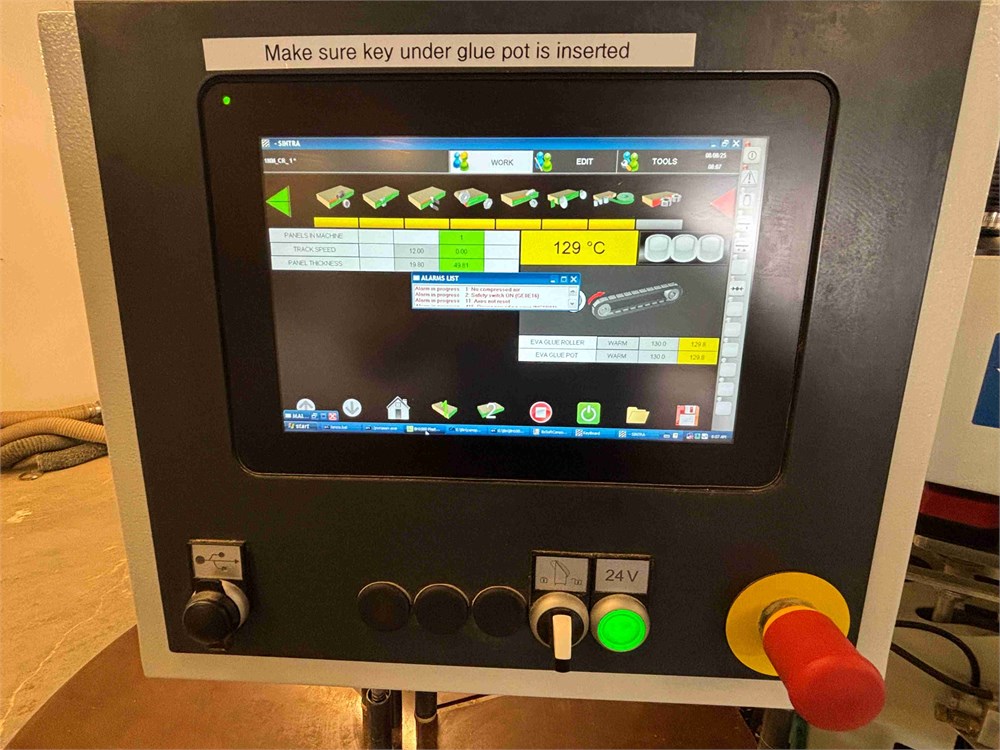

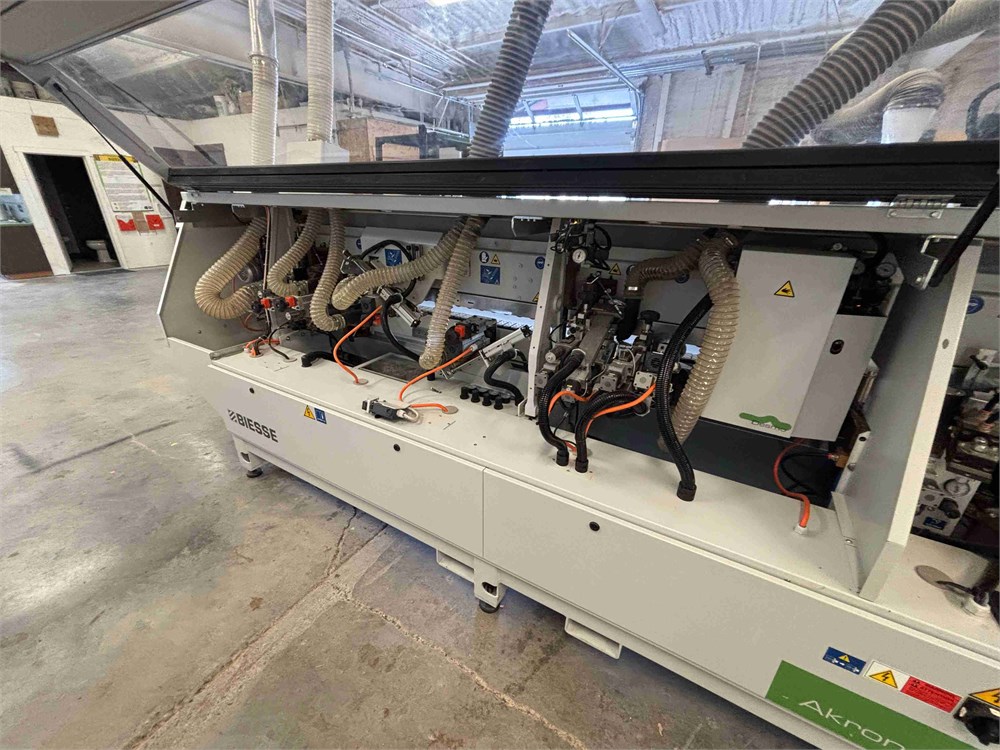

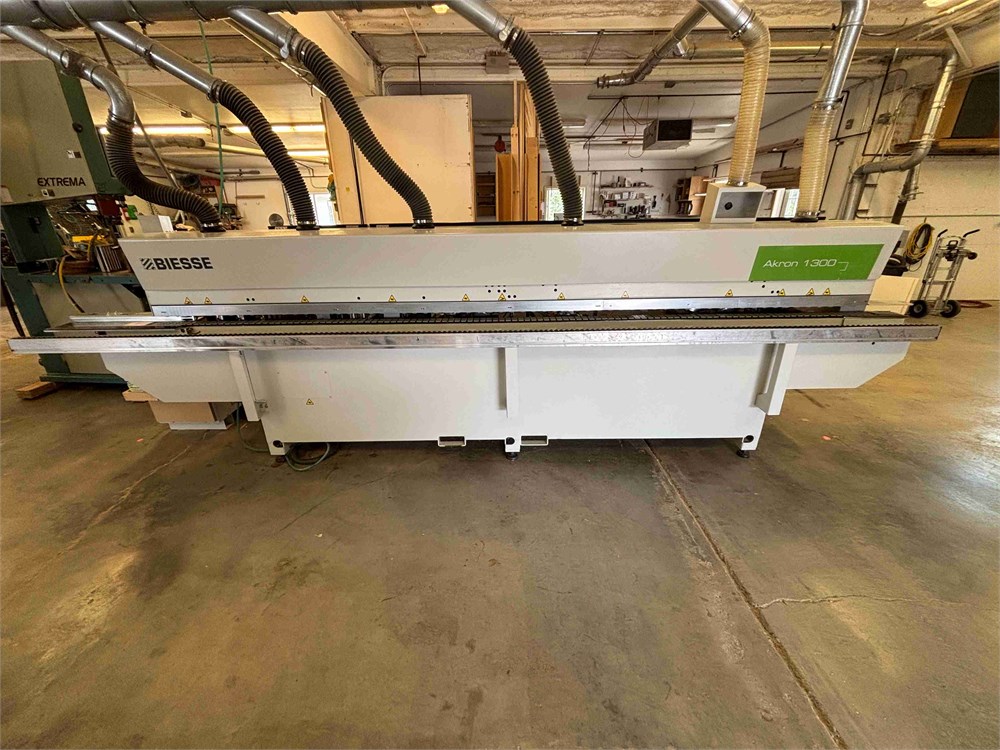

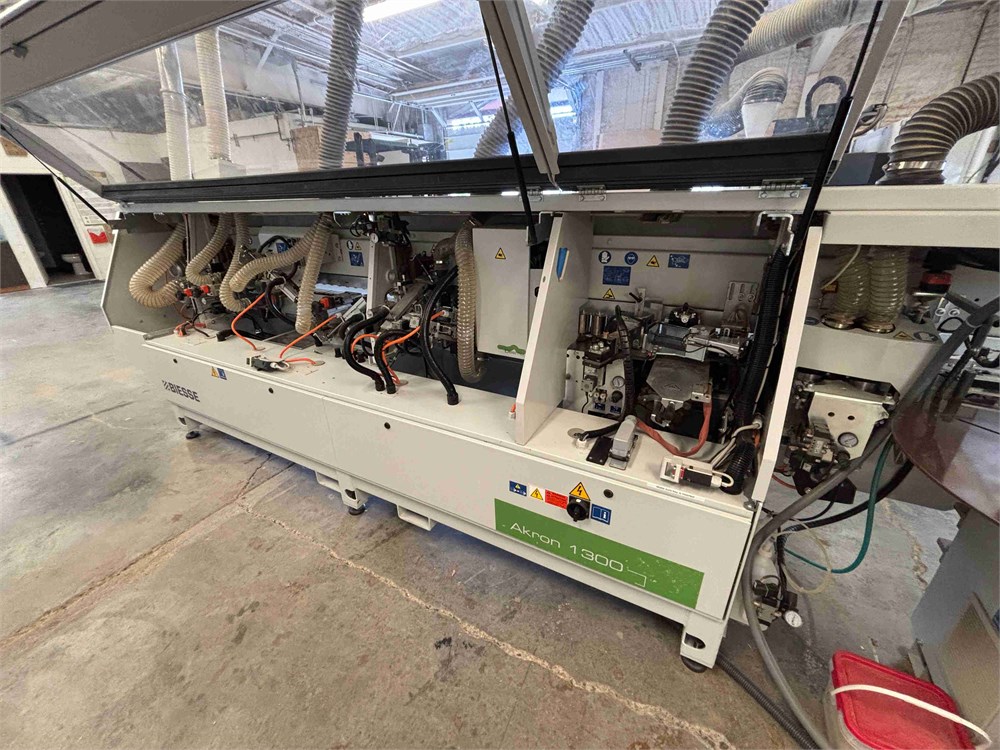

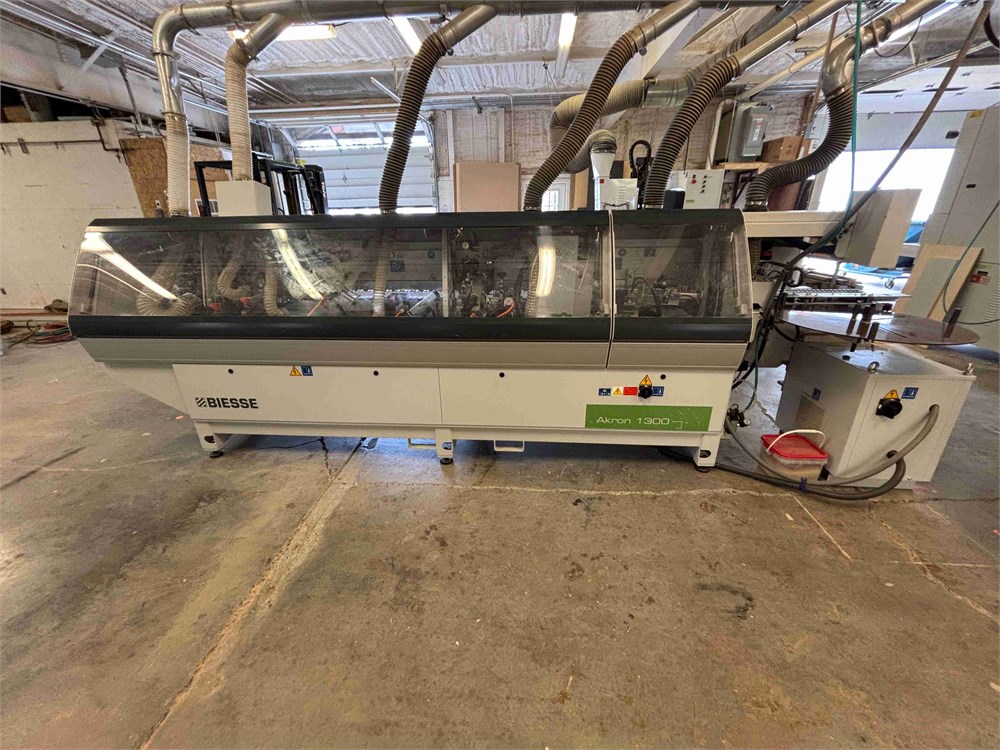

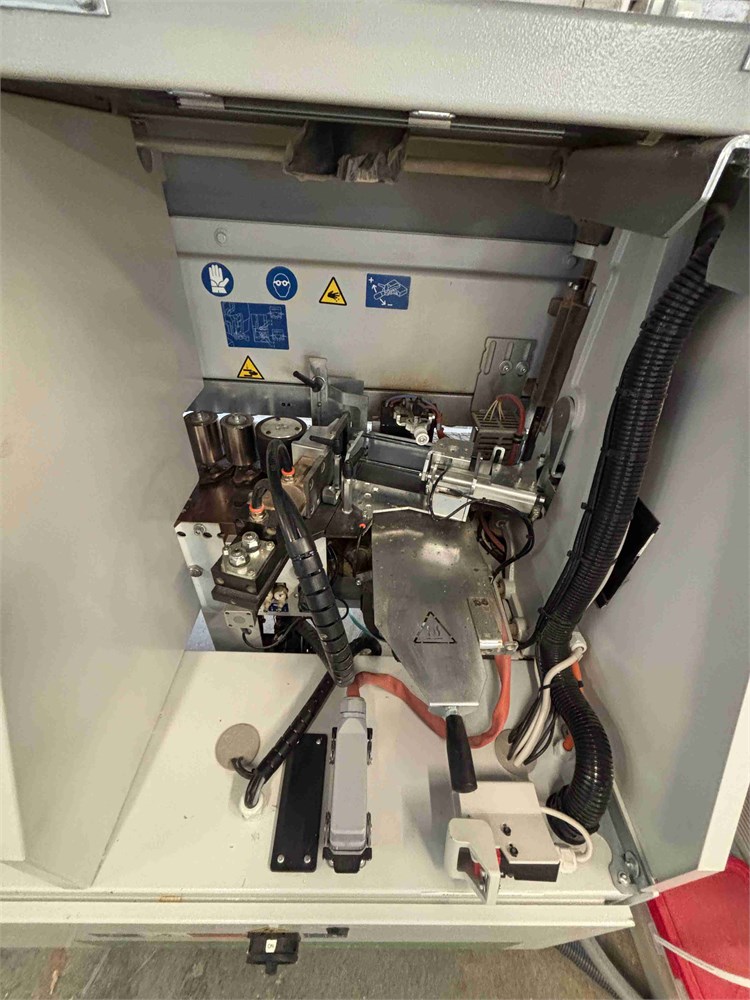

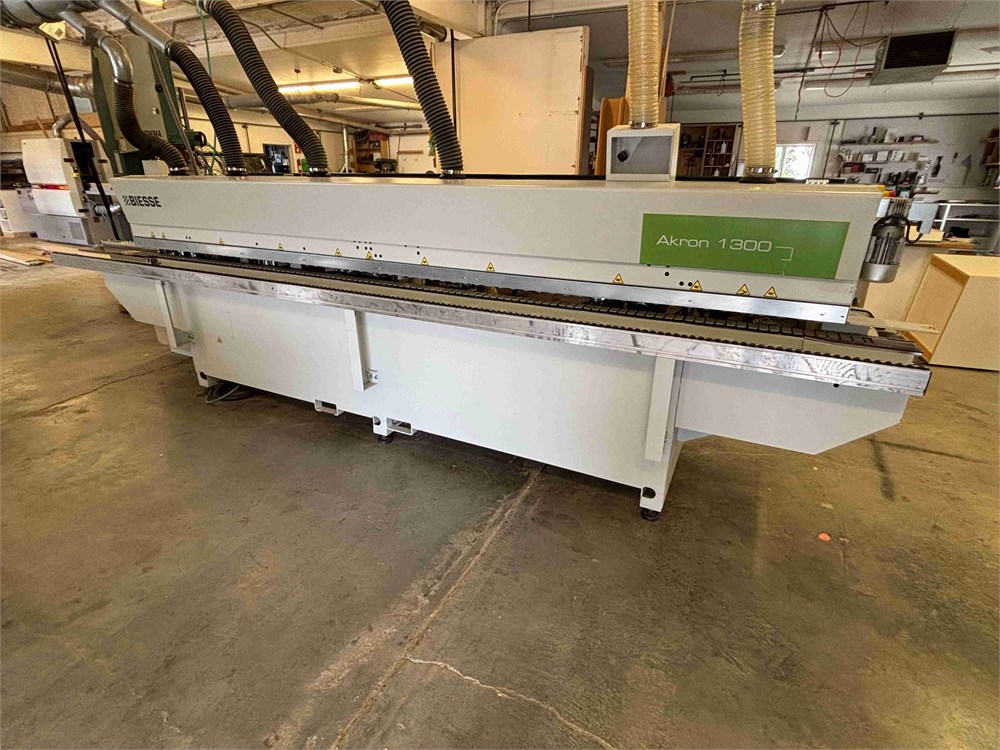

Biesse “Akron 1330 A” Edgebander Edgebanding thickness, 0.4 – 5 mm Min. panel width 85 mm (3.3″) Min. panel length 140 mm (5.5″) Panel thickness 10 – 50 mm (0.39″ – 1.96″). Variable Feed Speed, 32 – 65 FPM Computer controlled interface for workstations with servos and pneumatic positioning devices. Programmable selections for 1-touch changeover between edgebanding types and thicknesses. Top Pressure Beam with automatic adjustment from the machine control. Edgebanding infeed table Infeed fence Anti-adhesive spray Two (2) motor premilling unit Strip & Coil Edge magazine, automatic shear type guillotine. Hot-Melt Glue System: Teflon coated glue pot, digital thermostats with automatic kick-down when machine is in idle mode. Pressure Section with (1) large dia. “non-stick” coated drive roller & (2) idle rollers. Two (2) motor end trimming unit, 0.33 HP 12,000 RPM motors Motors travel on (2) straight slides and pneumatic tilt 0° – 15° on horizontal. plane Top/bottom Multi- Function Flush/Bevel/Radius Trimming Unit Two (2) motor corner rounding Top/bottom scraping unit with external collection box Top/bottom buffing unit, 0.5 HP 2,800 RPM motors, tiltable 0° – 30° Sound enclosure Outboard roller support External electrical transformer
Specifications:
Pick Up Location: 107 Rose Ln. Montrose, CO 81401

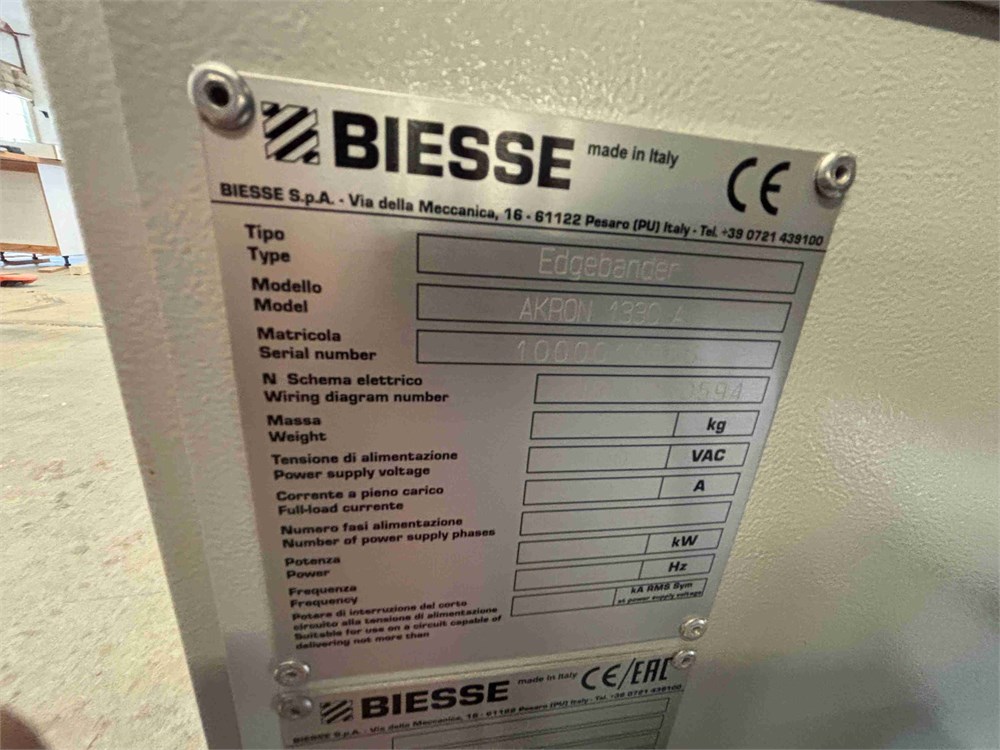

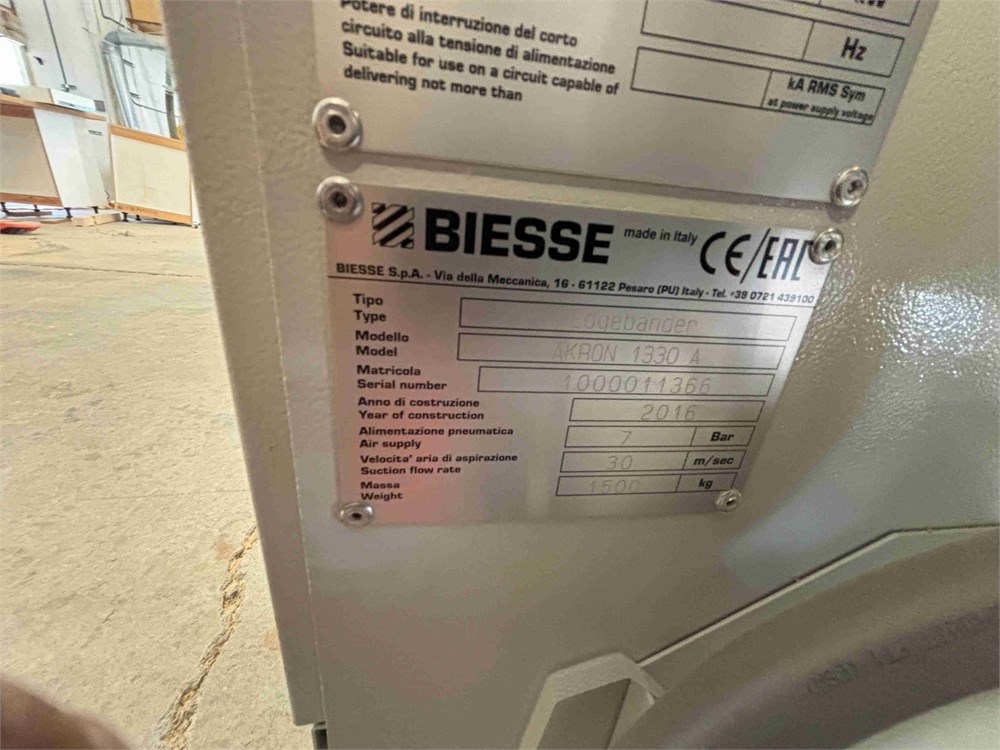

Make: Biesse
Model: Akron 1330 A
Serial Number: 100011366
Year: 2016
Phase: 3 PHASE
Voltage: 208-230/460
Estimated Dimensions: 198″ x 42″ x 65″
Estimated Weight: 3300 pounds
Seller Comment: A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer. Requests for additional labor, crating or pallatization will be extra.
Load Fee: 500
