Description

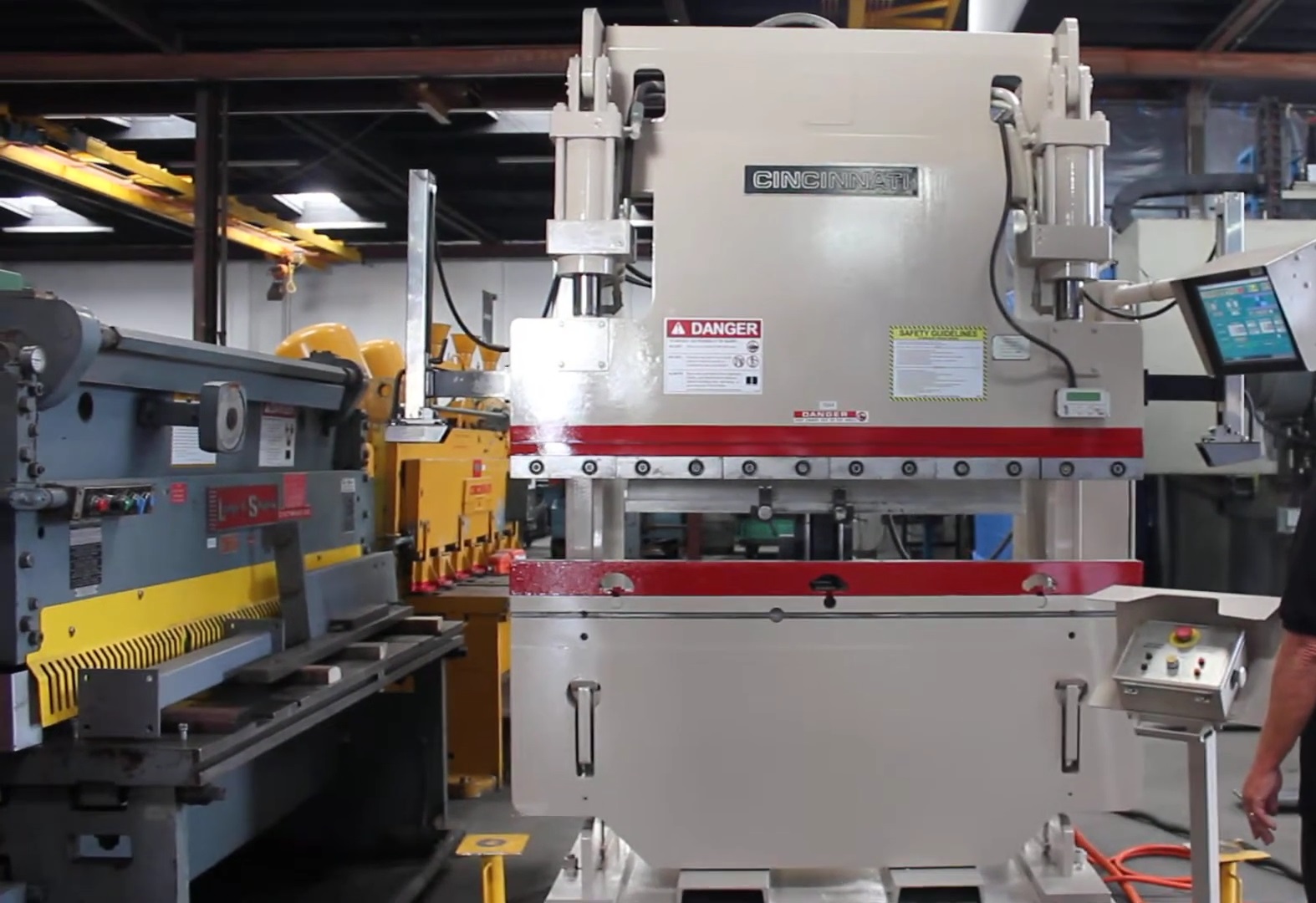

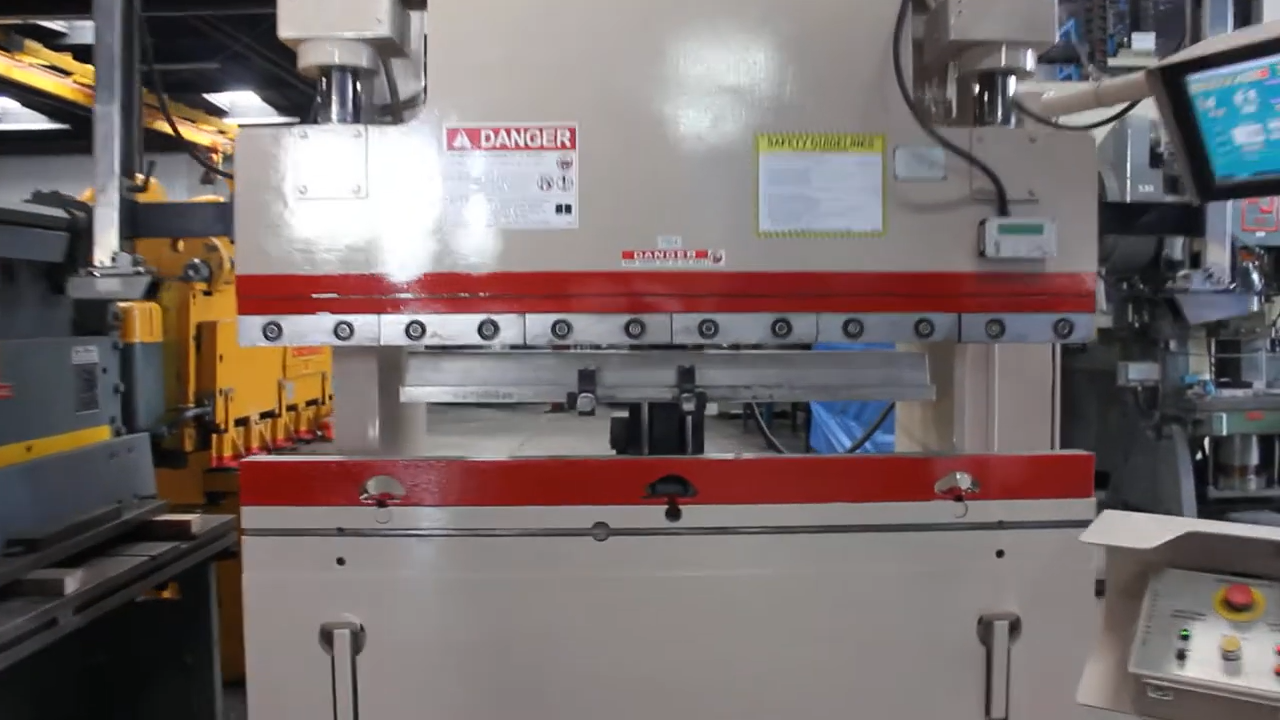

Reliable and precise CNC hydraulic press brake built for accurate bending and forming of sheet metal. The Cincinnati 60CBII x 4 offers robust construction, smooth hydraulic performance, and advanced control via the Proform 3-Axis CNC back gauge, ensuring repeatable results across a variety of applications.
Technical Specifications
- Manufacturer: Cincinnati

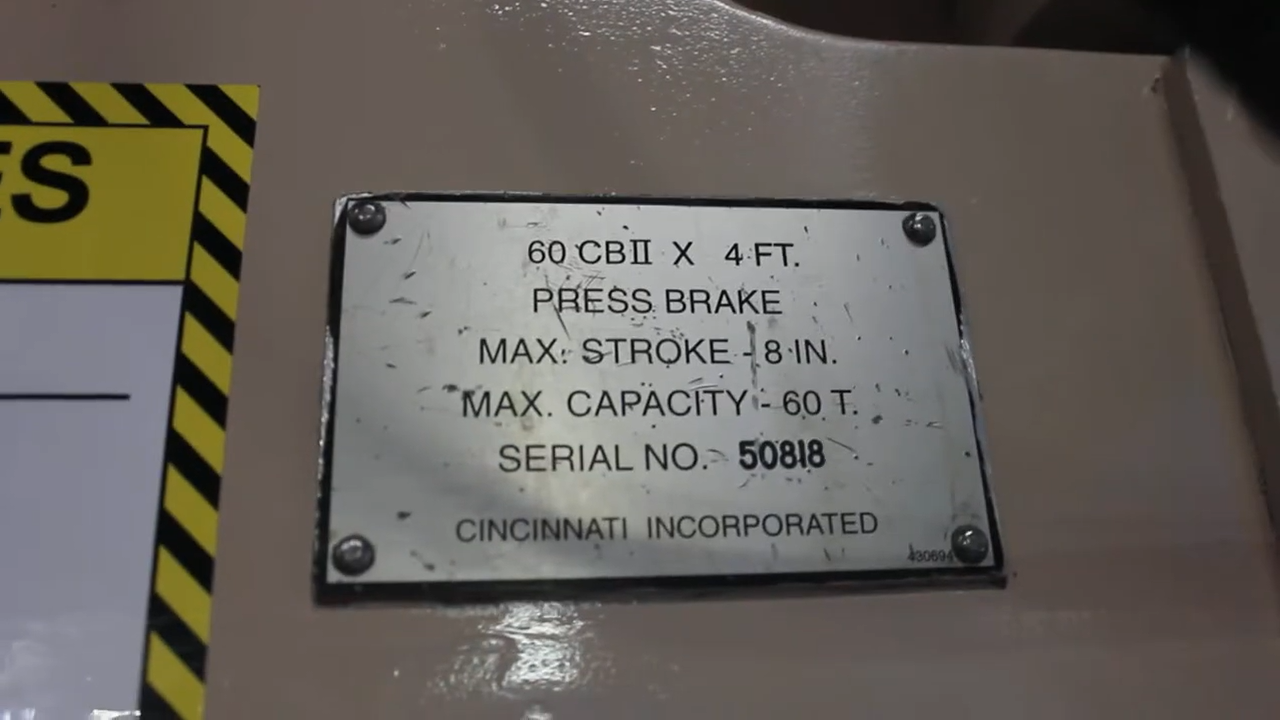

- Model: 60CBII x 4
- Year: 1999
- Type: CNC Hydraulic Press Brake
- Tonnage Capacity: 60 tons
- Bed & Ram Length: 6′
- Distance Between Housings: 53″
- Ram Stroke: 0″ – 8″
- Open Height: 17″
- Ram Speeds:
- Approach: 180 IPM
- Forming: 10 / 35 / 70 IPM
- Return: 195 IPM
- Throat Depth: 10″
- Motor Power: 7.5 HP
- Machine Dimensions (L × W × H): 82″ × 48″ × 98″
- Approx. Weight: 8,700 lbs
Equipped With

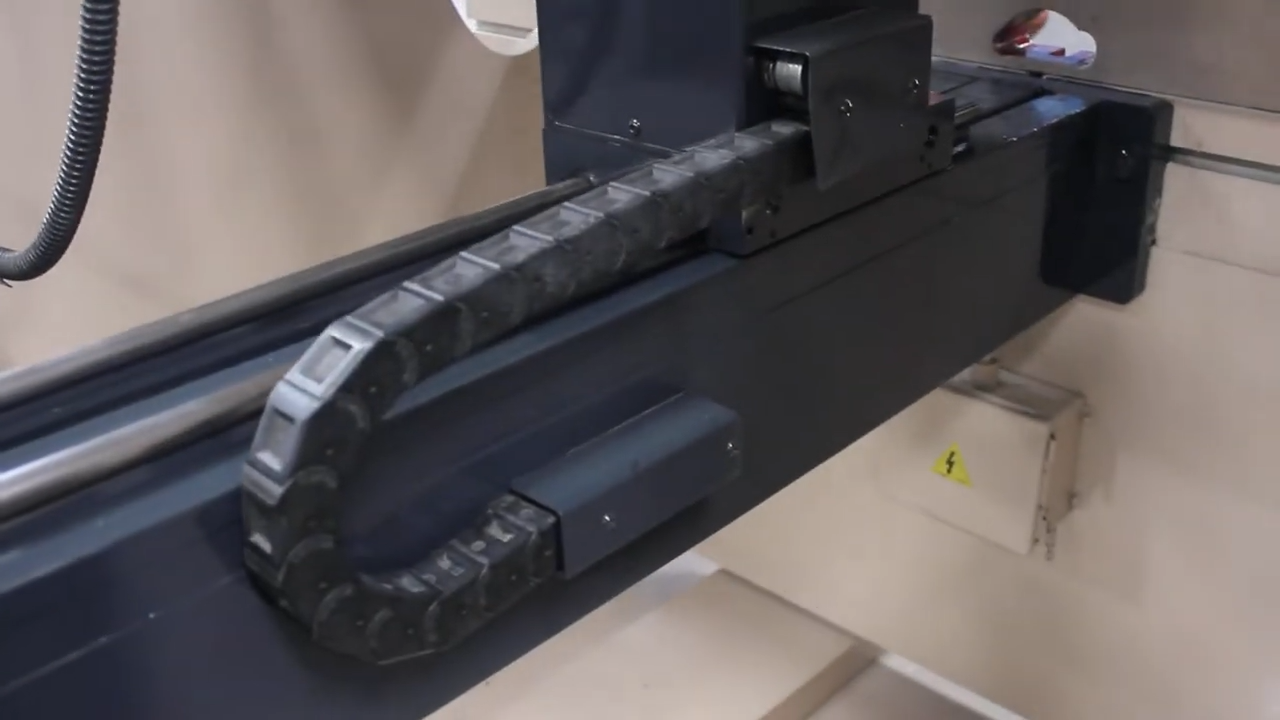

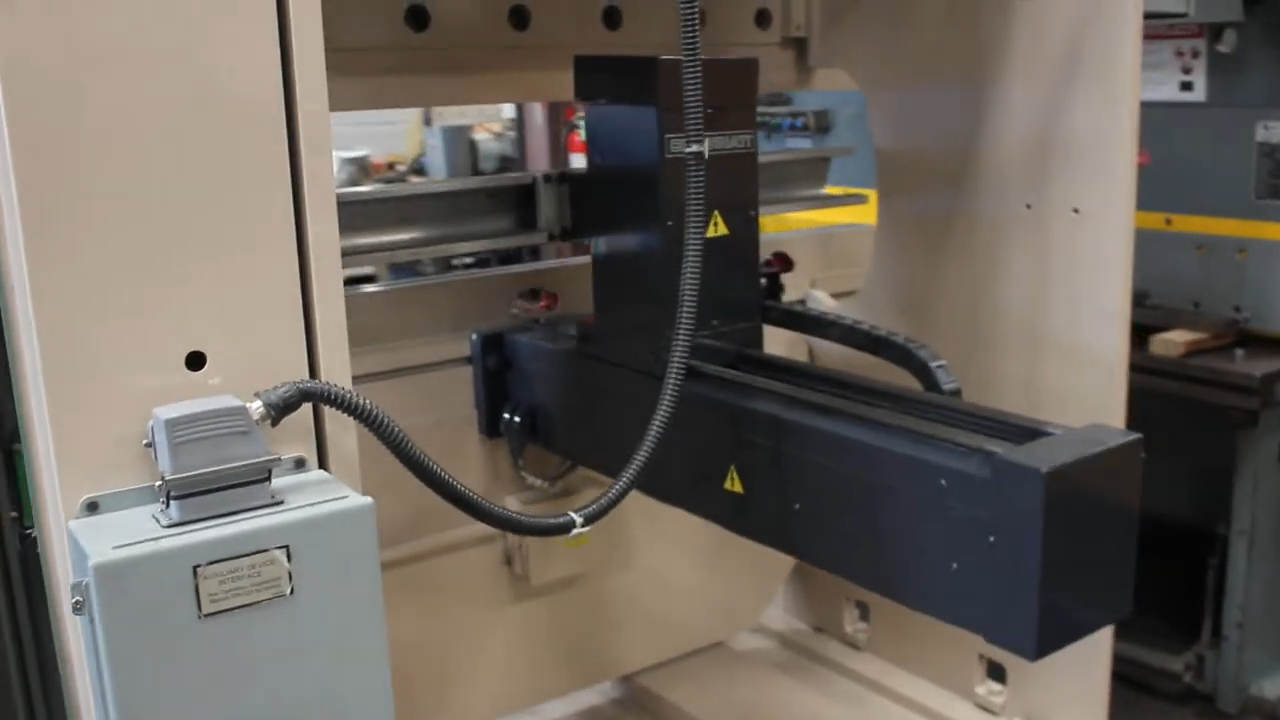

- Cincinnati Proform 3-Axis CNC back gauge
- Laser Safe light curtains for operator safety
- Remote dual palm control stand
- Electric foot pedal
- Oil cooler for consistent hydraulic performance
Condition
- Excellent working condition
- Fully functional, well-maintained
- Ideal for precision sheet metal forming, prototyping, and production applications
