Description

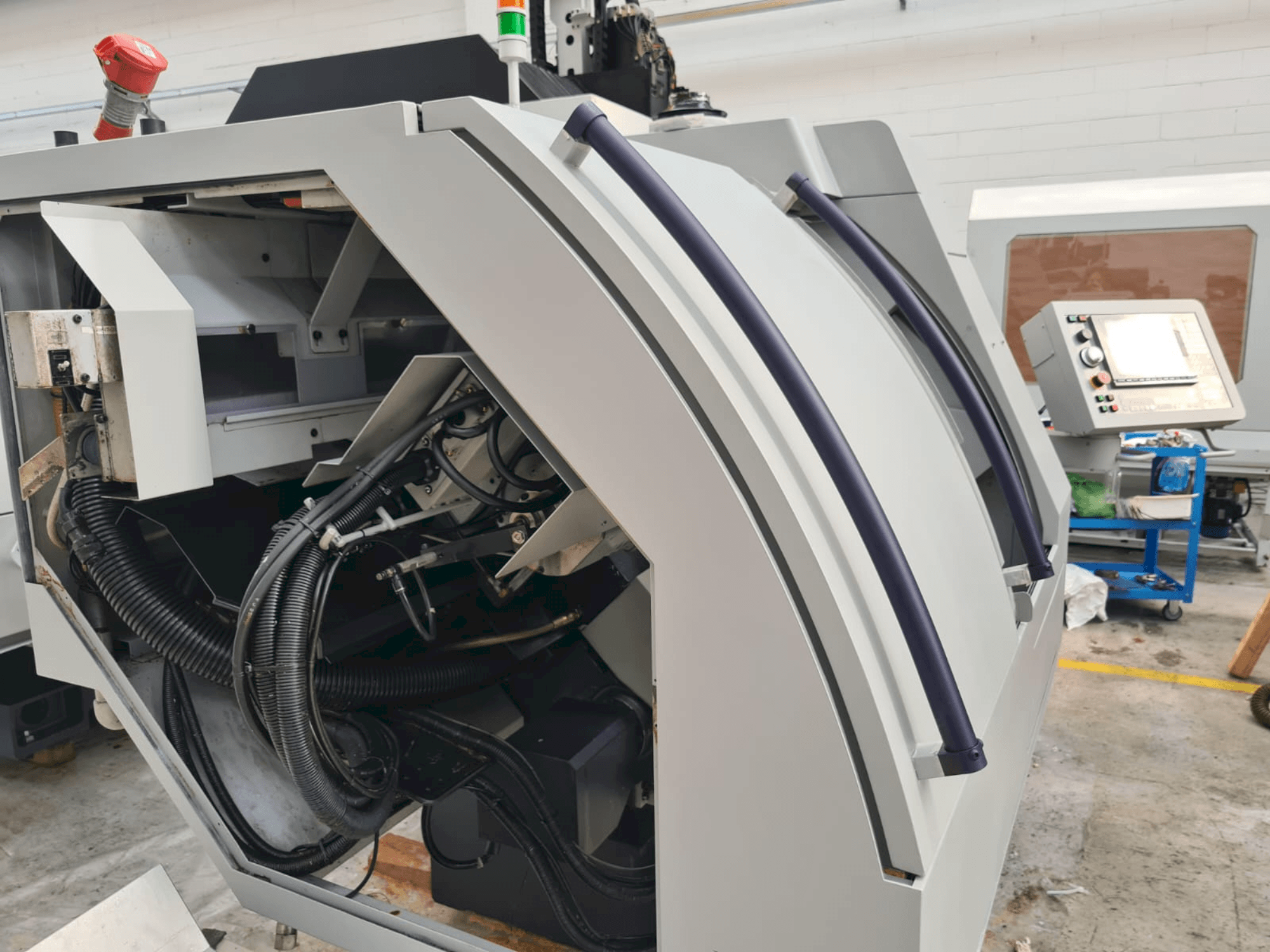

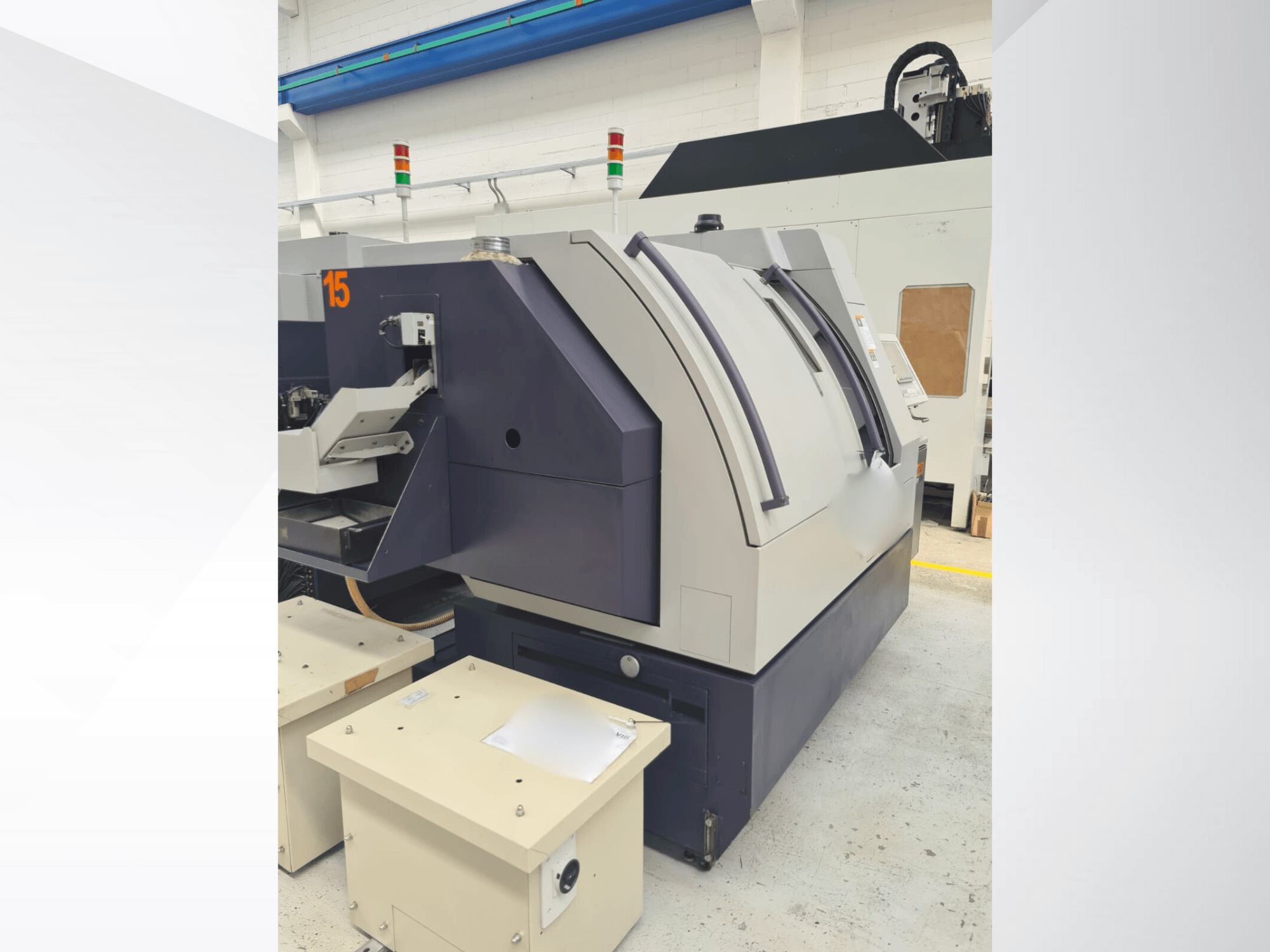

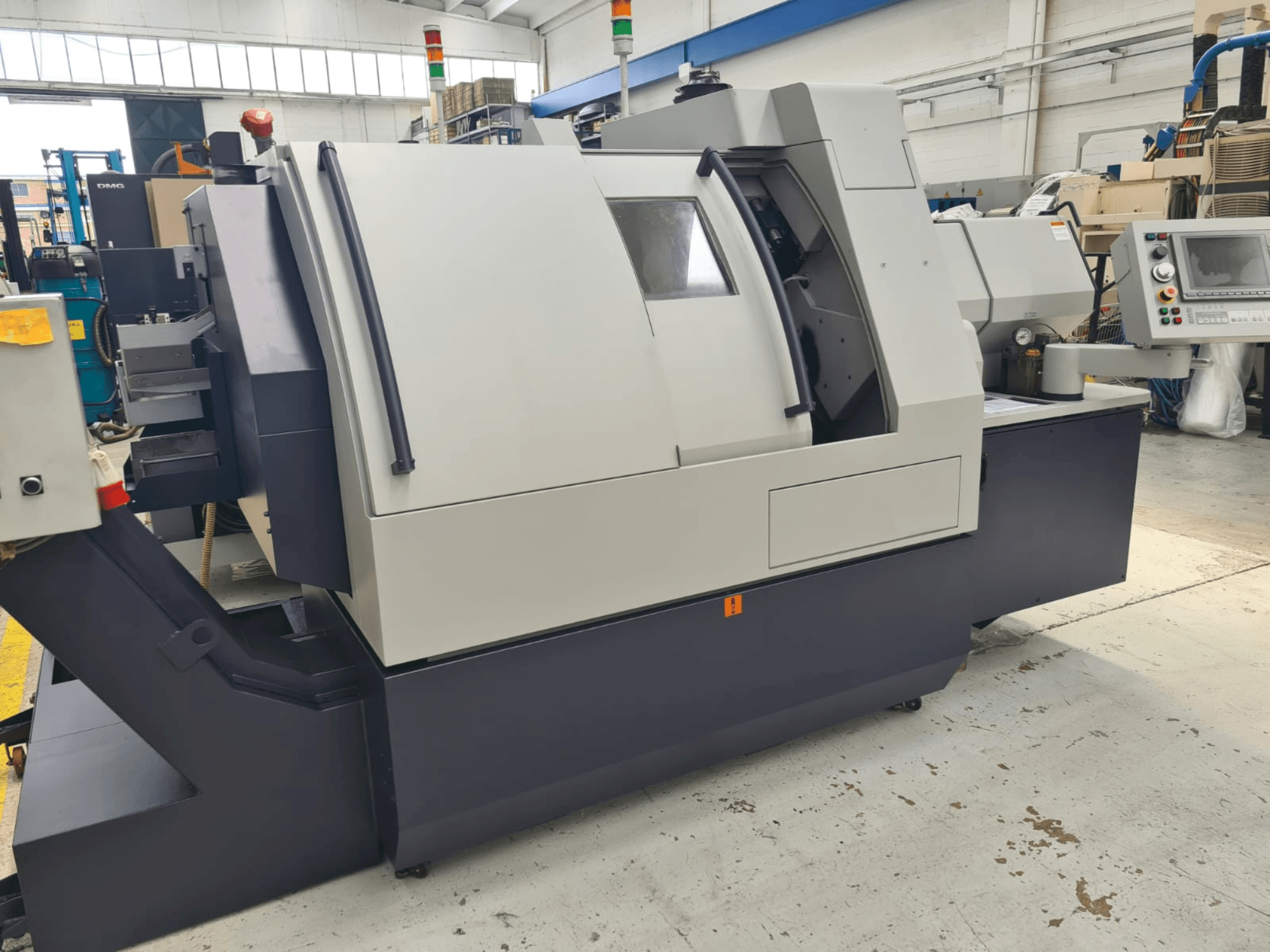

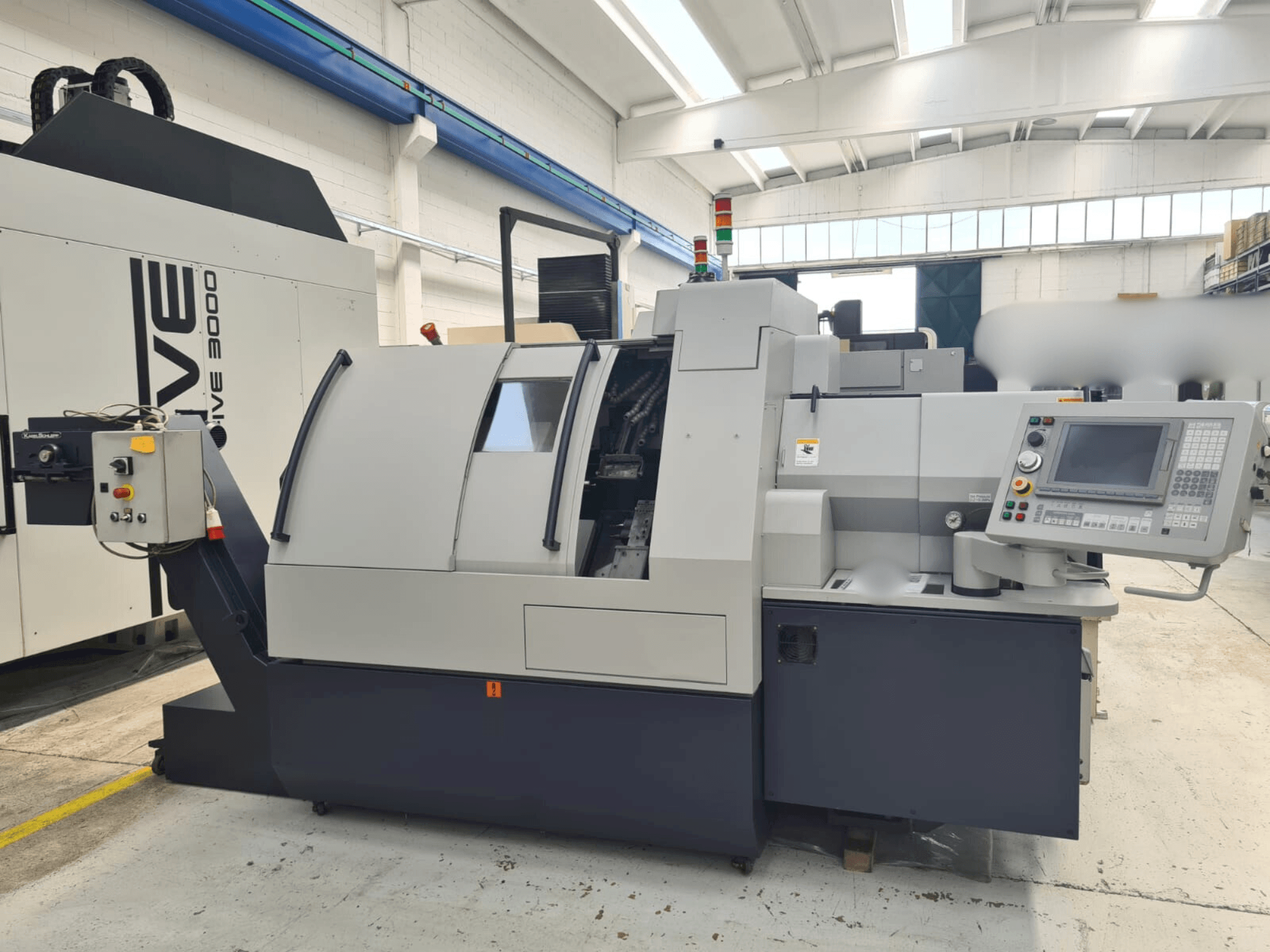

The Citizen C32VIII is a high-precision CNC Swiss Type automatic lathe designed for complex machining applications. Built in 2006, this machine combines versatility, power, and reliability, making it ideal for demanding production environments.
Key Specifications
- Type: CNC Swiss Type Automatic Lathe
- Manufacturer / Model: Citizen C32VIII
- Year: 2006
- Axes: 8 (X1, Y1, Z1, X2, Z2, Z3, plus C-axis main and sub spindles)
- Max. Machining Diameter: 1.25″ (32 mm)
- Max. Machining Length: 12.5″ per chucking
- Main Spindle Through Hole: 1.25″
- Sub-Spindle Max. Chuck Diameter: 5.7″
- Indexing: Full C-axis for both main and sub spindles
Performance
- Main Spindle Speed: 200 – 8,000 rpm
- Sub Spindle Speed: 200 – 7,000 rpm
- Rotary Tool Spindle Speed: 200 – 5,000 rpm
- Main Motor: 3.7 / 7.5 kW
- Tool Spindle Motor: 1 kW
- Sub Spindle Motor: 1.5 / 2.7 kW

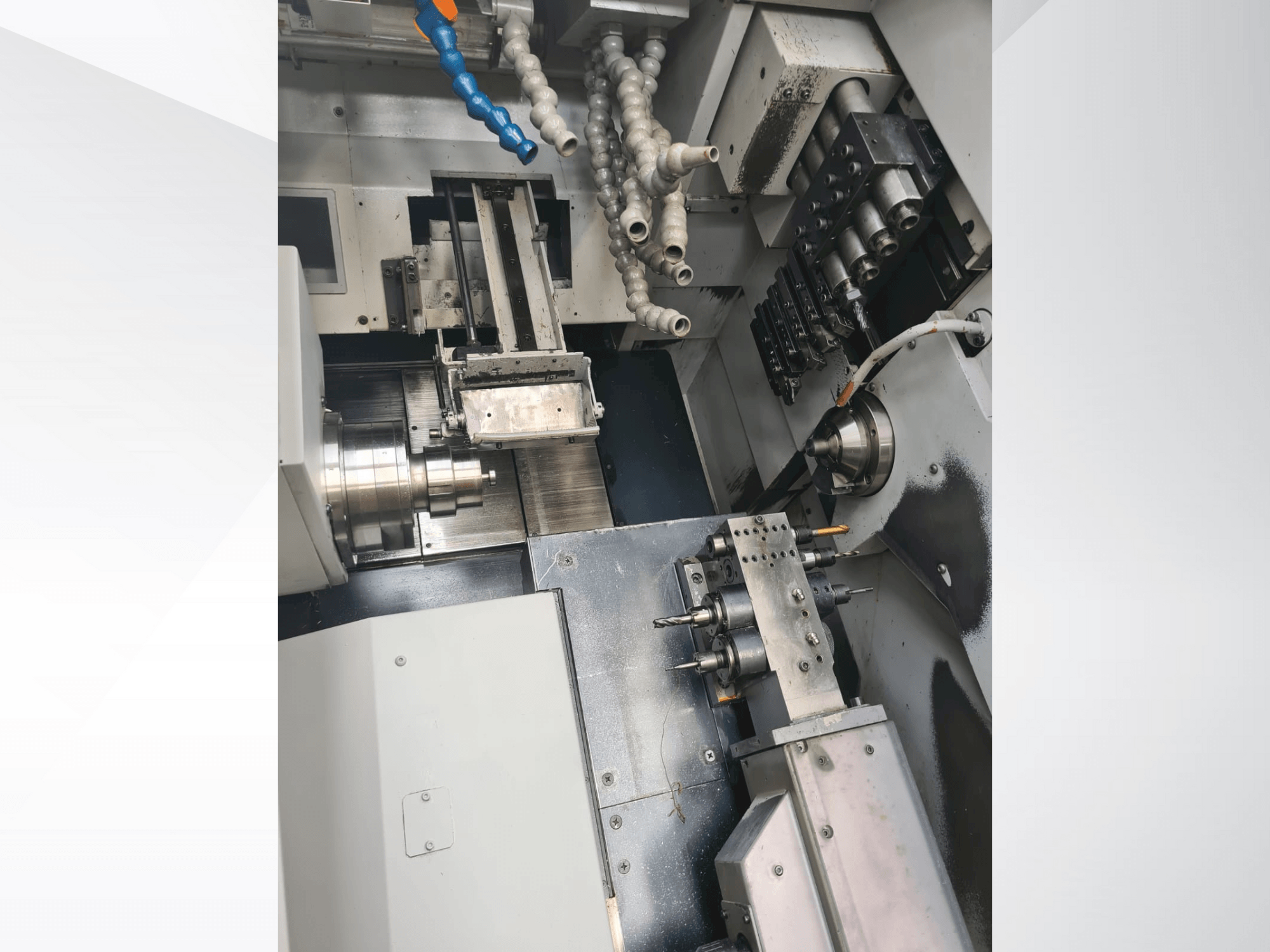

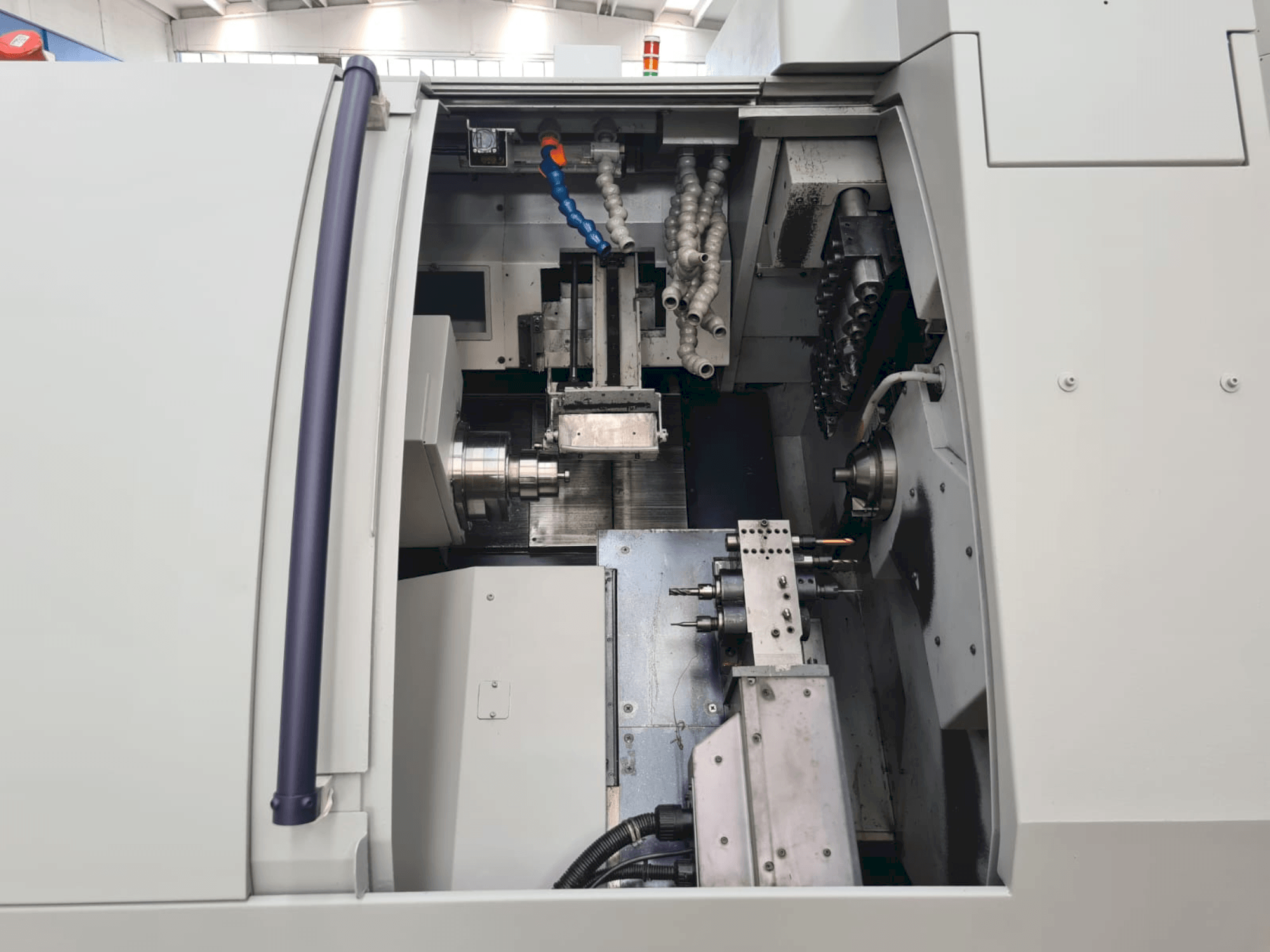

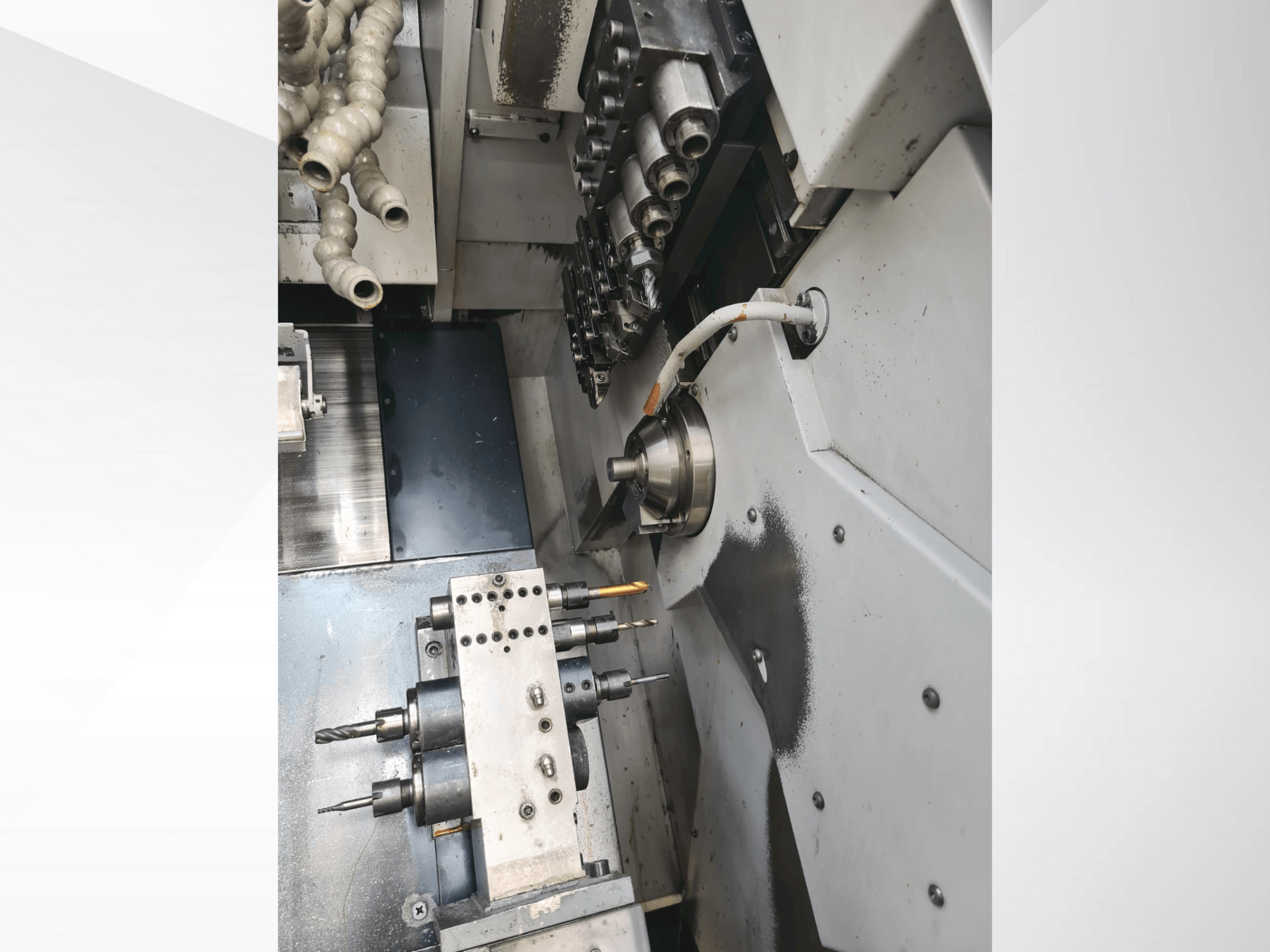

Tooling & Capacity
- Turning Tools: 5
- Rotary Tools: 4 (U120B live back working block – 4 live / 4 fixed)
Dimensions & Weight
- Machine Size: 109″ x 54″ x 72″
- Weight: 6,710 lbs
