Description

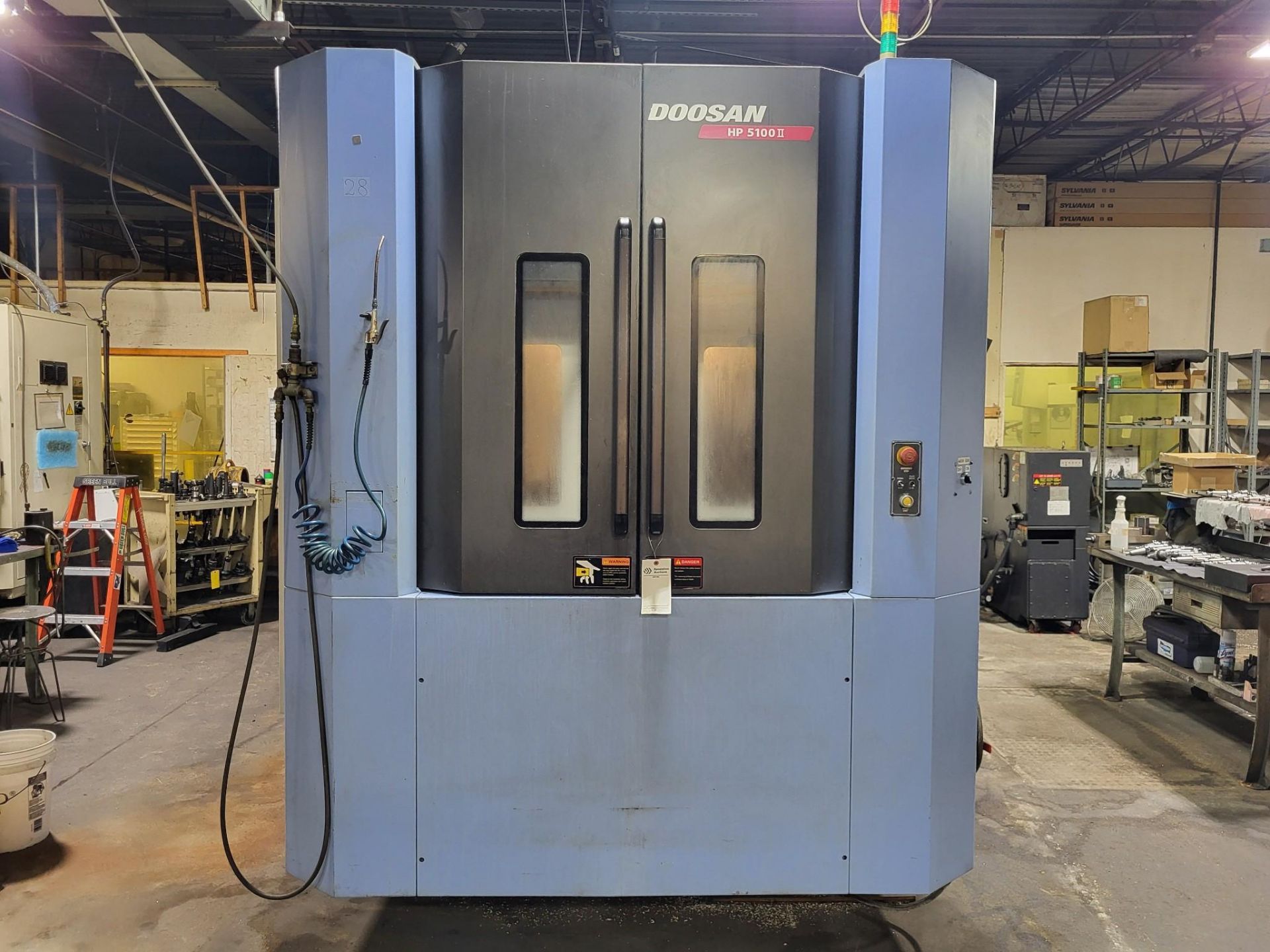

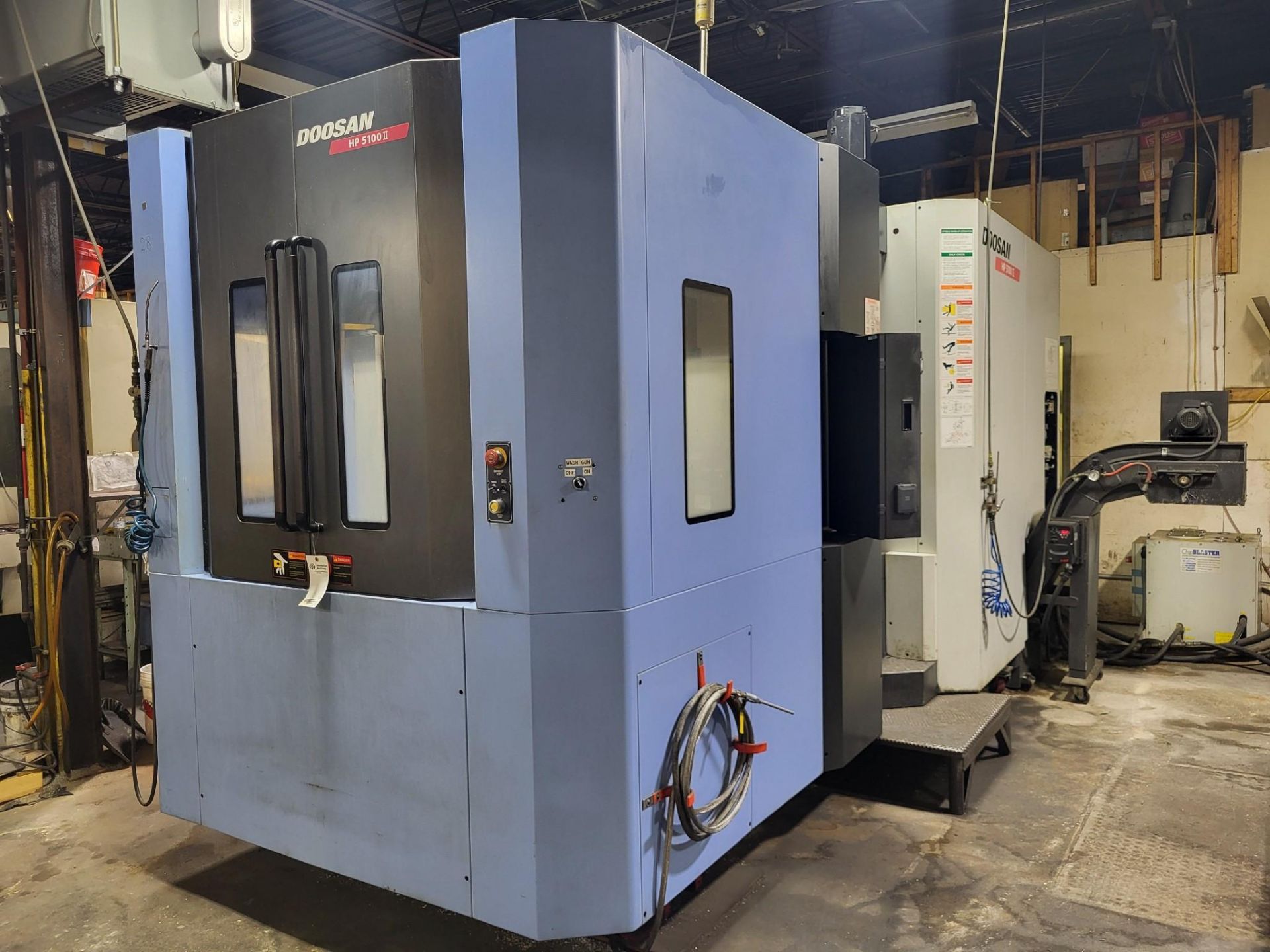

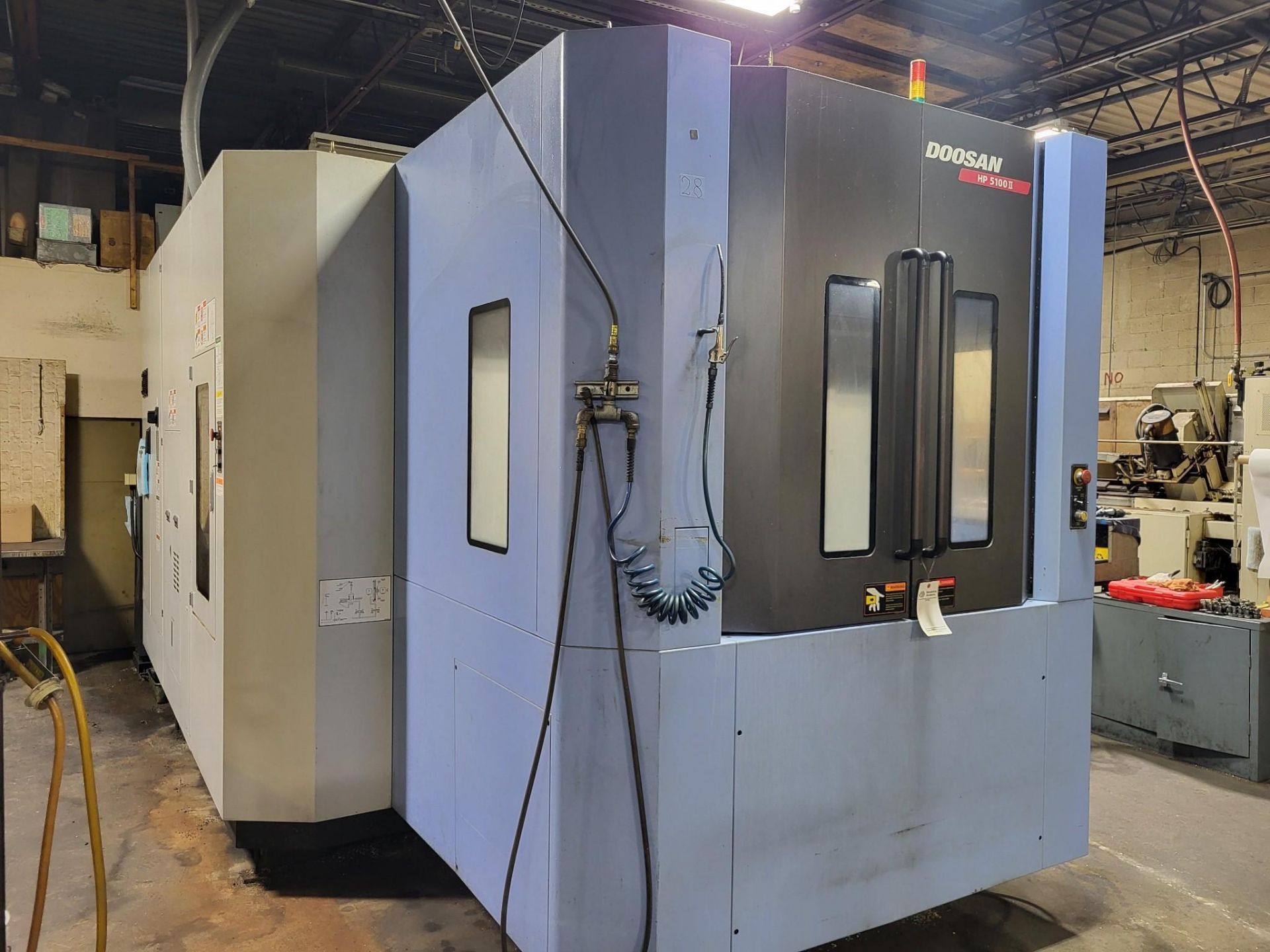

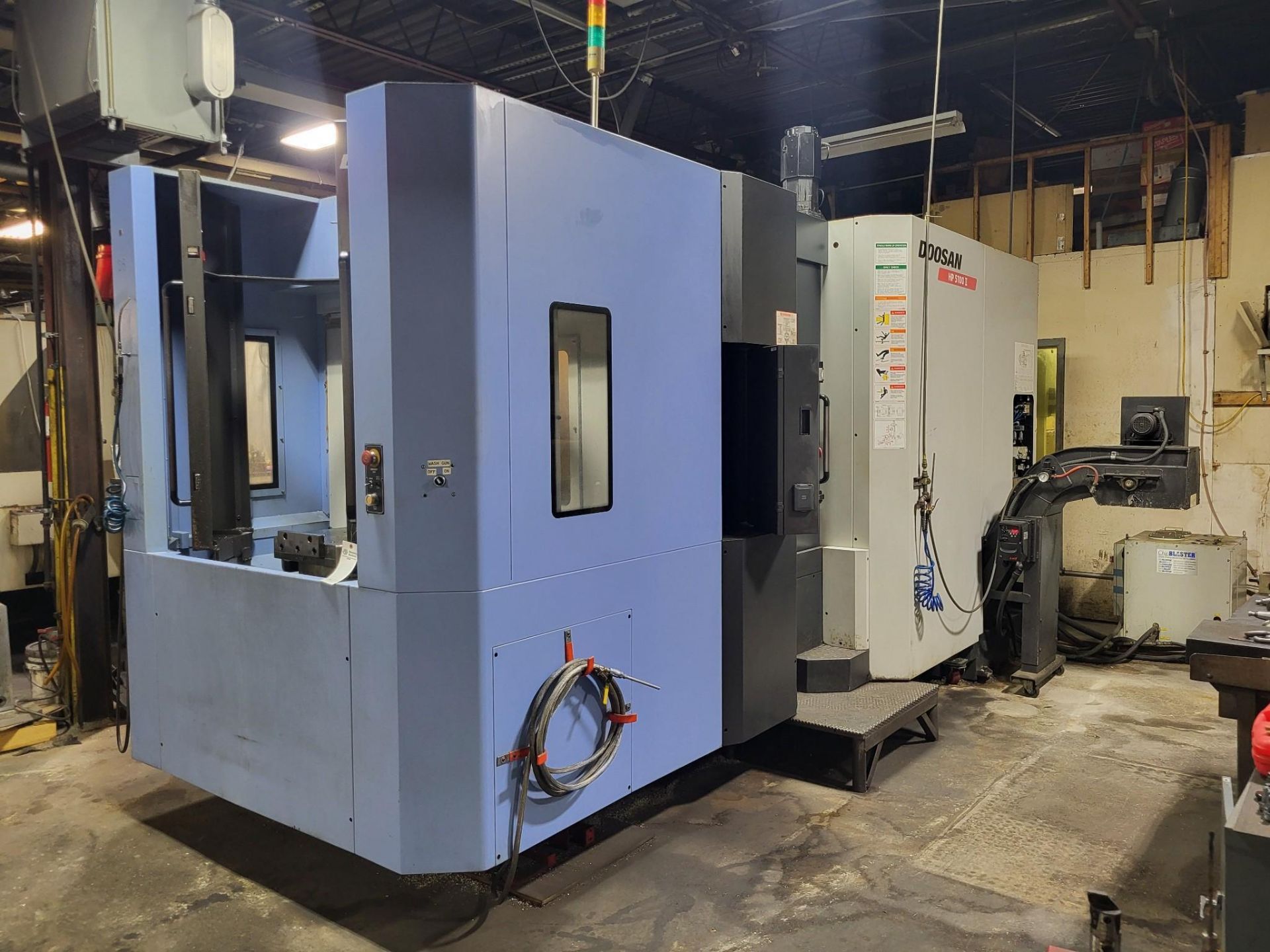

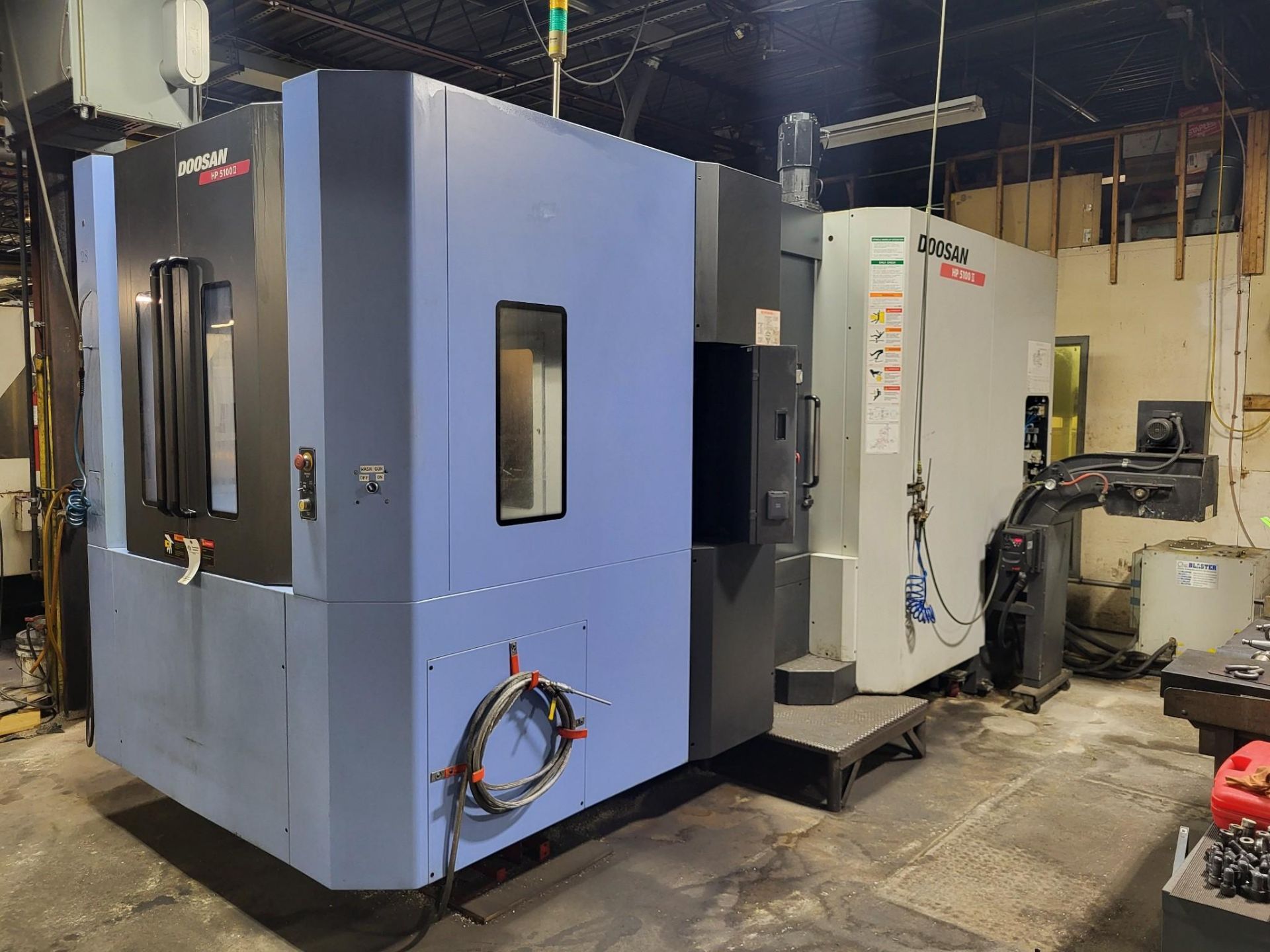

High-performance 4-axis horizontal machining center engineered for precision and productivity in demanding manufacturing environments. This Doosan HP 5100 II features a 14,000 RPM spindle, 60-tool automatic changer, Fanuc 31i-MB CNC, and full B-axis indexing. Equipped with HIPRICO and ChipBLASTER high-pressure coolant systems, it delivers superior chip evacuation and tool life extension.

Specifications

• Manufacturer / Model / Year: Doosan HP 5100 II, 2012

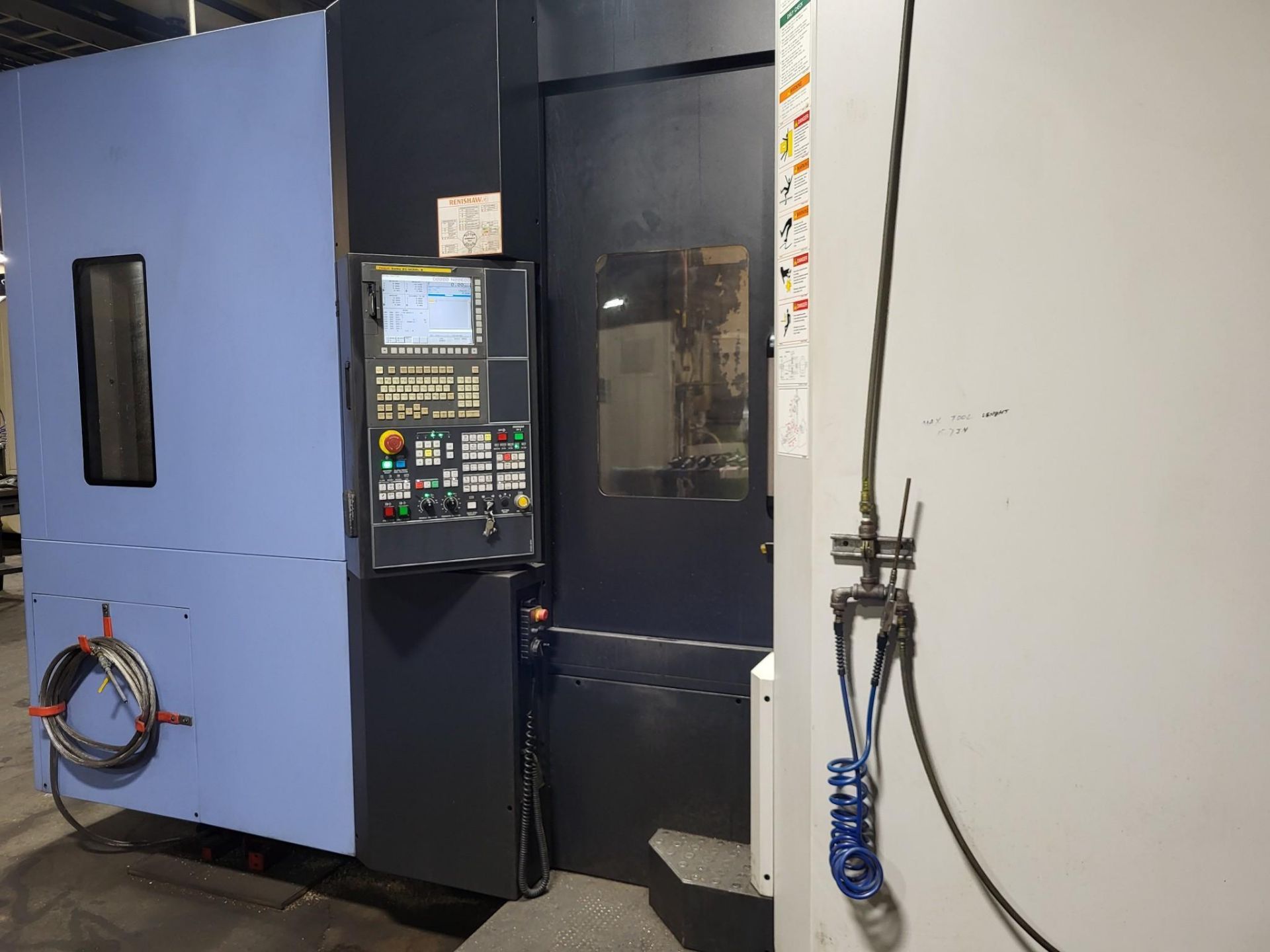

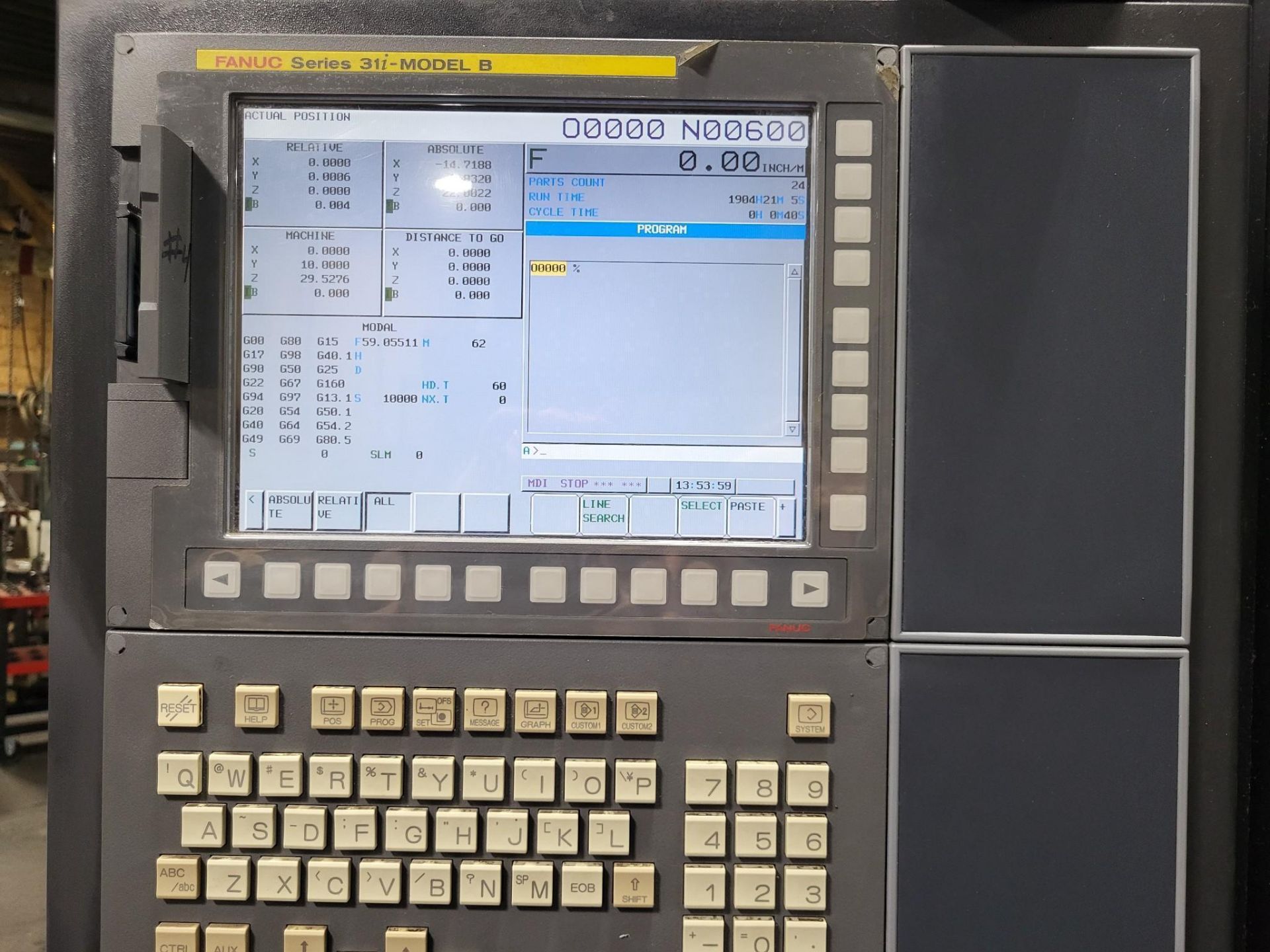

• Control: Fanuc 31i-MB CNC
• Type: 4-Axis Horizontal Machining Center (HMC)

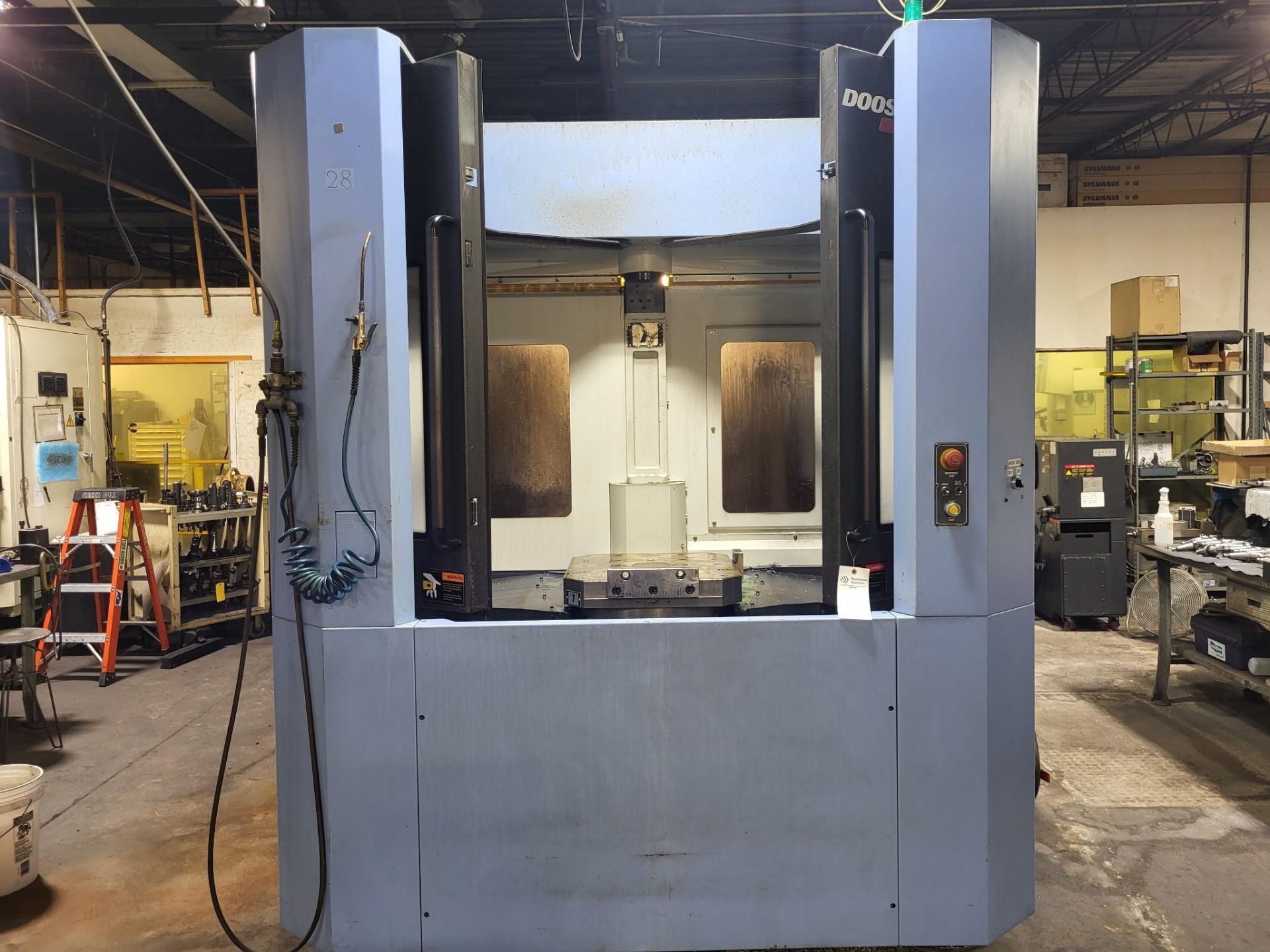

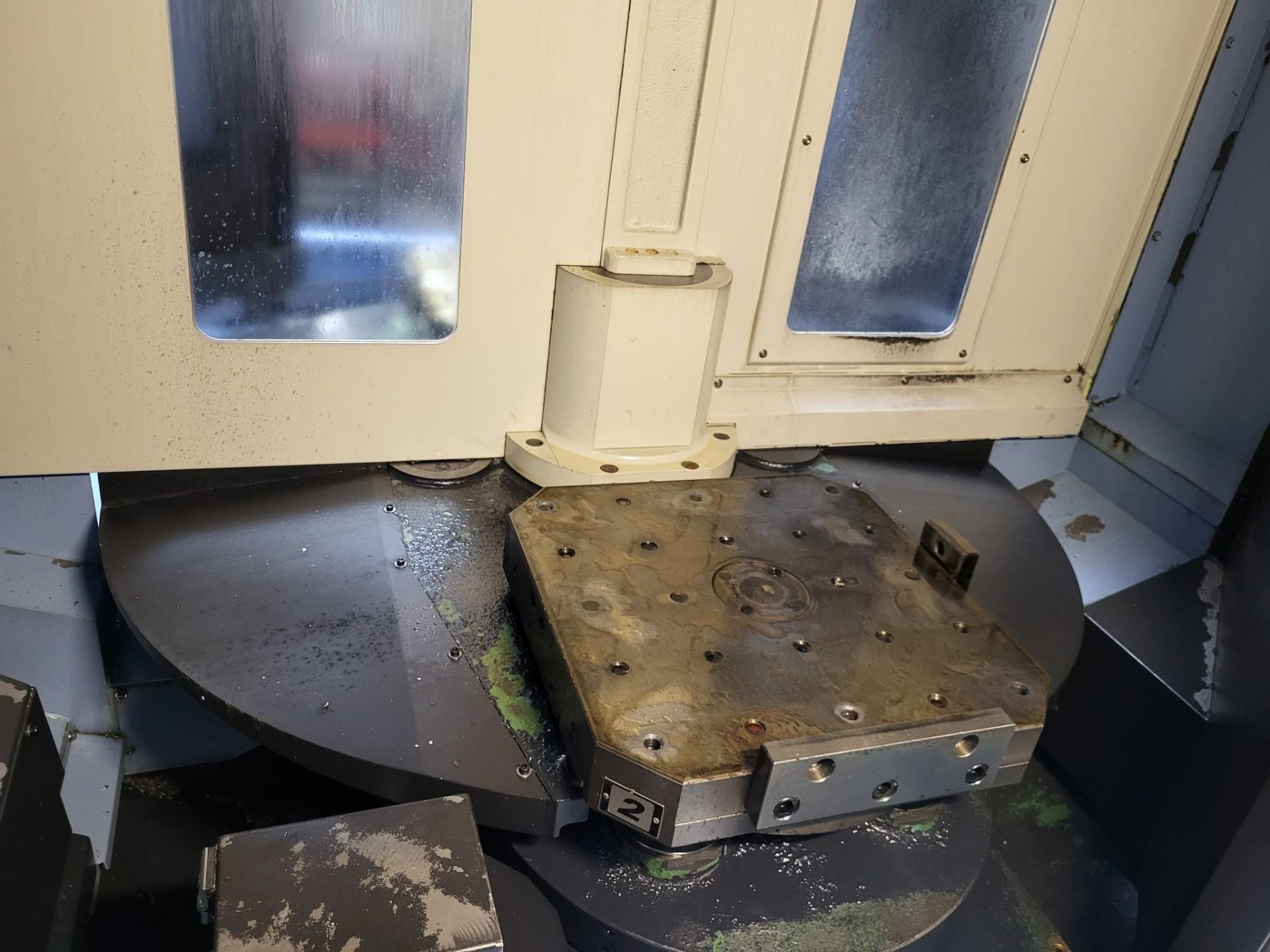

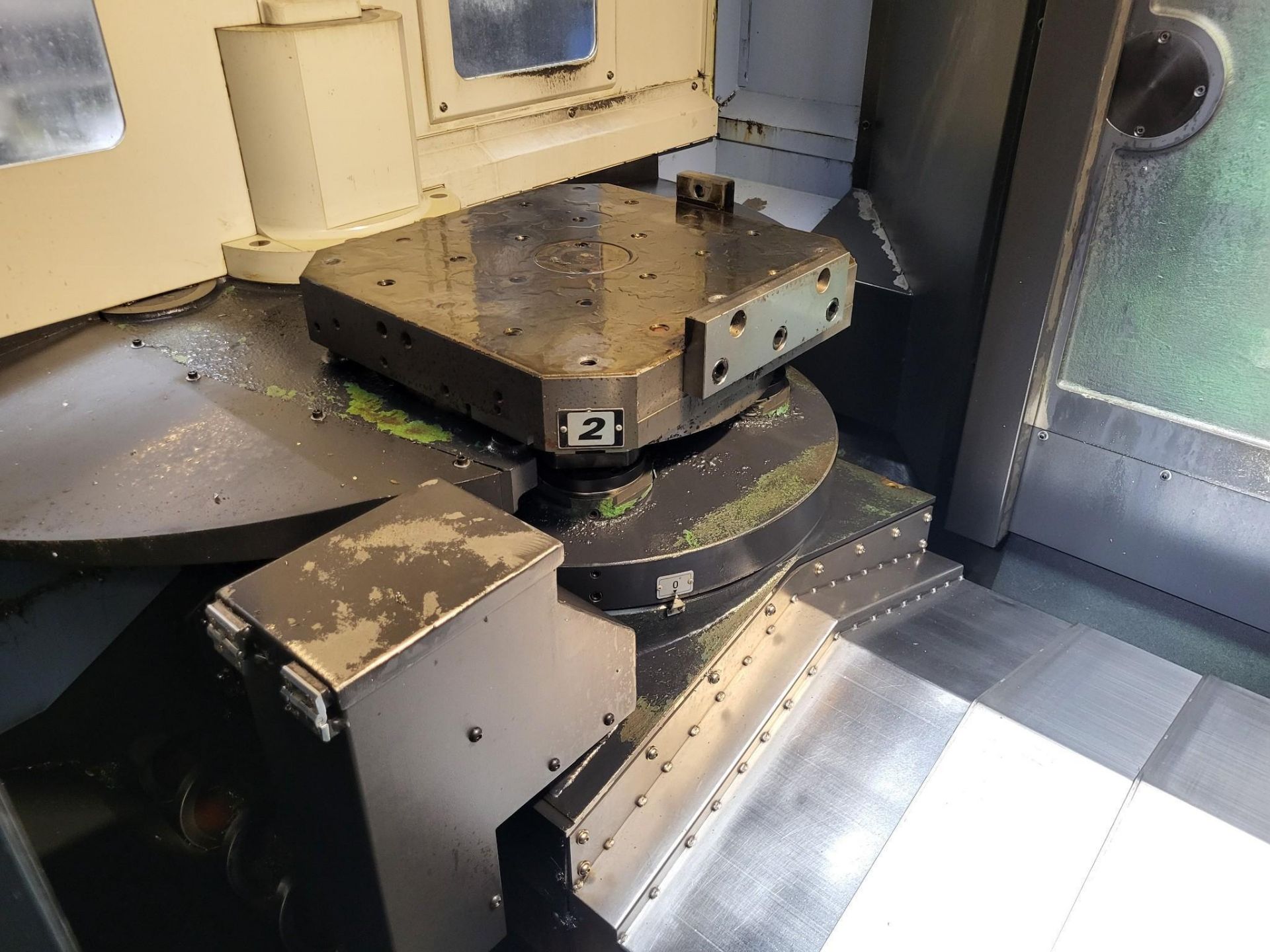

• Pallet Size: 19.7″ × 19.7″ (500 mm)
• Pallet Capacity: 1,100 lbs (500 kg)
• Pallet Indexing (B-Axis): 0.001°
• Travels (X / Y / Z): 33.5″ / 27.6″ / 29.5″
• Rapid Traverse (X / Y / Z): 2,362 IPM

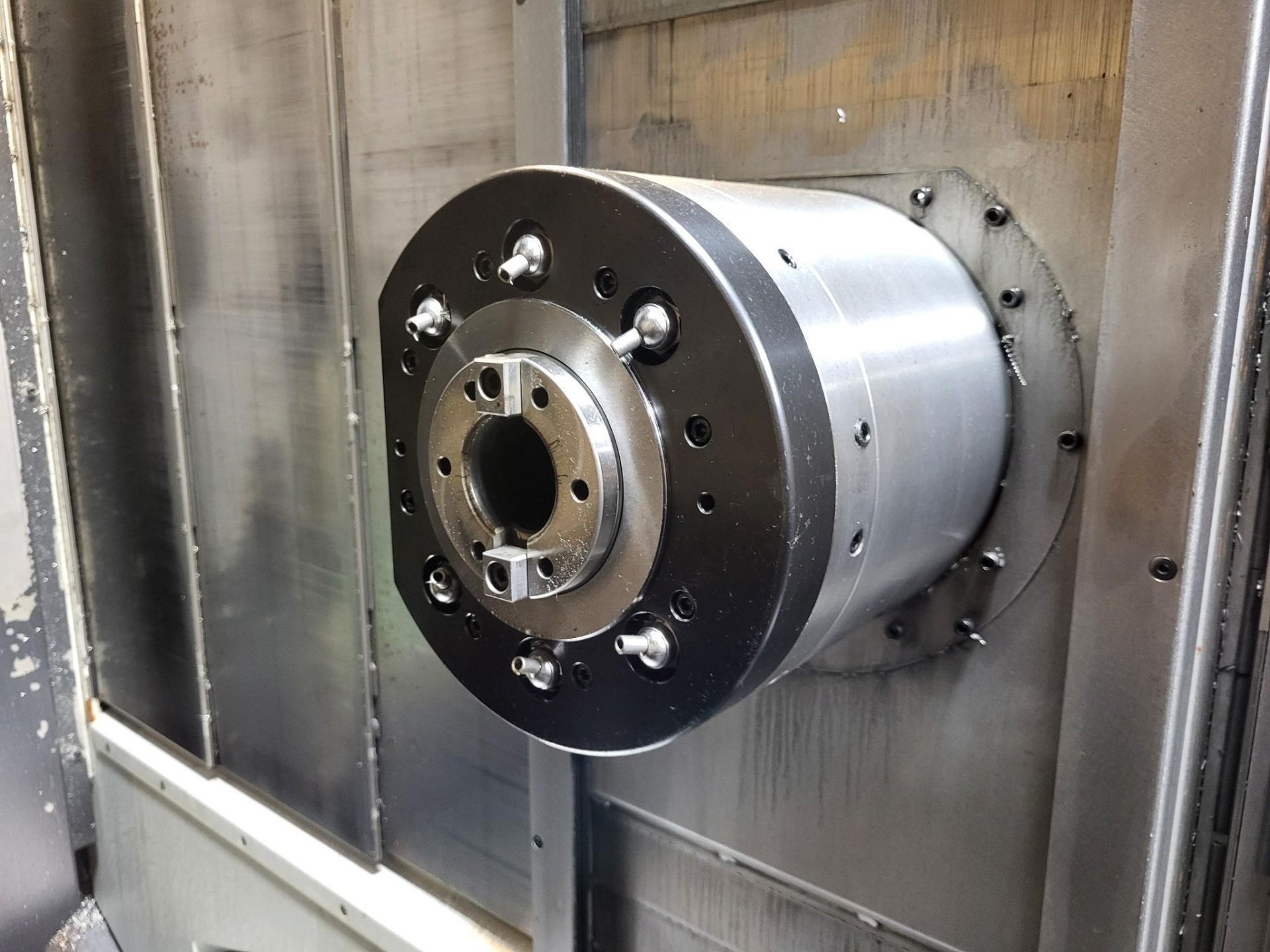

• Spindle Speed: 14,000 RPM
• Spindle Motor Power: 30 HP
• Spindle Taper: (40 taper type per model standard)
• Tool Changer Capacity: 60 tools
• Coolant Through Spindle: Yes
• Machine Dimensions (L × W × H): 212″ × 110″ × 119″
• Machine Weight: 33,100 lbs

Equipped With

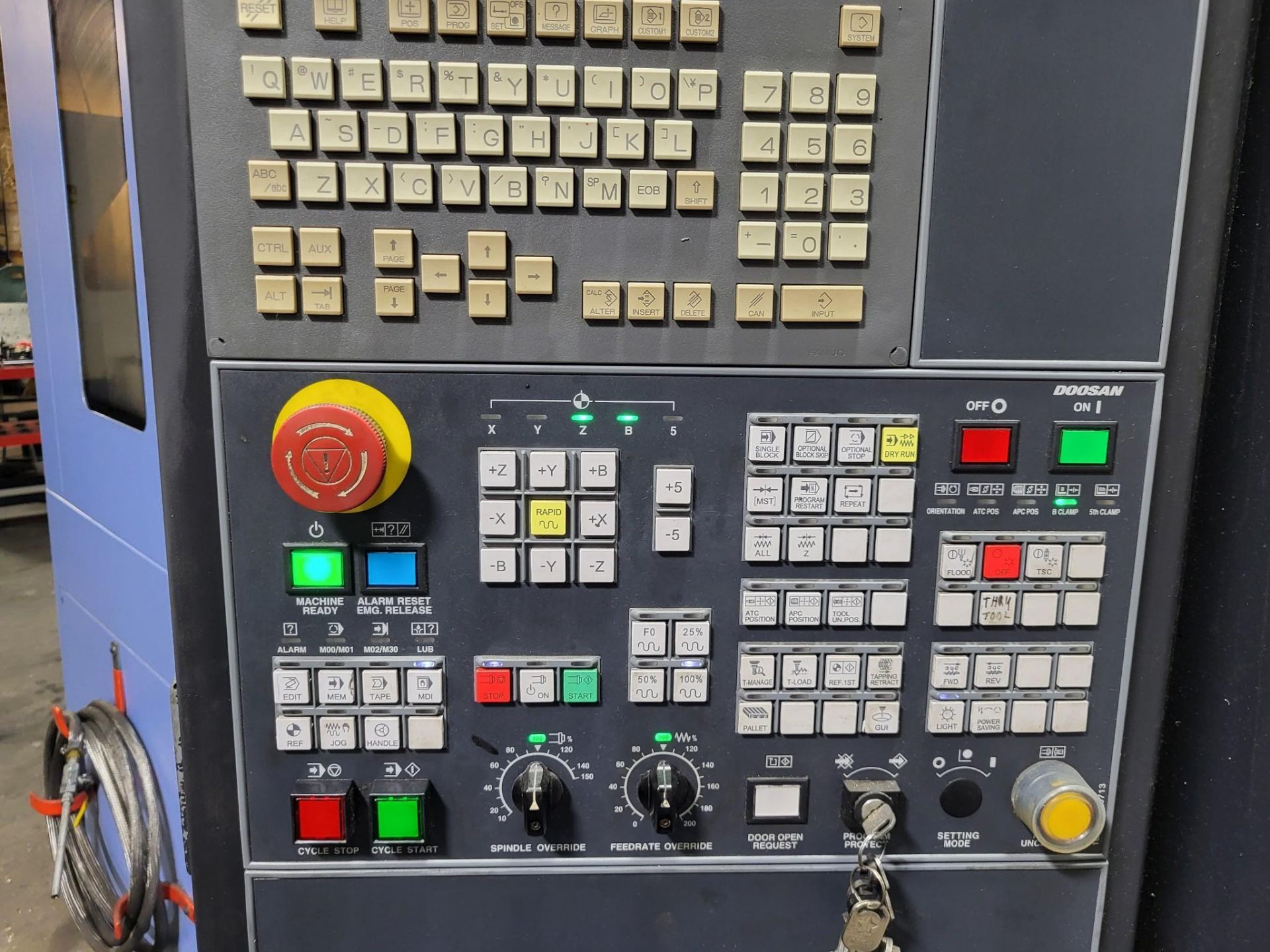

• Fanuc 31i-MB CNC Control

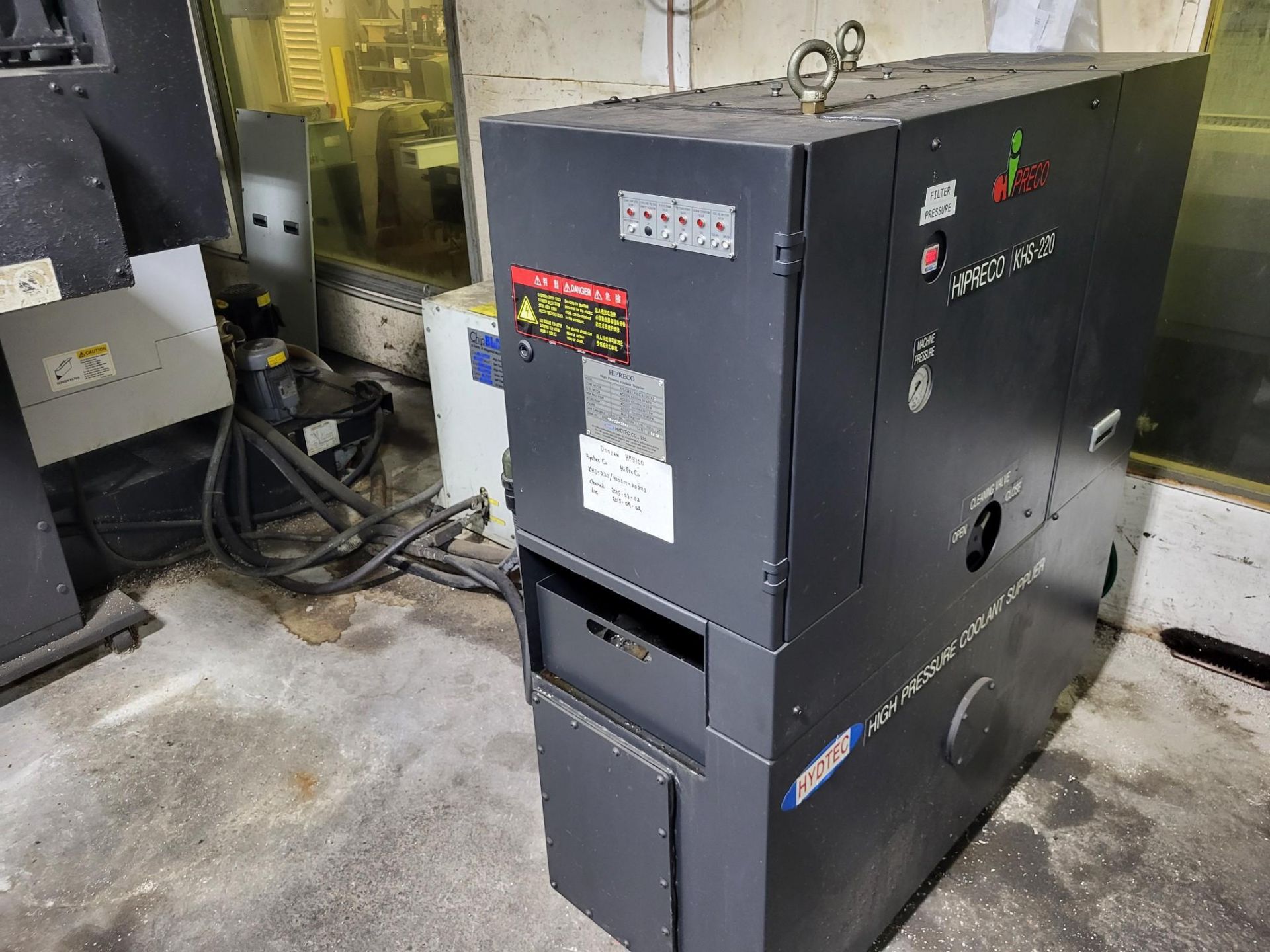

• HIPRICO KHS-220 high-pressure coolant system

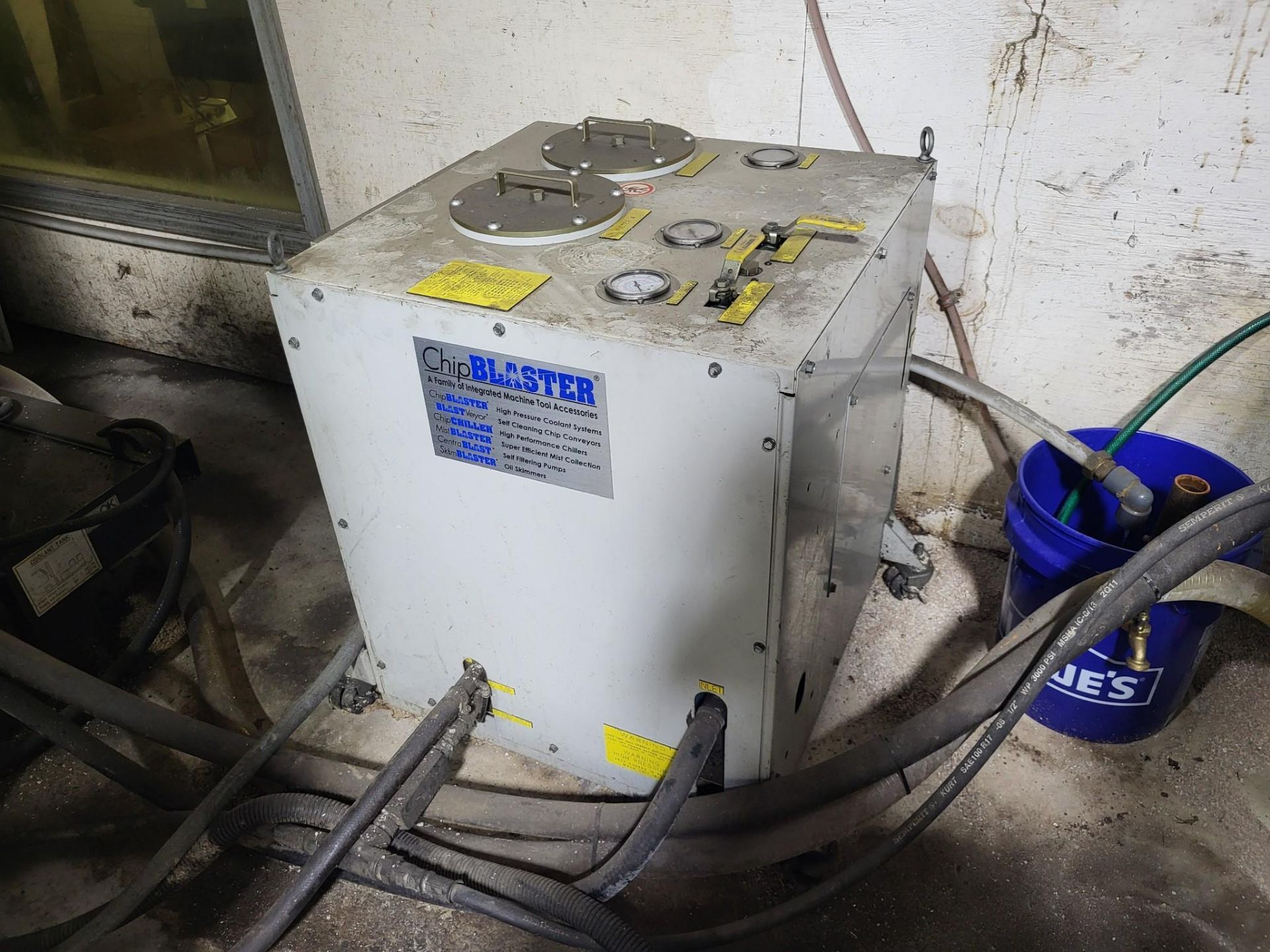

• ChipBLASTER coolant unit
• Full 4th-axis (B-axis) indexing
• Rigid boxway construction for stability and precision
• Flood coolant and chip management system
