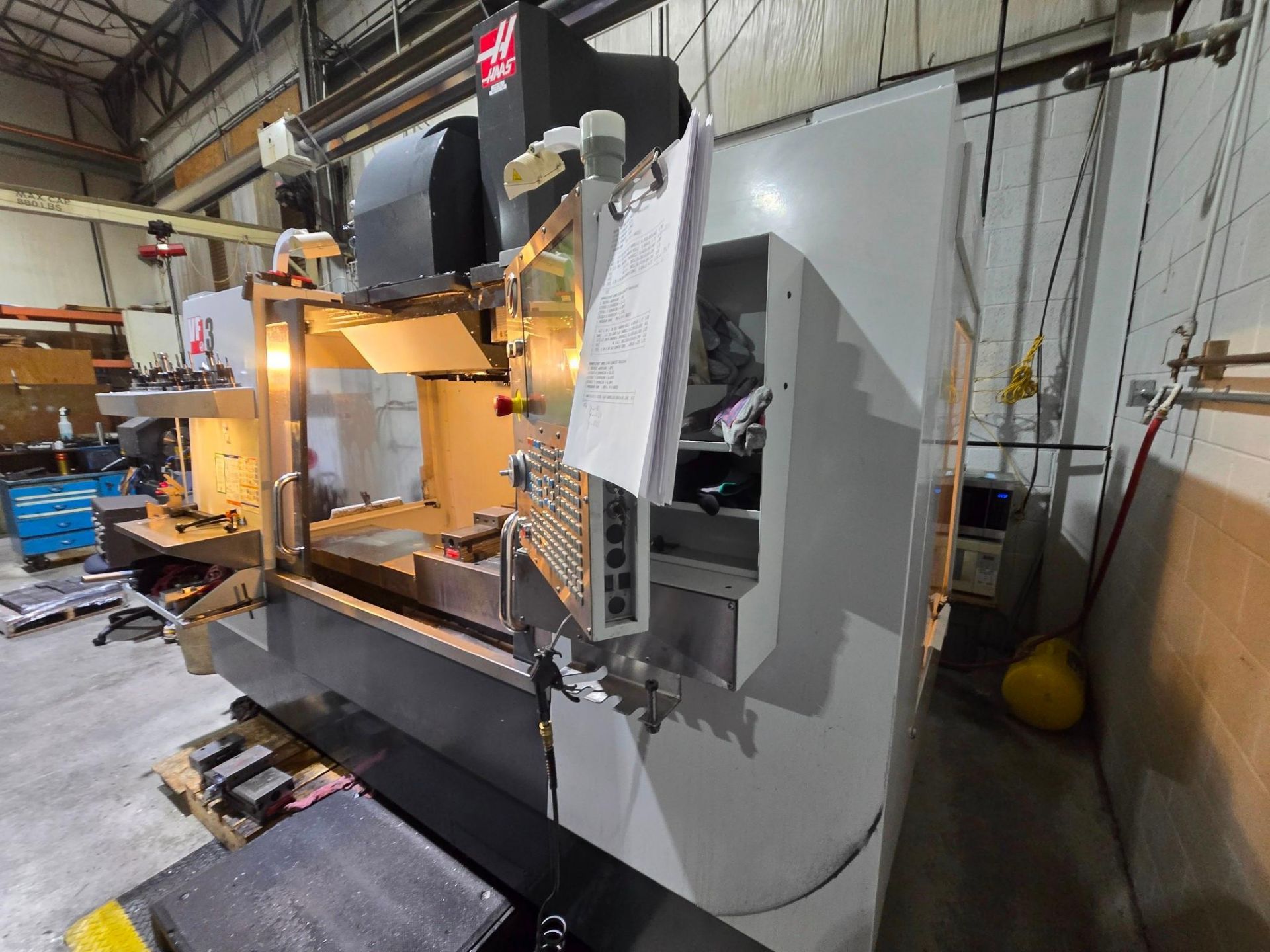

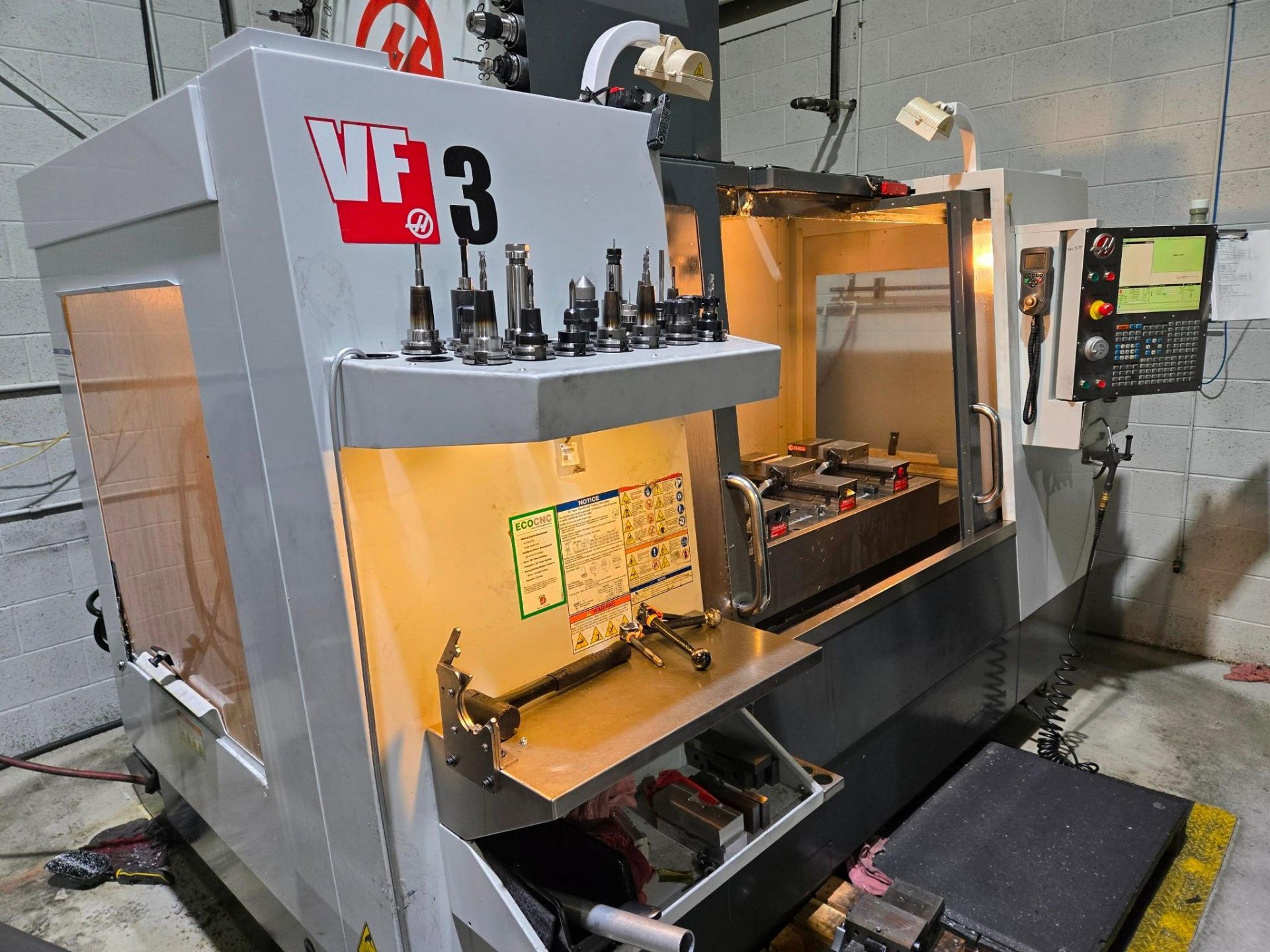

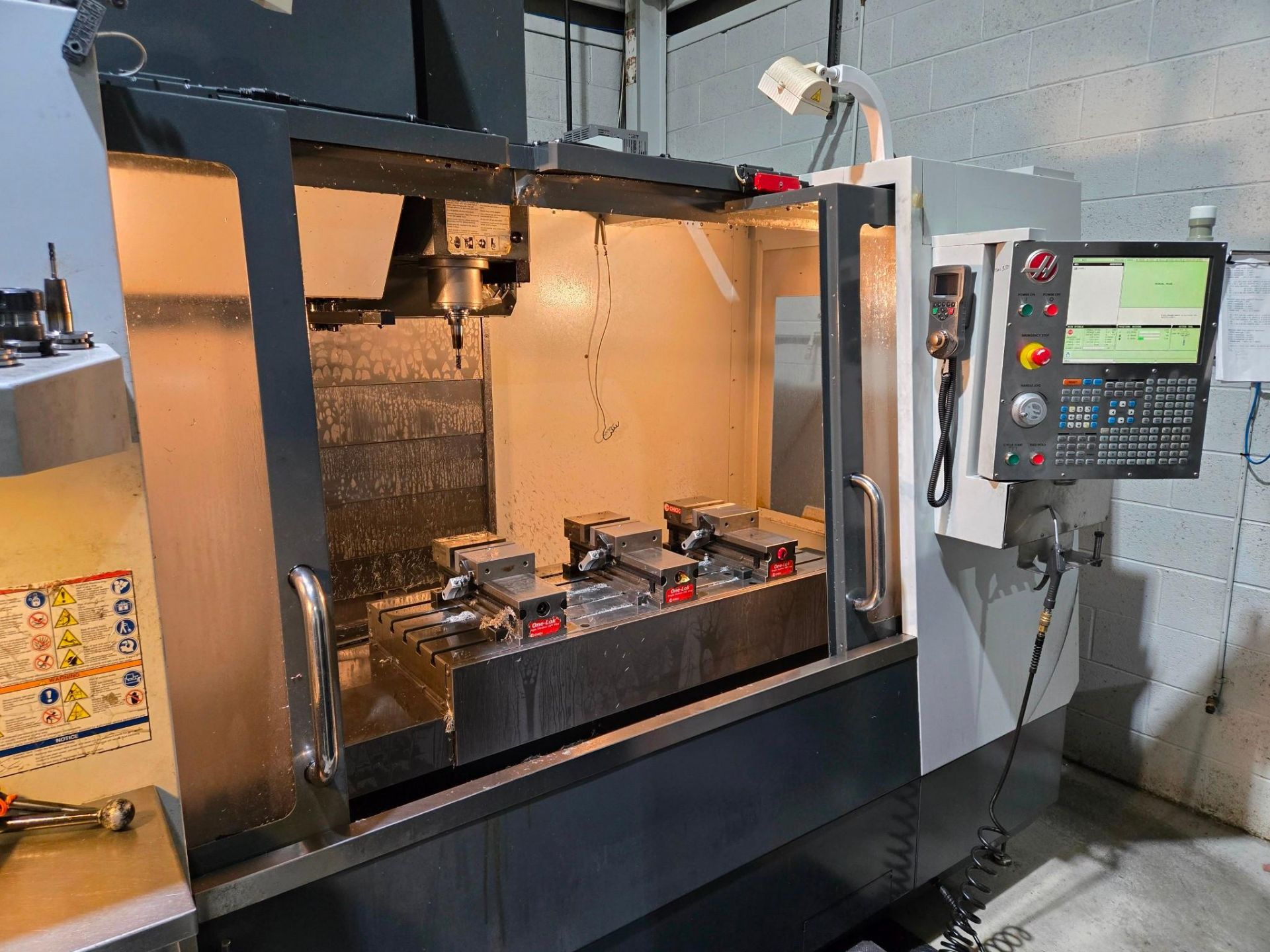

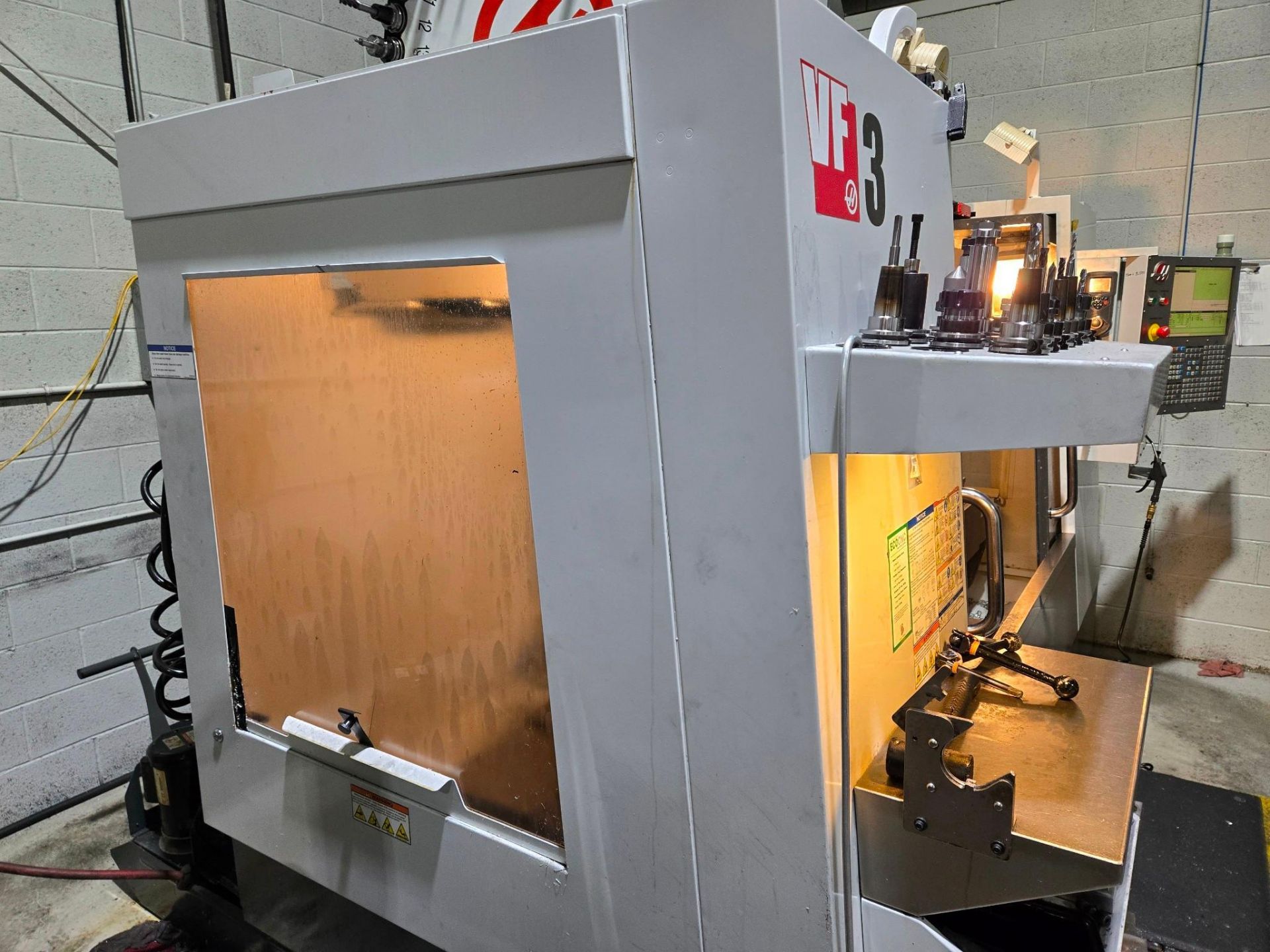

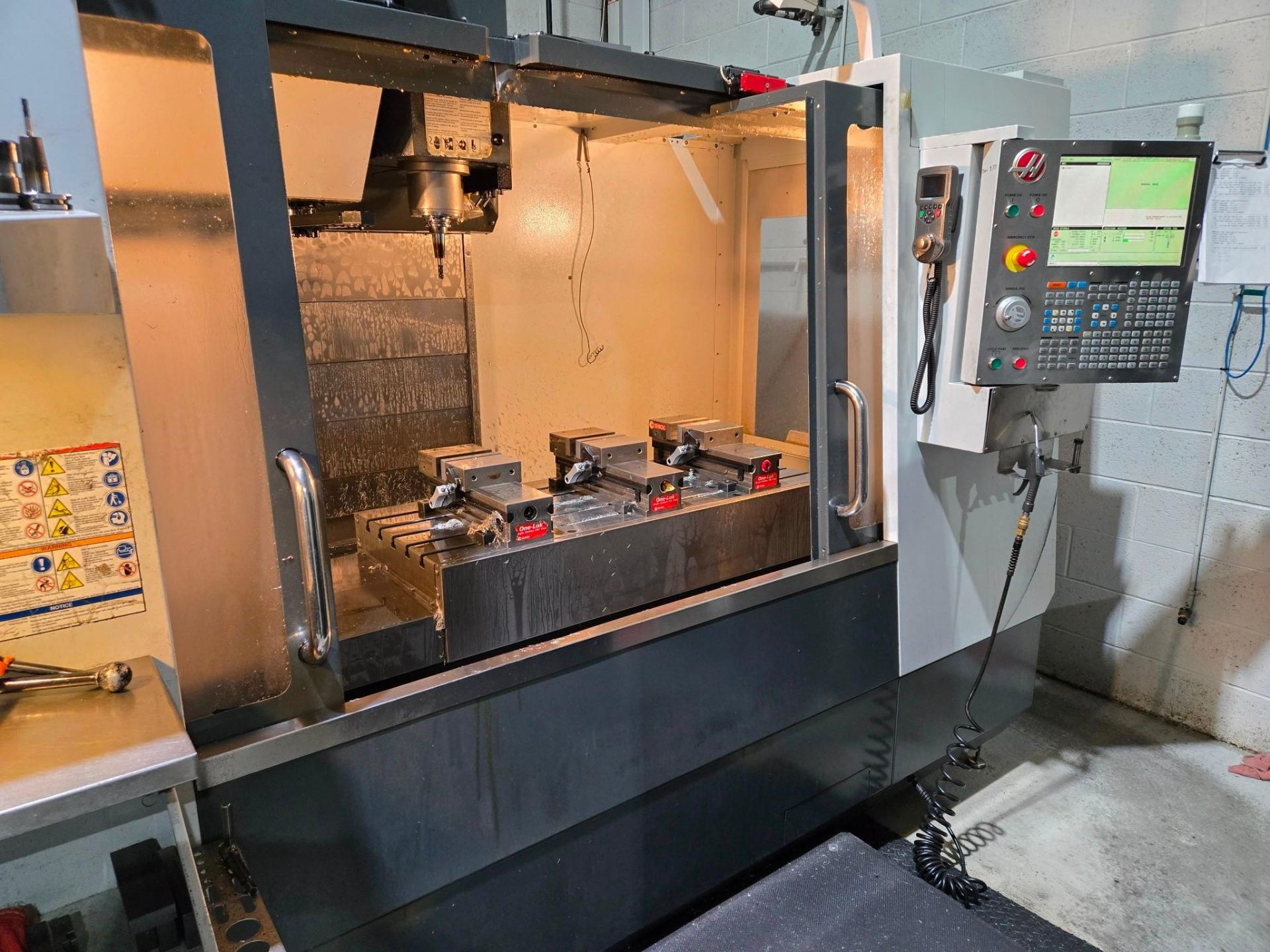

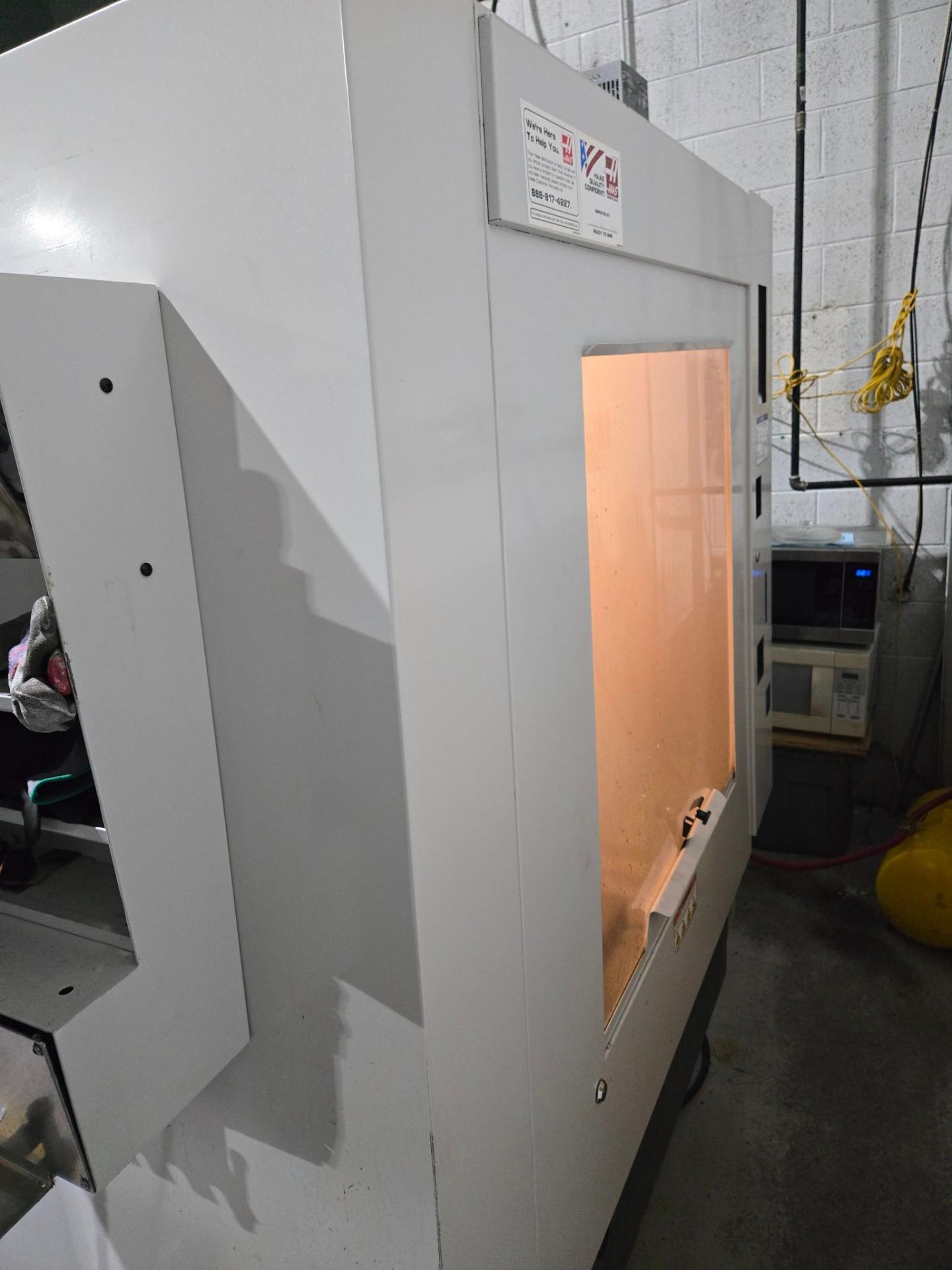

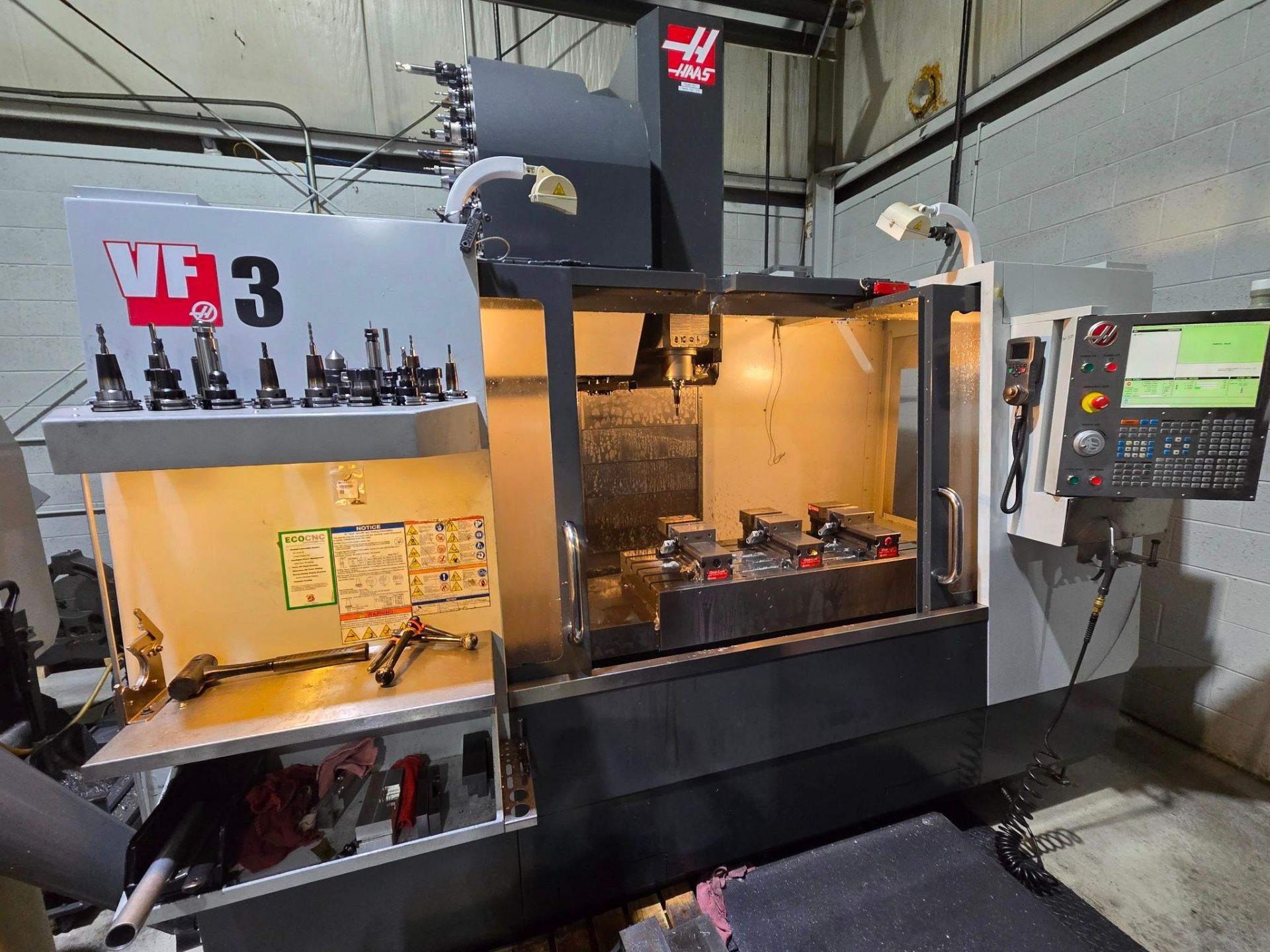

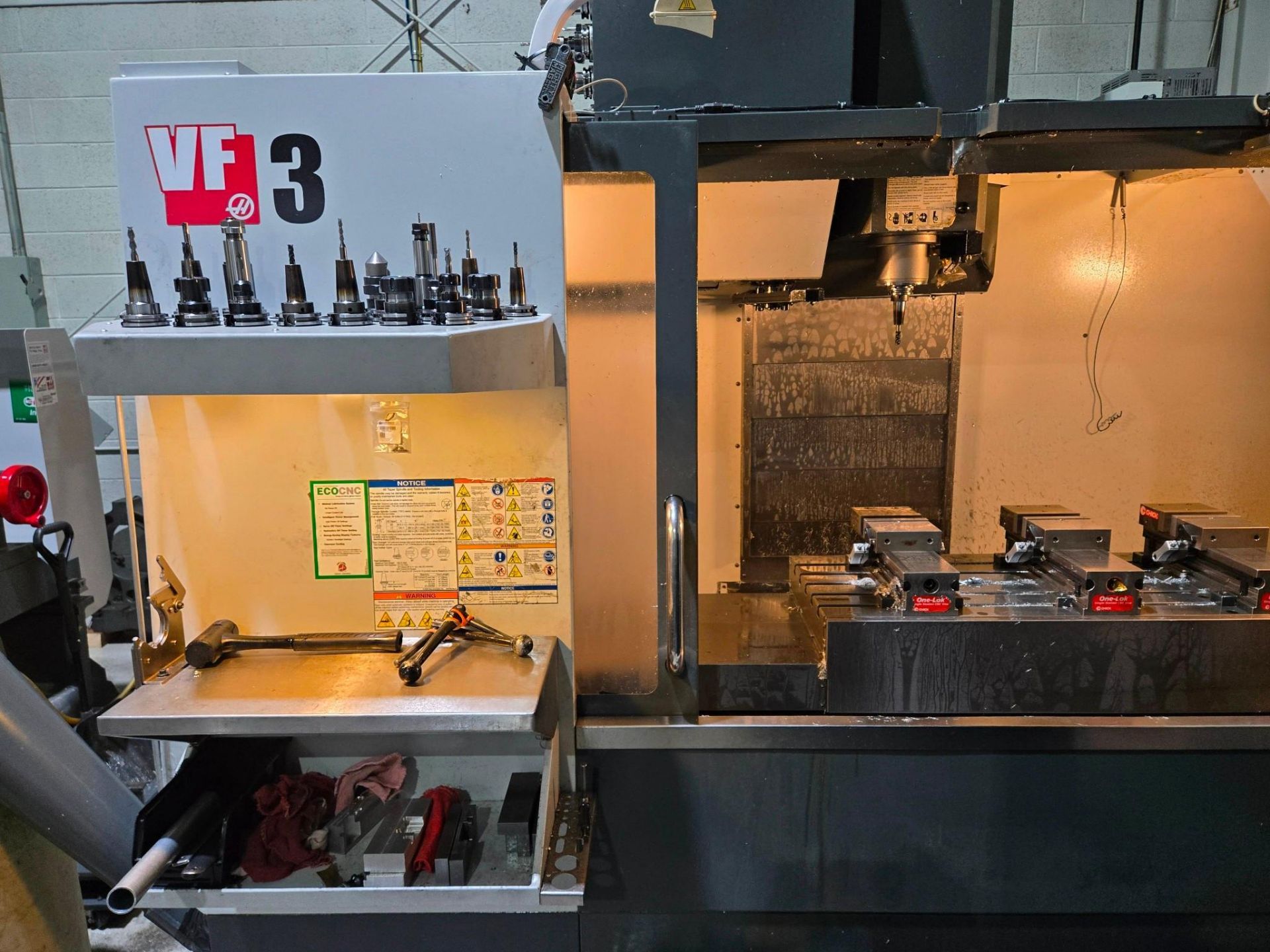

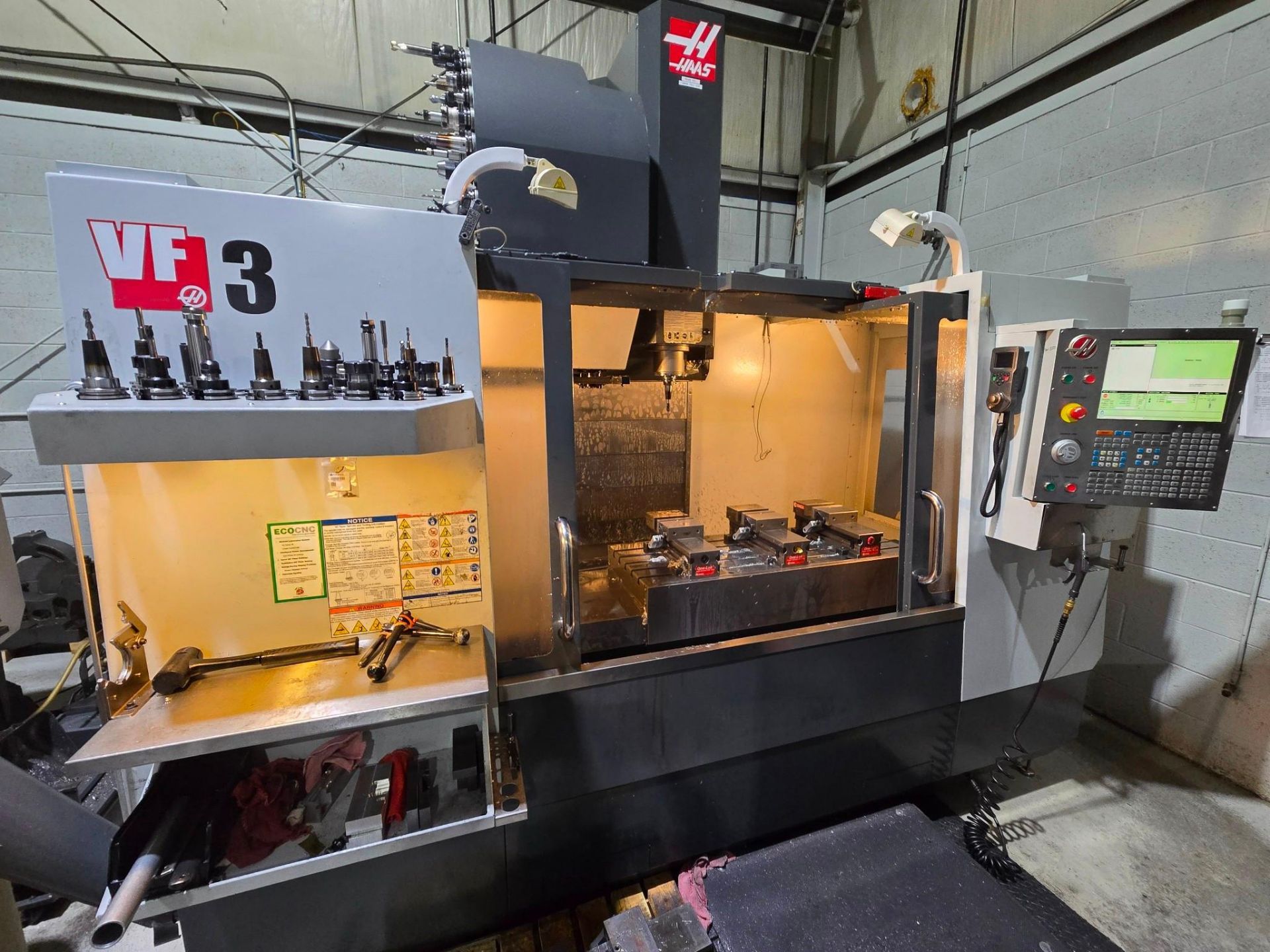

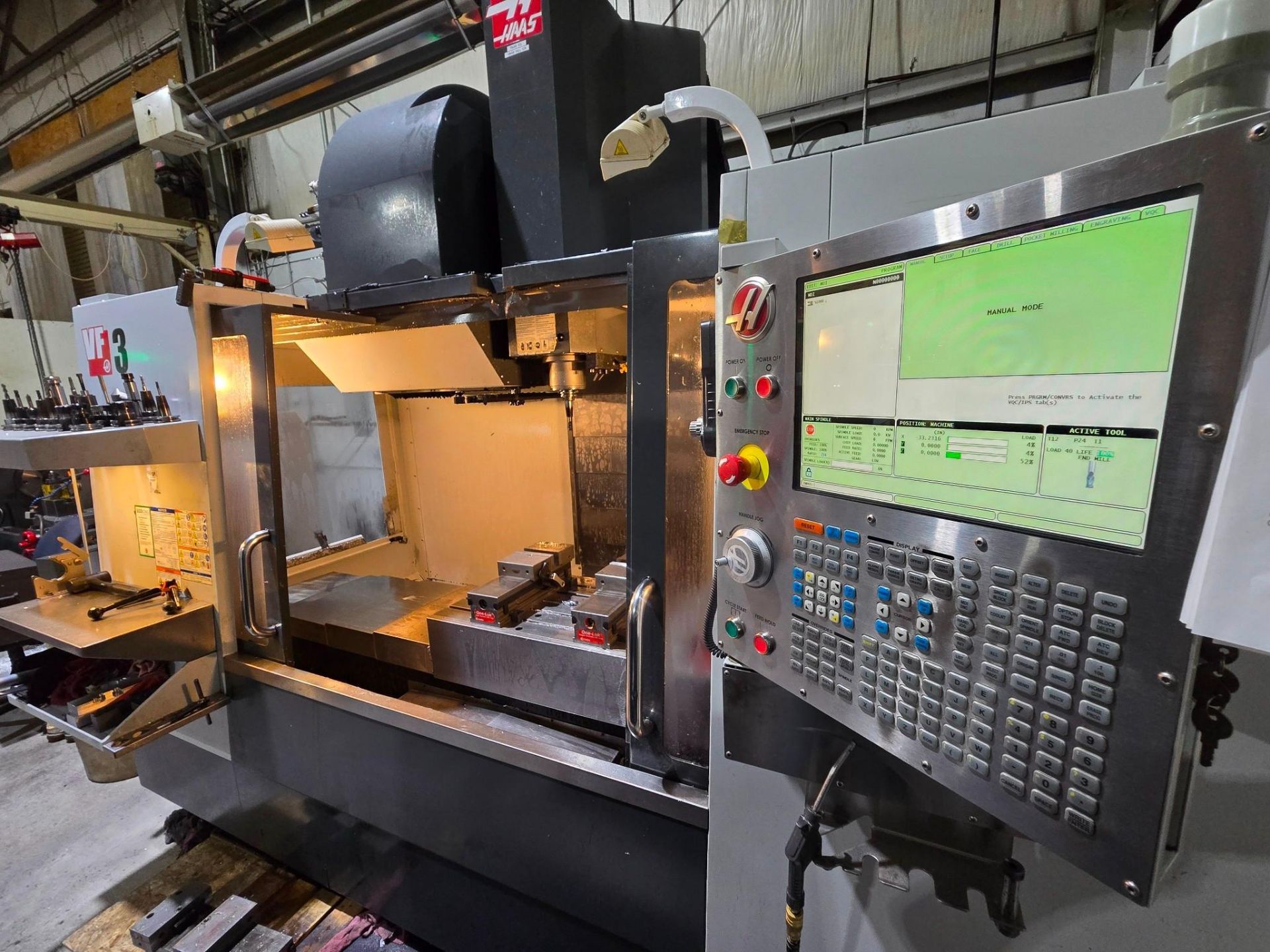

HAAS VF-3 Vertical Machining Center

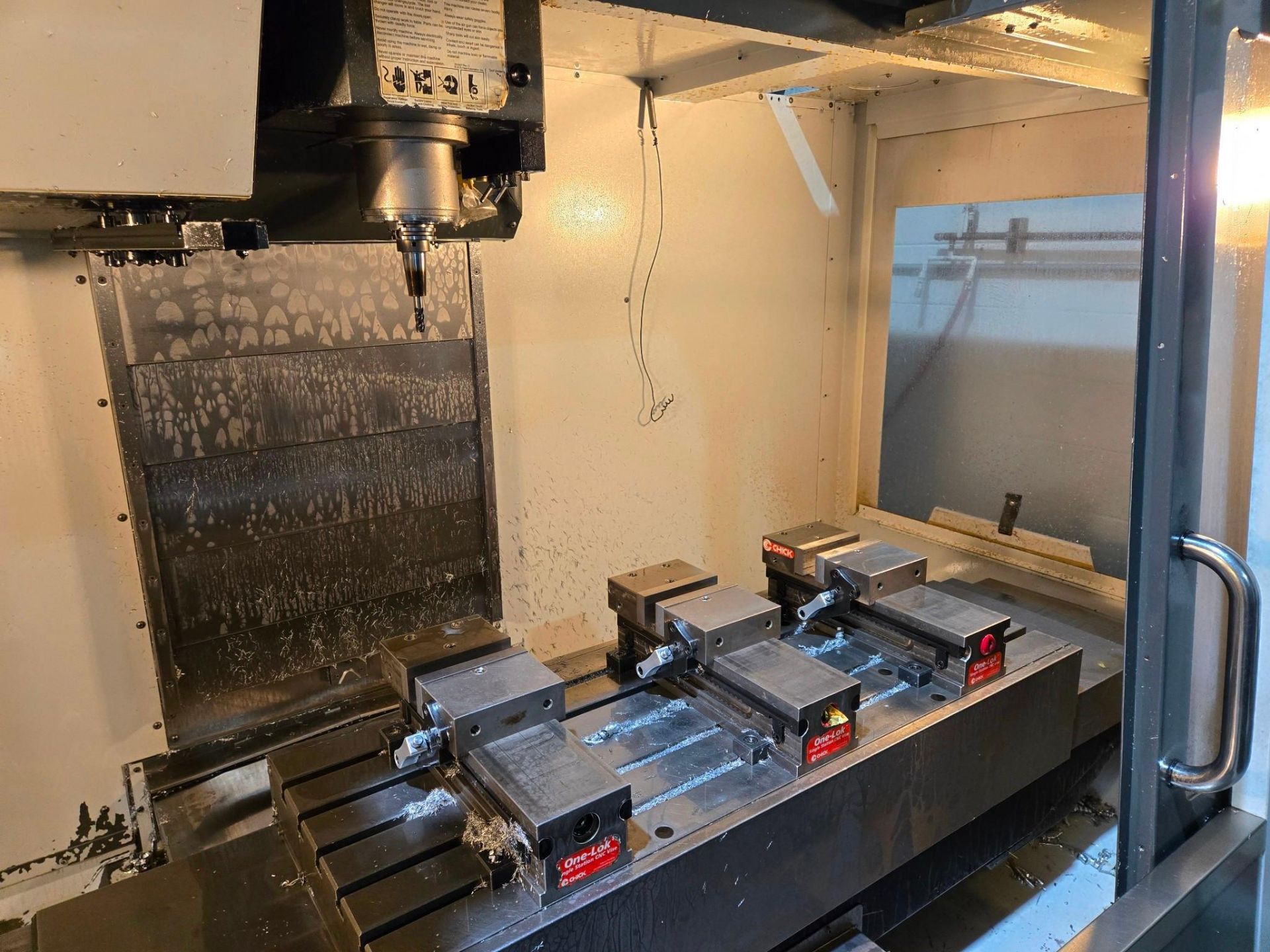

Used HAAS VF-3 CNC Vertical Machining Center with 40-tool automatic changer and thru-spindle coolant. Reliable 3-axis milling center offering precision and power for a wide range of machining applications.
Technical Specifications:
- Year: 2015

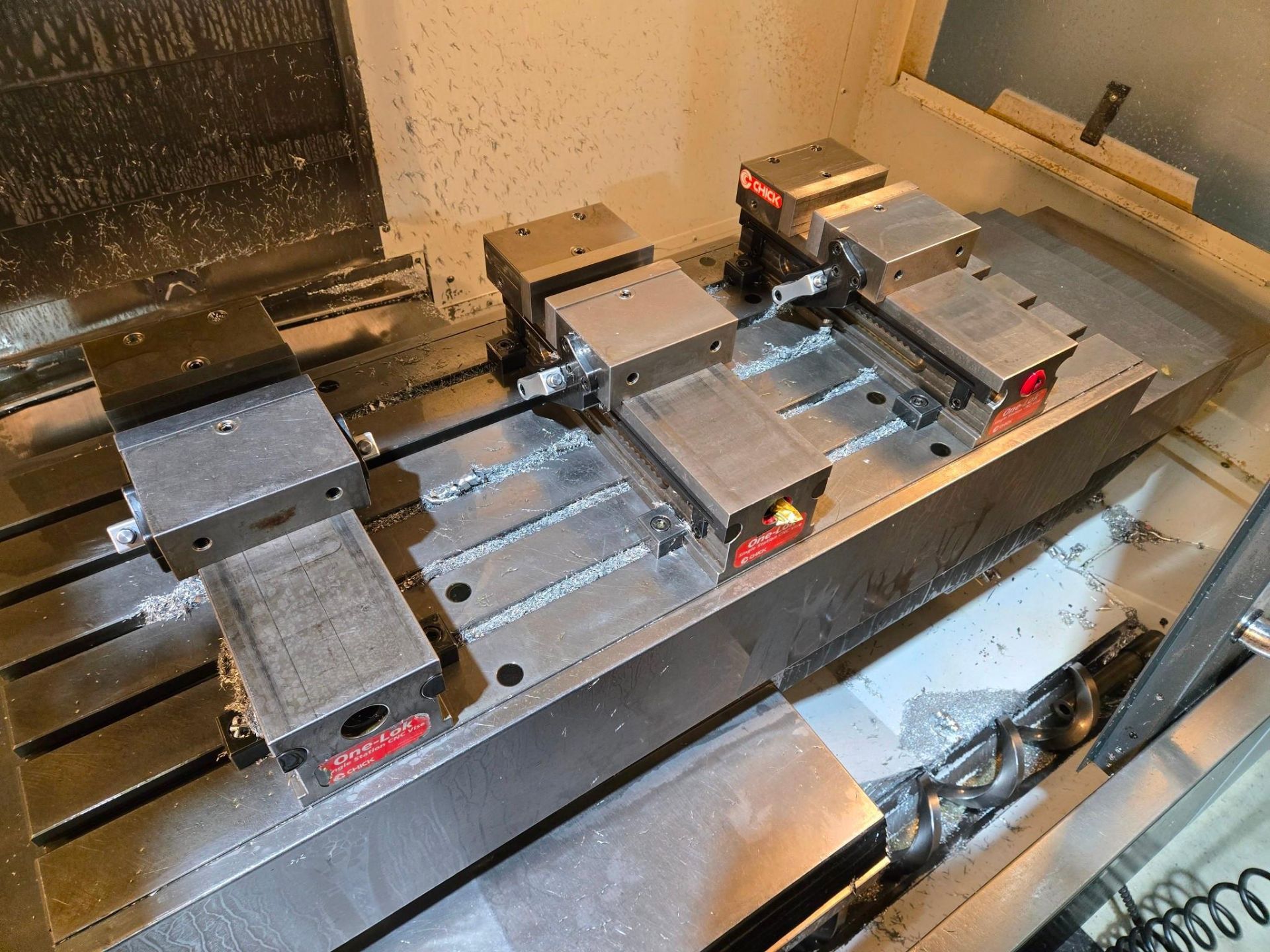

- Table size: 48″ × 18″
- Maximum table load: 3,500 lbs
- Spindle nose to table: 4″ – 29″
- X-axis travel: 40″
- Y-axis travel: 20″
- Z-axis travel: 25″

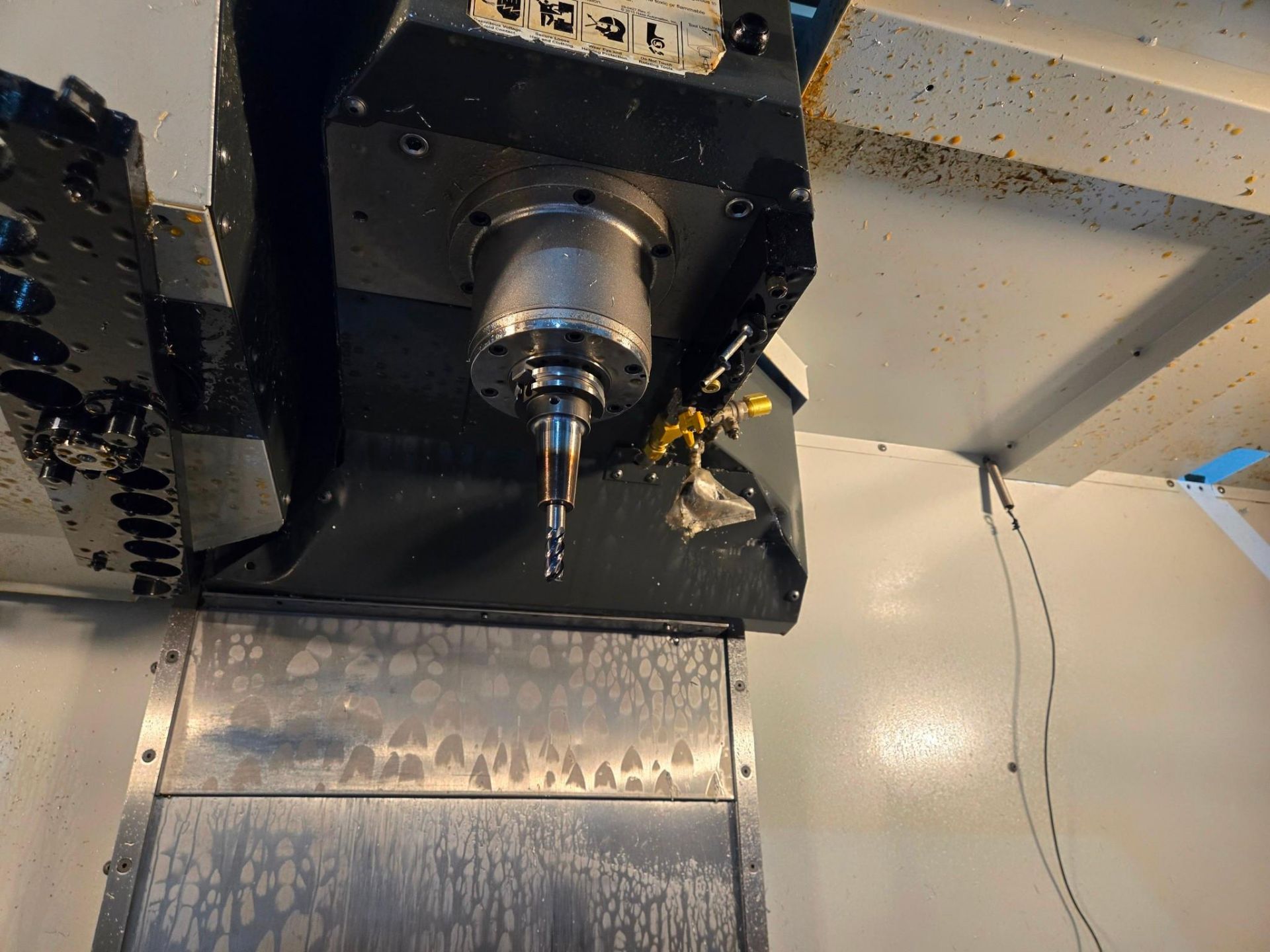

- Spindle taper: CAT 40
- Spindle motor: 20 HP
- Rapid traverse (X/Y/Z): 1,000 IPM
- Cutting feedrate: 650 IPM
- Tool magazine: 40 + 1 ATC
- Max tool weight: 12 lbs
- Max tool diameter: 3.5″
- Machine weight: 12,500 lbs
Equipped With:

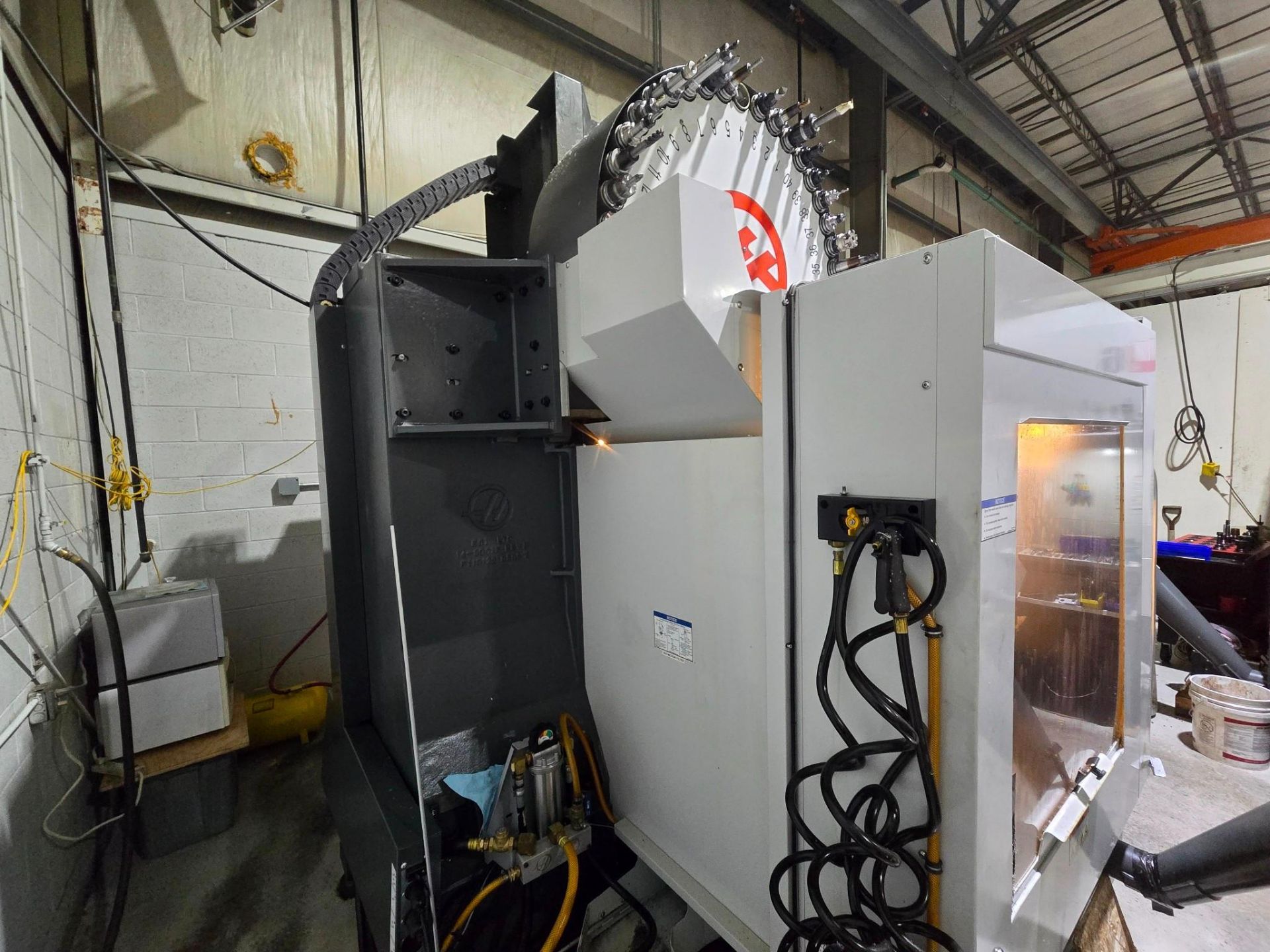

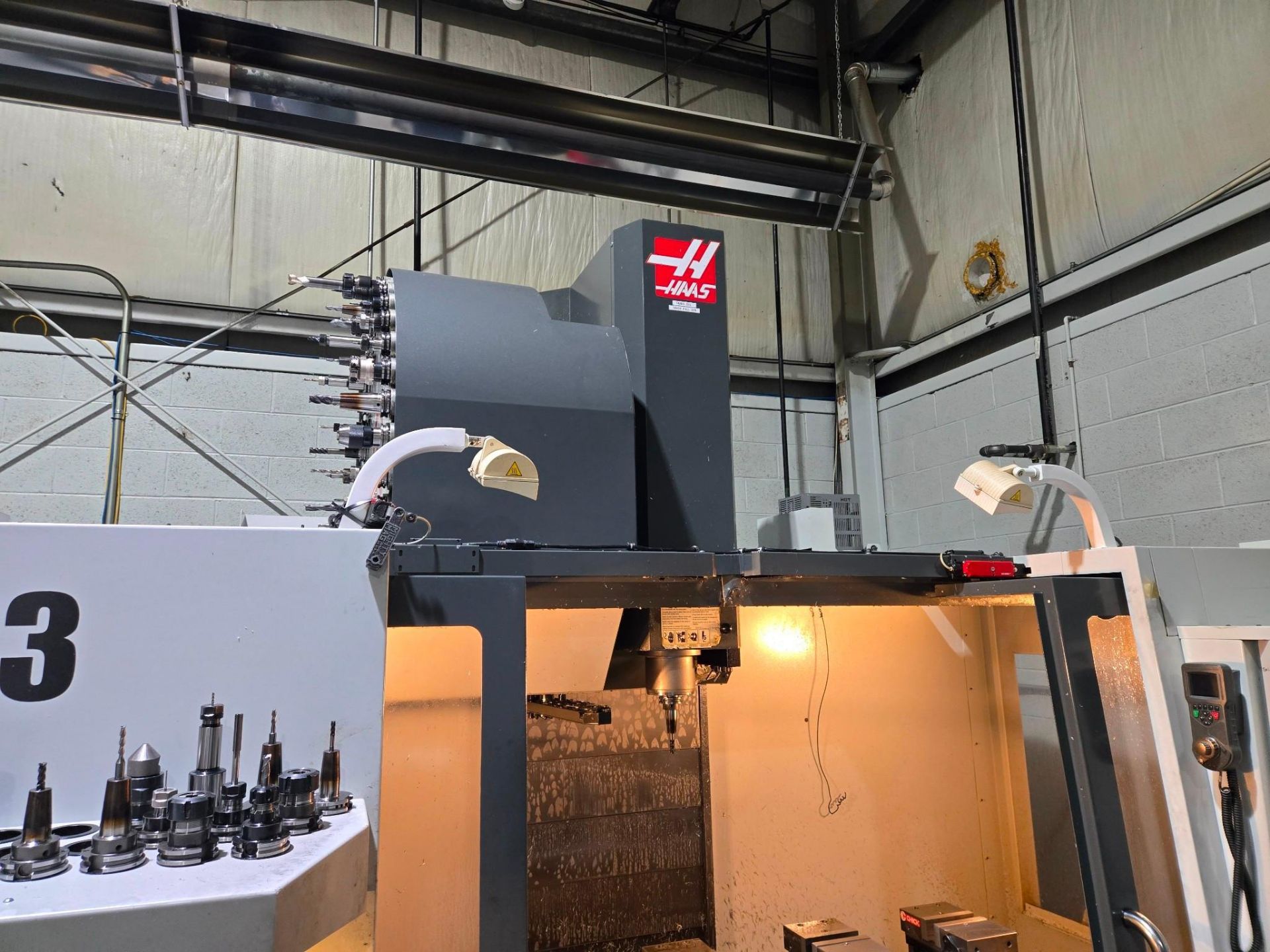

- 40+1 side-mount automatic tool changer
- Thru-spindle coolant system

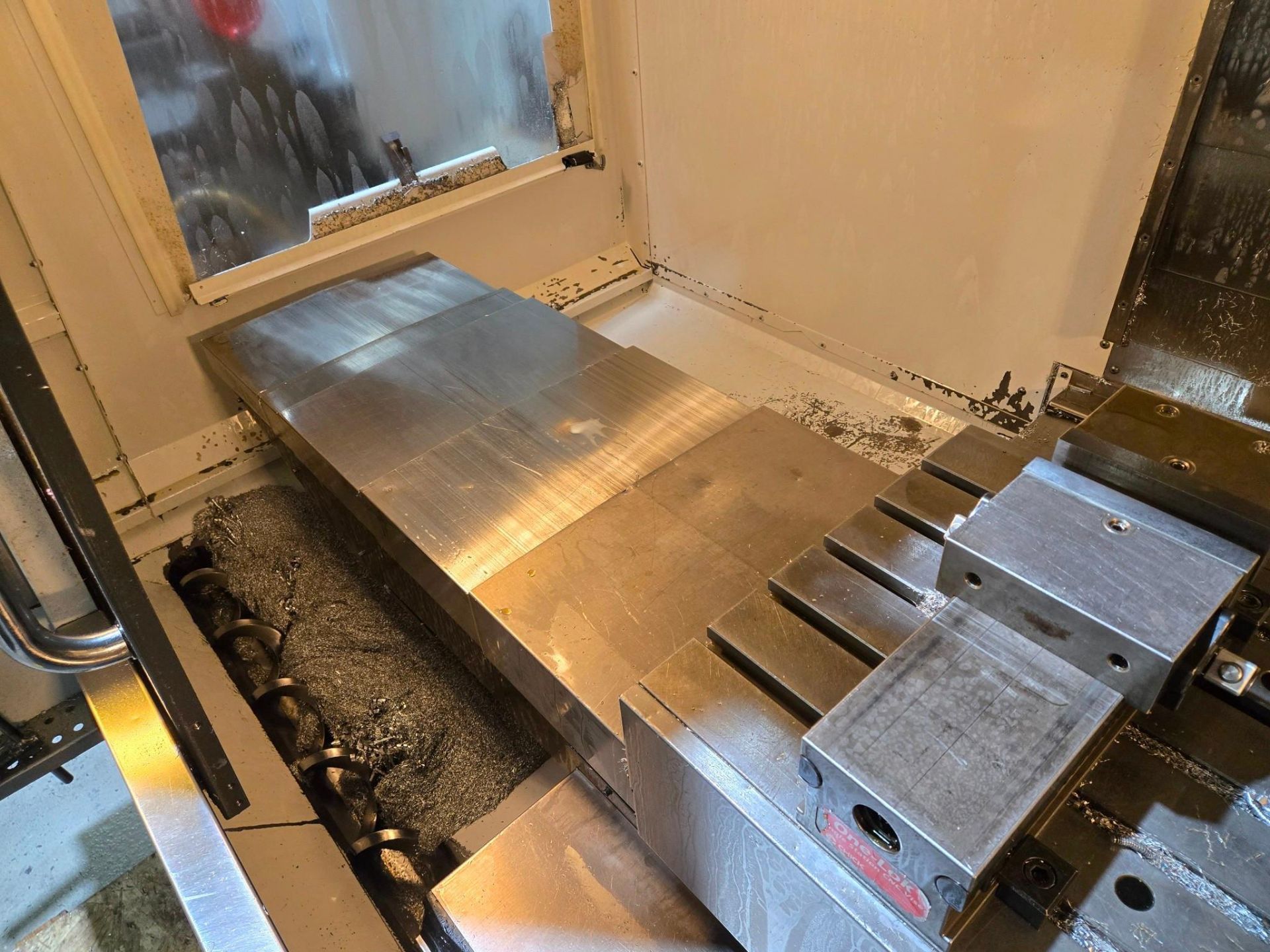

- Chip auger
- Two-speed gearbox

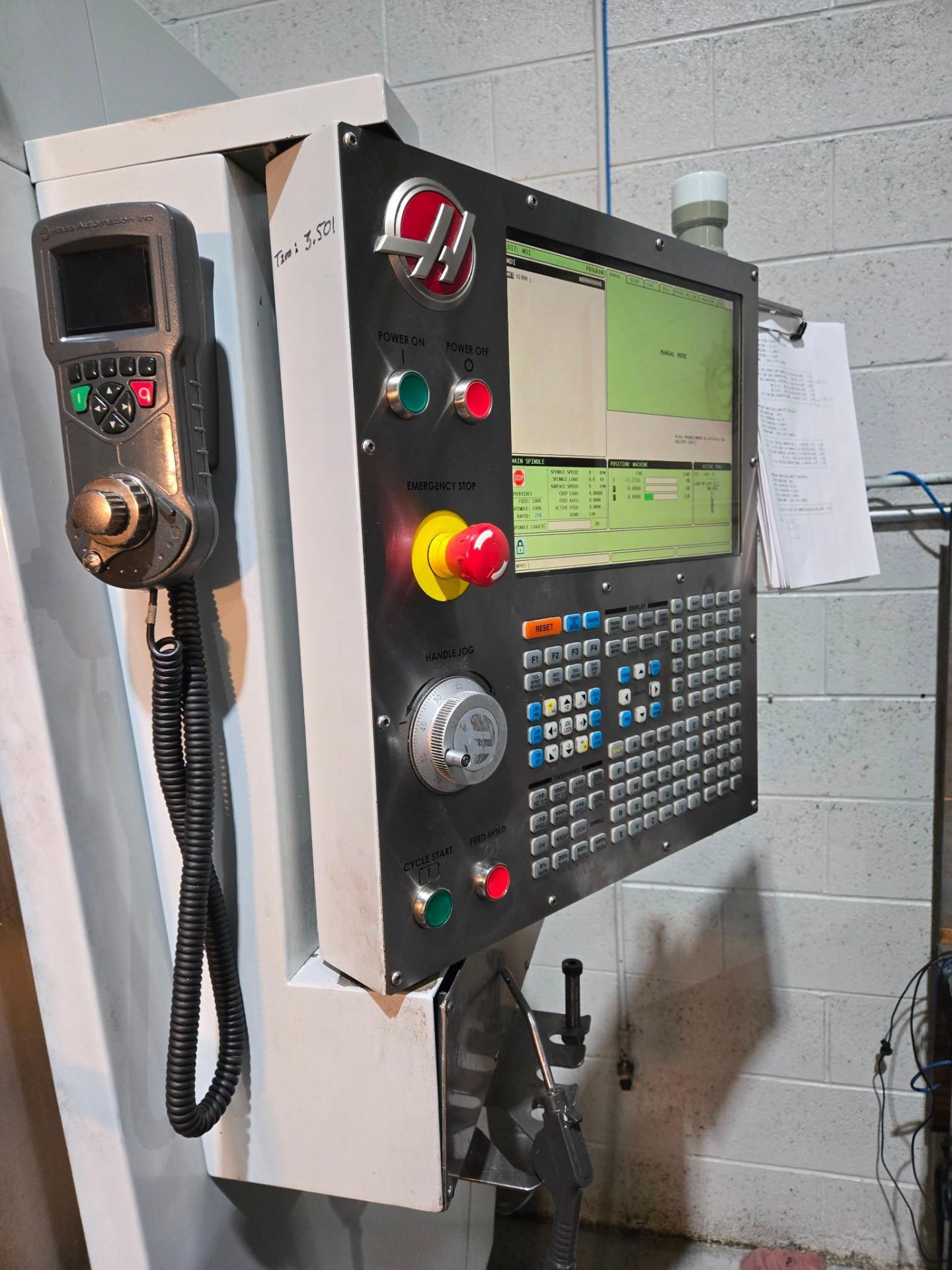

- Remote jog handle
- Ethernet interface
- Intuitive programming system (IPS)
- Programmable coolant nozzle
- High-intensity work lighting
- Tool holders included
Condition:
Very good working condition — complete, clean, and ready for immediate operation.
