Description

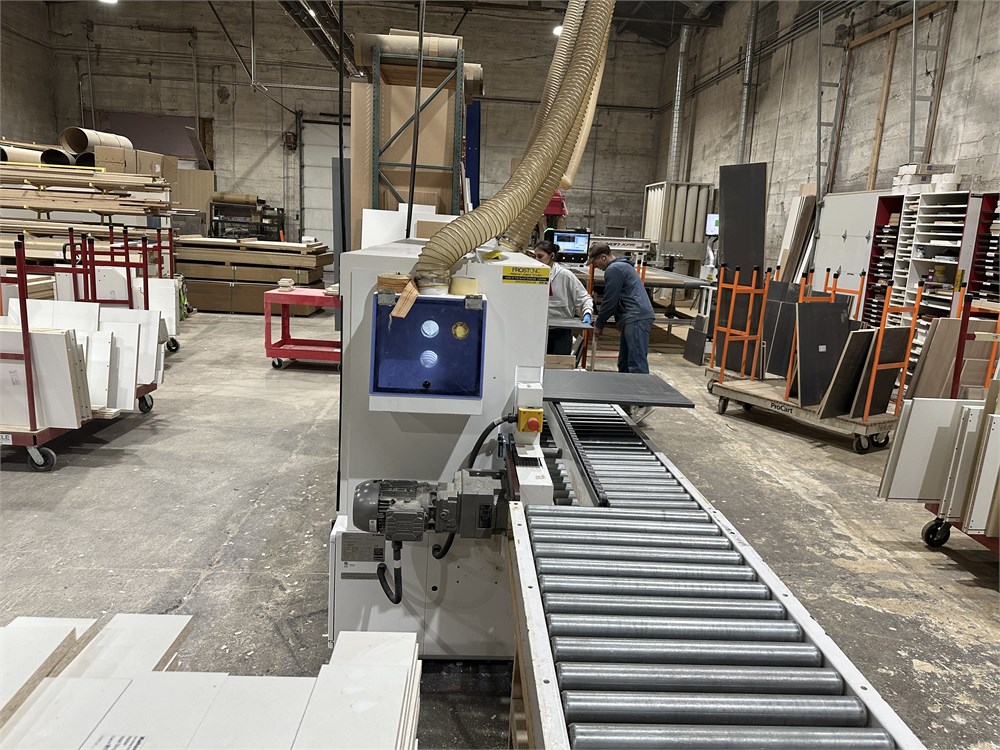

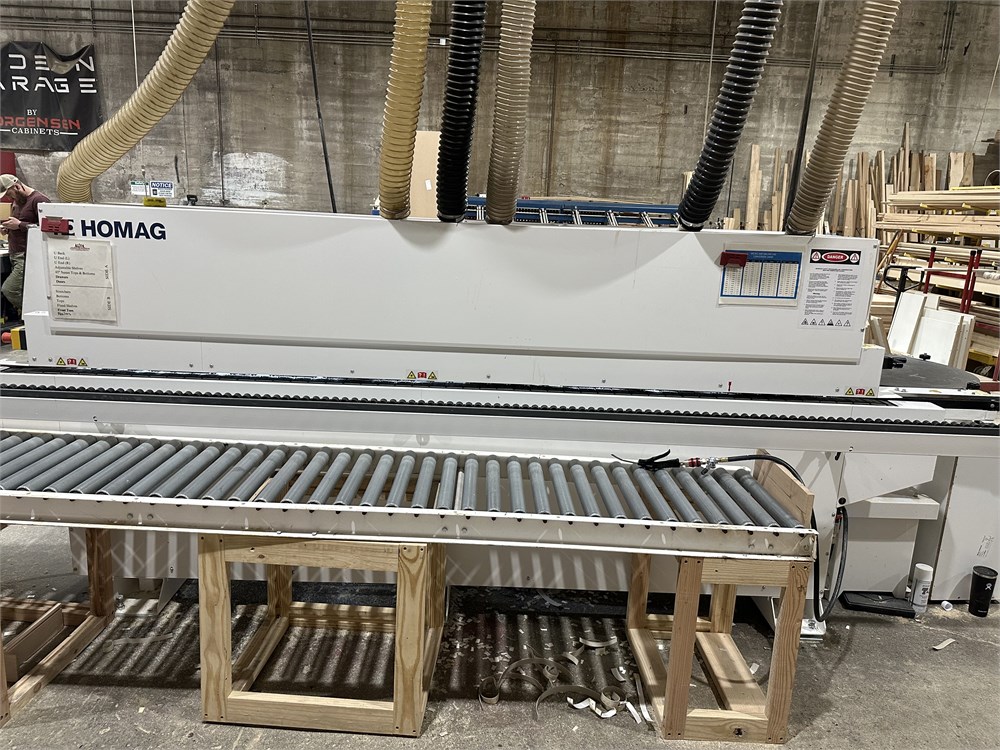

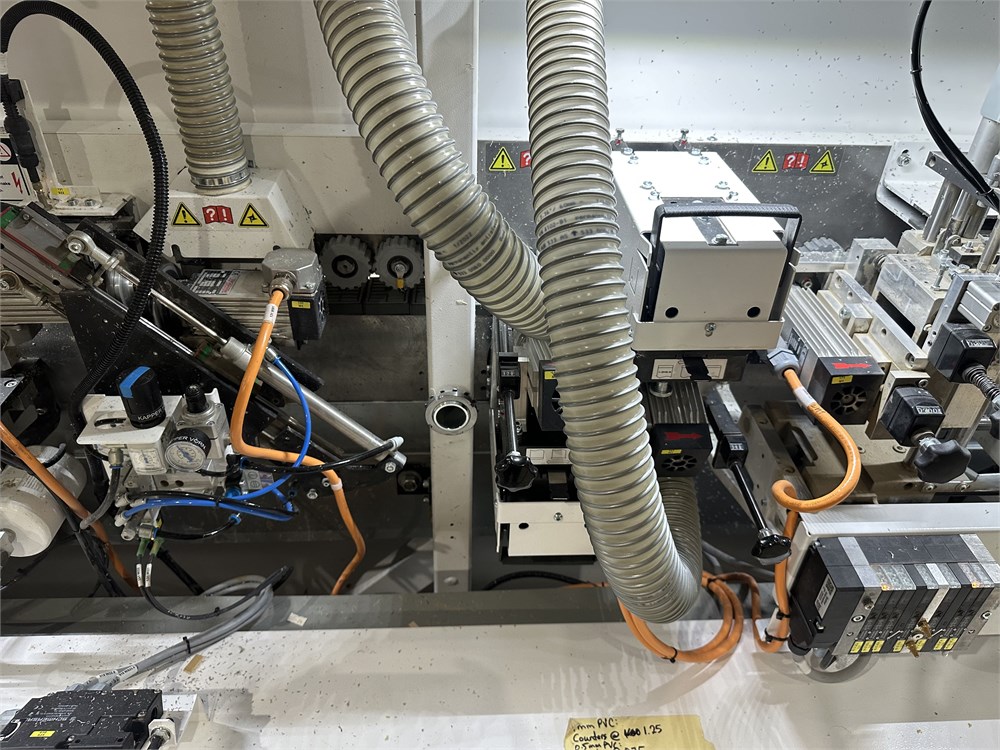

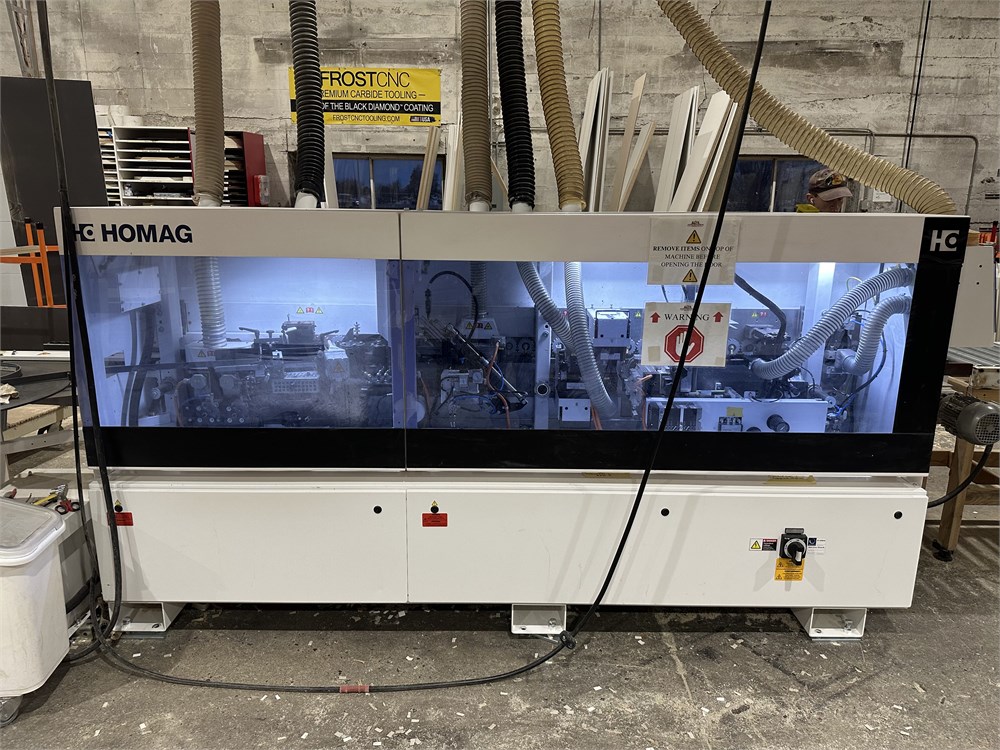

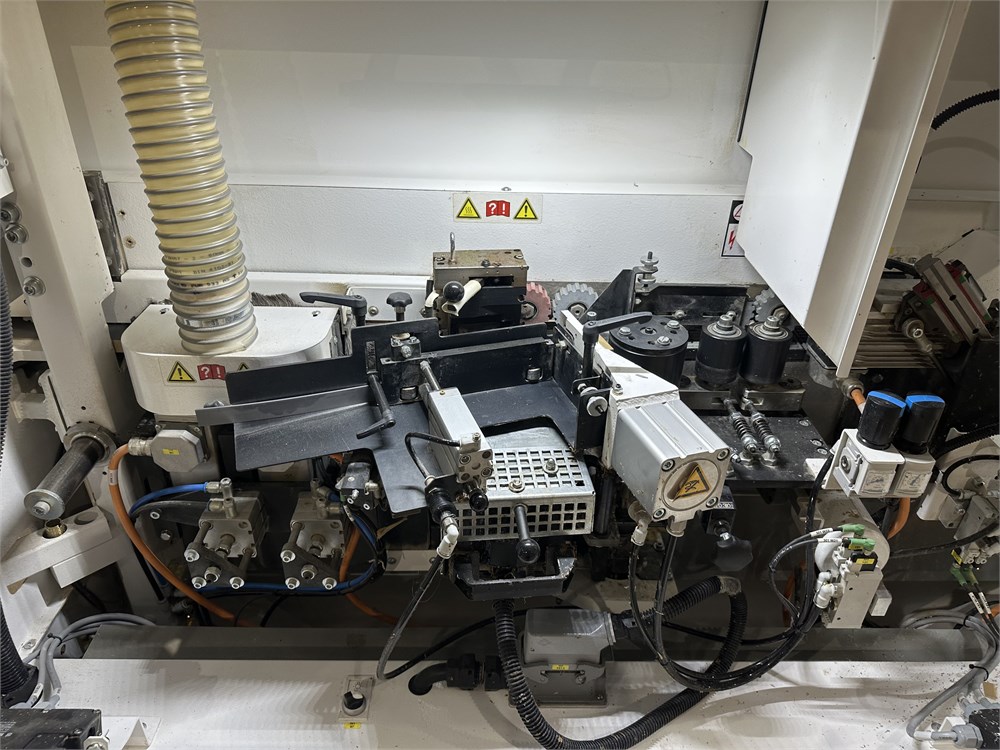

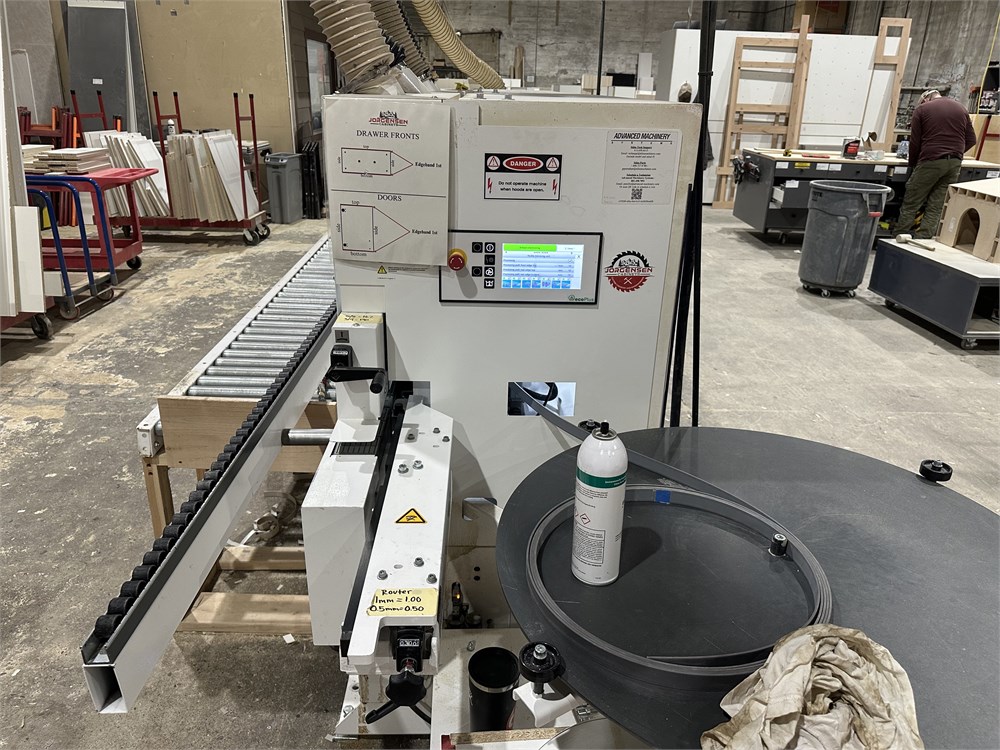

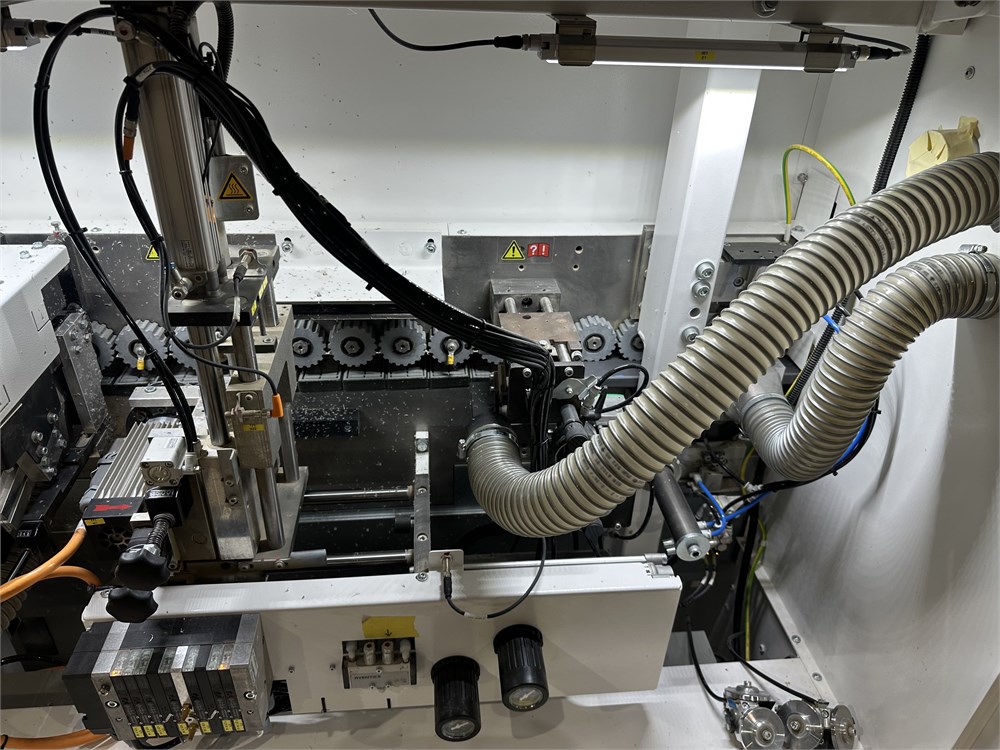

Homag “Edgeteq S-200″ Edgebander (2022) SEE VIDEO 140 mm (5.5″) minimum part length 70 mm (2.75″) minimum panel width (thickness less than 23 mm) 120 mm (4.75″) minimum panel width (thickness greater than 23 mm) 8 mm (5/16″) – 40 mm (1.5″) panel thickness 0.4 mm – 3 mm coiled or strip edgebanding thickness 26 FPM feed speed Touch screen controller Easy/Touch program control 7″ display 20 program storage Machine and production data Automatic height adjustment of top pressure beam Edgebanding infeed table, 32″ diameter Two (2) motor premilling unit Guillotine Glue unit with glue pot and roller Pressure unit One (1) driven roller Two (2) idle rollers Two (2) motor end trimming unit, 0.25 HP motors operating @ 12,000 RPM Top/bottom fine trimming unit, 0.36 HP motors operating @ 12,000 RPM Three (3) work positions: flush trimming, trimming with overhang, radius/bevel trimming One (1) motor corner rounding unit Top/bottom profile scraping unit with external collection box Top/bottom buffing unit Sound enclosure Outboard roller support External electrical transformer
Specifications:
Pick Up Location: 418 N. 4041 E., #1 Rigby, ID 83442
Make: Homag
Model: Edgeteq S-200

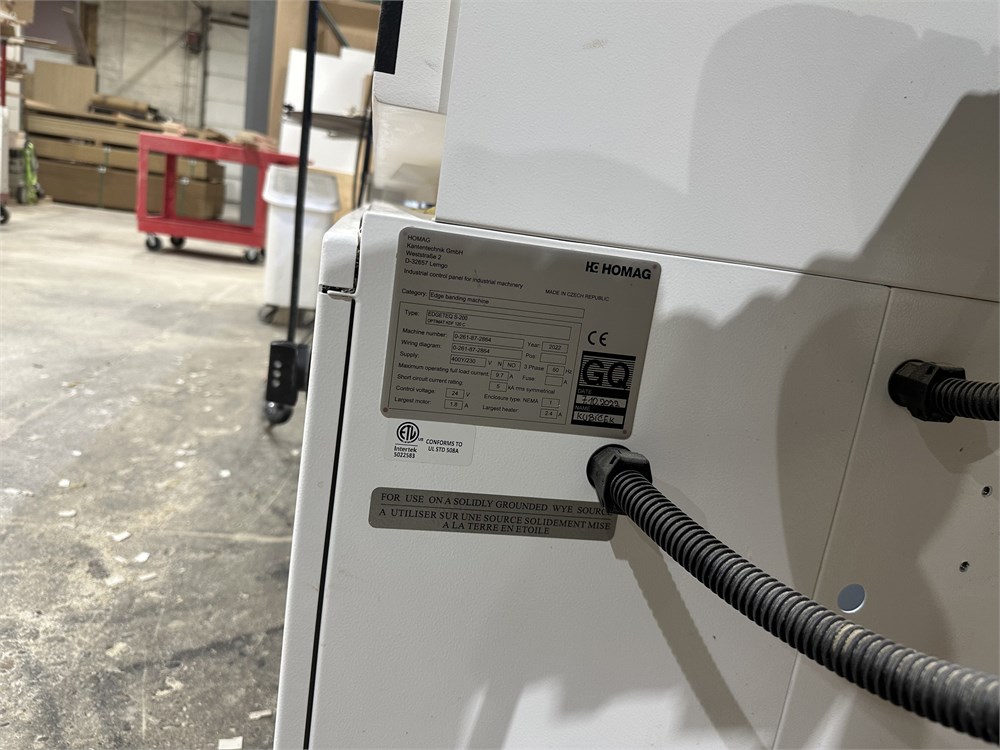

Serial Number: 0-261-87-2864
Year: 2022
Phase: 3 PHASE
Voltage: 208-230/460
Estimated Dimensions: 144″ L x 48″ W x 60” H
Estimated Weight: 2,000 Pounds
Seller Comment: Seller can load onto buyer’s flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost
Load Fee: 250.00
