Description

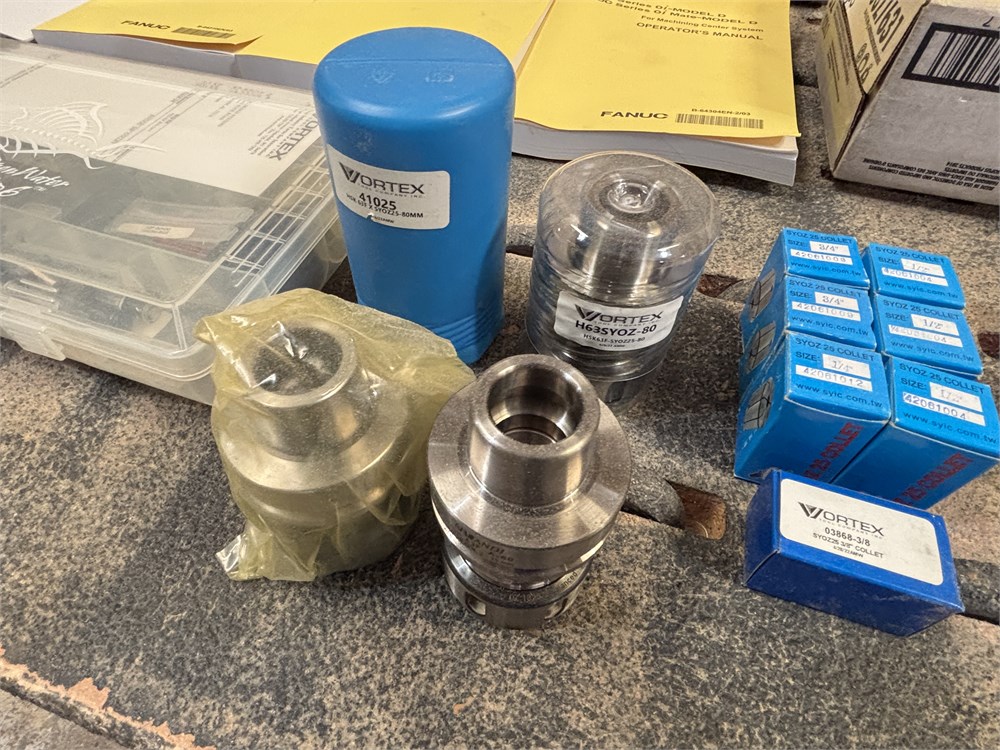

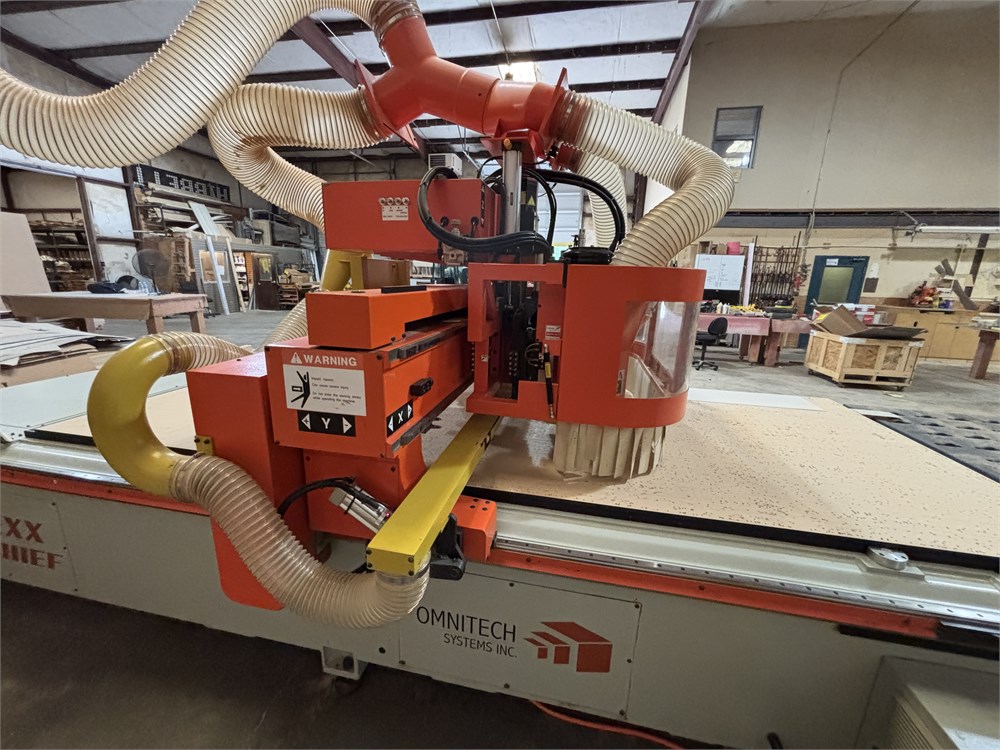

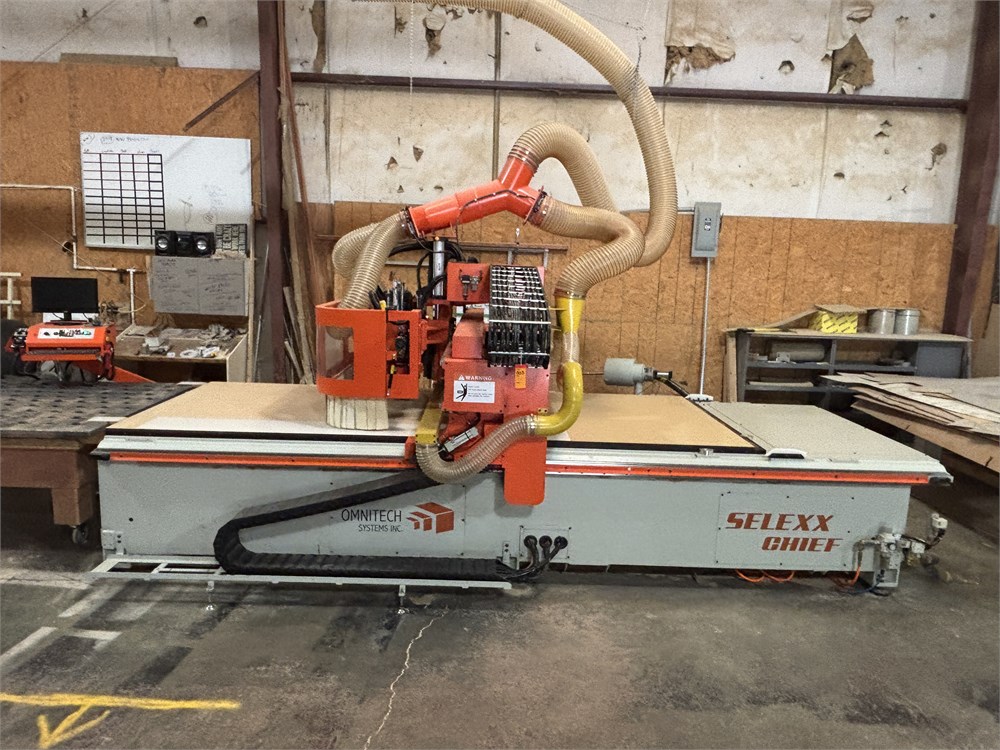

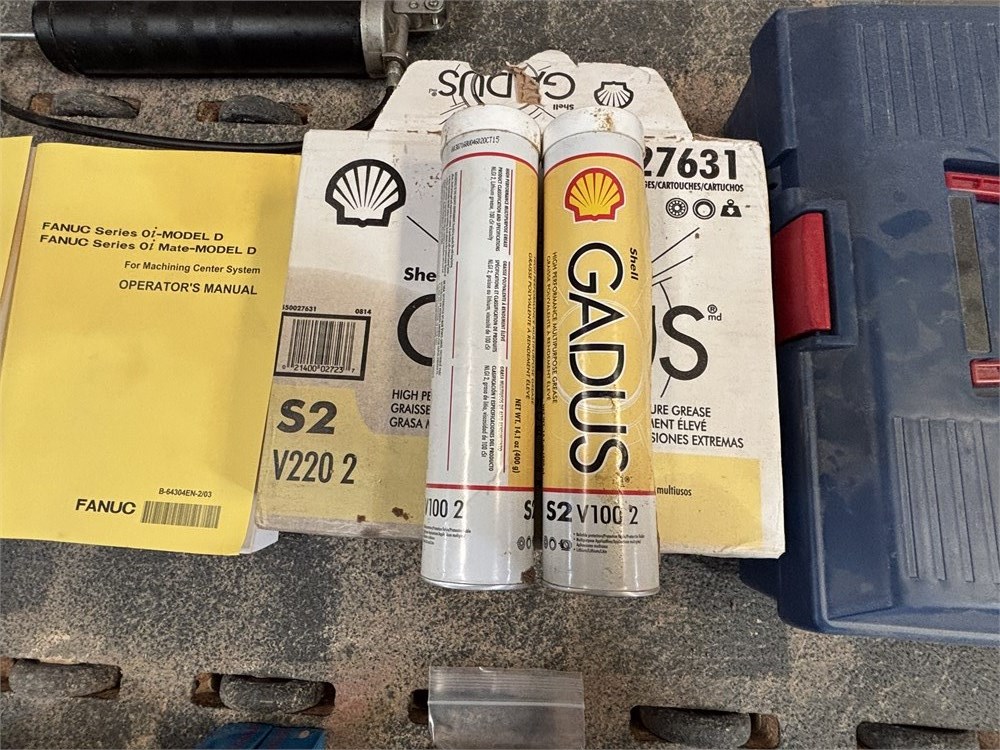

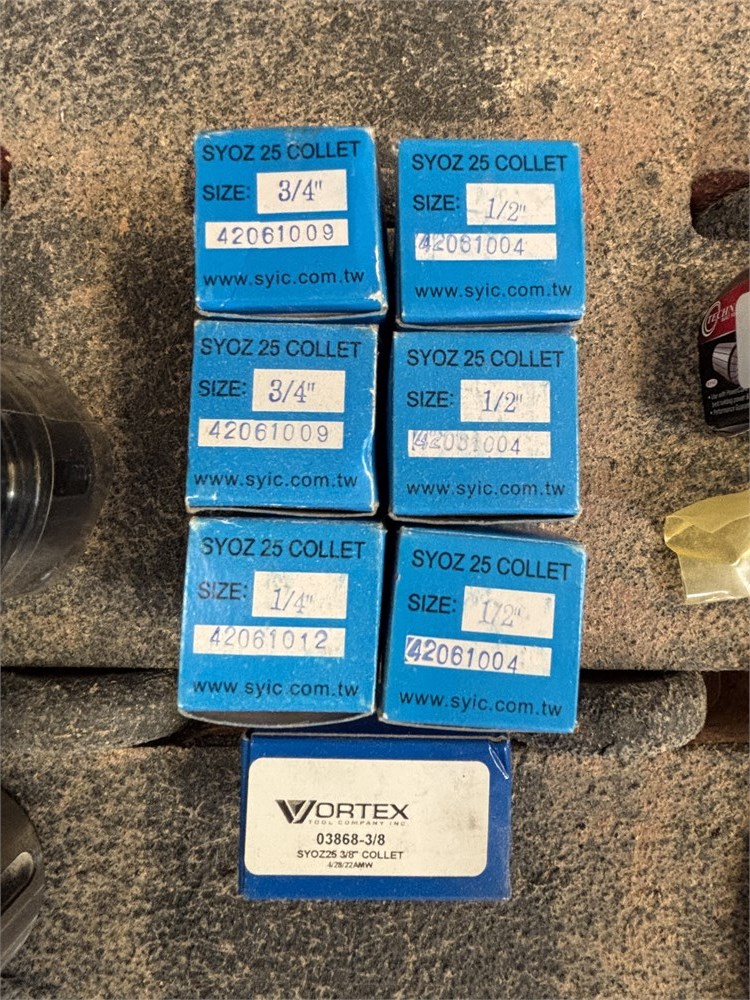

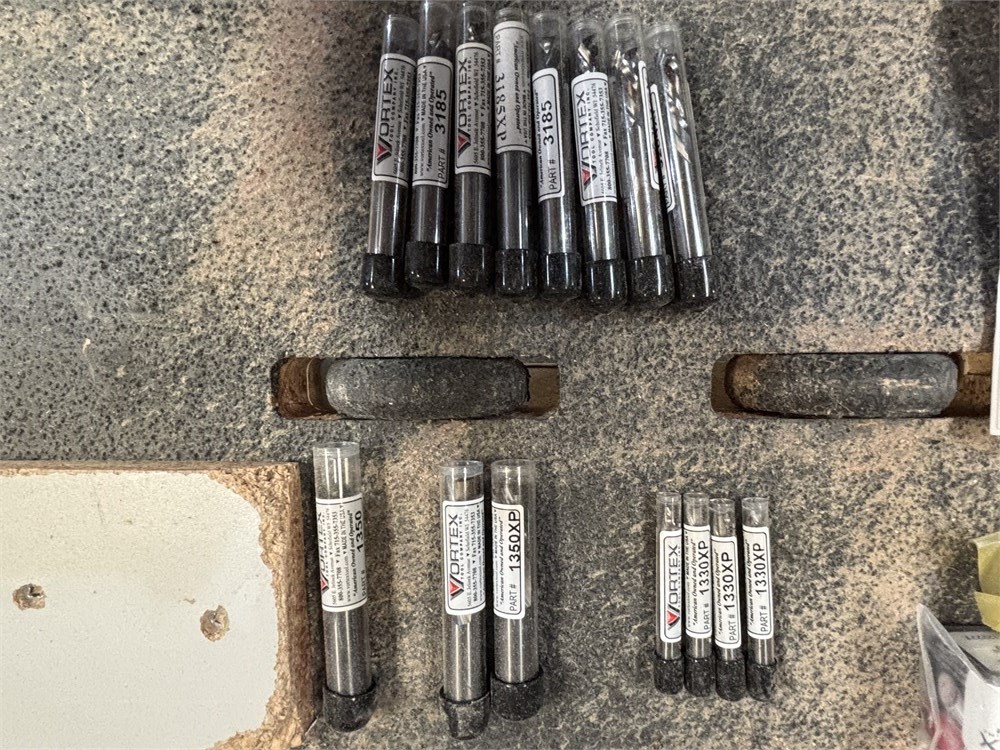

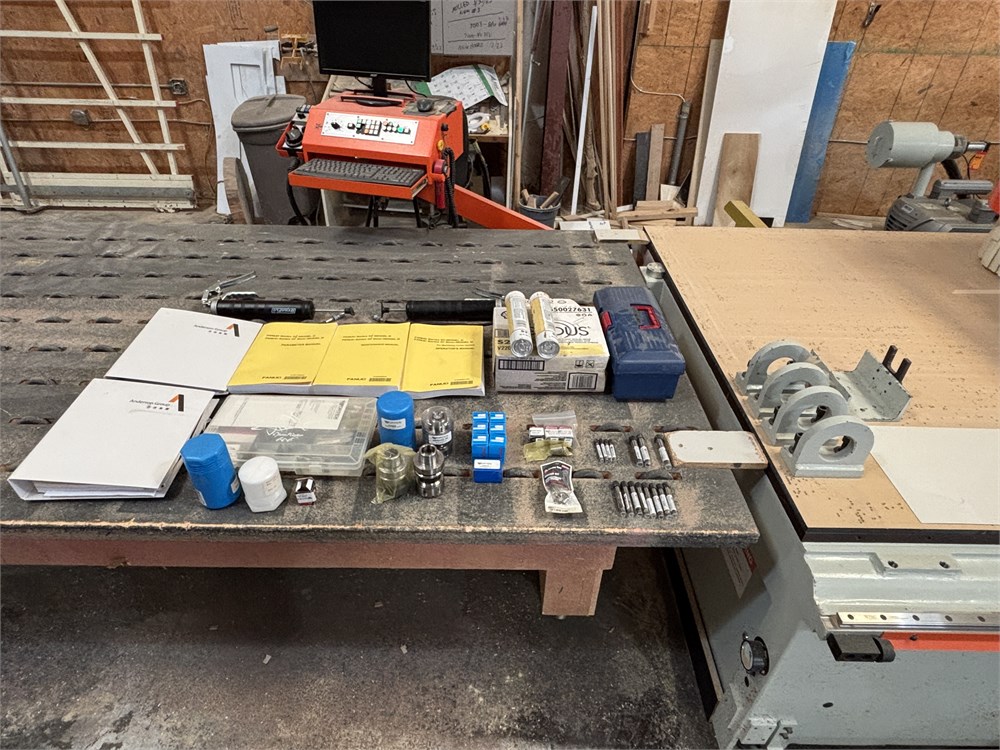

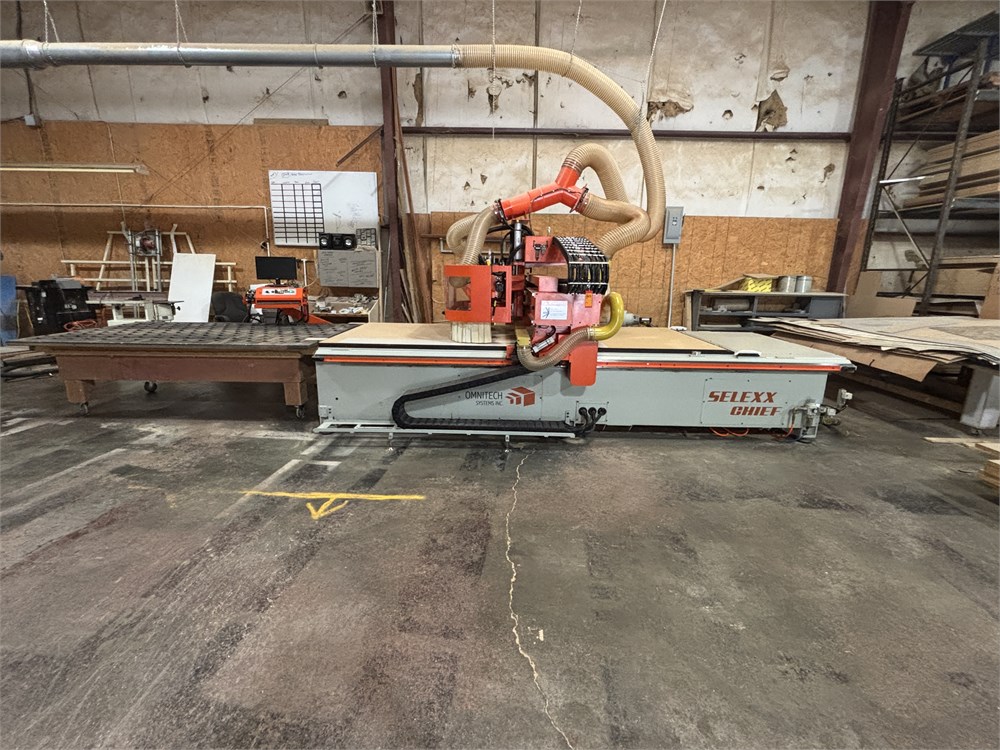

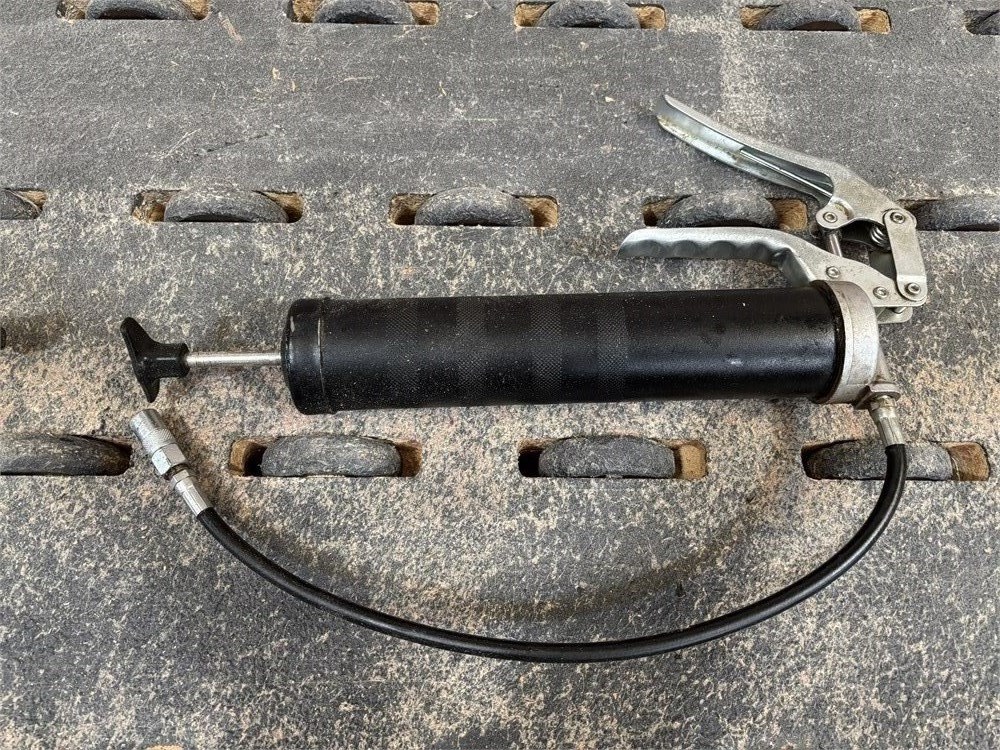

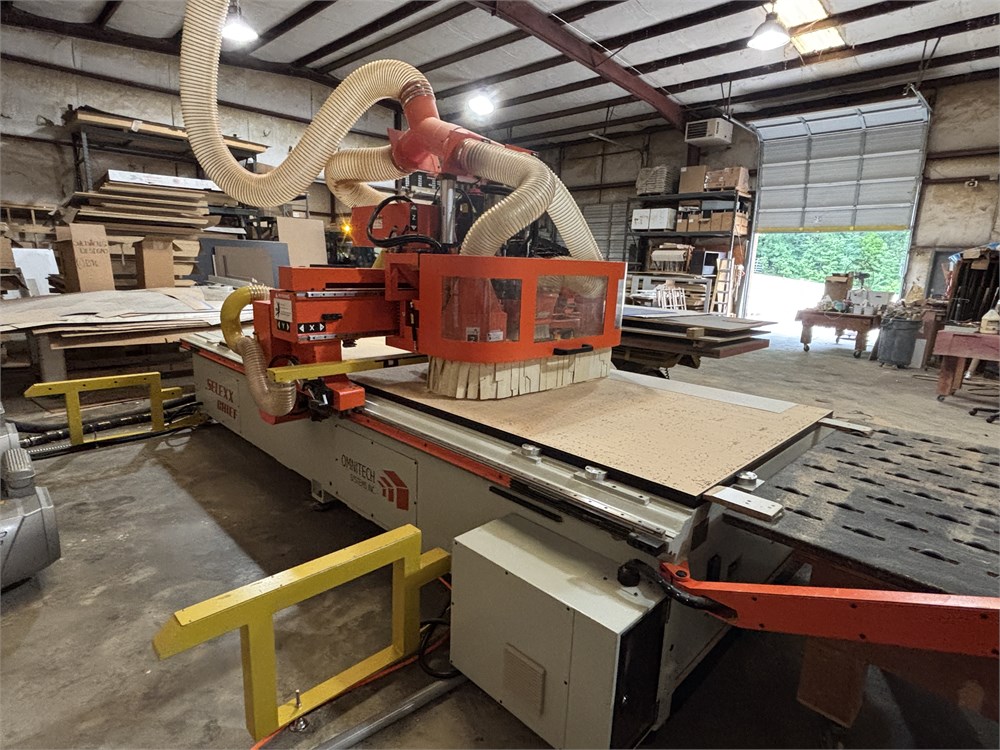

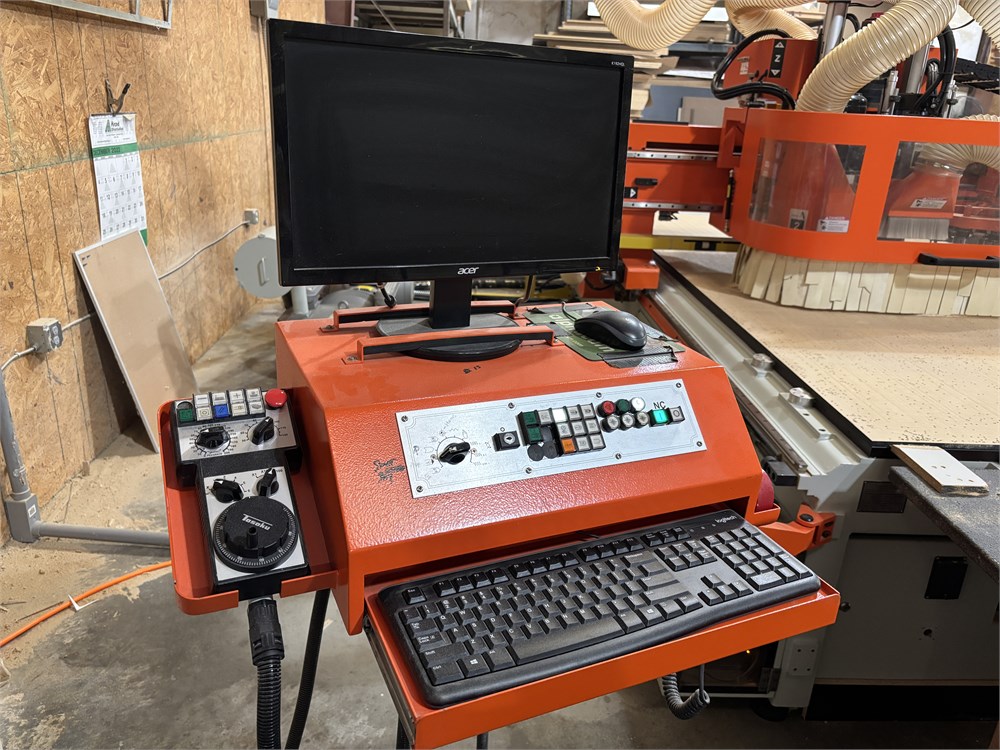

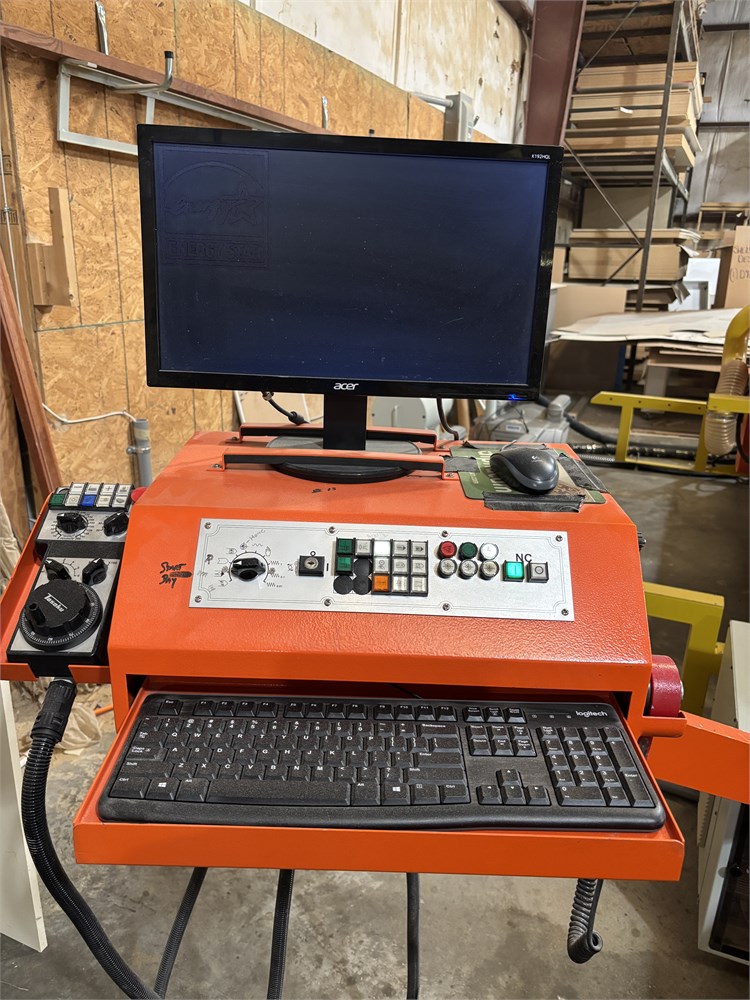

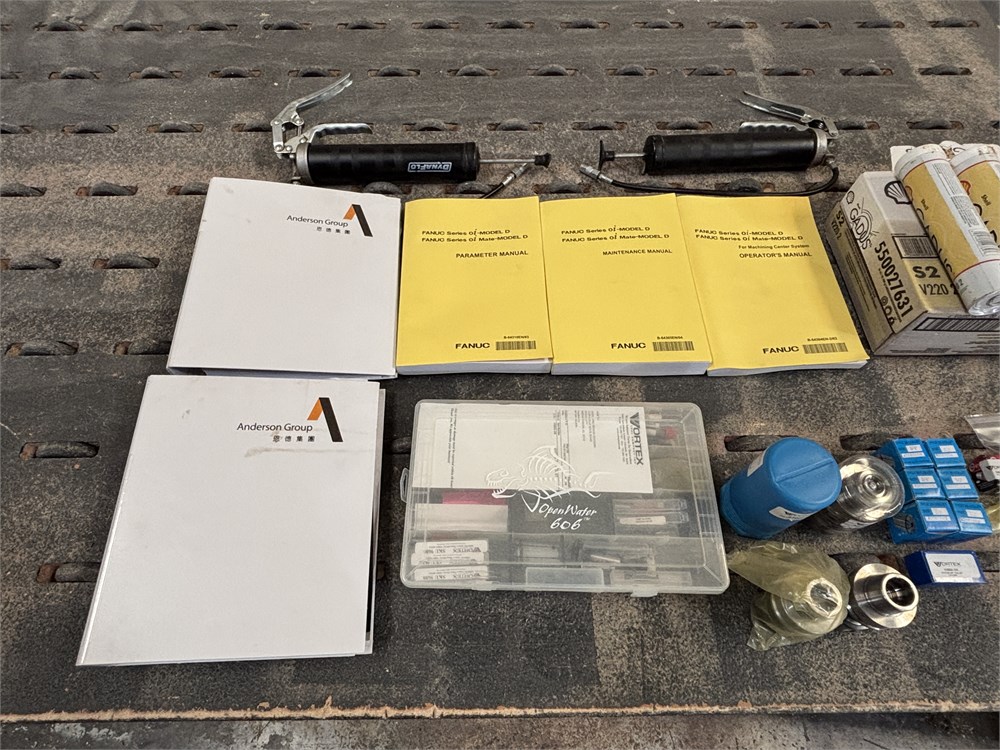

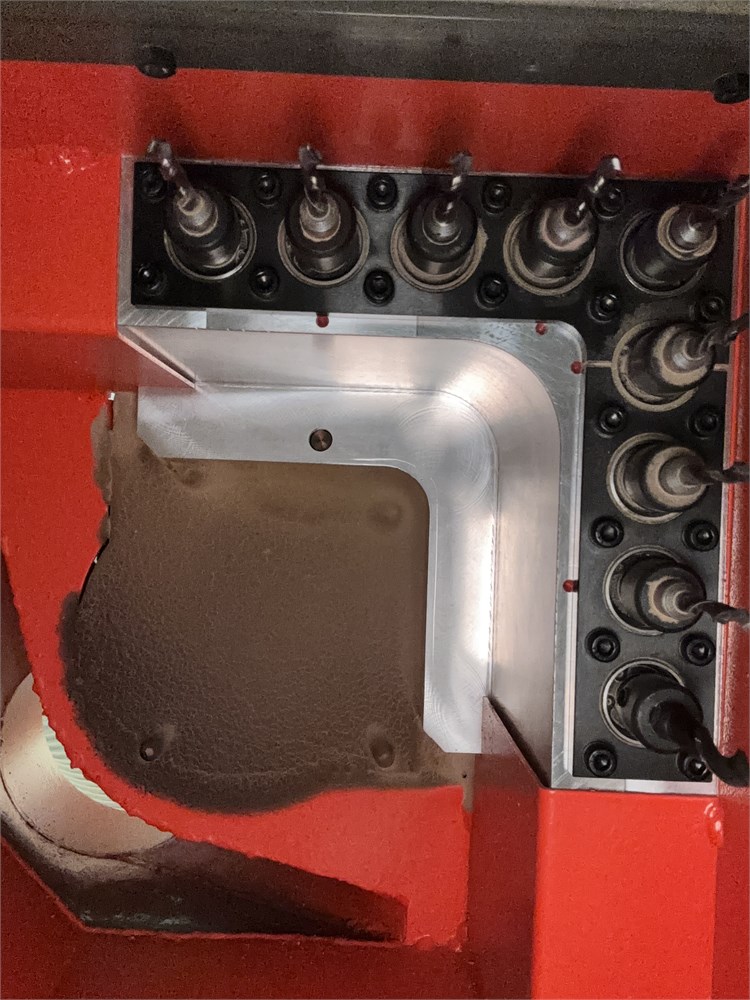

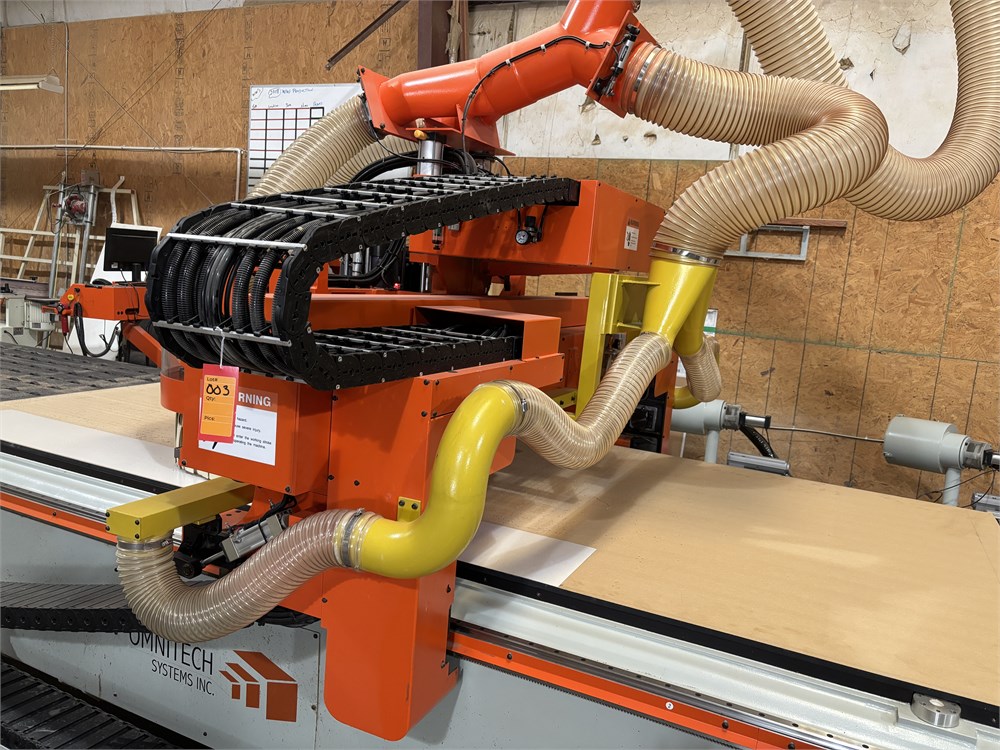

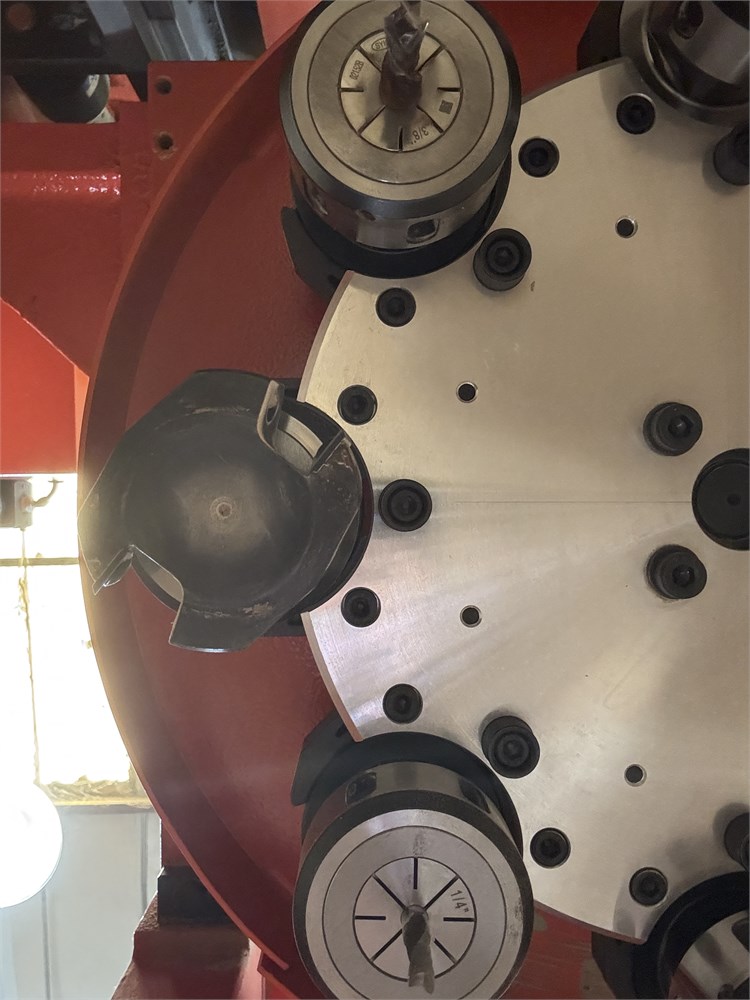

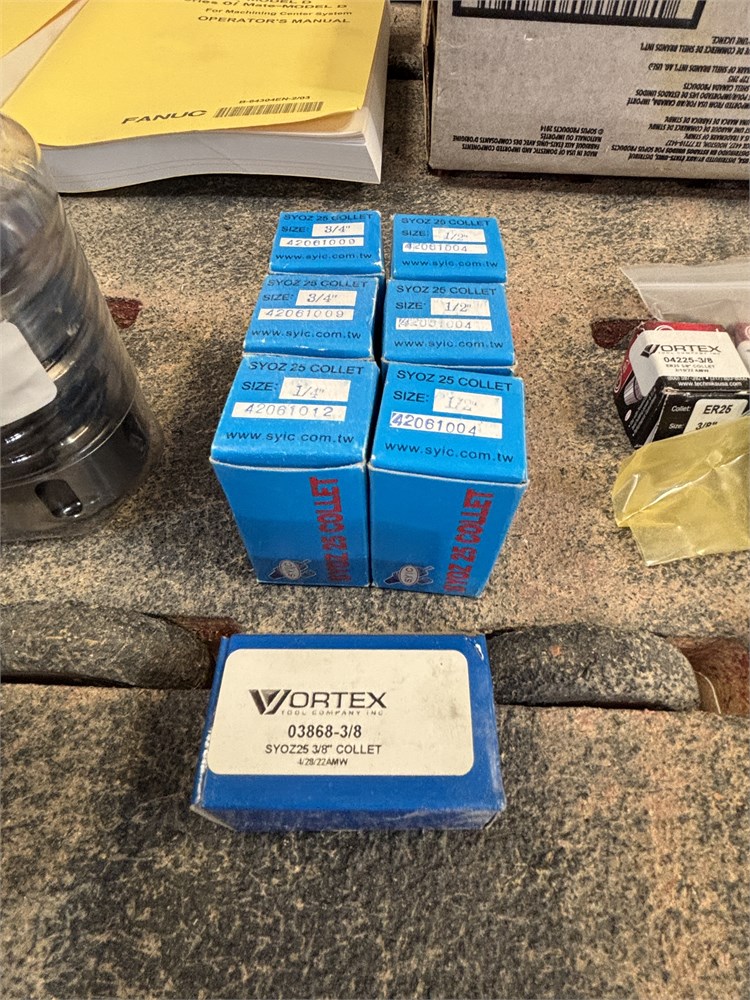

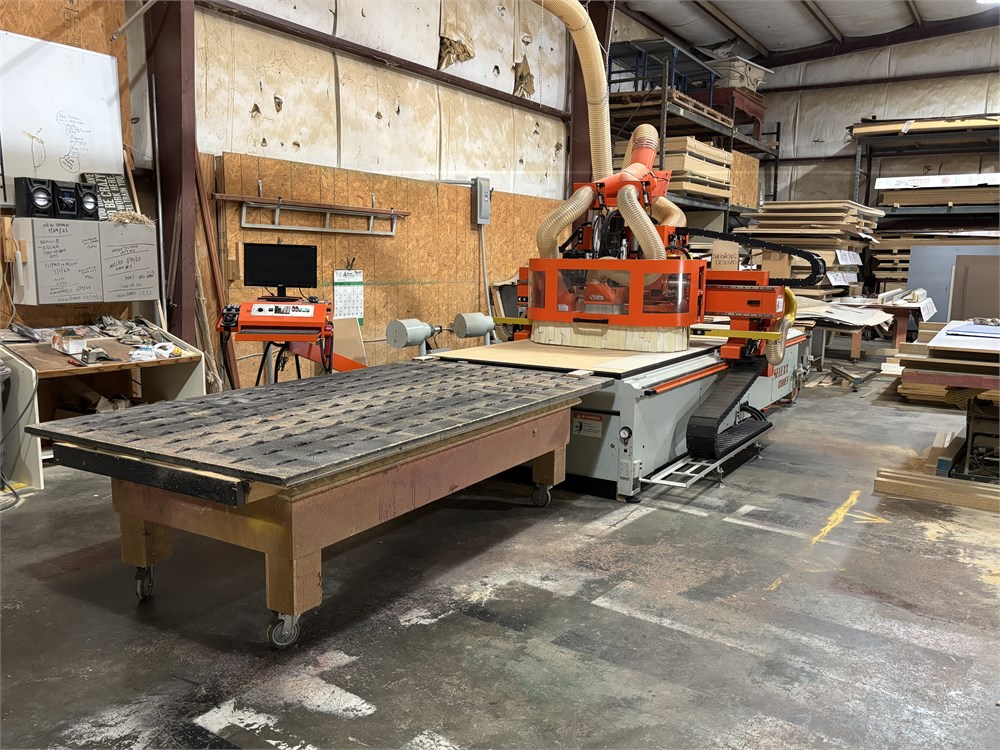

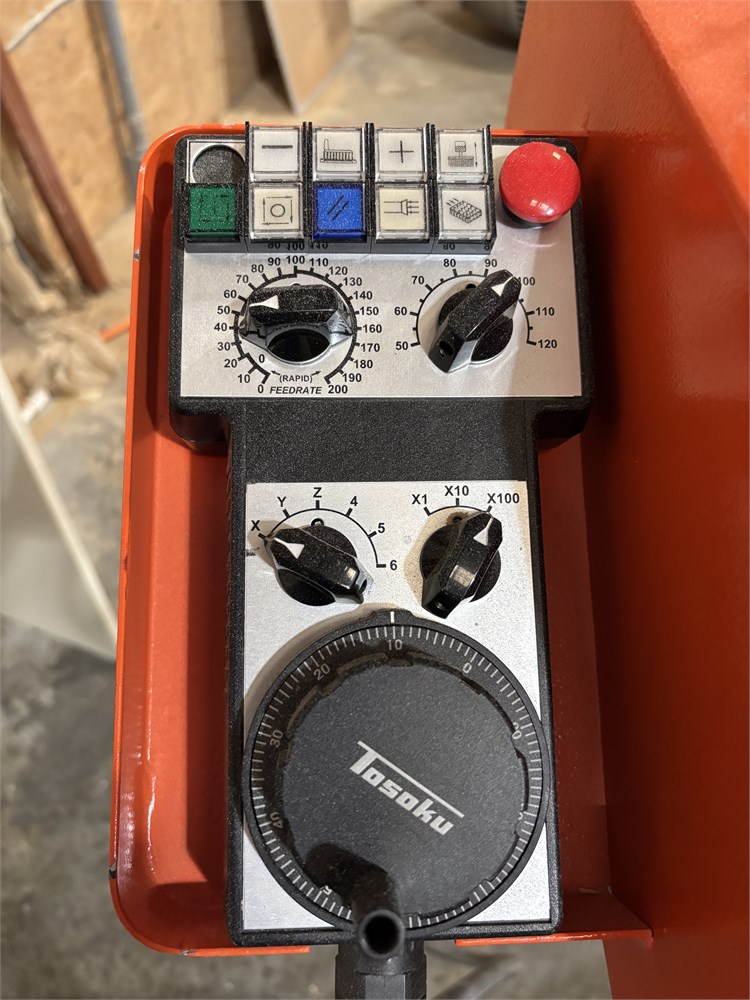

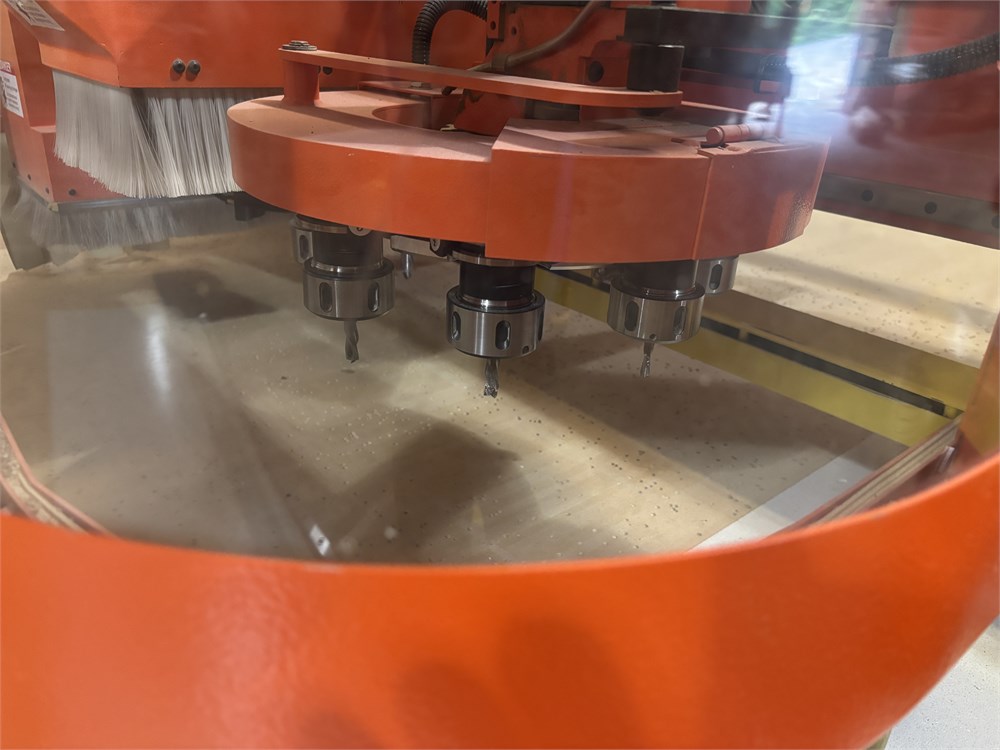

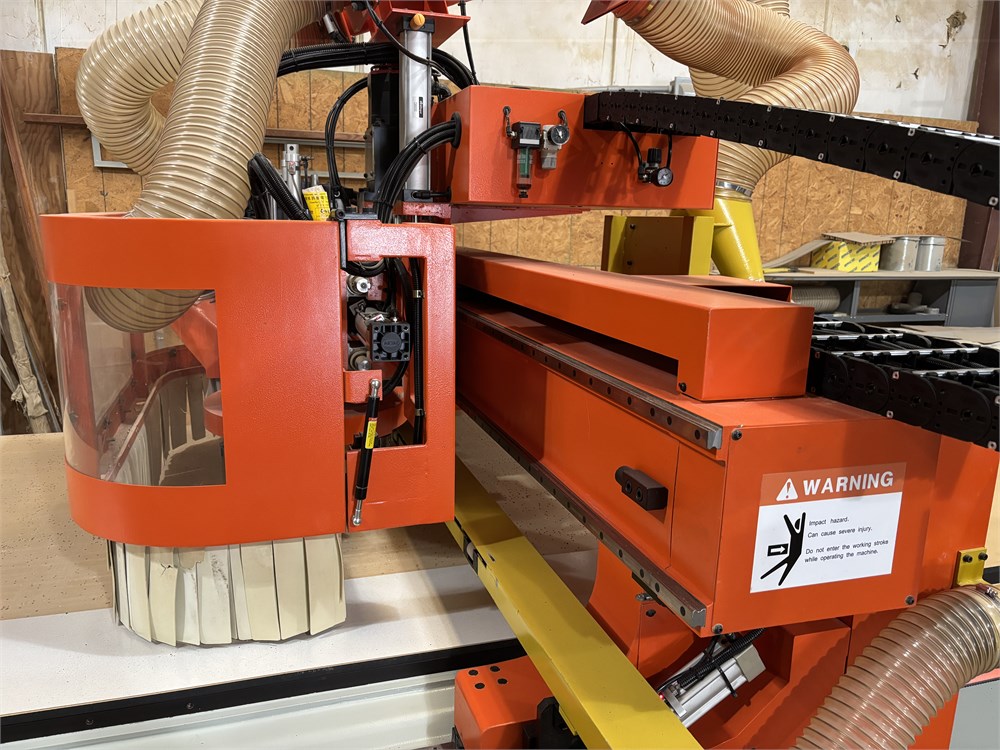

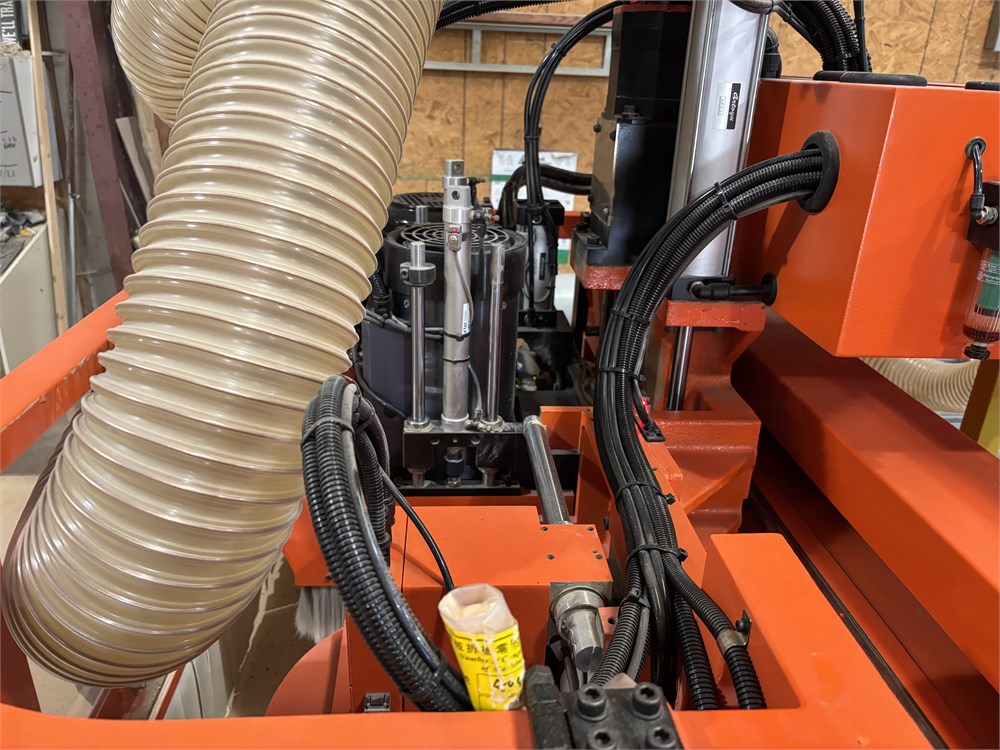

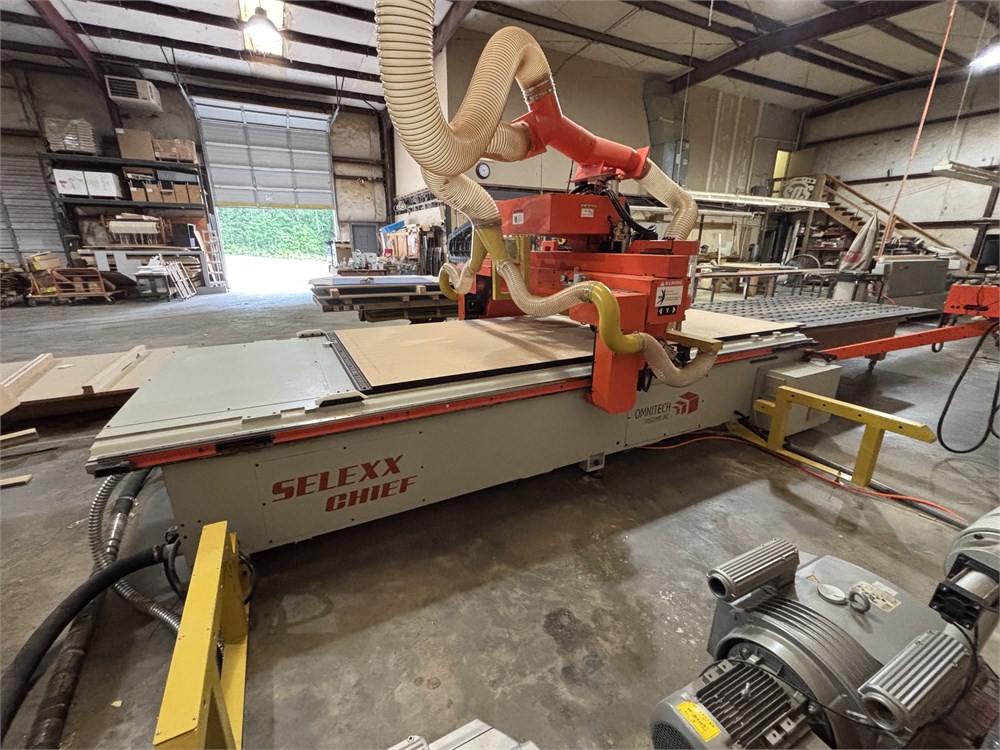

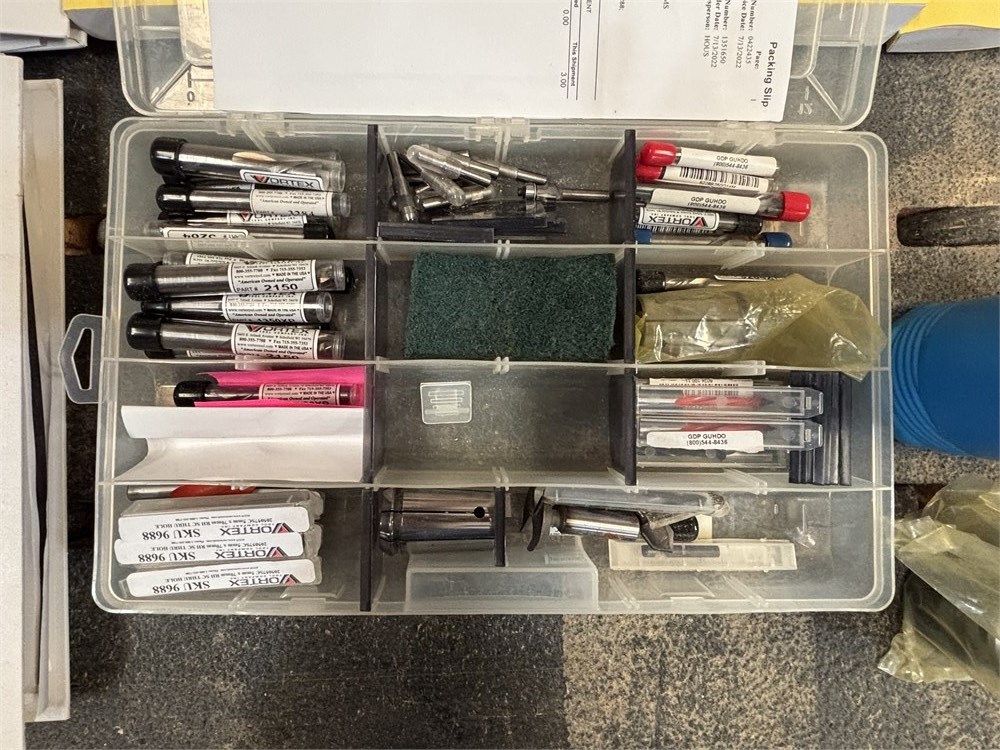

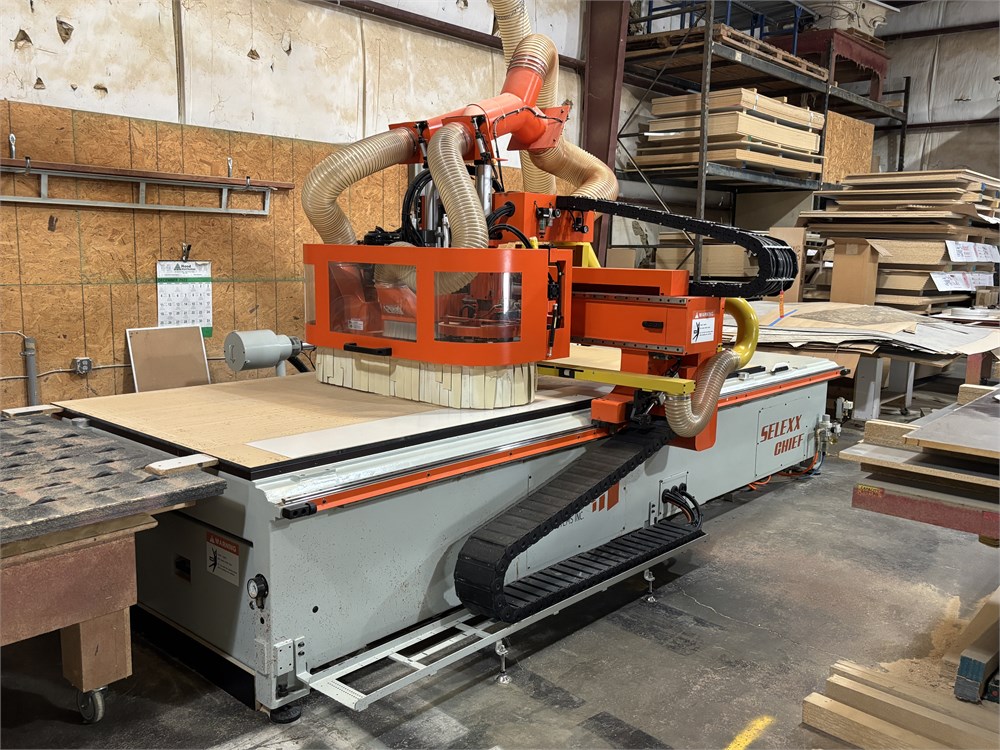

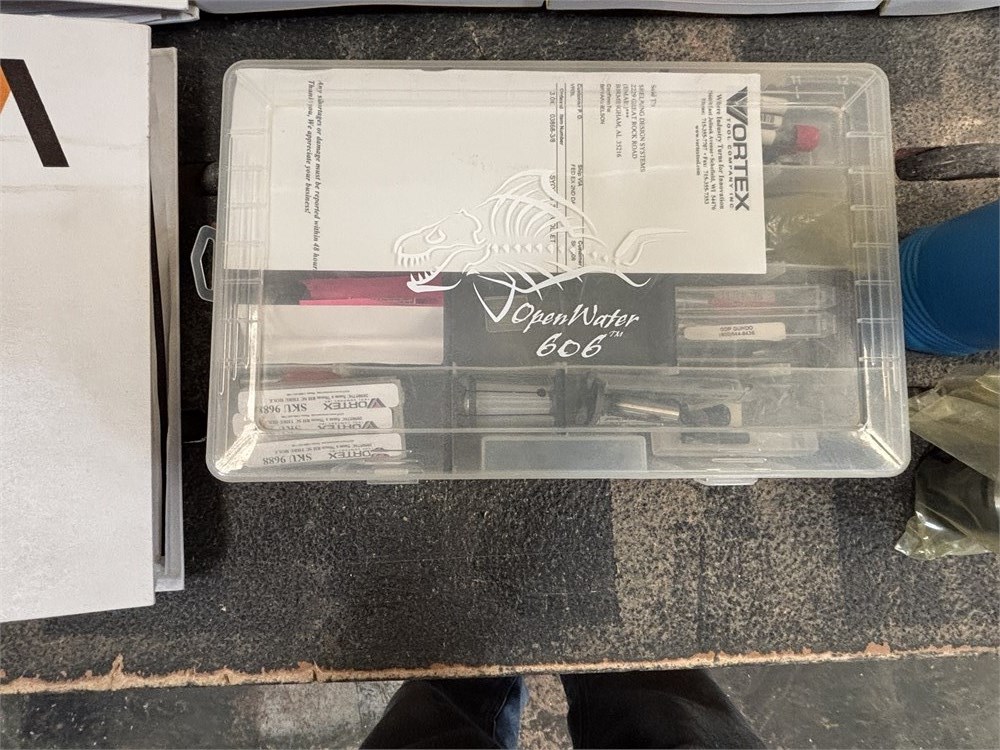

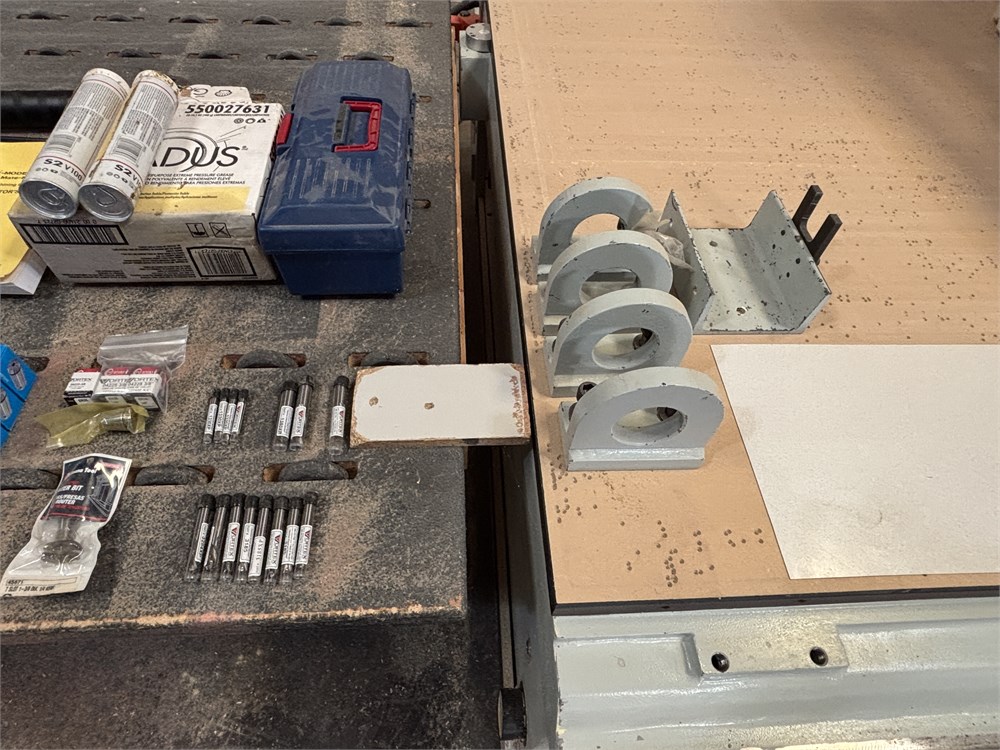

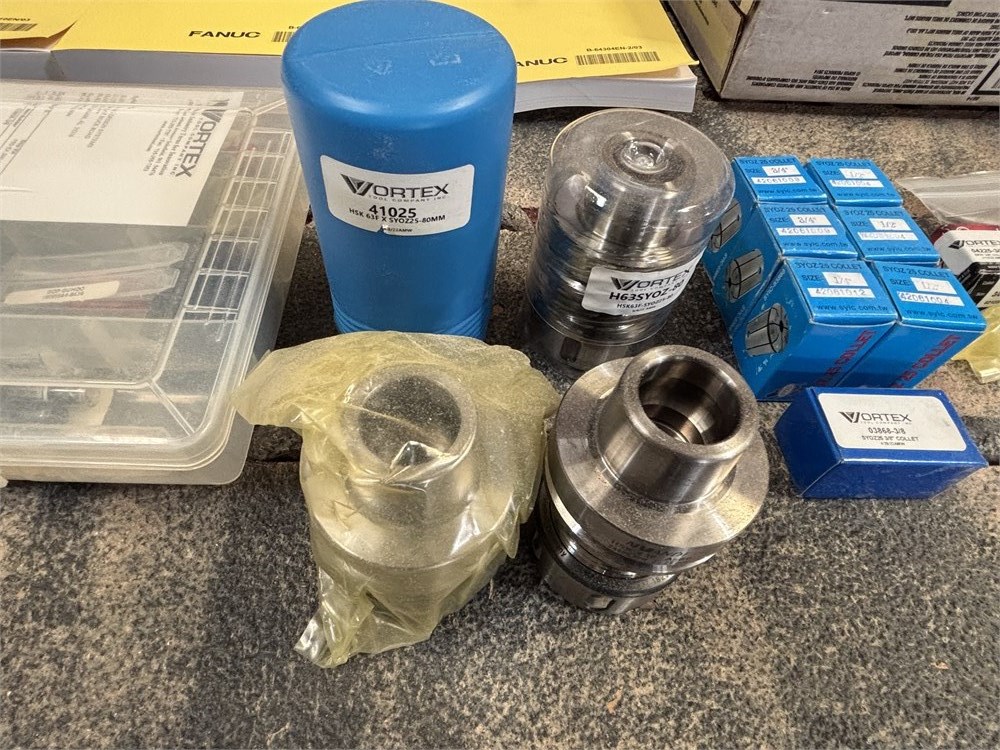

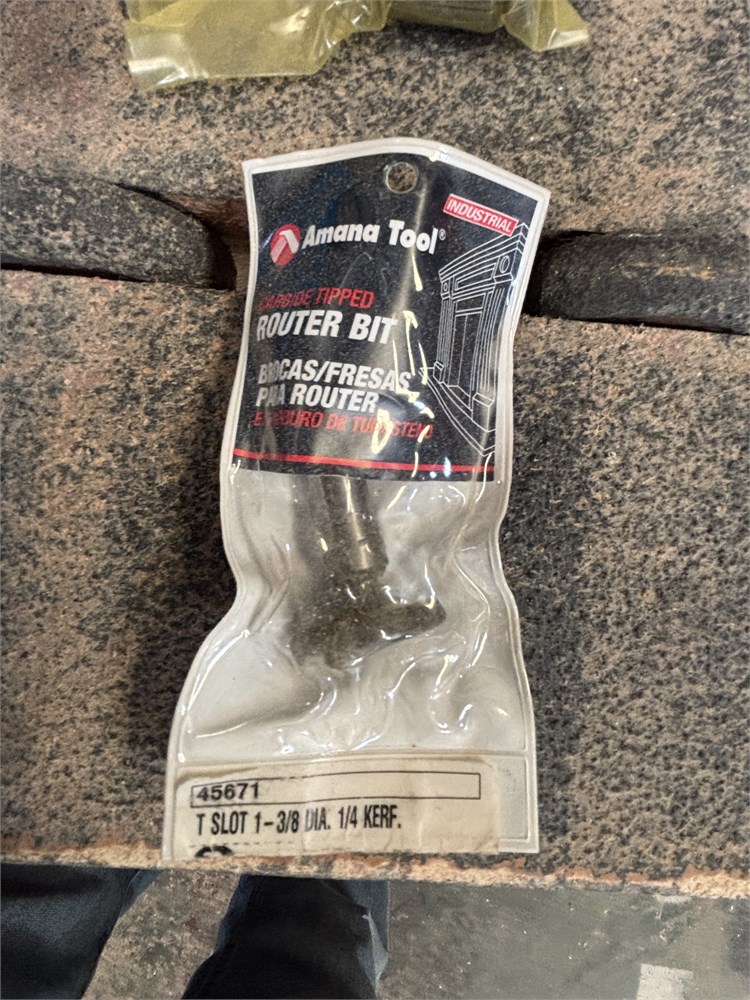

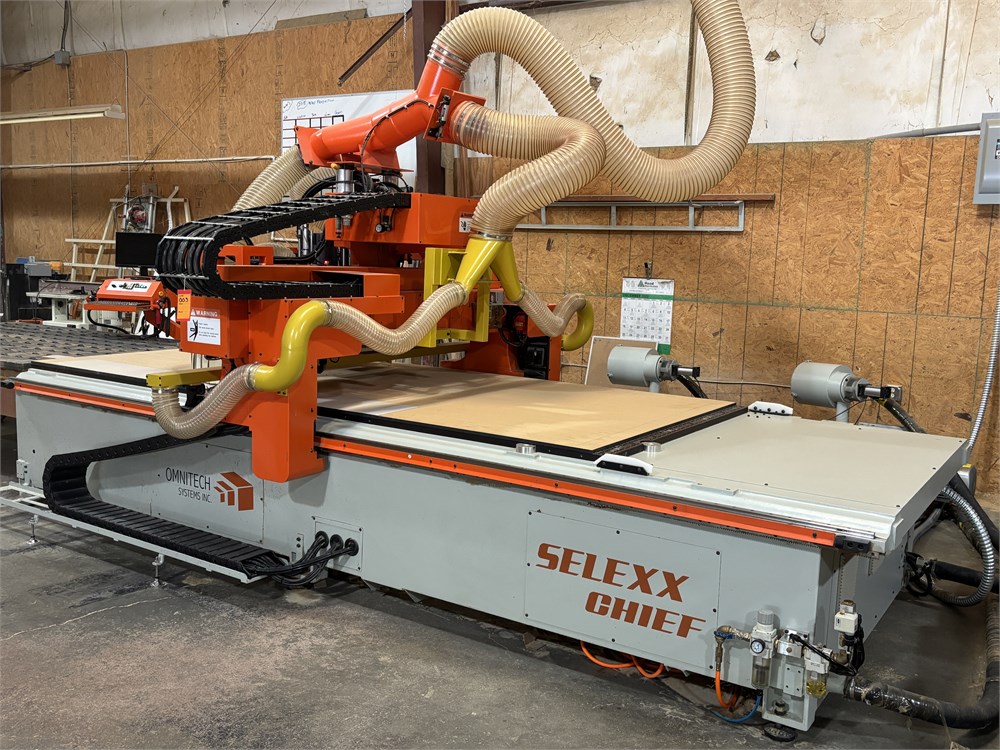

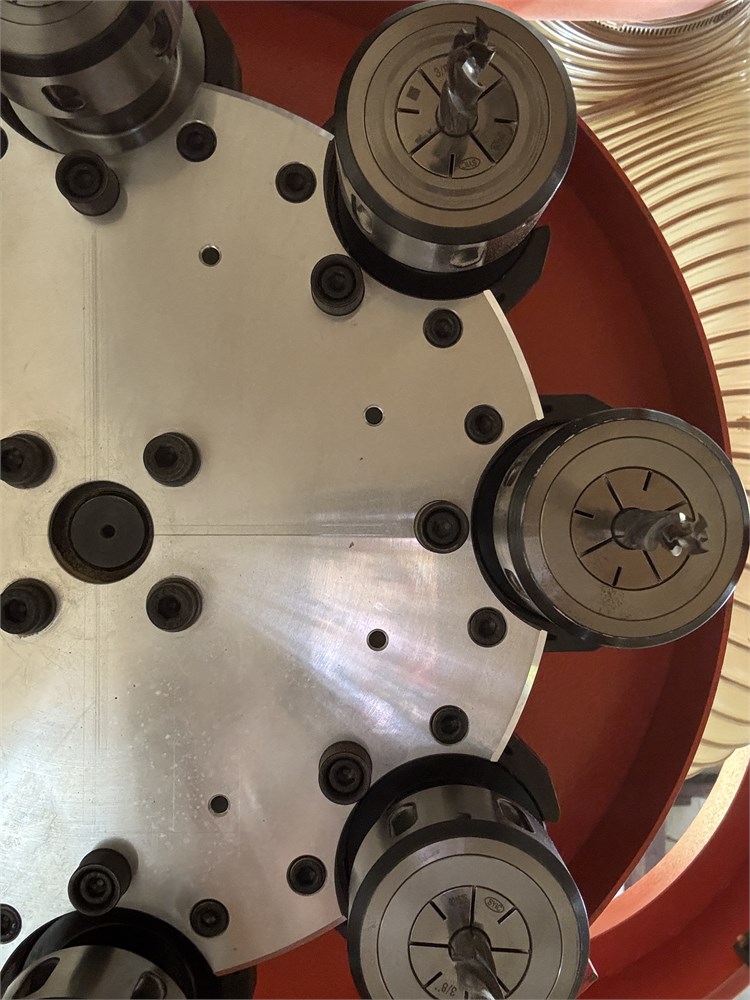

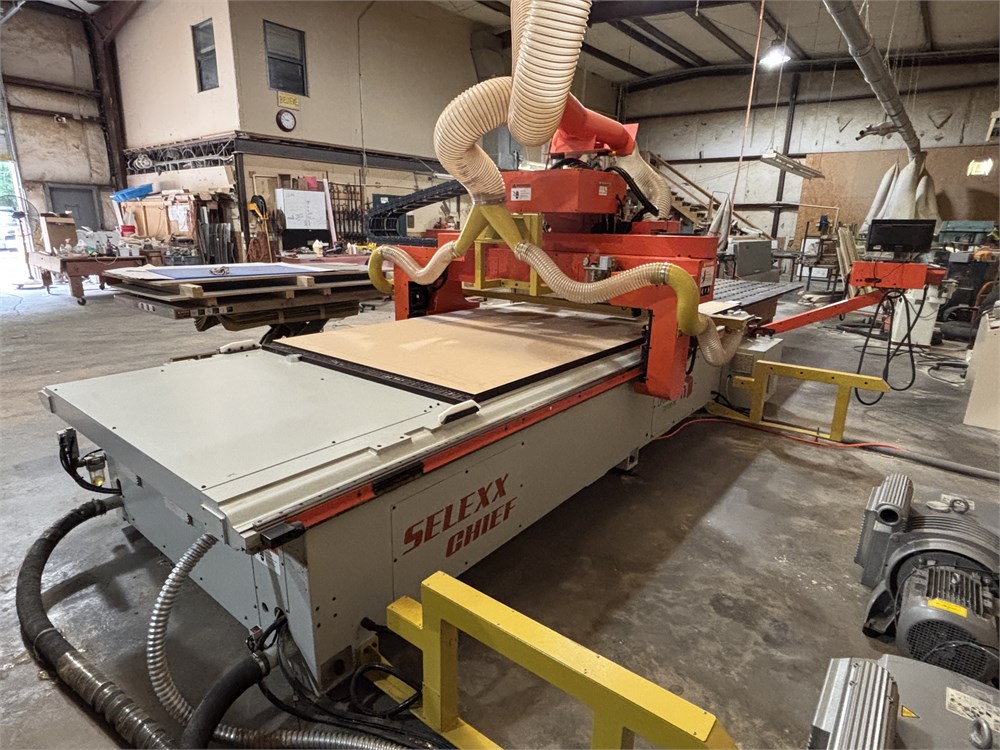

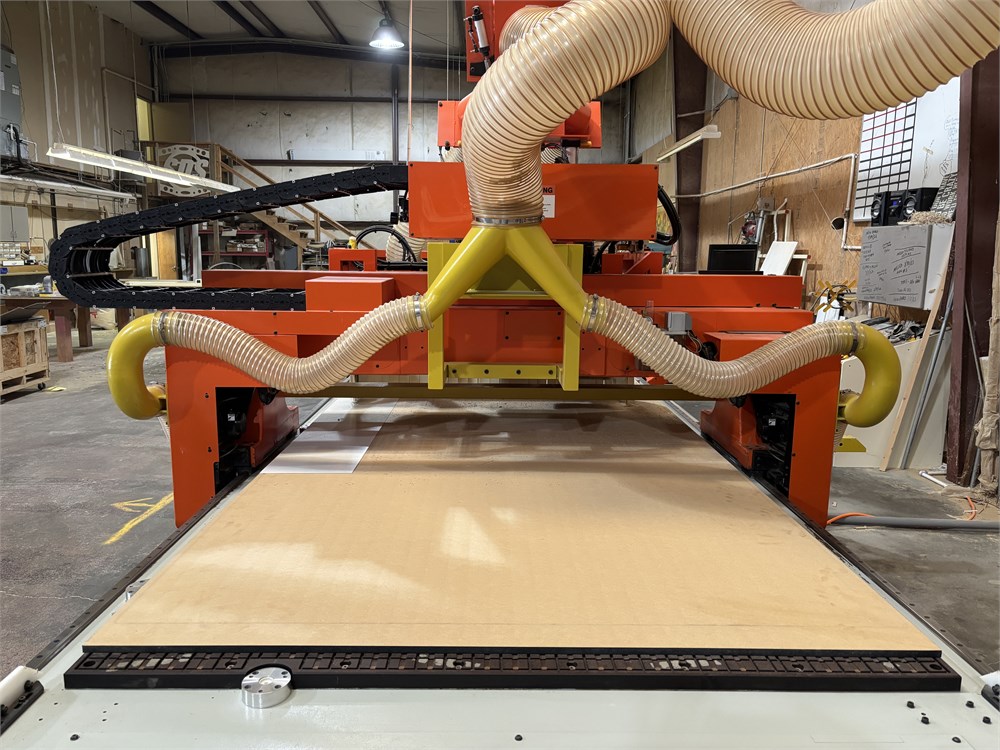

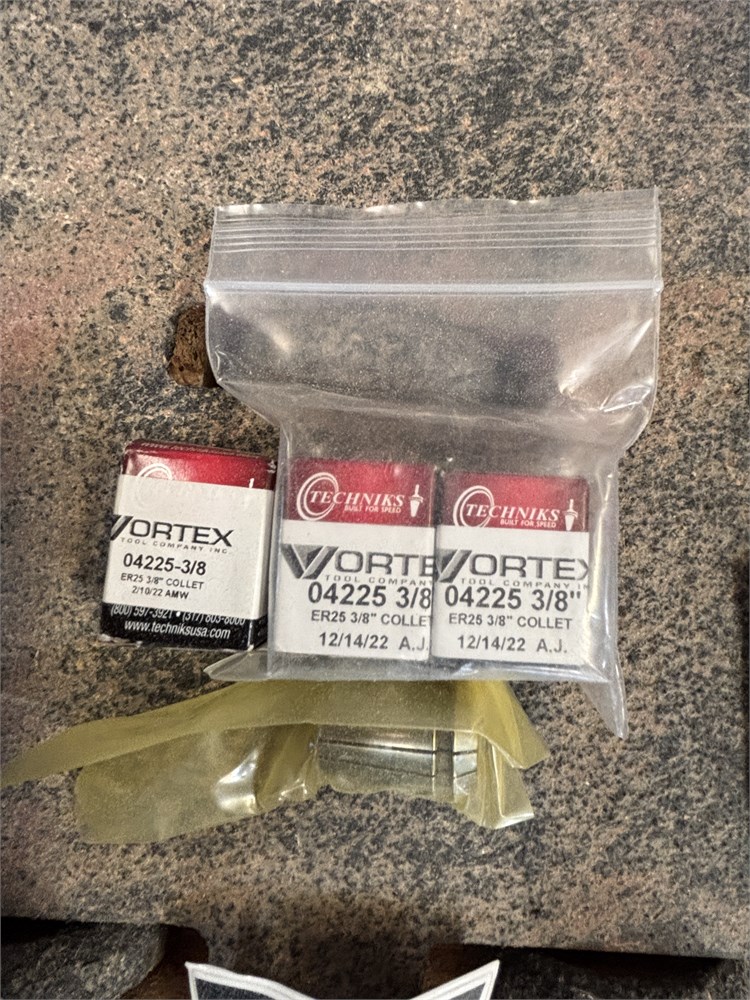

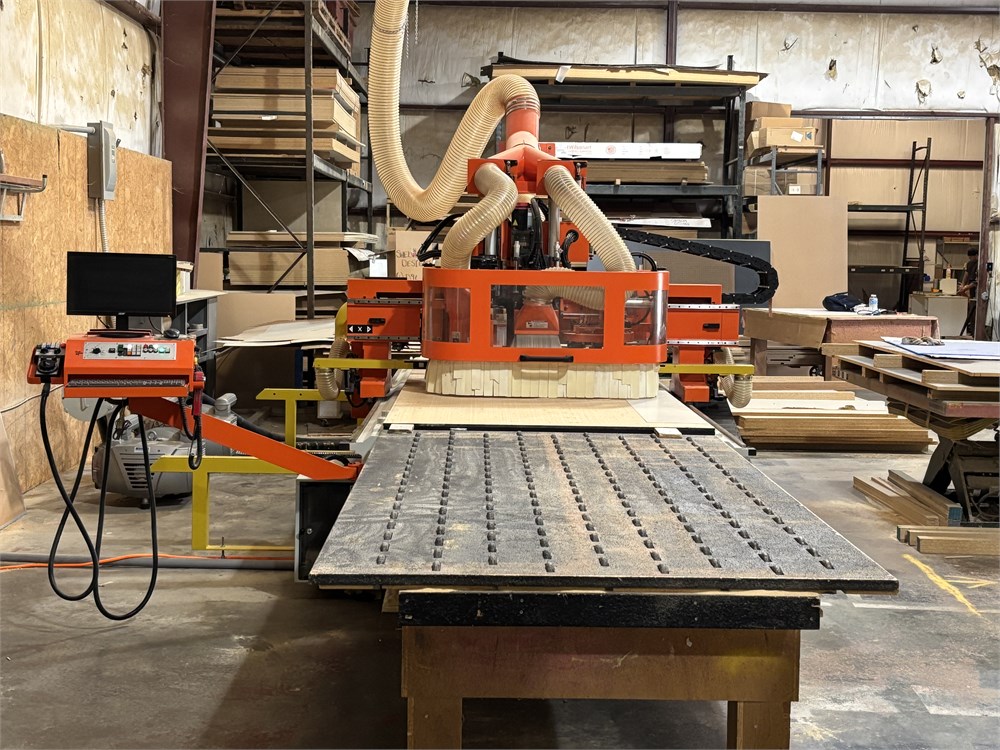

Omnitech “Selexx/Chief” CNC Router Vacuum Pumps not included & offered in lots 004 and 005! 5′ X 12′ Stationary table, moving gantry machine in a front-to-back configuration with a single zone vacuum table. (1) 10 HP HSK-63F type ATC spindle, air cooled, variable spindle speed from 1,000 – 24,000 RPM, 8-station front mount tool carousel. (1) 9-Spindle vertical drill bank (4-X, 4-Y and 1-C); routing spindle has full table coverage, the drill bank will cover 56″ x 140″ of the table. Panel unloading device with integrated dust collection Sound enclosure Photo safety barriers Fanuc Controller, servo amplifiers and AC Servo motors, network compatible WINDOWS PC based front end, 15″ color LCD, keyboard, full function handheld pendant. Background editing, self-diagnostics, canned cycles, absolute & incremental programming, cutter & tool length compensation, feed rate & spindle speed override, inch/metric operation, and linear/circular & helical interpolation. Installed and extra tool holders and tooling Manuals Vacuum pumps NOT included, offered in lots 004 and 005
Specifications:
Pick Up Location: 19250 US-231, Pell City, AL 35125

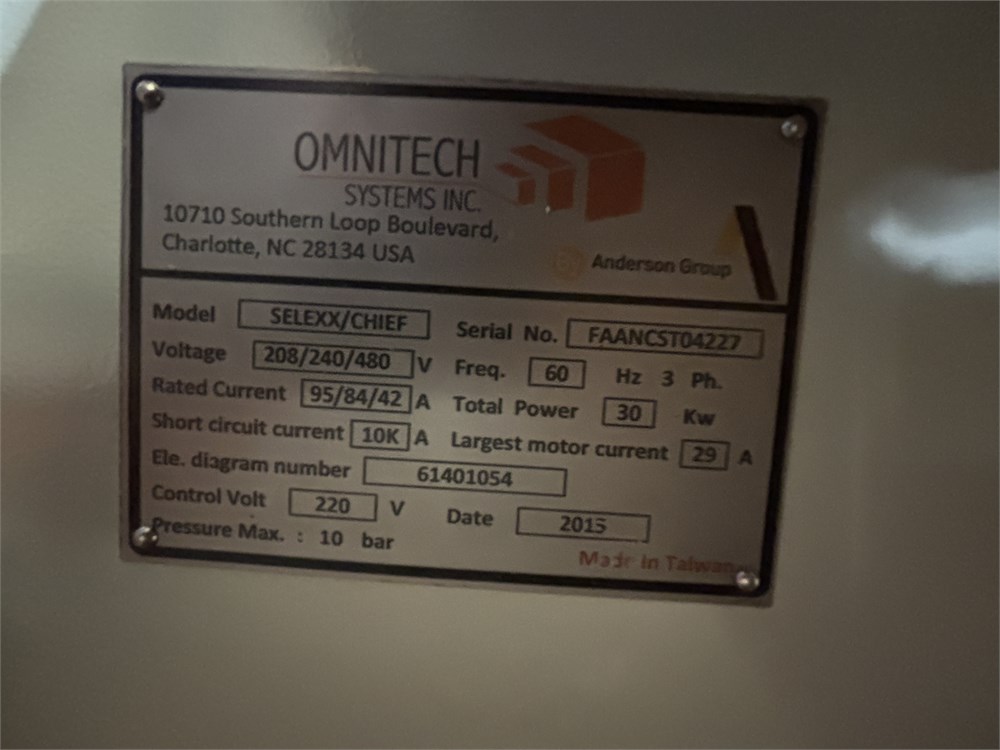

Make: Omnitech
Model: Selexx / Chief
Serial Number: FAANCST04227
Year: 2015
Phase: 3 PHASE
Voltage: 230/460
Estimated Dimensions: 16′ L x 8′ W x 9′ H
Estimated Weight: 8,500 Pounds
Seller Comment: A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer by appointment only.
Load Fee: 2500.00
Lot Notes: Vacuum Pumps not included & offered in lots 004 and 005!
