Description

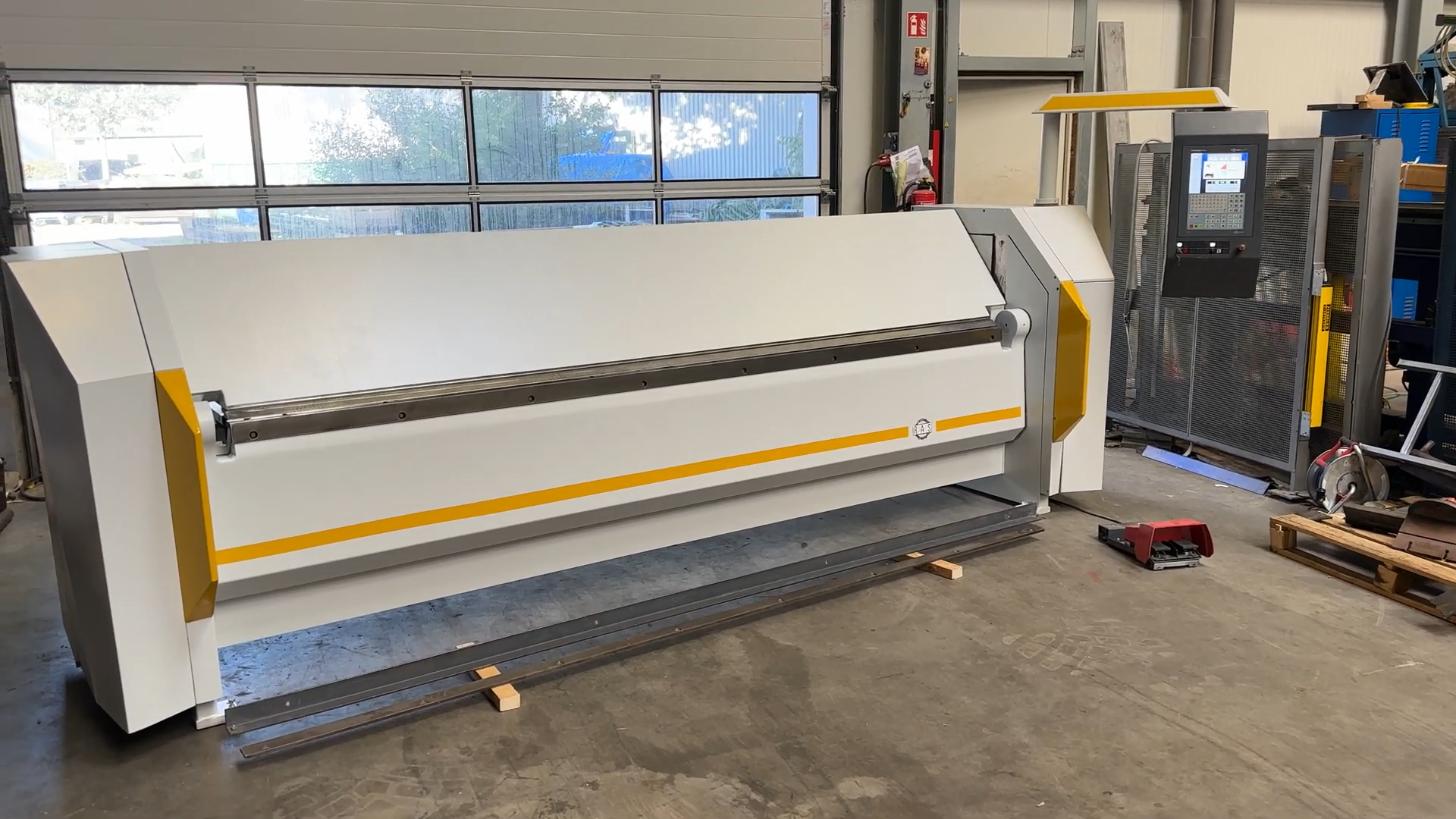

This RAS Model 62.30 TurboBend Plus, built in 2016, is a high-precision CNC folding machine designed for sheet metal forming up to 14-gauge mild steel. The TurboBend Plus series is known for its fast setup, accurate folds, and user-friendly CNC control — ideal for fabrication workshops and production environments requiring flexibility and repeatability.
Technical Specifications
- Model: RAS 62.30 TurboBend Plus
- Year: 2016
- Working Length: 125″ (3,175 mm)
- Maximum Sheet Thickness (Mild Steel): 14 ga
- Depth Stop Measuring Range: 0.24″ – 61″
- Upper Beam Open Height: 7.87″
- Folding Beam Adjustment: 0.2″
- Working Height: 33.5″
- Speed – Upper Beam: 1 IPS
- Speed – Folding Beam: 80°/sec
- Machine Weight: 7,720 lbs
Equipped With
- Segmented upper beam tooling for versatile bending operations

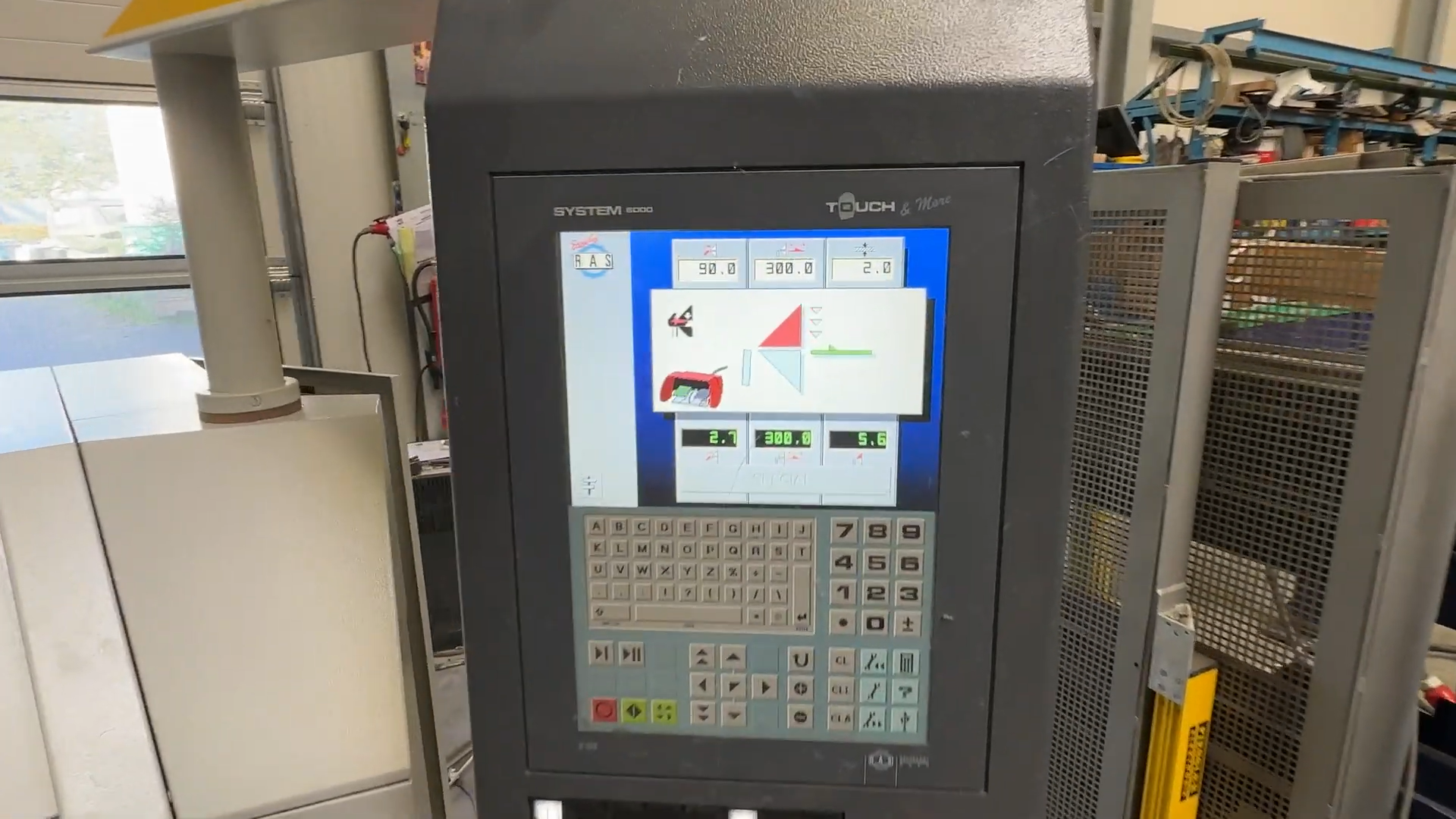

- CNC control system for precise programming and repeatable results
Highlights
- Robust German engineering by RAS Reinhardt Maschinenbau
- Quick setup and easy operation for high-mix, low-volume production
- Designed for precision sheet metal fabrication with consistent accuracy
