Description

Specifications

• Axes: 5
• Swing: 150 mm
• Centers: 295 mm
• Control: CNC (NUM 1060)

Working Area

• Height of Centers: 150 mm
• Max Tool Diameter: 295 mm
• X Axis Travel: 620 mm
• Z Axis Travel: 350 mm
• Y Axis Travel: 250 mm

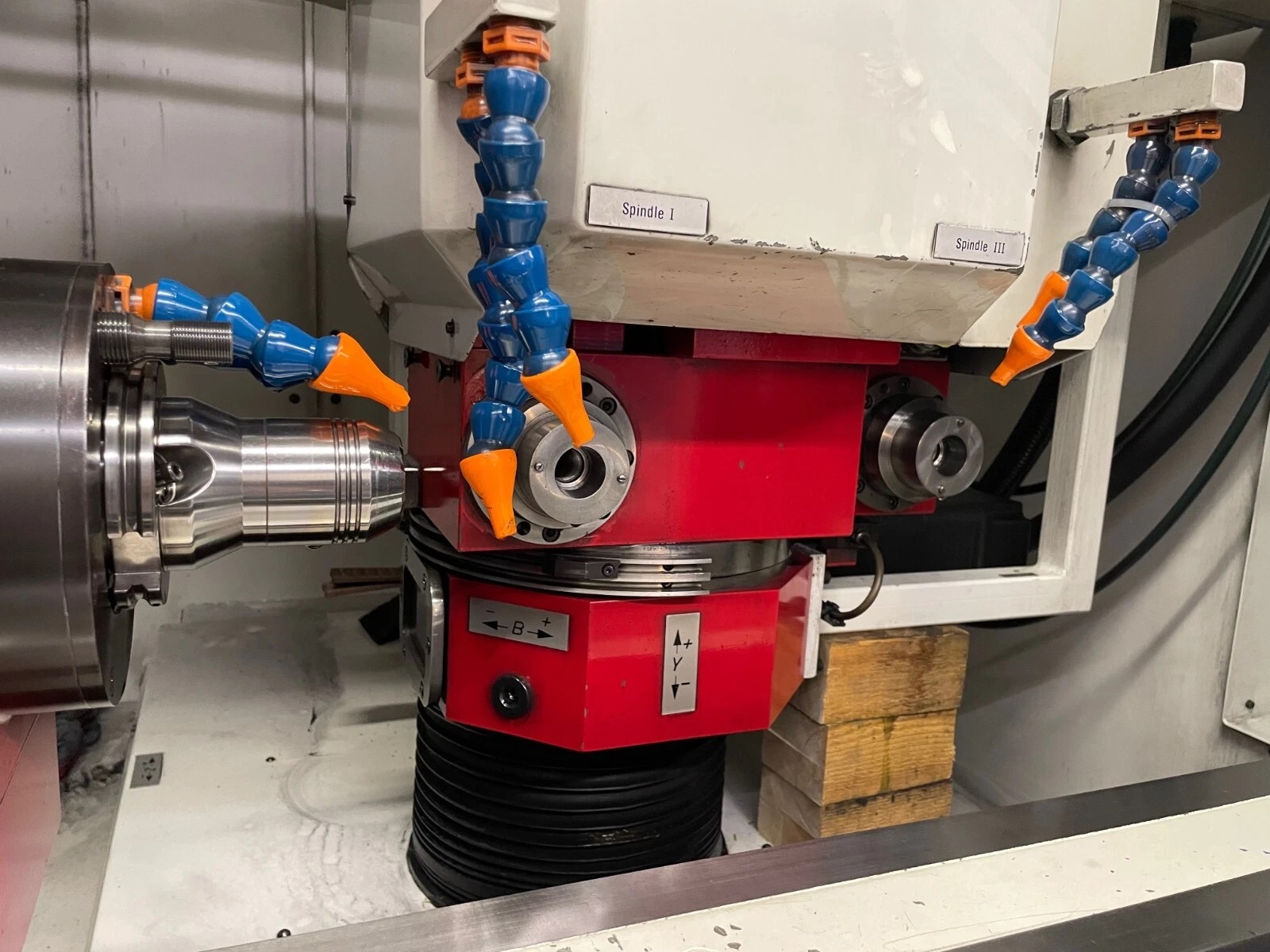

• B Axis: 180°/sec

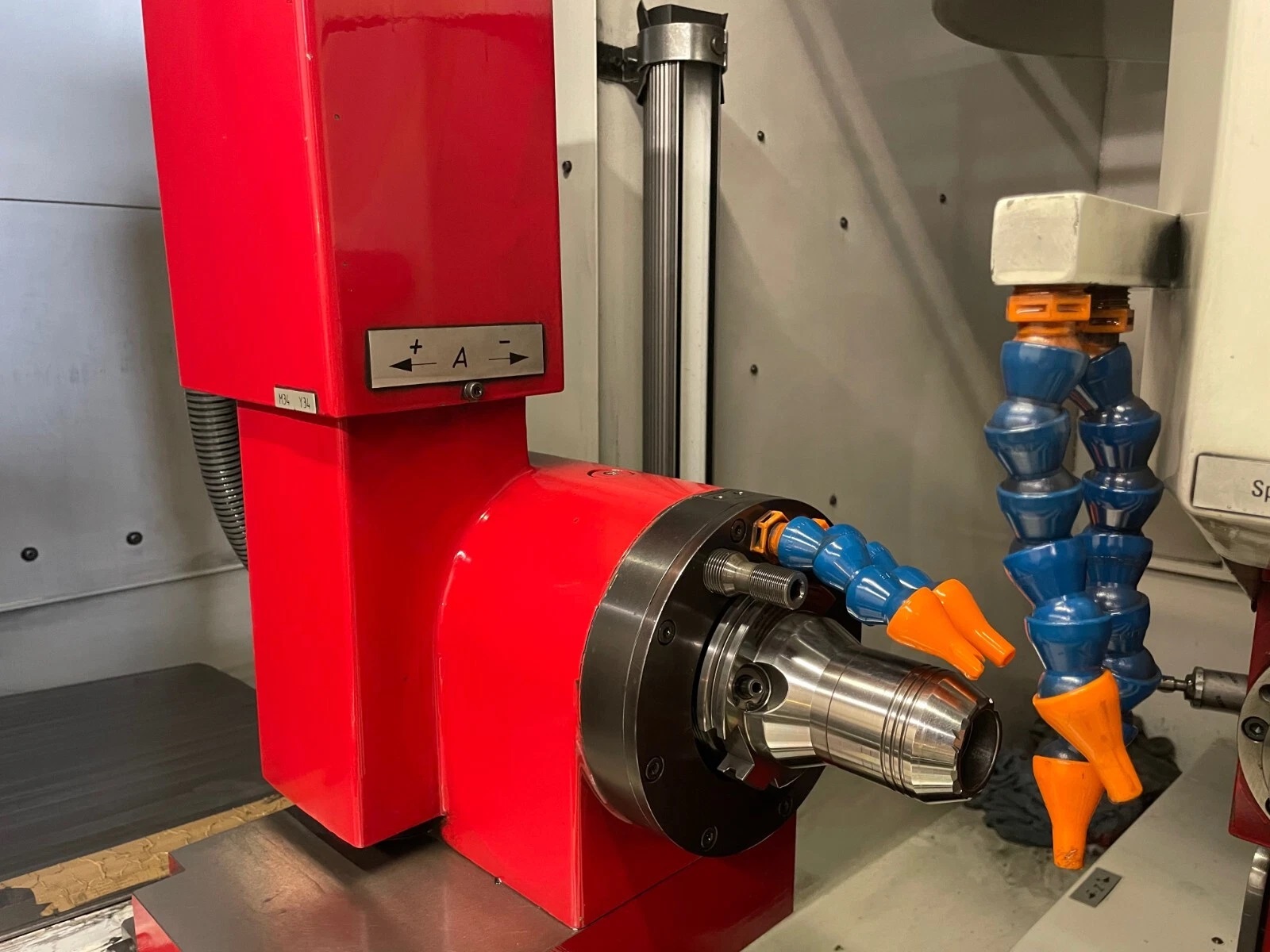

• A Axis: ±20°

Spindle / Workhead

• Taper: ISO 50

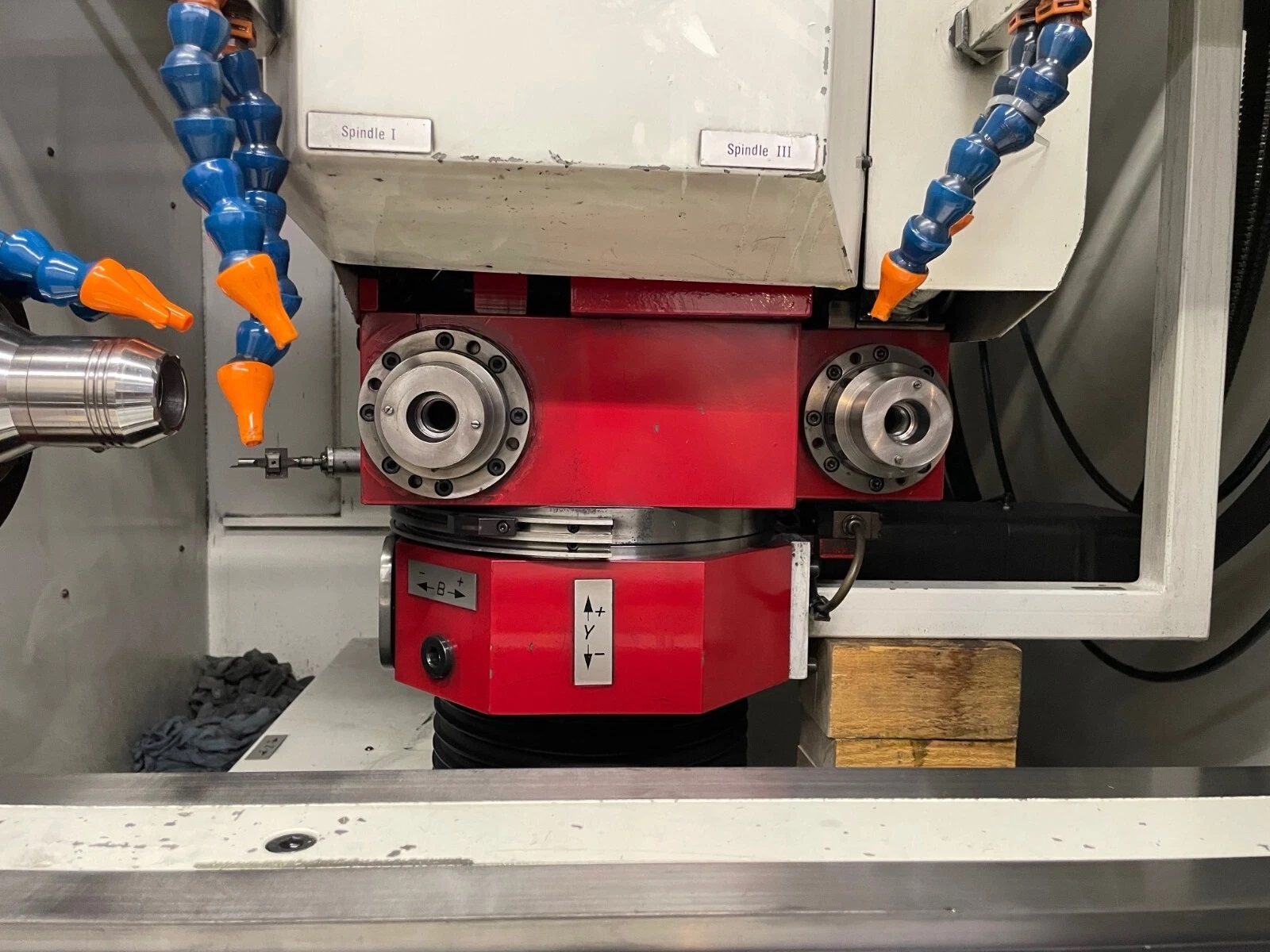

• Spindle Speeds (Grinding Head): 2,400 / 4,800 RPM
• Workhead Speed: 40 RPM
• Main Motor Power: 4.4 kW

Equipped With

• NUM 1060 CNC Control
• Guideways: V-type needle bearings on hardened guideways
• Table:
  • Speed infinitely adjustable
  • Useful table area: 980 × 200 mm
• Cross/Vertical Slide:
  • Transverse stroke (Z-axis): 350 mm
  • Drive via ball screw spindle with 2 preloaded nuts
  • Guideways with V-type needle bearings on hardened guideways
