Description

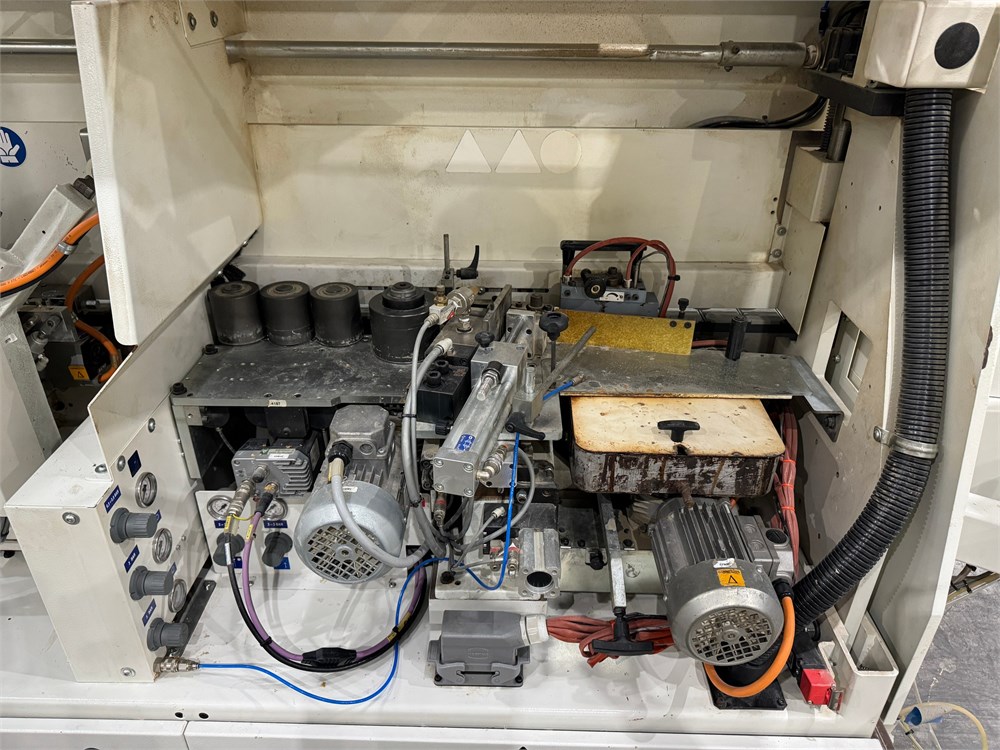

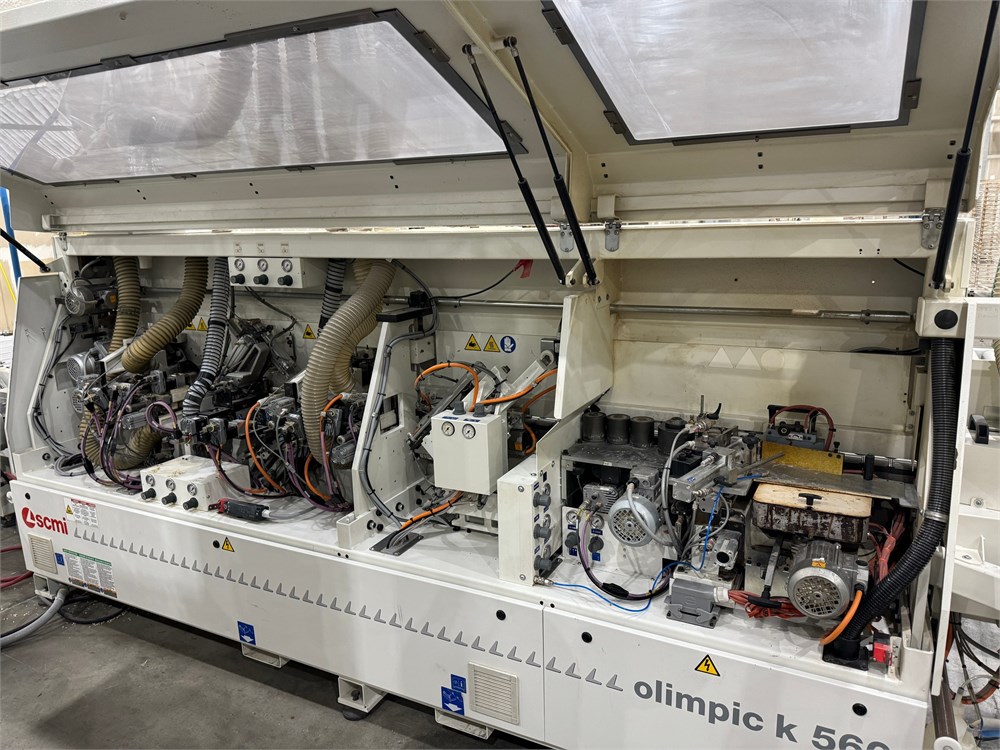

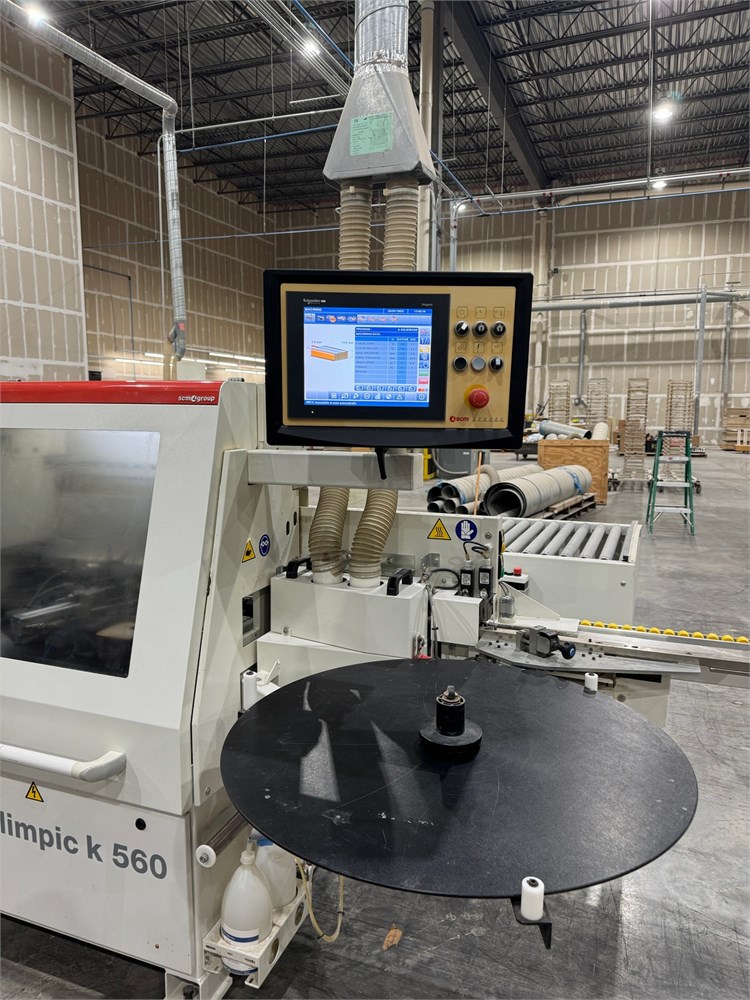

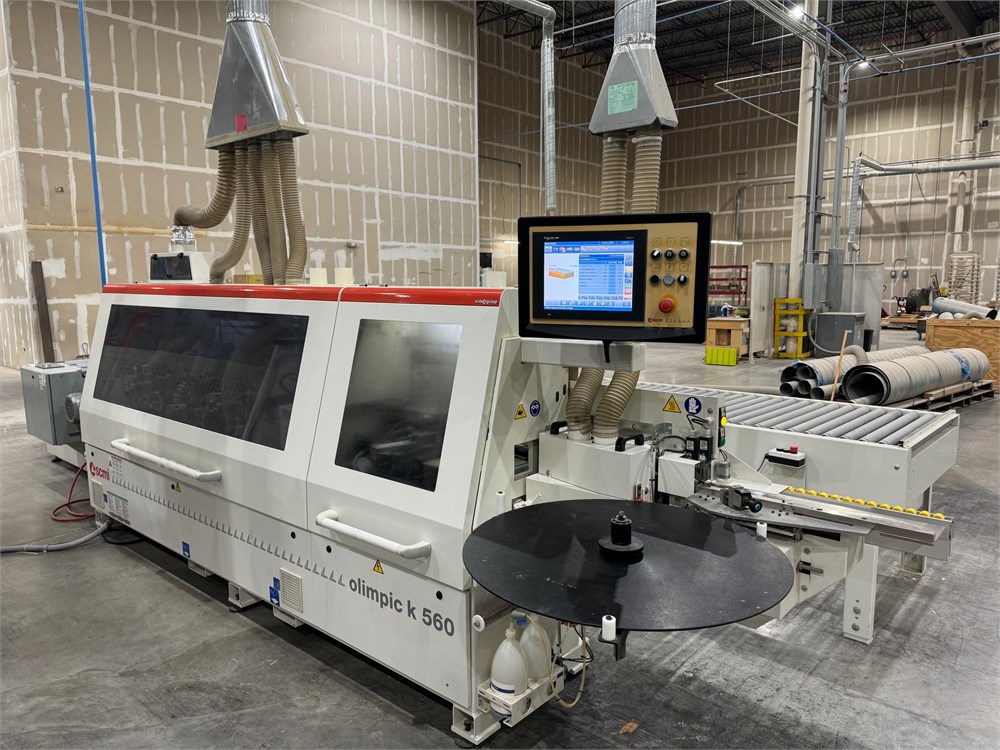

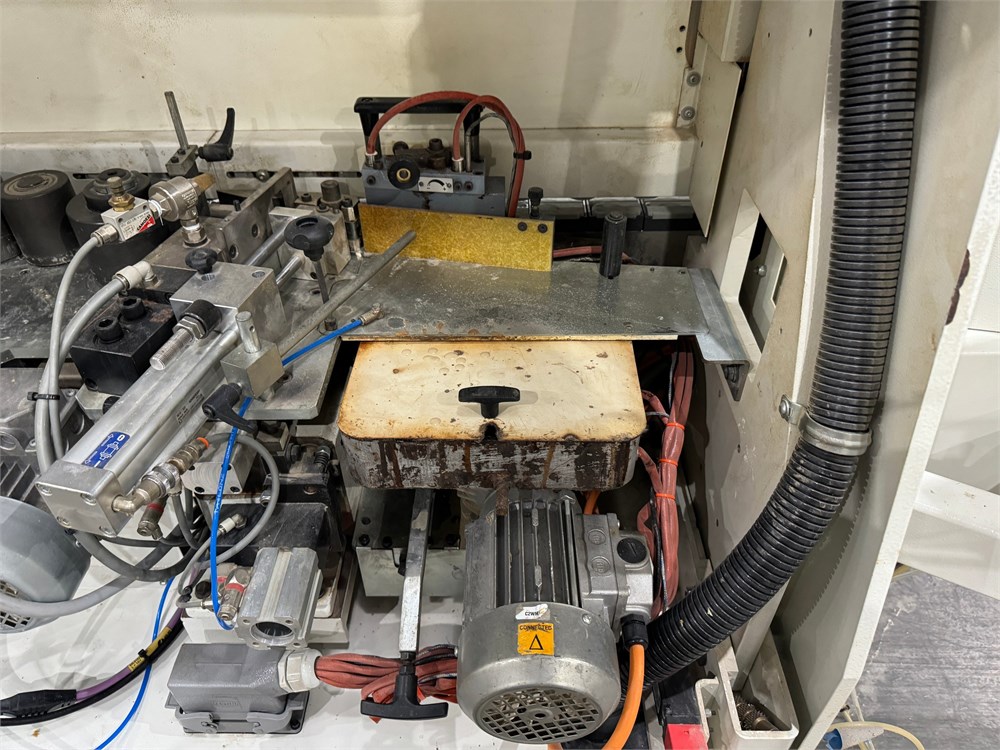

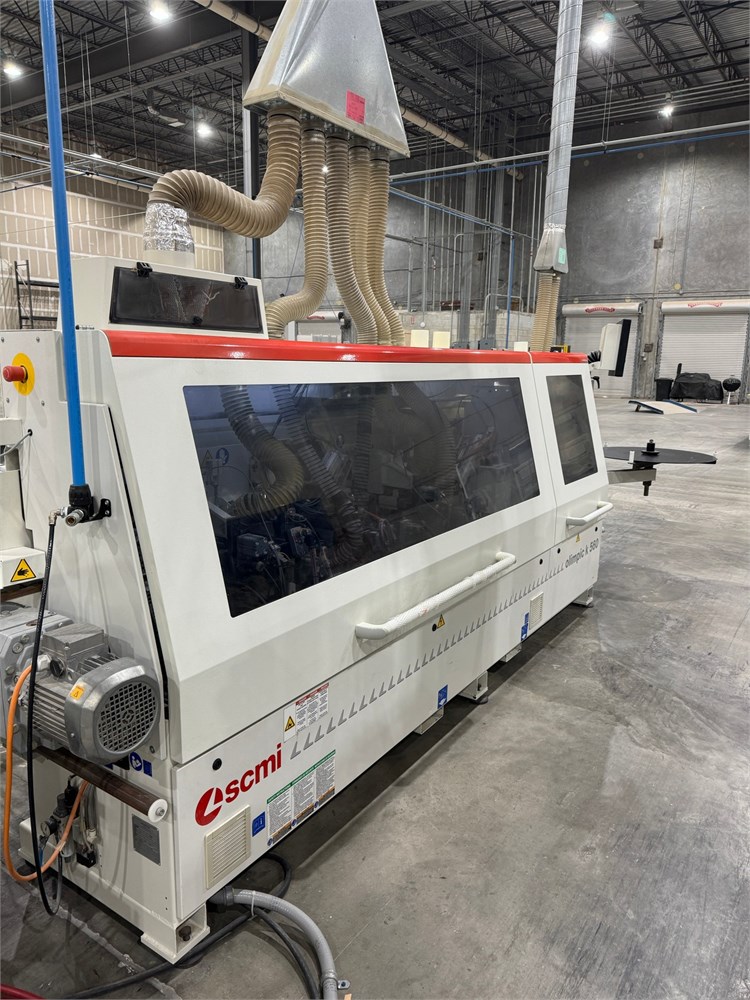

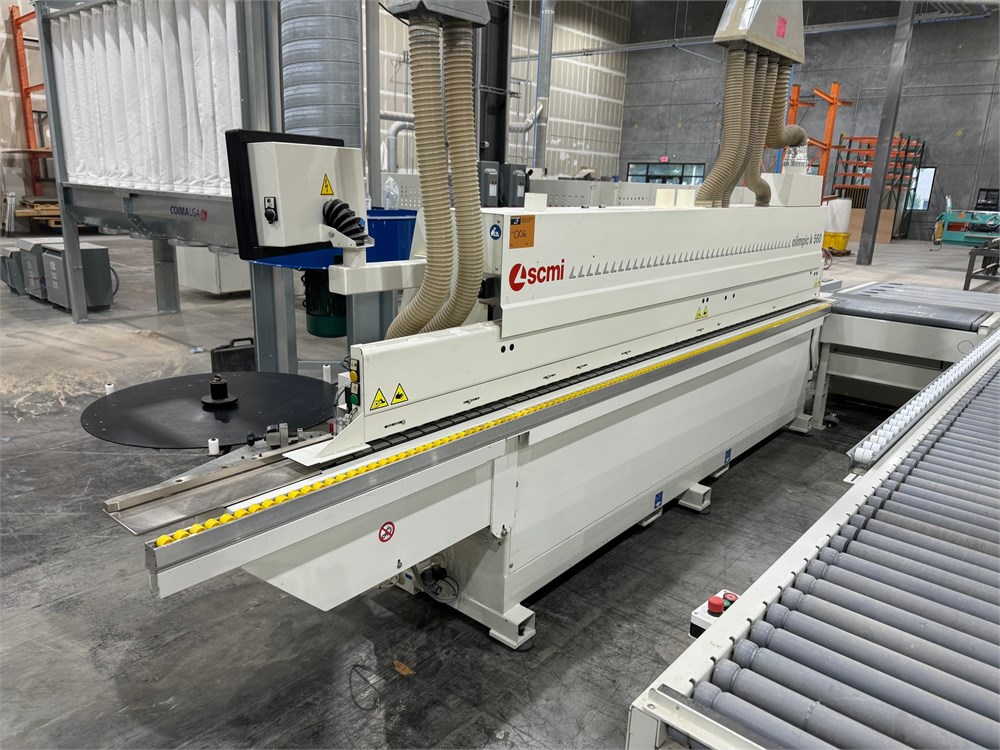

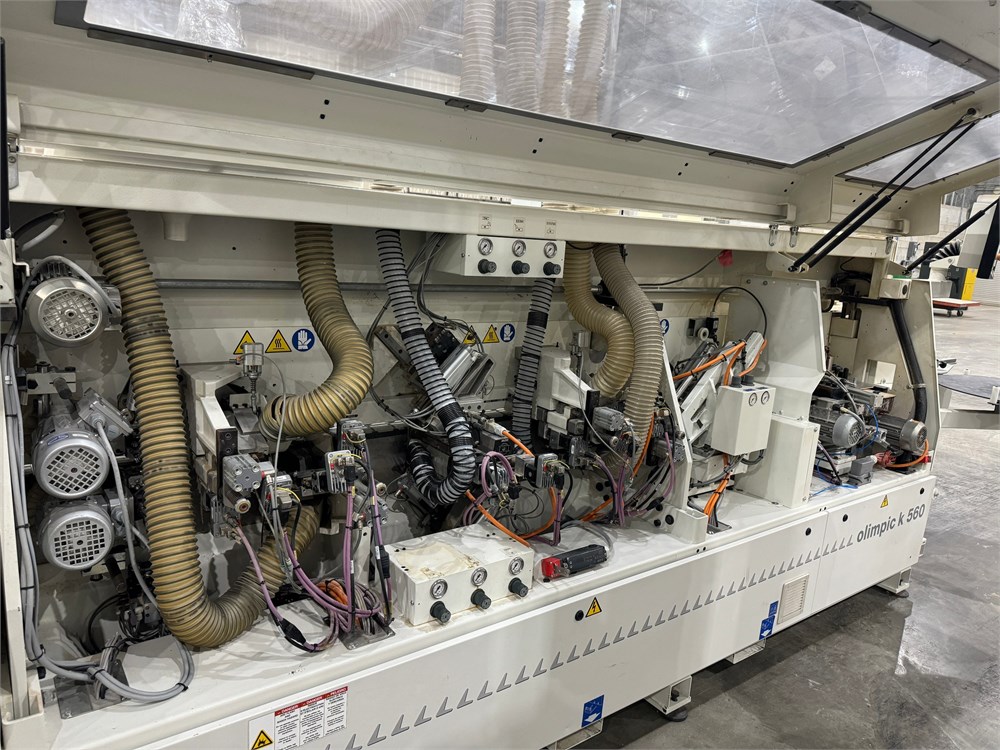

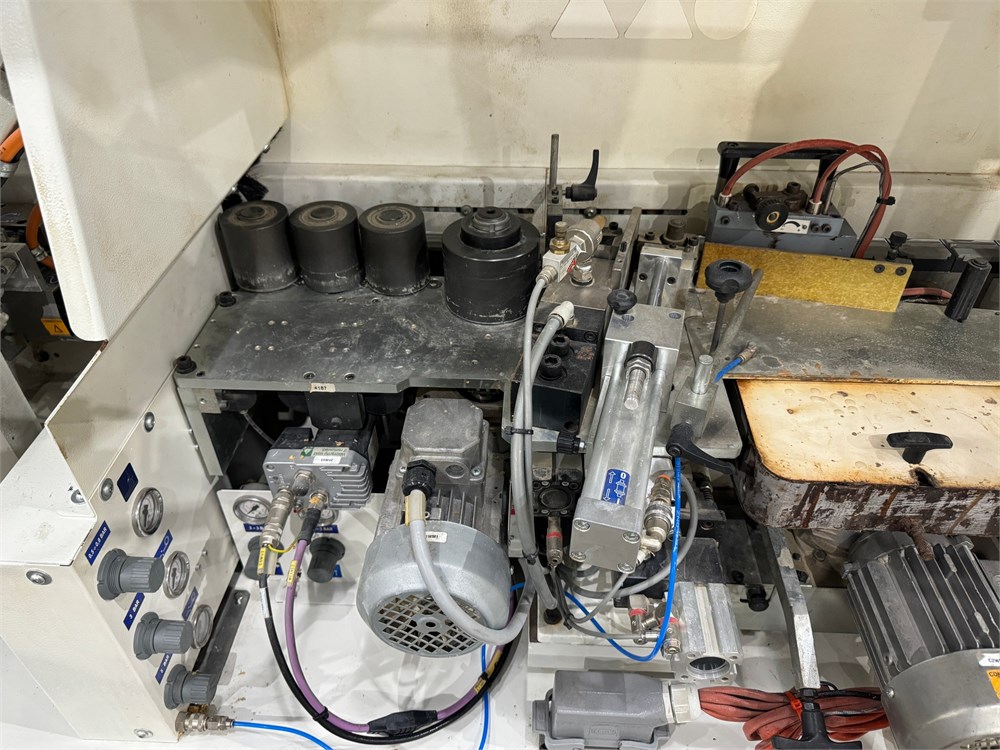

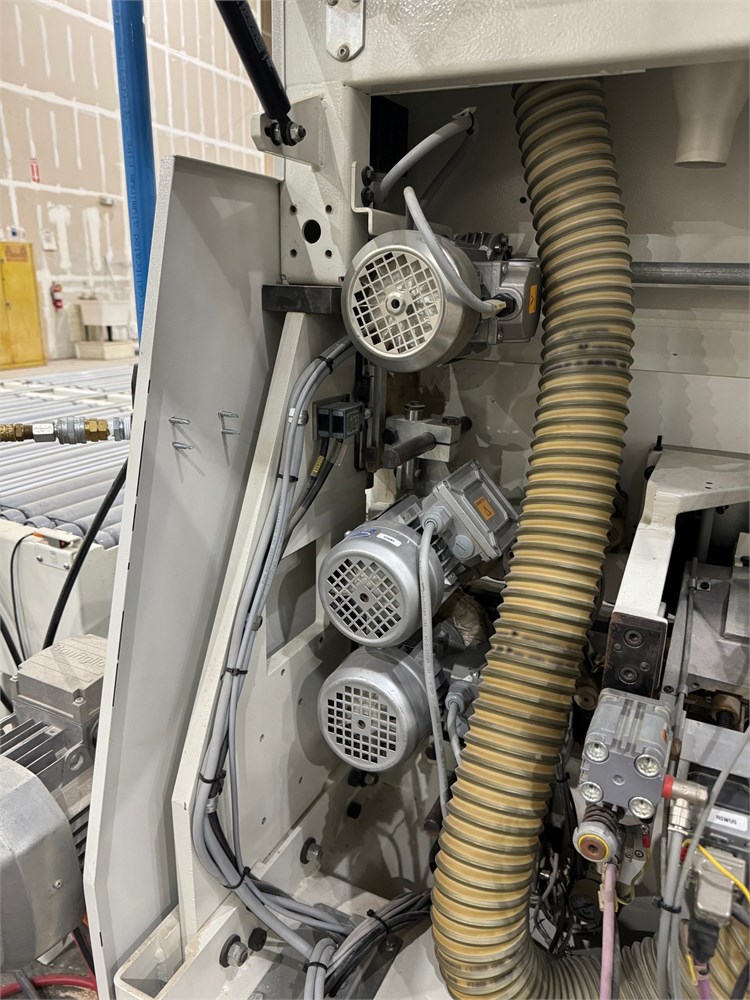

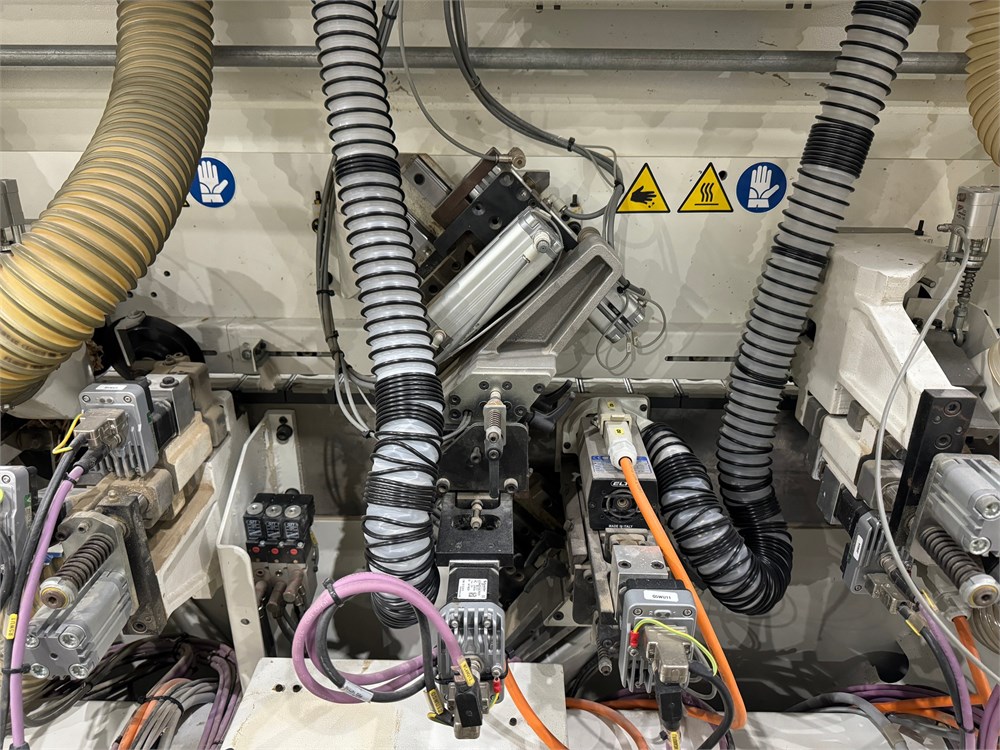

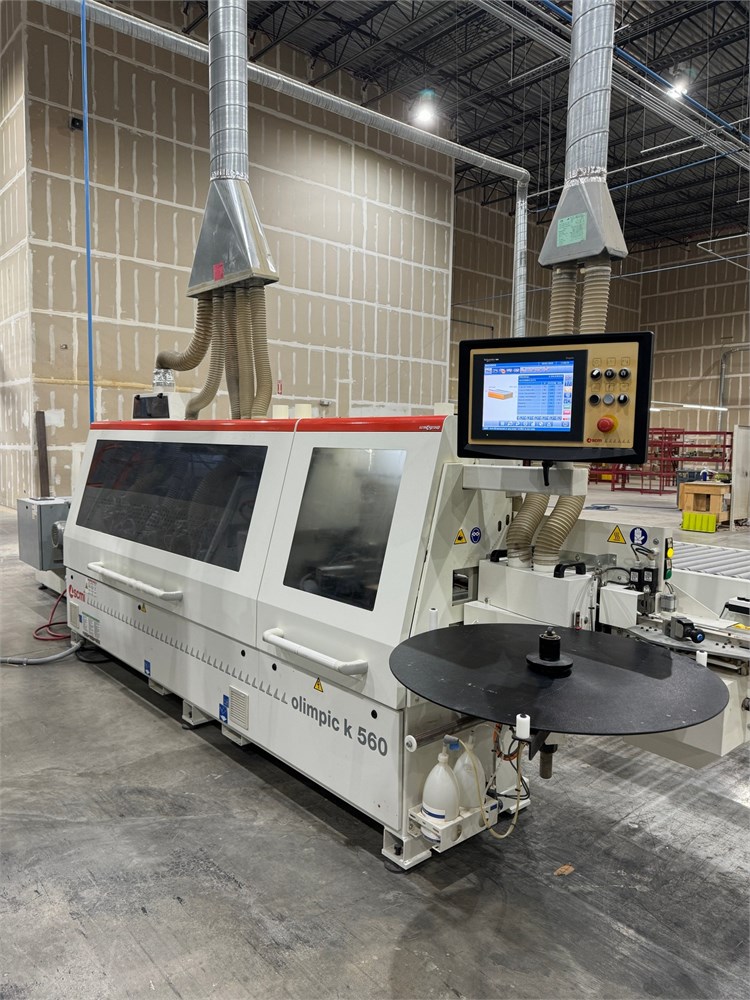

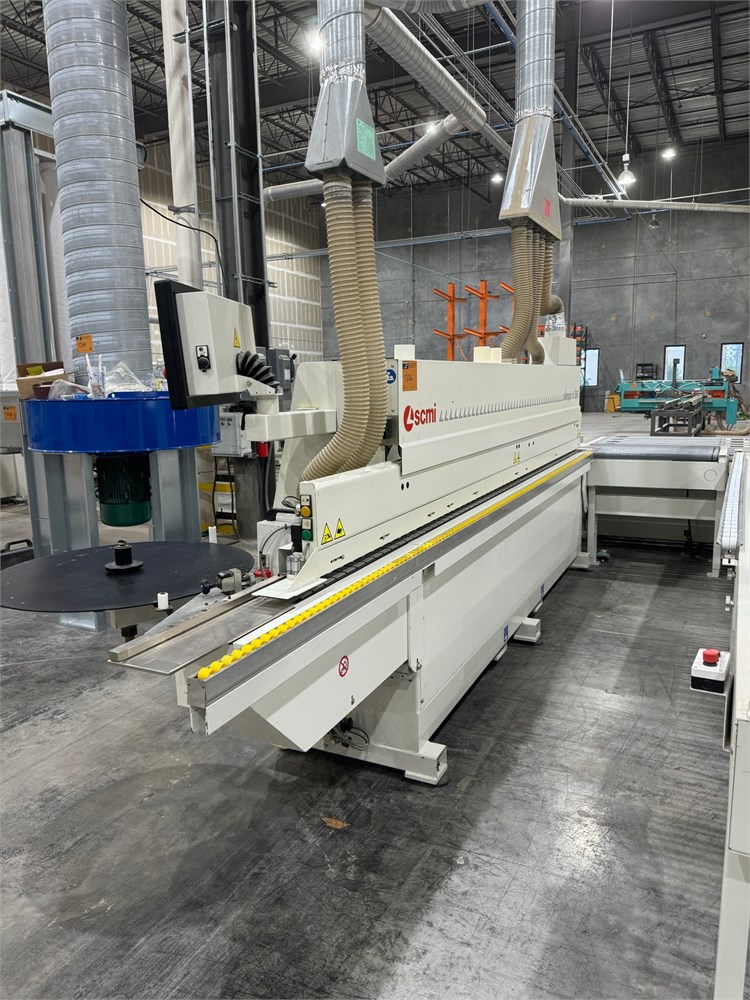

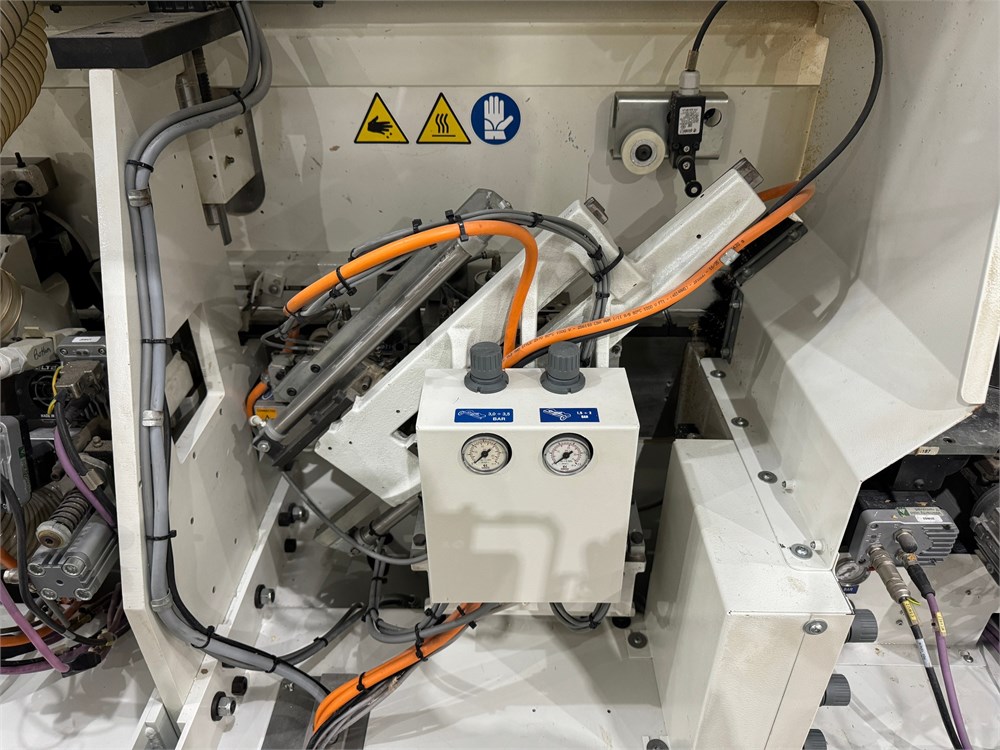

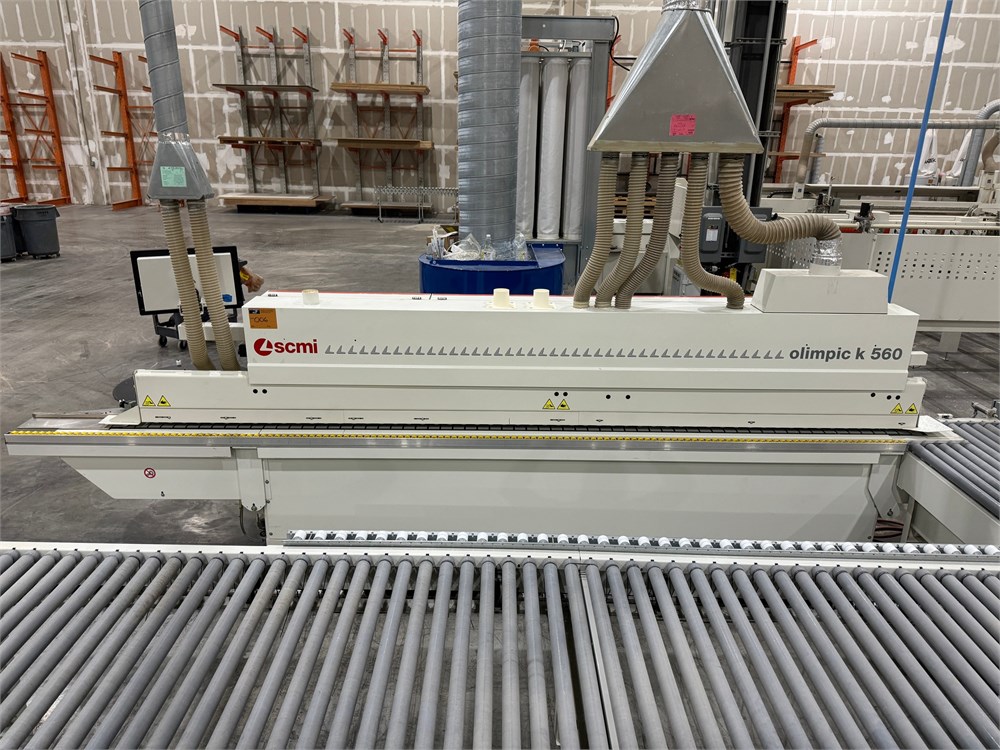

SCMI “Olimpic K 560″ Edgebander (2017) Edge Capacity, 0.4 to6 mm (0.016to 0.25″)for strip feeding. Min. Panel width60 mm(2.375″);Min Panel length 140 mm(5.5″). Min./max. Panel thickness 8 -54 mm (0.375″ – 2.125″); Minimum distance between panels600 mm (24”). Pre-milling station:(2) 2.0 HP (1.5 kW) motors, to rectify/clean panels already sized. Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning. Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. Gluing Station: For EVA (Hot Melt) with Quick change/disconnect Teflon glue pot for fastglue tanks changeif needed.Heat-up time approx. 10 Min. Pressure Section: Manual digital positioning;Teflon coated pneumatic driven roller & (3) spring loaded idle rollers. End Trimming Station:Front & rear 2 x 0.5 HP, 12,000RPMmotorsmounted on THK guides, swivels 0° – 15° for straight & angle cutting. Top & Bottom Trimming Unit: 2 x0.7 HP – 12.000 RPM motors, capable of tilting & Servo driven Corner Rounding Unit “Round 2M”: corner rounding unit with (2) 0.80 HP independent motors that slide on THK guides, Servo driven. Top & Bottom Profile Scraping Unit:with digital indicators. Large dia. copy wheels for max. accuracy, servo driven Buffing Unit: Top/bottom, 2 x 0.25 HP – 2,800 RPM motors, tilting up to 12°. “STARTOUCH” Controller with 12″ touchscreen display, capable of storing (100) programs. 2-Speedfeed-speed of 40 & 60 FPM (12 & 18 MPM); 1 x 2.5 HP feed drive motor
Specifications:
Pick Up Location: Fort Meyers, FL
Make: SCMI
Model: “Olimpic K 560″

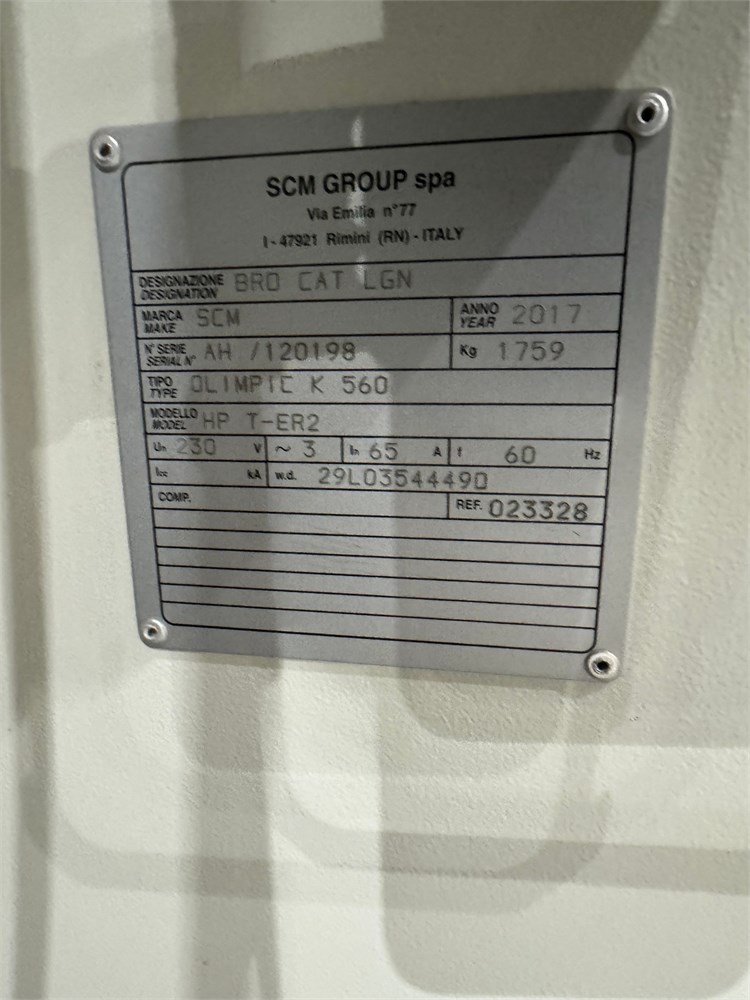

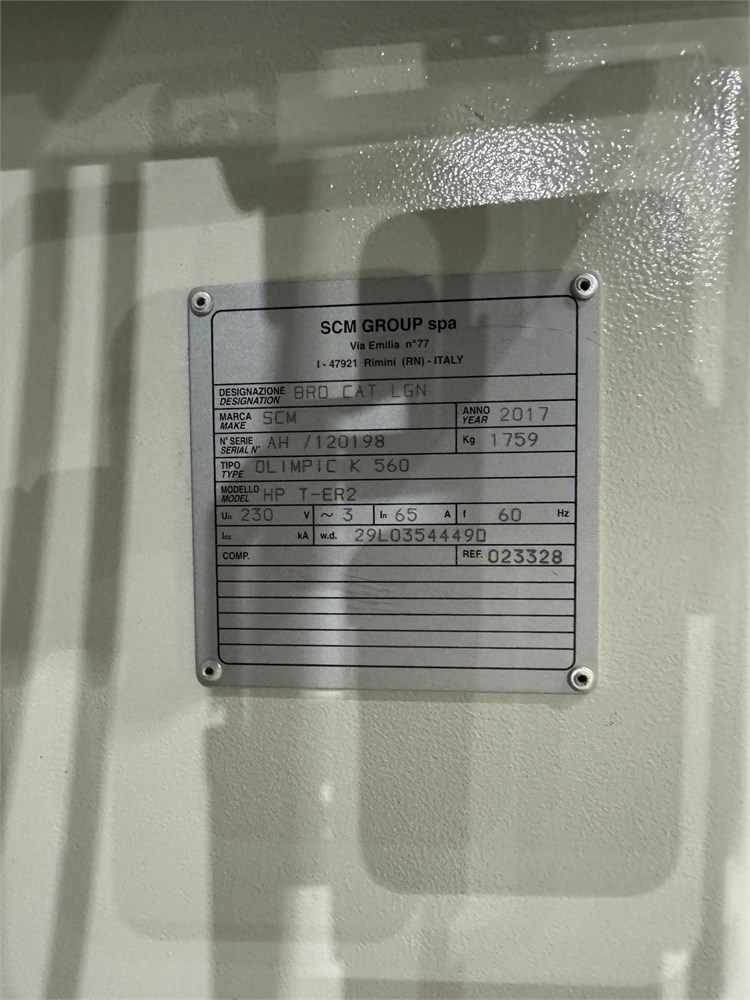

Serial Number: AH/120198
Year: 2017
Phase: 3 PHASE
Voltage: 230 VOLT
Estimated Dimensions: 190″ x 48″ x 68”
Estimated Weight: 4,000 Lbs
Seller Comment: A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer. Paletization or other Services available for an extra fee.
Load Fee: 895.00

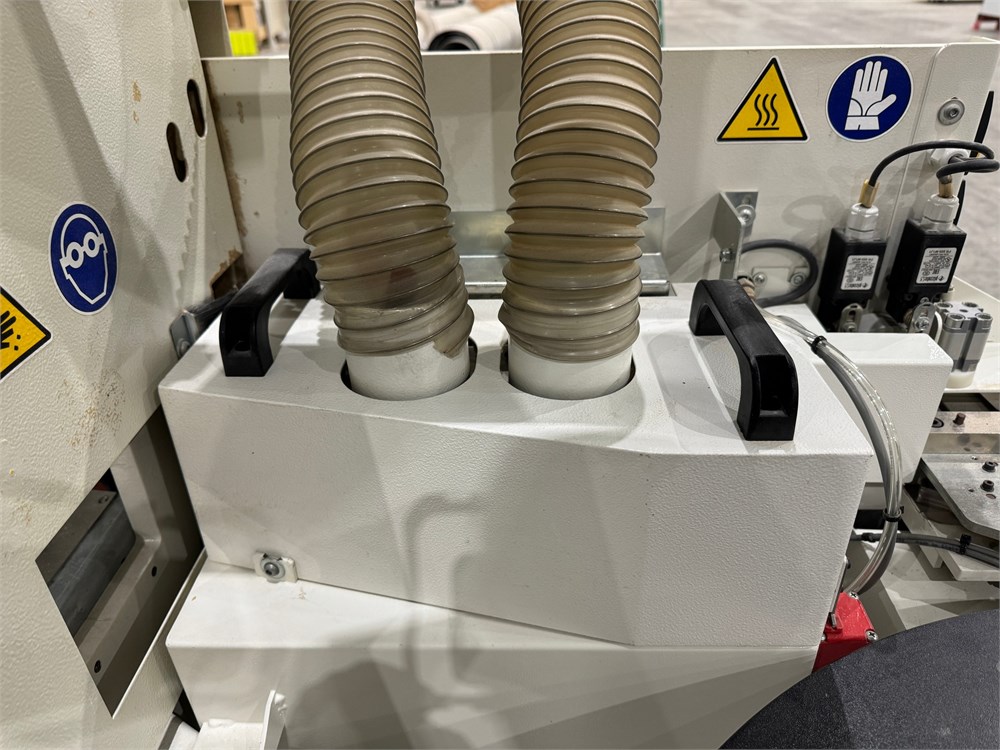

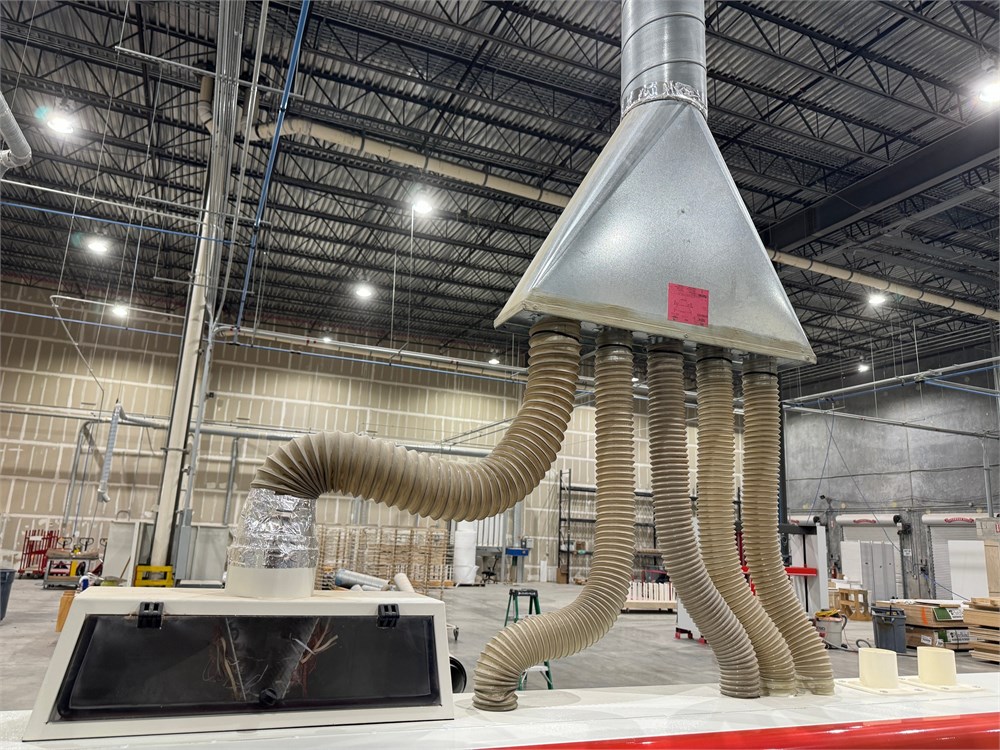

Lot Notes: Dust manifolds included.
