Description

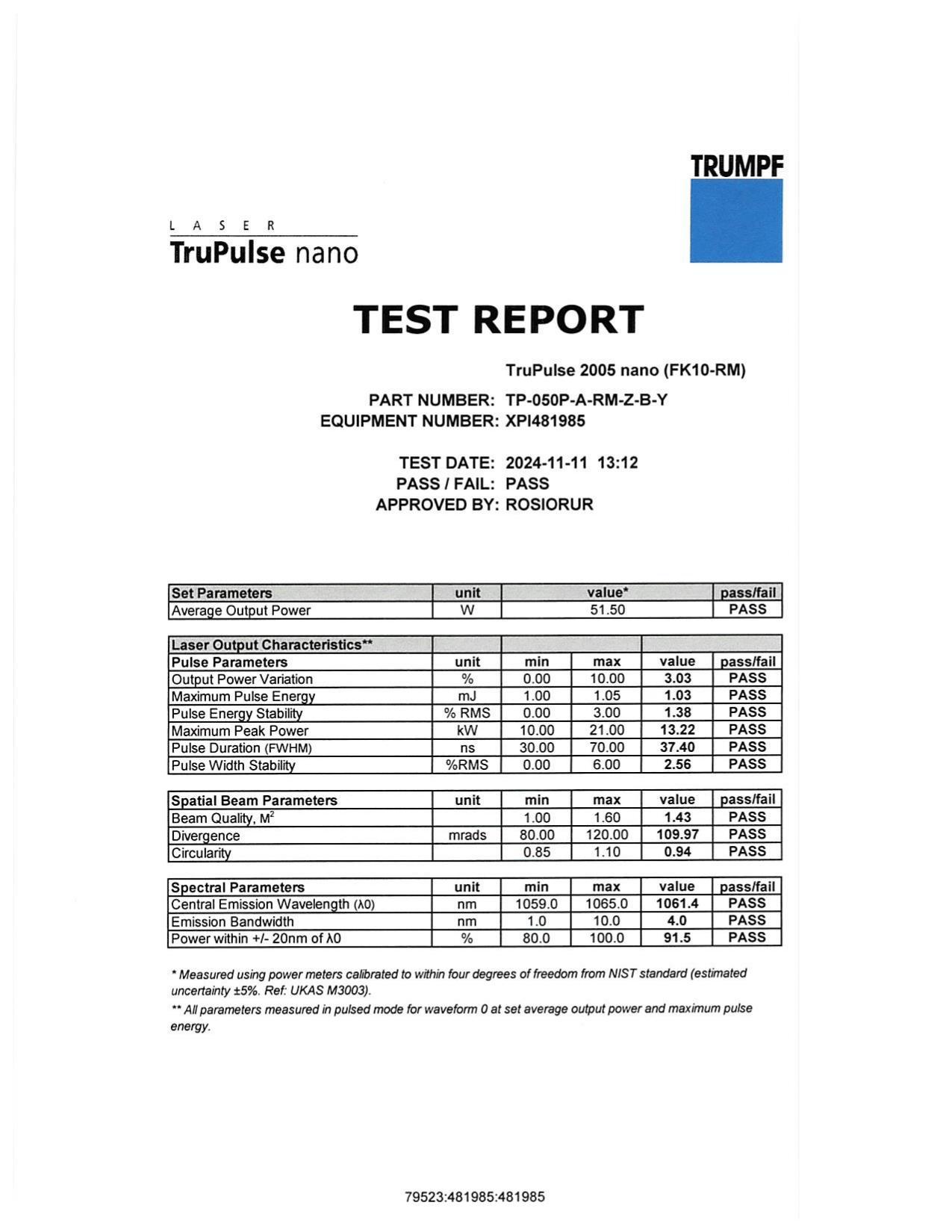

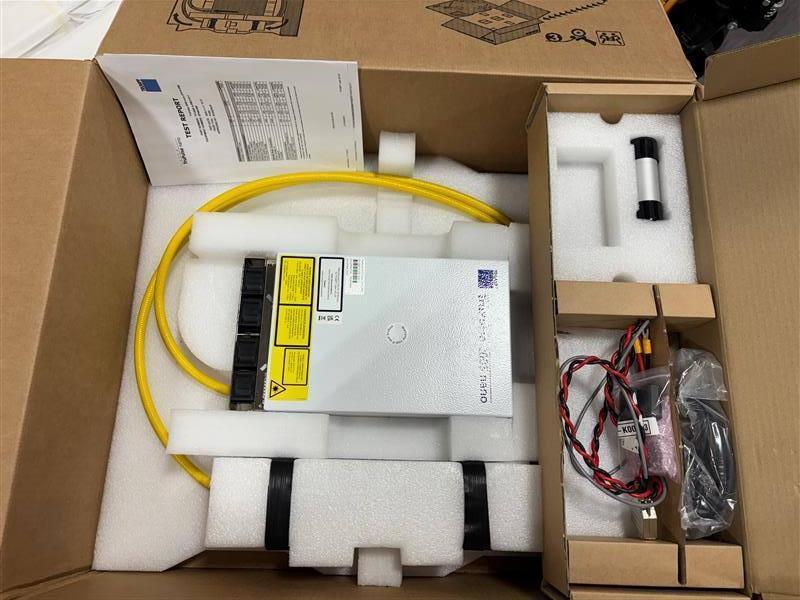

TRUMPF TRUPULSE 2005 NANO (FK10-RM) LASER PARAMETERS AVERAGE OUTPUT POWER: 50 W MAXIMUM PEAK PULSE POWER: > 10 KW BEAM QUALITY (M²): < 1.6 WAVELENGTH SPECTRUM: 1059 NM - 1065 NM MAXIMUM PULSE ENERGY: > 1 MJ PULSE DURATION RANGE: 26 NS – 250 NS PULSE REPETITION FREQUENCY: 1 KHZ – 500 KHZ STRUCTURAL DESIGN DIMENSIONS (W X H X D): 347 MM X 201 MM X 95 MM INSTALLATION AMBIENT TEMPERATURE: 0 °C – 40 °C All specifications are assumed to be correct but must be confirmed by the purchasing entity. Item Location – Orlando, FL
