Description

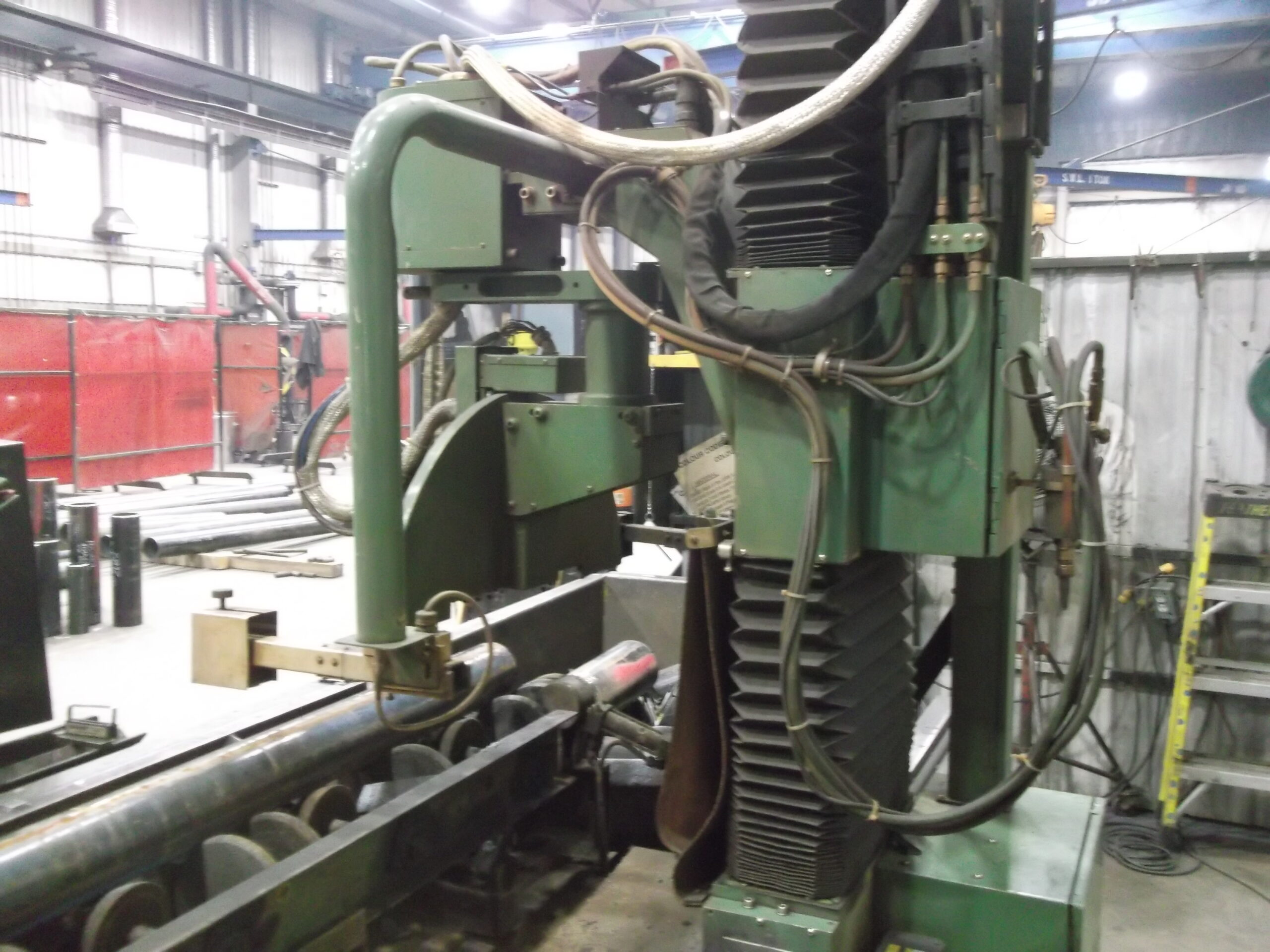

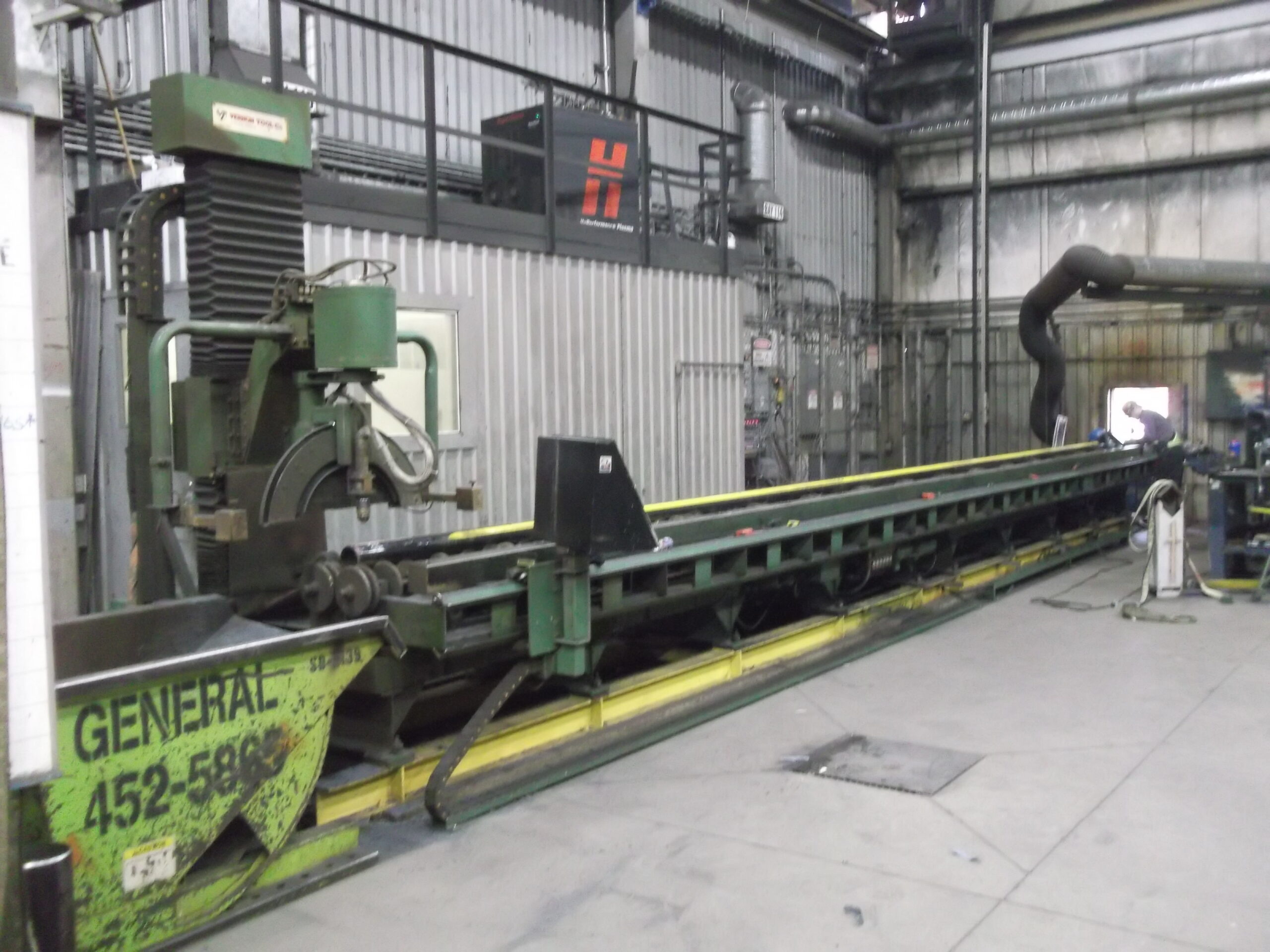

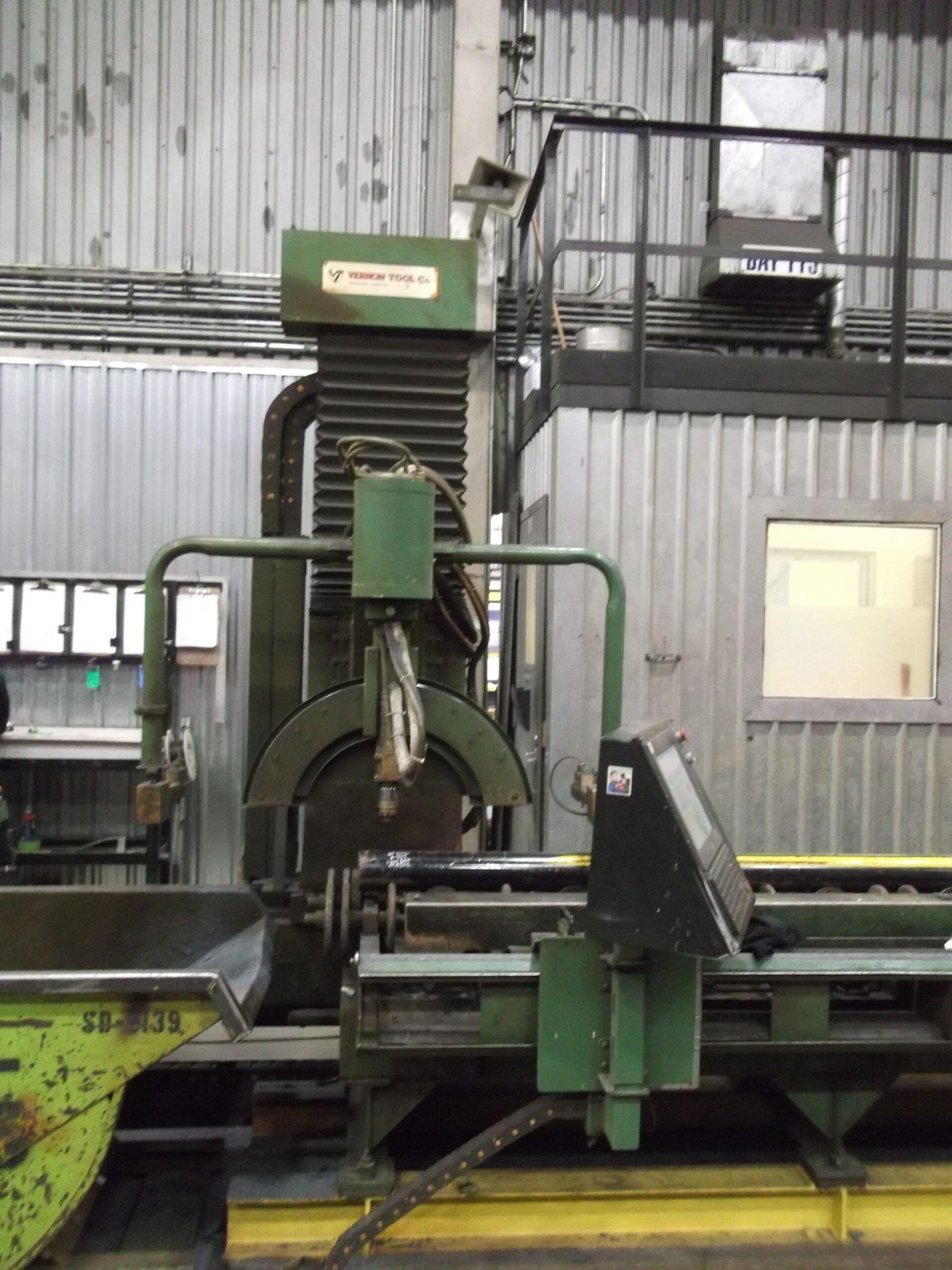

Heavy-duty CNC plasma pipe cutting and profiling system built for precise and efficient tube and pipe fabrication. The Vernon 0224 MPM delivers accurate beveling, coping, and contour cutting on large-diameter pipe using a 5-axis profiling carriage and Hypertherm HPR260XD plasma system. Ideal for structural, pipeline, and fabrication industries requiring clean, high-speed plasma cuts on complex geometries.
Technical Specifications
- Manufacturer: Vernon Tool Company
- Model: 0224 MPM
- Year: 2011
- Type: CNC Plasma Pipe Cutting & Profiling Machine
- Pipe Diameter Range: 2″ – 24″
- Maximum Weight per Foot: 250 lbs/ft
- Maximum Total Load: 5,000 lbs
- Rotation Speed: 0 – 200 IPM
- Conveyor Speed: up to 50 RPM
- Number of Axes: 5
- Maximum Torch Travel: 41′
- Bevel Head Rotation: 360°
- Cutting Source: Hypertherm HPR260XD plasma system
- Control Interface: 15″ XGA high-resolution color touchscreen
Equipped With
- Hypertherm HPR260XD high-definition plasma cutting system
- 5-axis profiling carriage for bevel and contour cutting
- 15″ XGA touchscreen CNC control with intuitive interface
- Lifter conveyor assembly with variable speed
- Reverse power speed control
- Hydraulic power unit for stable clamping and rotation
- Complete integrated table and conveyor system for long pipe lengths
Condition
- Excellent operational condition
- Fully equipped and complete system
- Ready for high-precision plasma cutting of pipes up to 24″ diameter and 41′ length
