Description

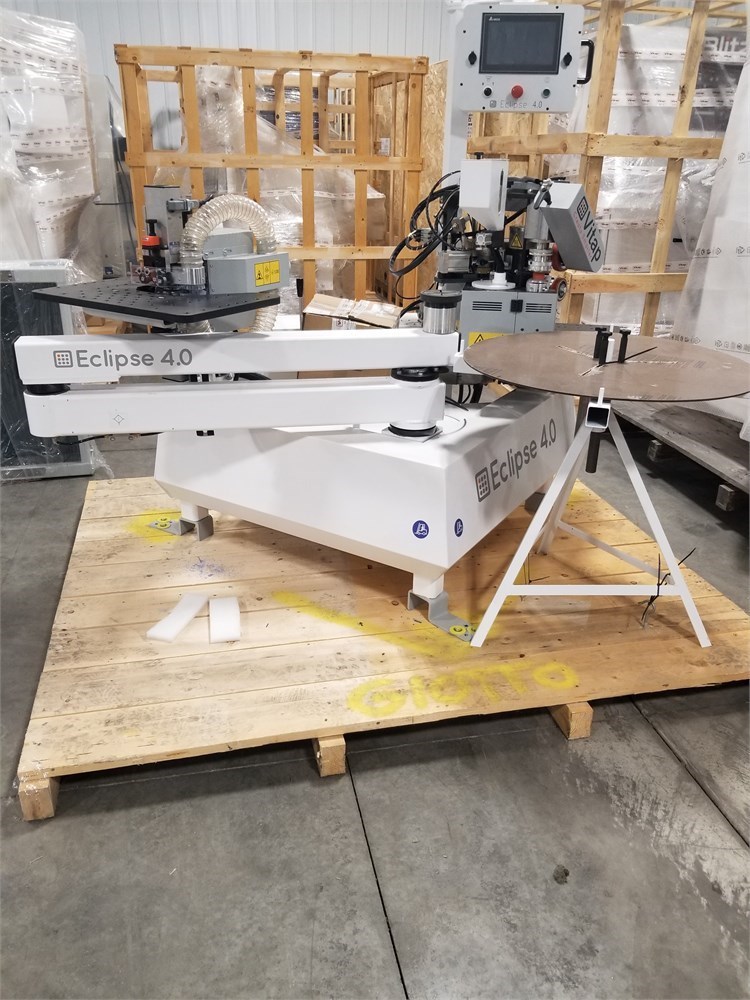

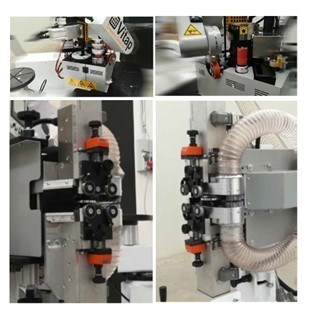

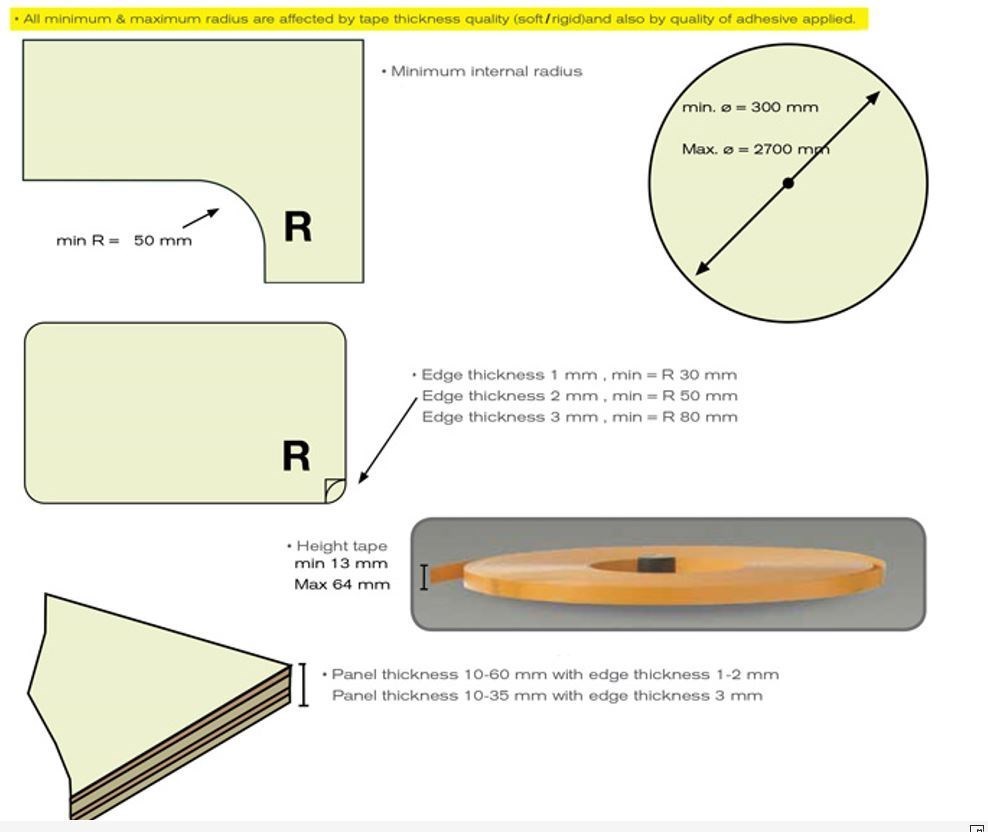

Vitap “Eclipse 4.0” Semi Auto. Contour Edgebander (new in crate) For shaped “concave, convex” and straight panels Three types of operations: encoder, encoder and laser, encoder to overtake the tape to cut it and to heat it 10 mm (0.4″) – 60 mm (2.4″) panel thickness 3 mm maximum strip edgebanding thickness 250 mm (9.8″) minimum internal radius 2,700 mm (106.3″) maximum external radius Feed speed control via foot pedal Color Touchscreen, 10”, job list storage Edgebanding infeed table, 780 mm (30.7″) diameter Glue pot with application roller, quick-change, 2-pound capacity Automatic guillotine for coiled material up to 3 mm x 45 mm Two (2) rollers to copy the shape of the piece Wide shoulder roller to insure better adherence Additional lower roller with support to insure better adherence Reinforced joint arm and heavy-duty frame construction Rectangular worktop for executing large panels, 800 mm (31.5″) x 360 mm (14.2″) x 20 mm (0.8″) Rotating vacuum pod, 200 mm (7.9″) diameter One (1) tilting support roller to enable the exit of the panel after banding Trimming unit with pneumatic opening and of the trim motors to facilitate the introduction of the panel. Motor: 2 x 0.75 HP, 15,000 RPM. Includes cutterheads. Manual system for glue scraping Installation and training available from manufacturer’s USA importer. Please contact me for details and a quote.
Specifications:
Pick Up Location: Brighton, MI
Make: Vitap
Model: Eclipse 4.0
Serial Number: 220725/AG
Year: 2022
Phase: 3 PHASE
Voltage: 230 VOLT
Estimated Dimensions: 87″ L x 75″ W x 83″ H
Estimated Weight: 1,521 Pounds
Seller Comment: Seller will disconnect and load onto buyer’s flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
Load Fee: 100.00
