Description

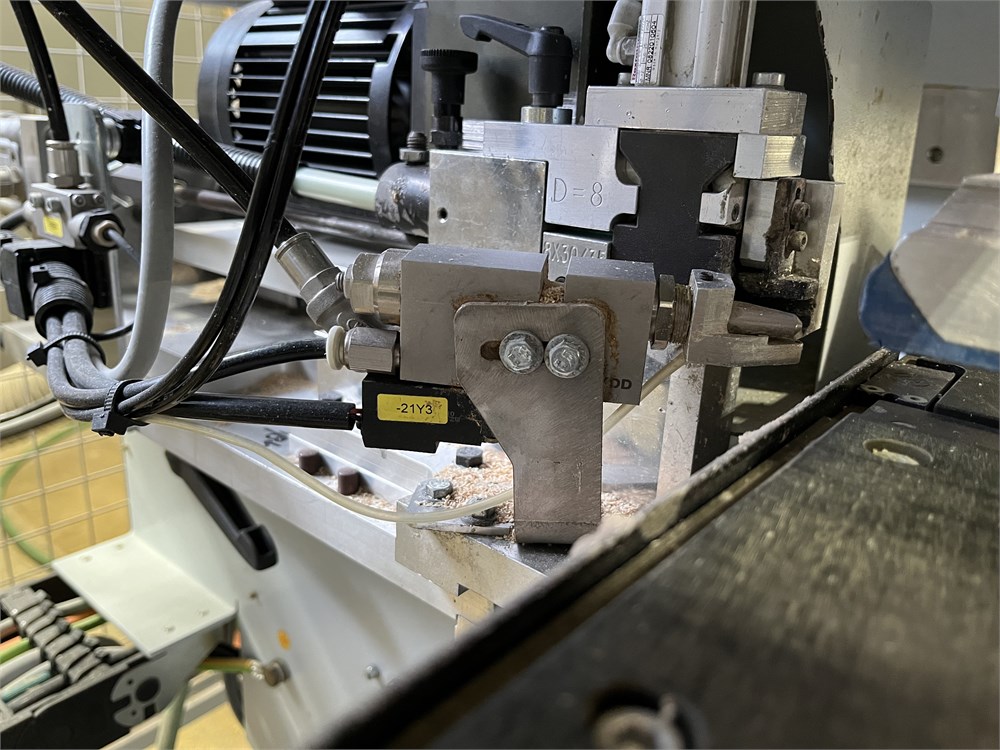

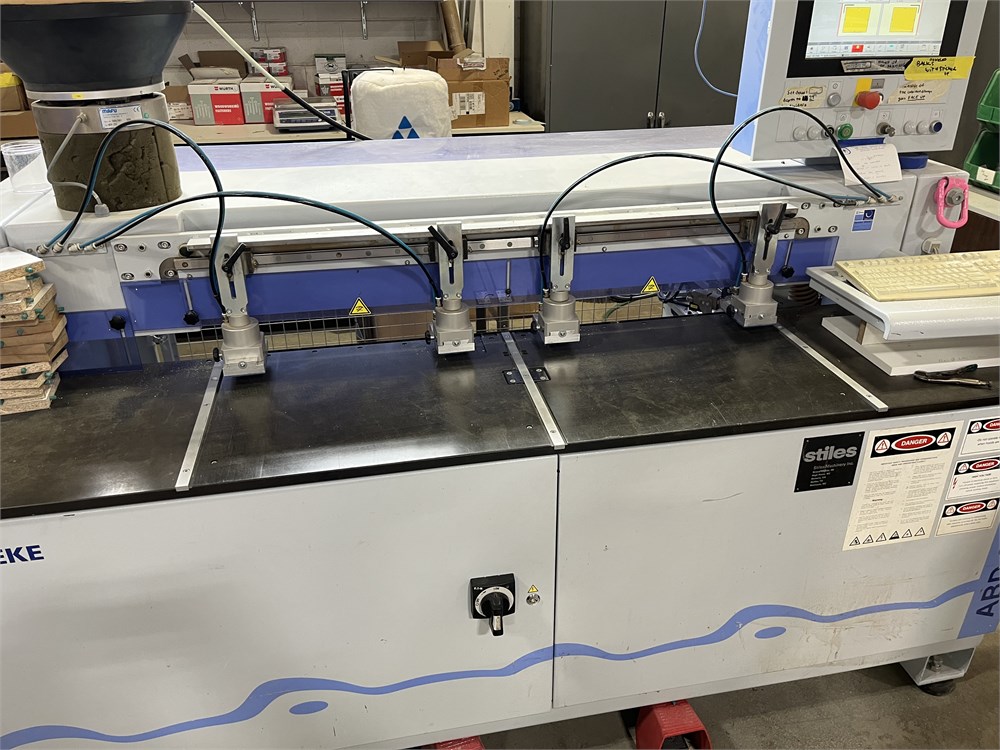

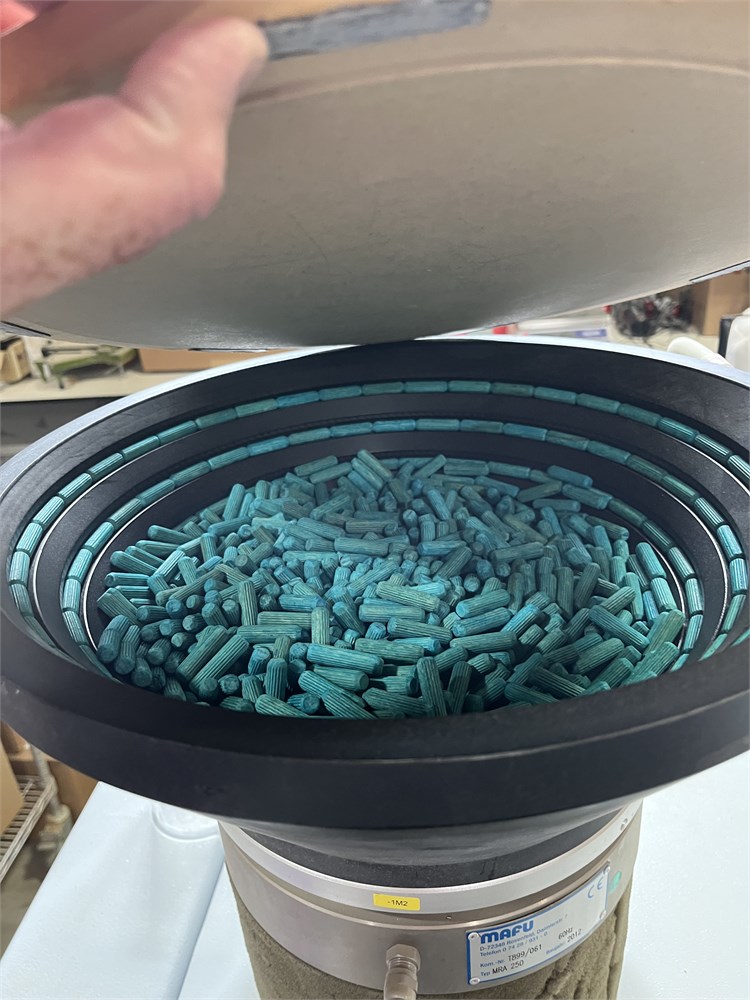

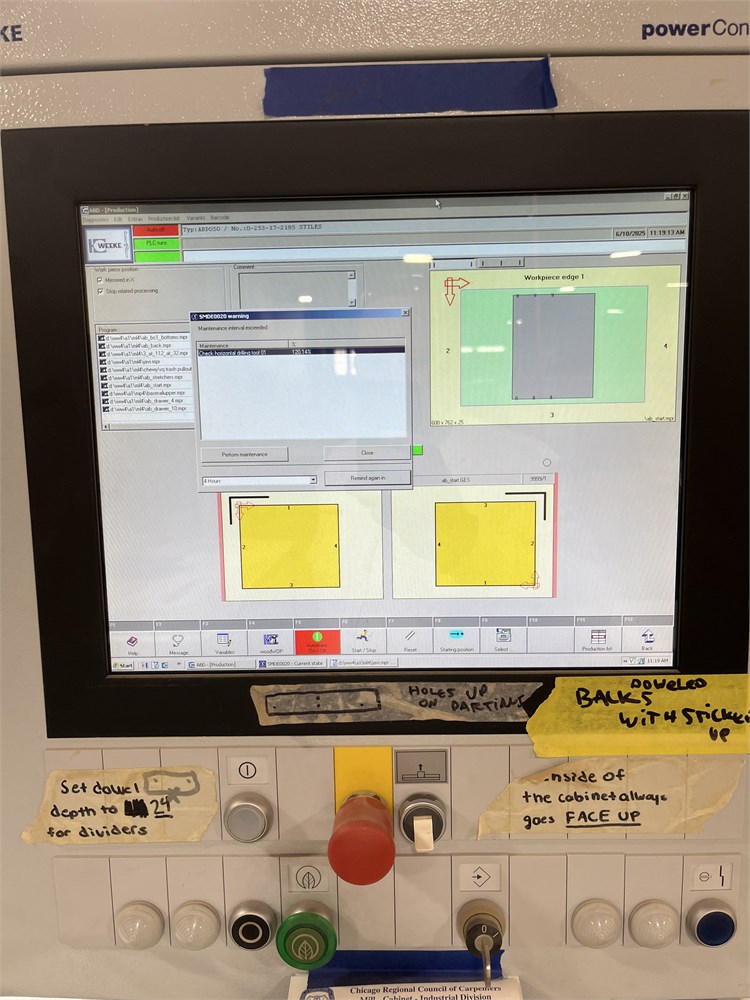

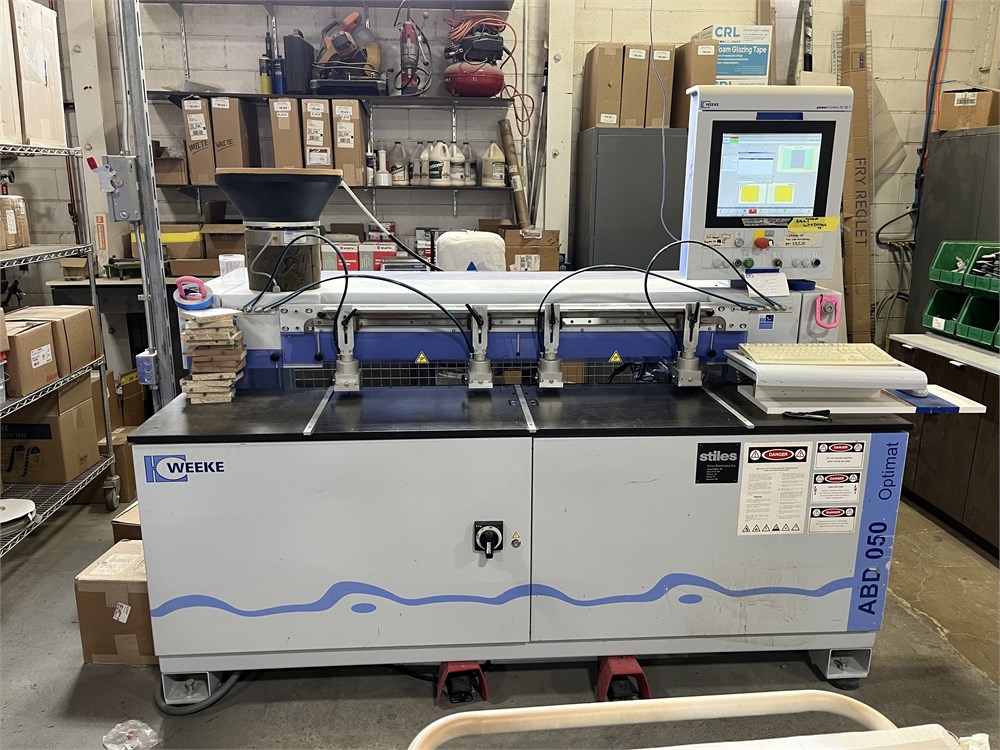

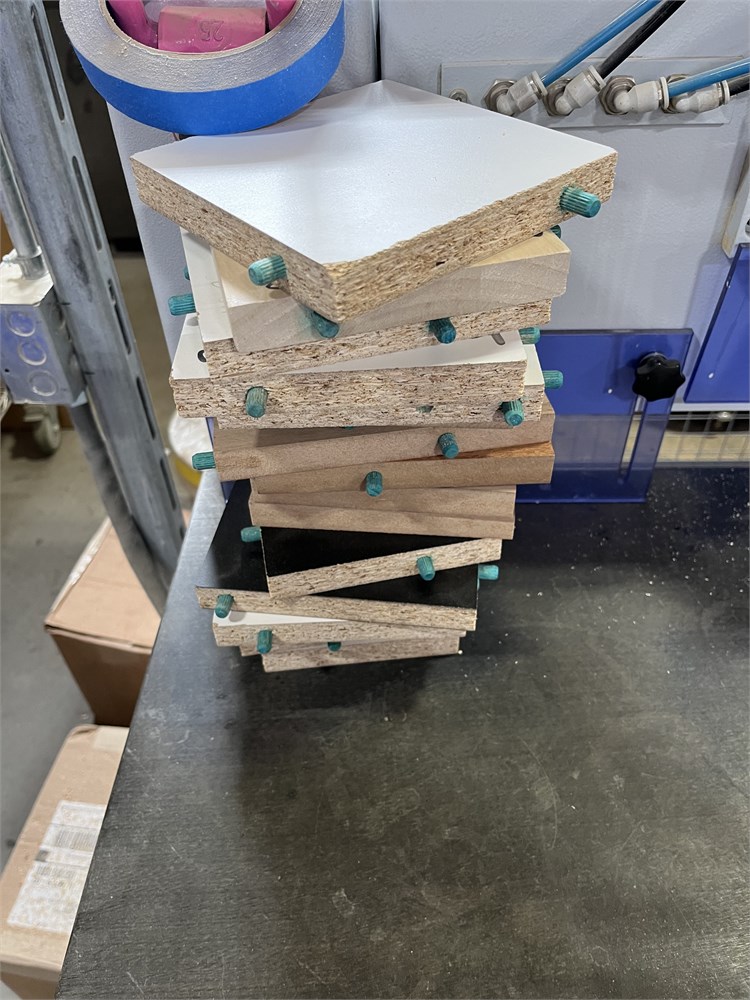

Weeke “ABD-050″ CNC Bore and Dowel Machine See PDF of machine quote (for reference only, not all options necessarily apply) CNC Dowel Inserter for horizontal drilling and dowel inserting Engineered to spray glue or water Four (4) work fields Left, center and right fences Open end table for machining longer parts One (1) horizontal drill One (1) dowel inserter Dowel hopper Four (4) pneumatic clamps Glue tank and pump PC control (Power Control PC 85 T) Standard keyboard and mouse Windows operating system Maximum part length, 1250 mm/49″ Minimum part length, 20 mm/0.8″ Maximum part width, 800 mm/31.5″ Minimum part width, 50 mm/2″ Maximum part thickness, 60 mm/2.4″ Minimum part thickness, 10 mm/0.4” Maximum part length for center stop, 600 mm/23.5″
Specifications:
Pick Up Location: 920 N. Larch Ave. Elmhurst, IL 60126

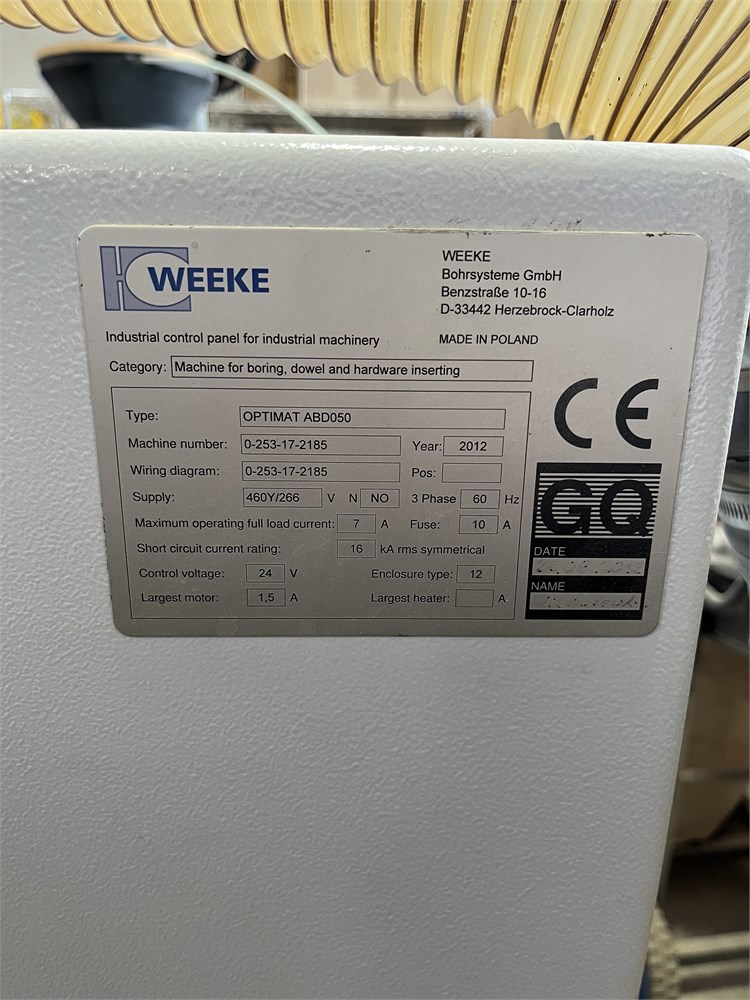

Make: Weeke
Model: ABD-050
Serial Number: 0-253-17-2185
Year: 2012
Phase: 3 PHASE
Voltage: 460 VOLT
Estimated Dimensions: 92″ L x 57″ W x 79″ H
Estimated Weight: 2,000 Pounds
Seller Comment: Seller can load onto buyer’s flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost
Load Fee: 100.00
