Description

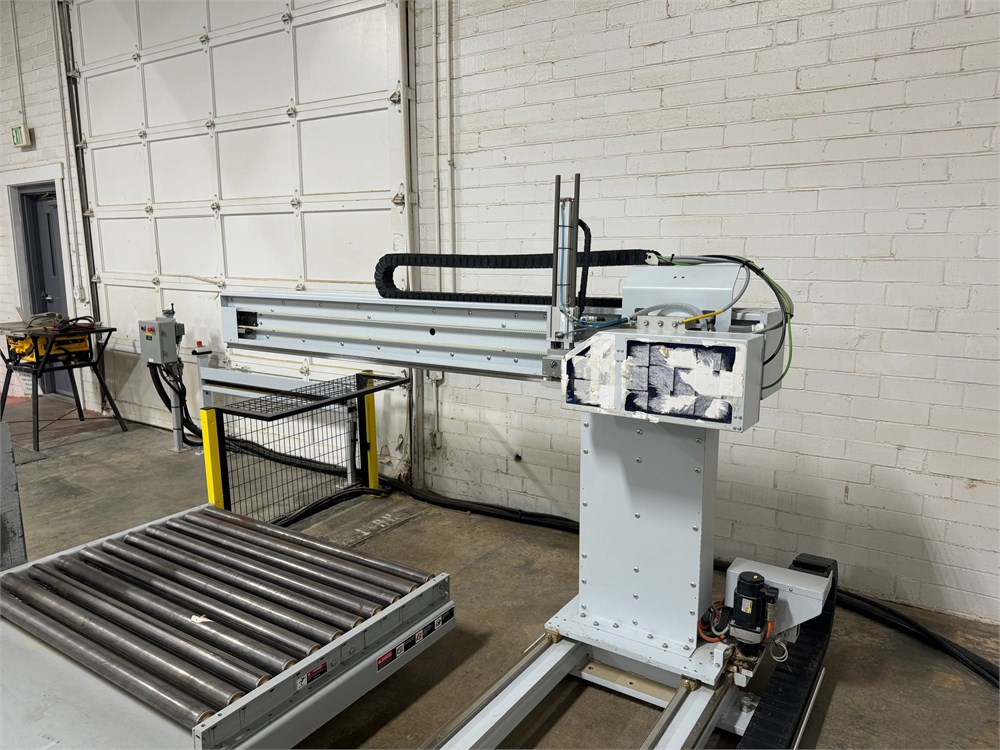

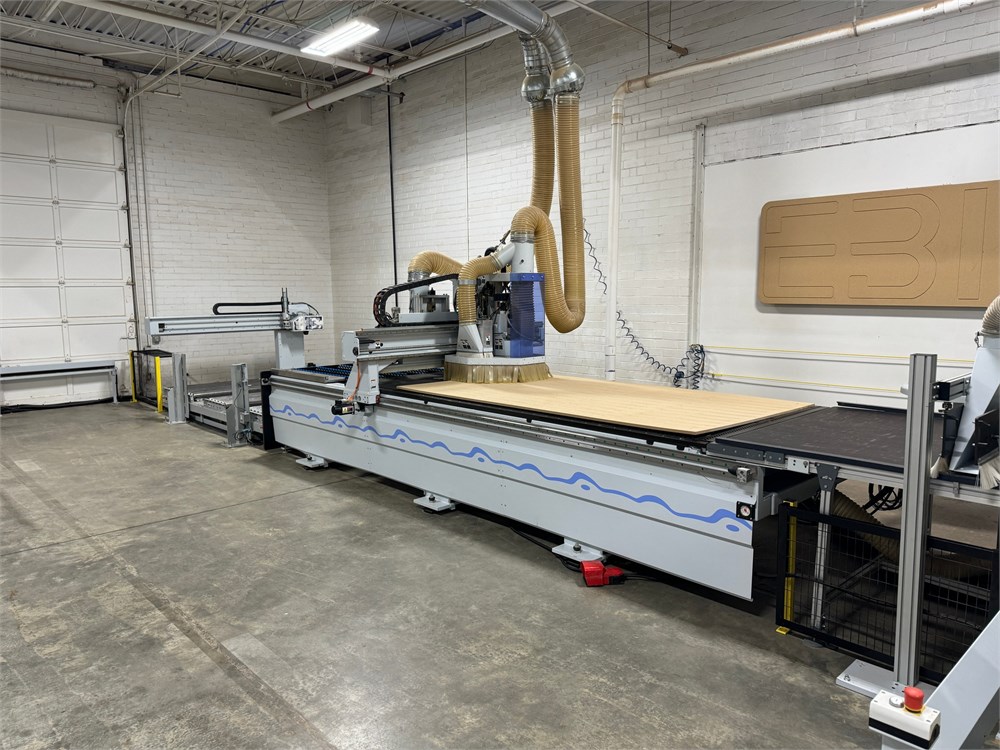

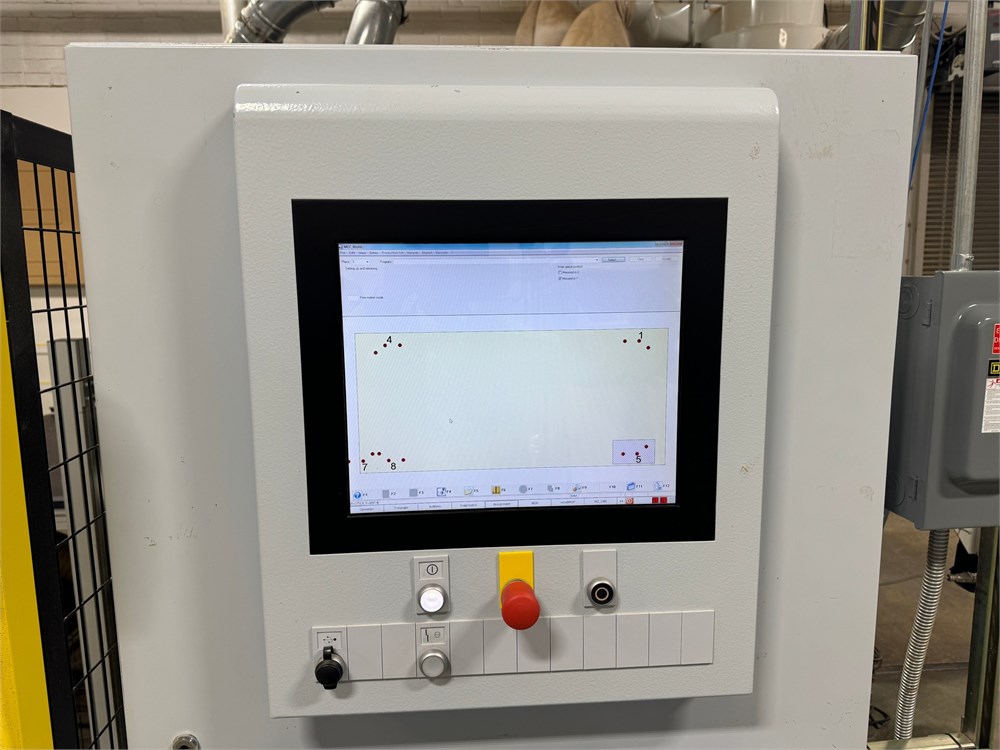

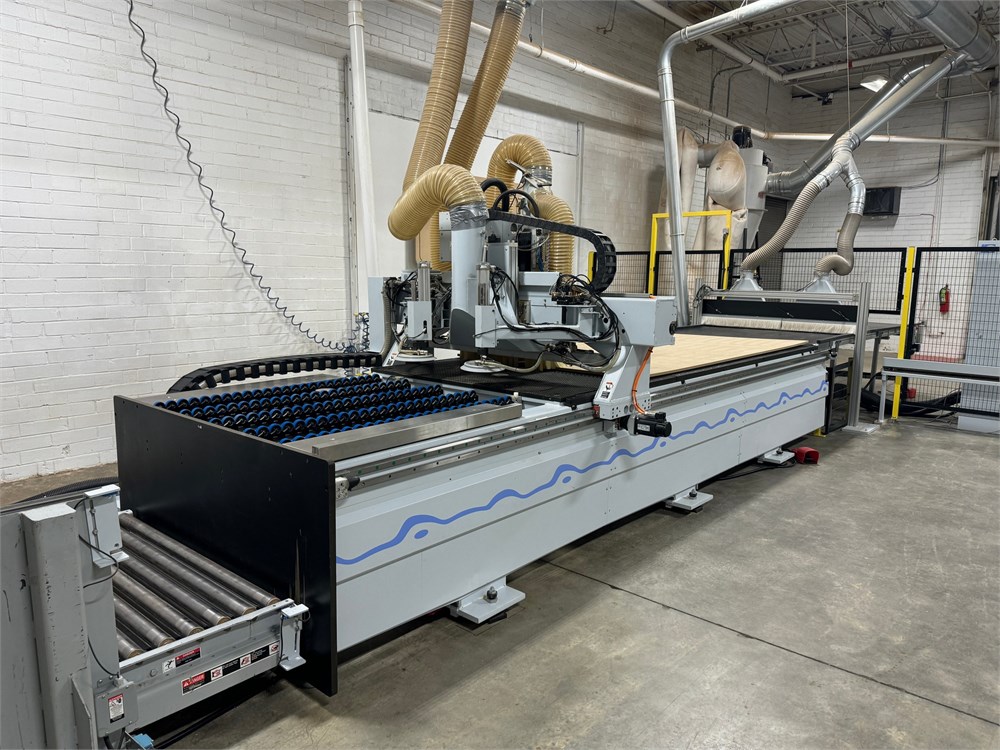

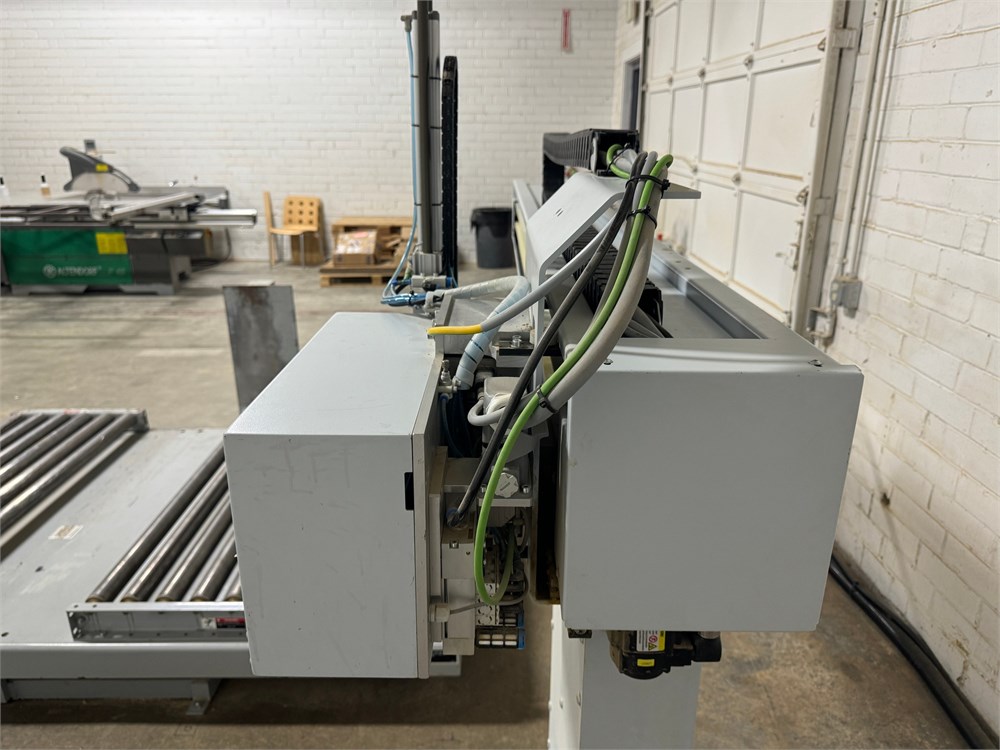

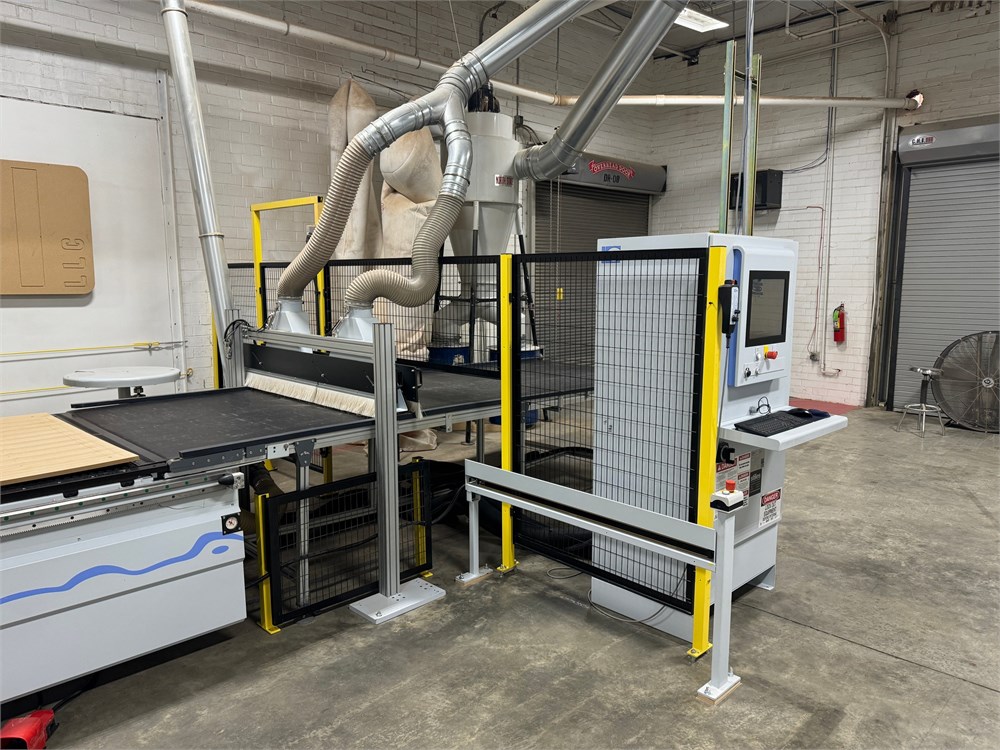

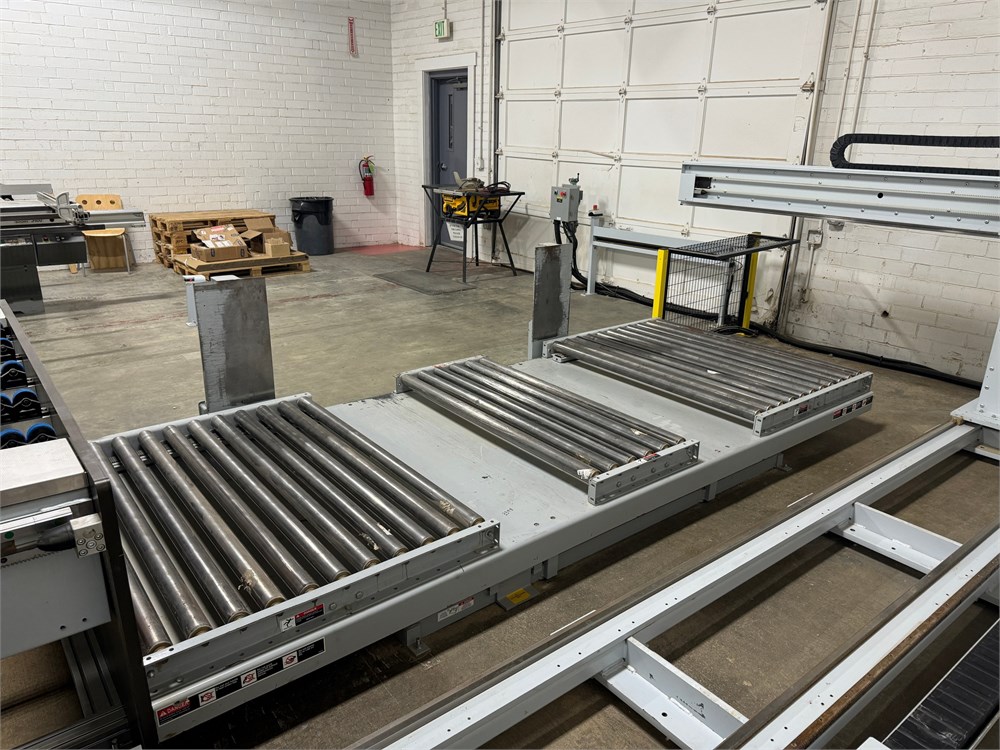

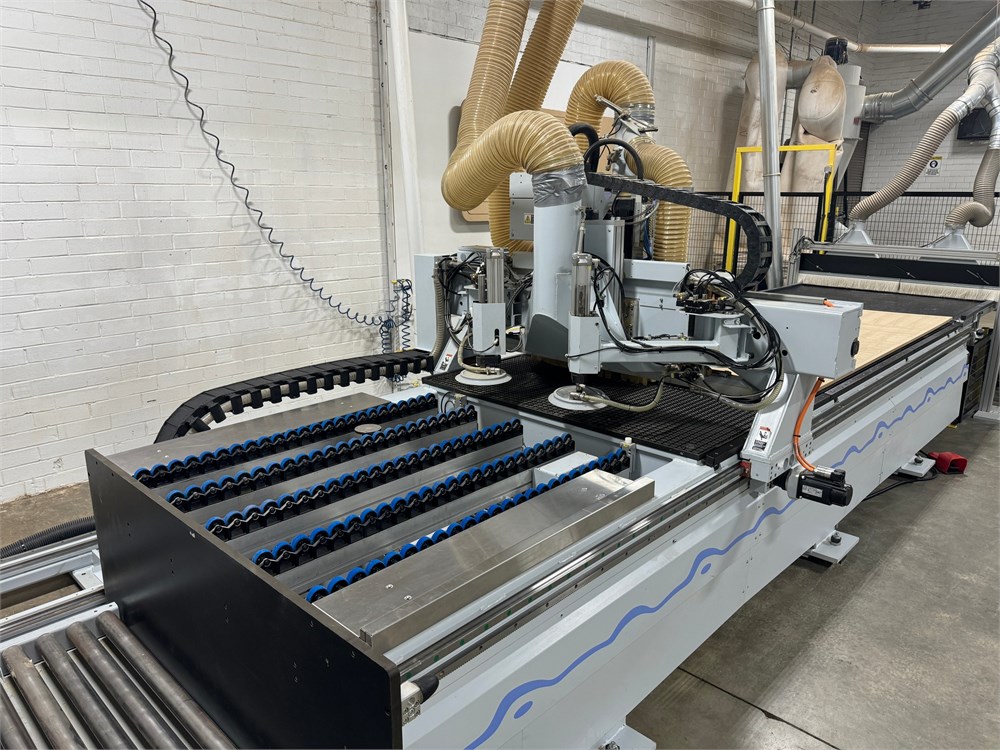

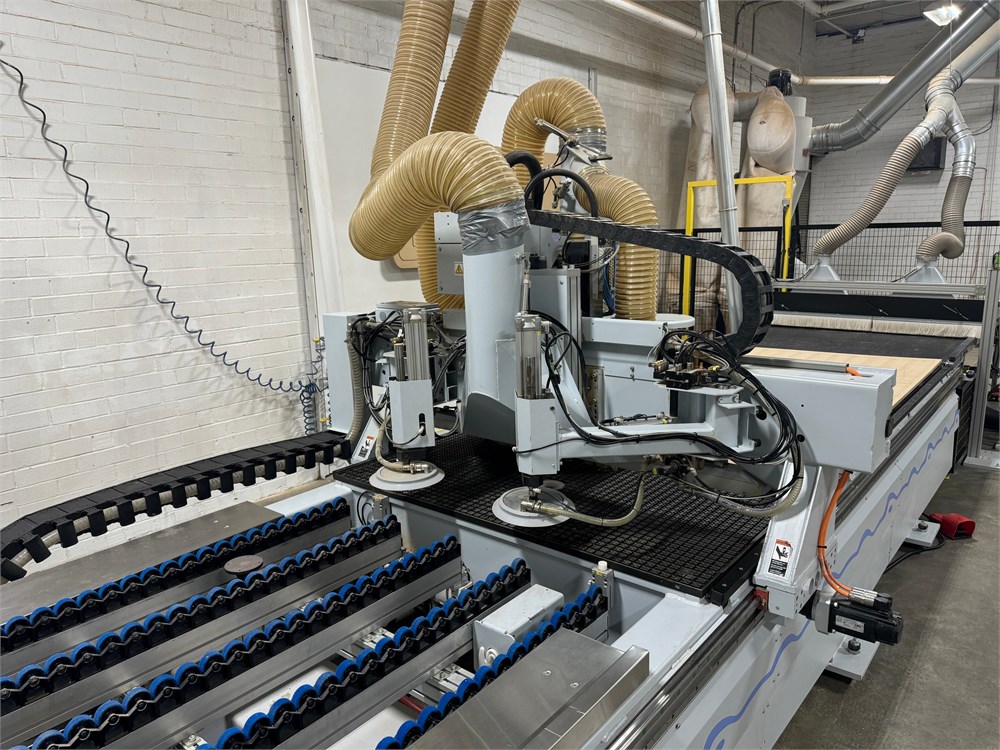

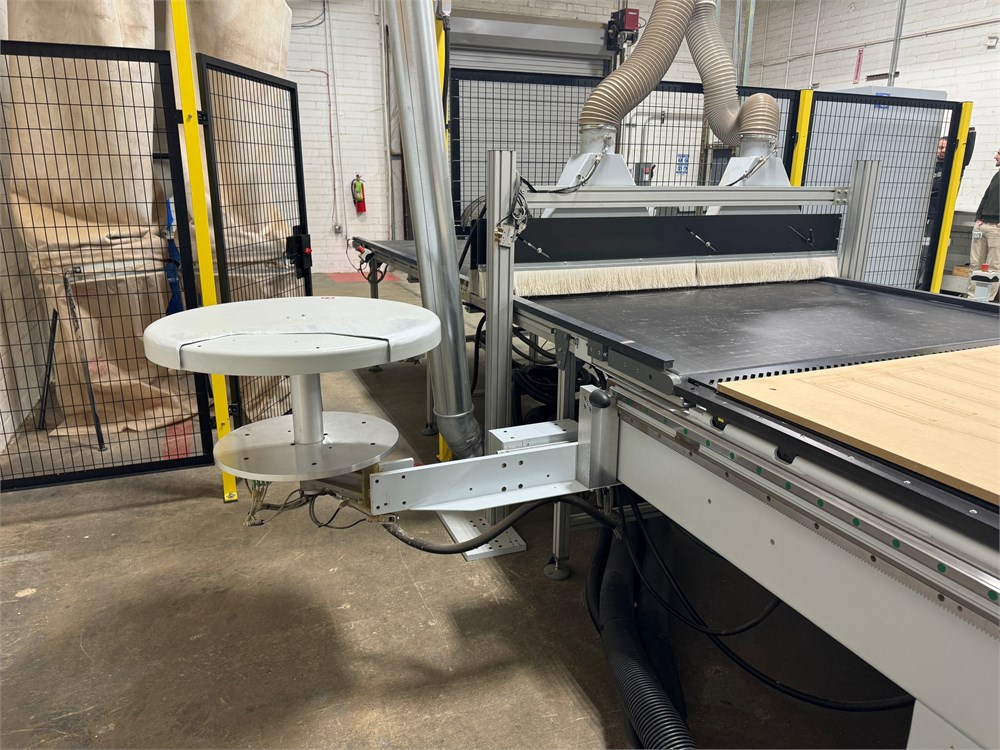

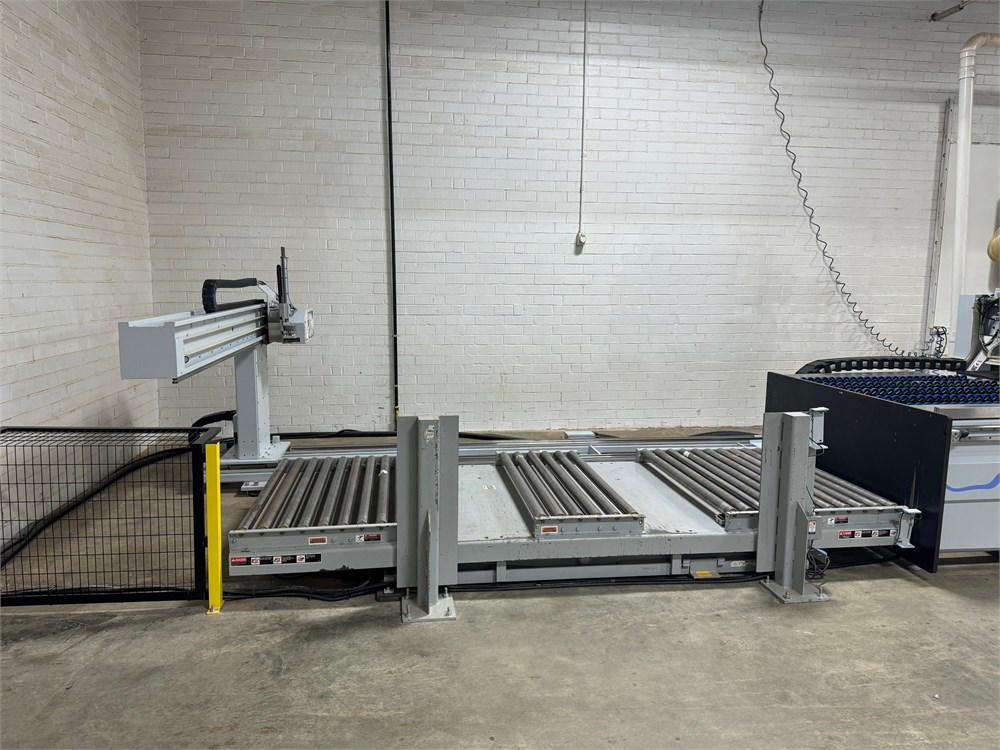

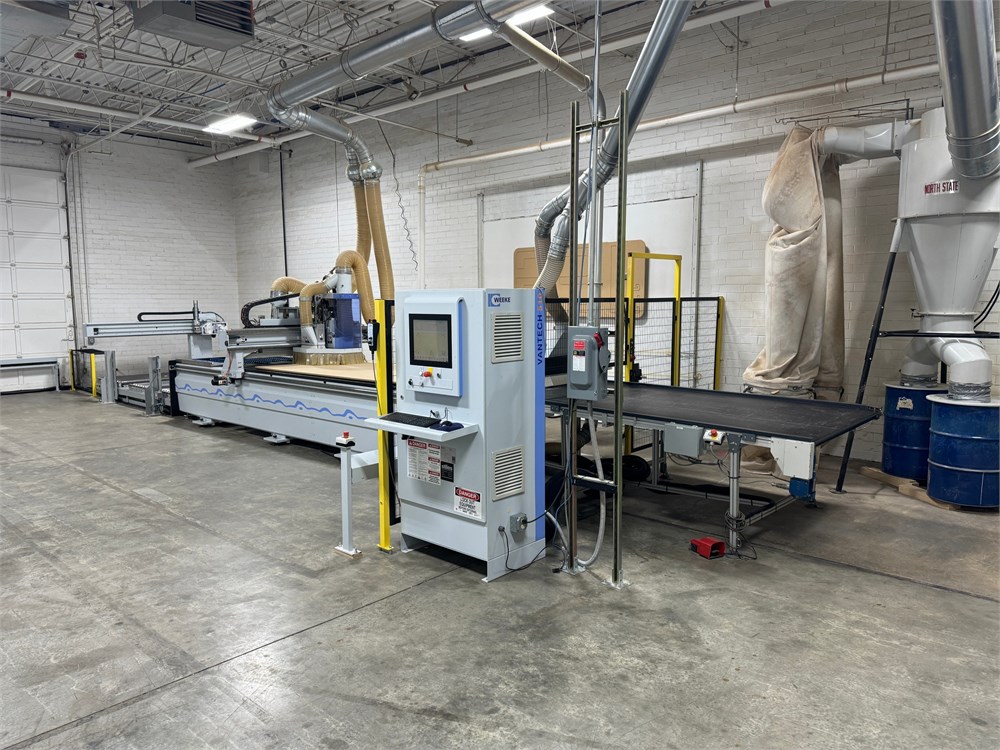

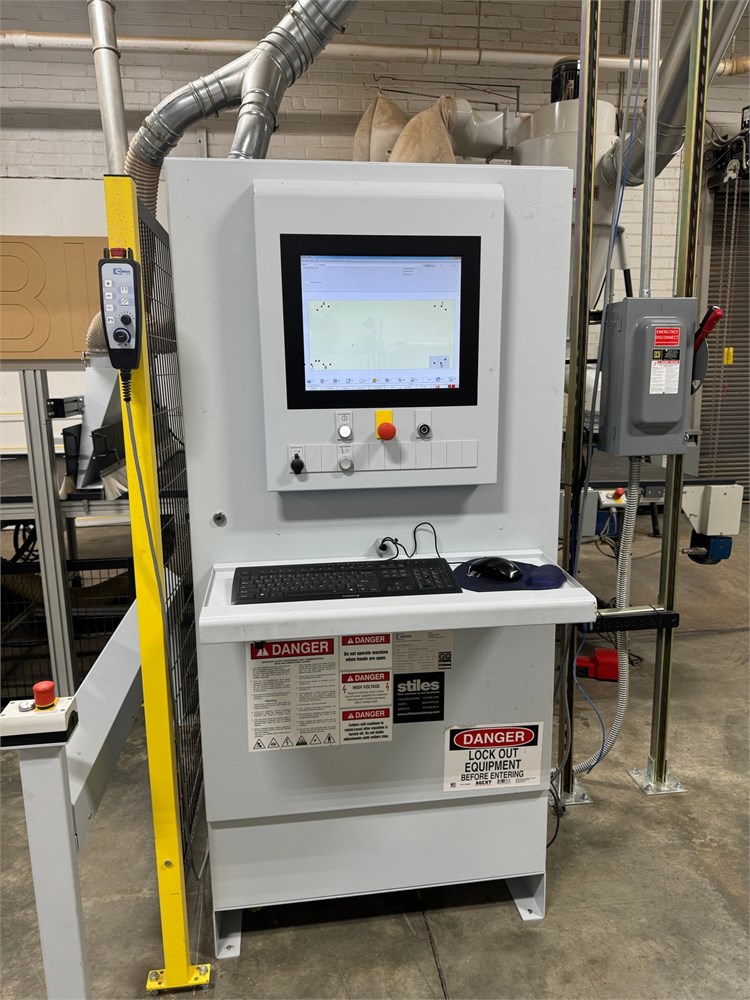

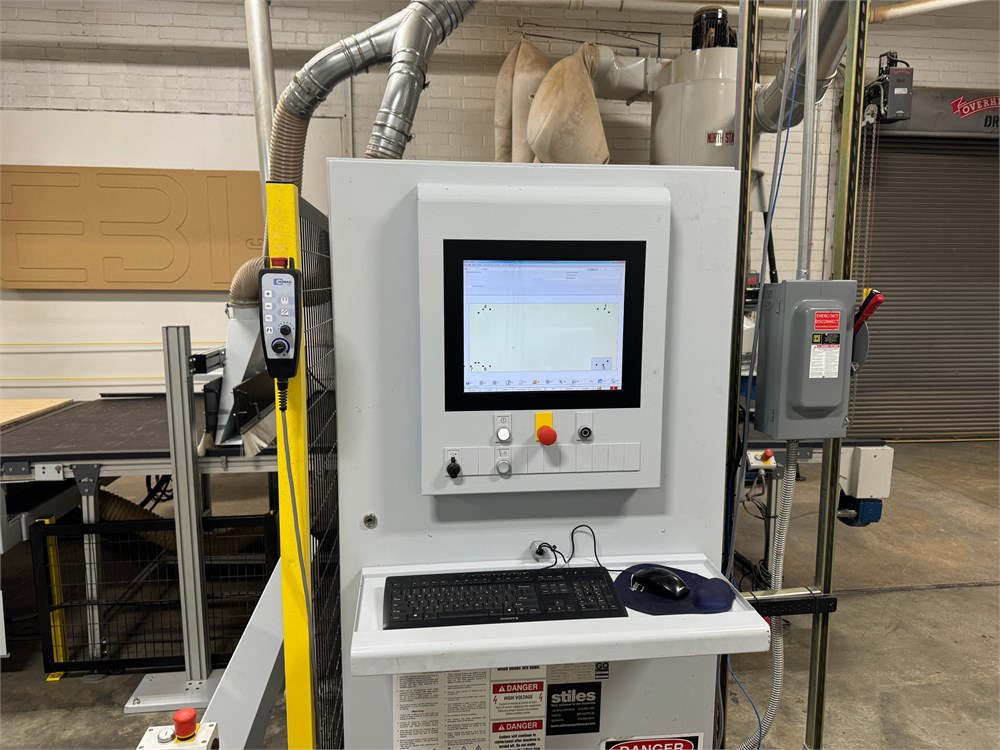

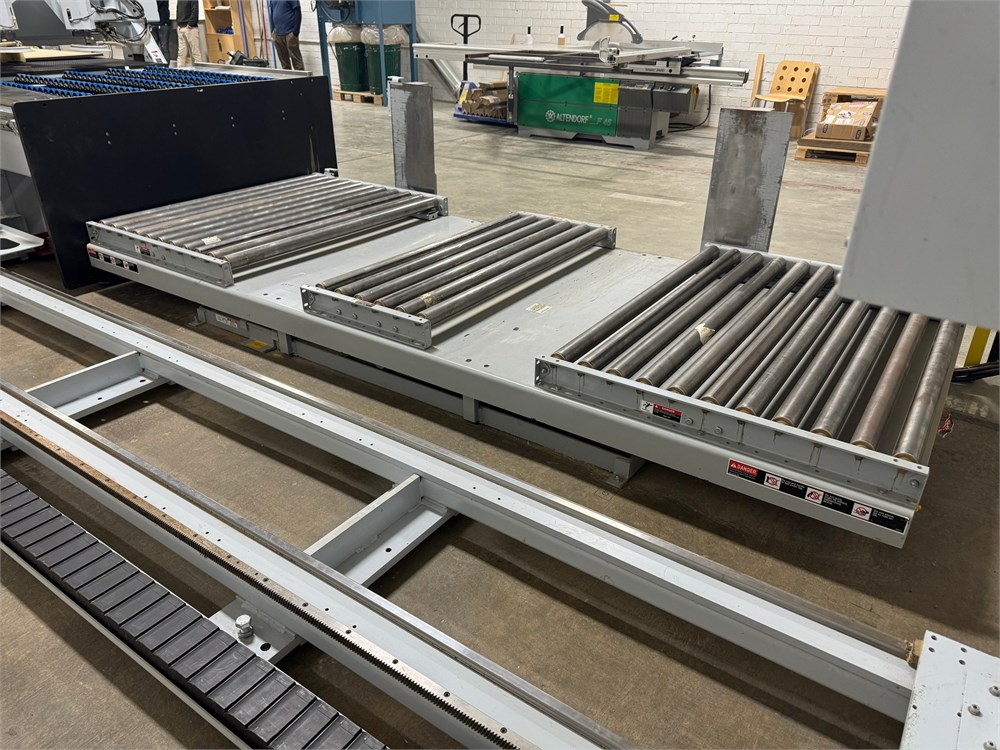

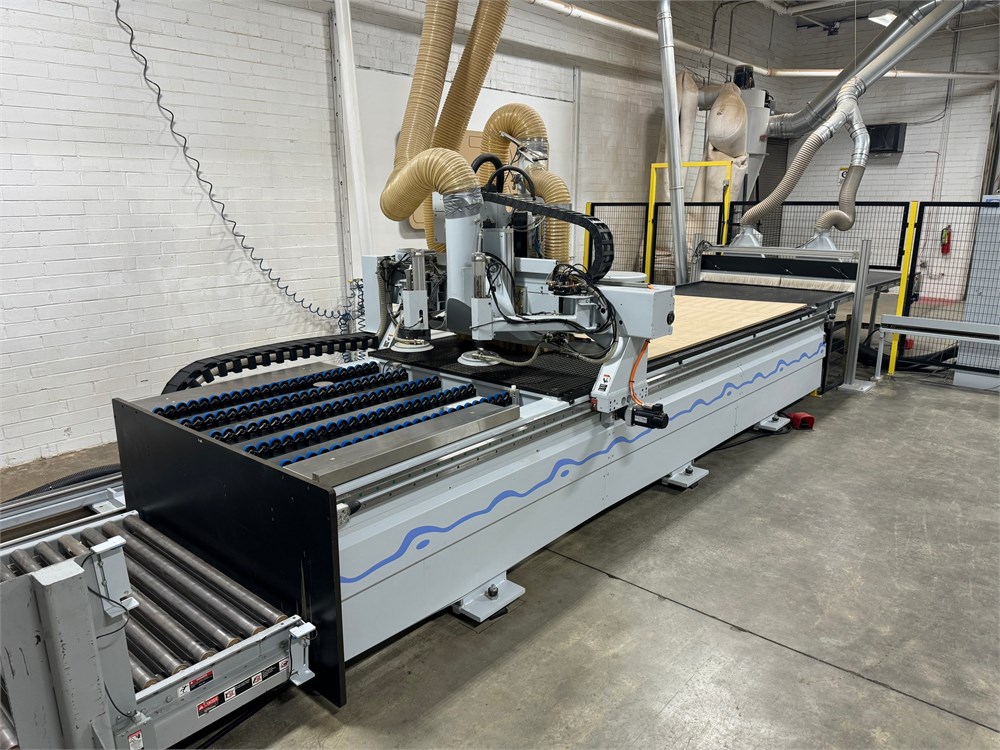

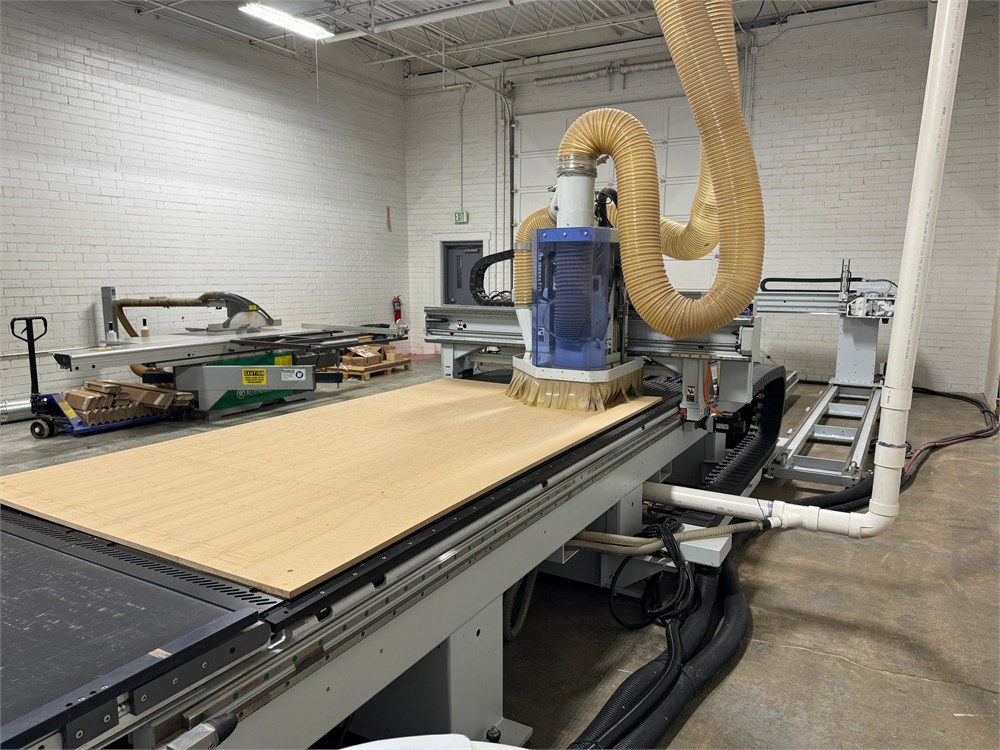

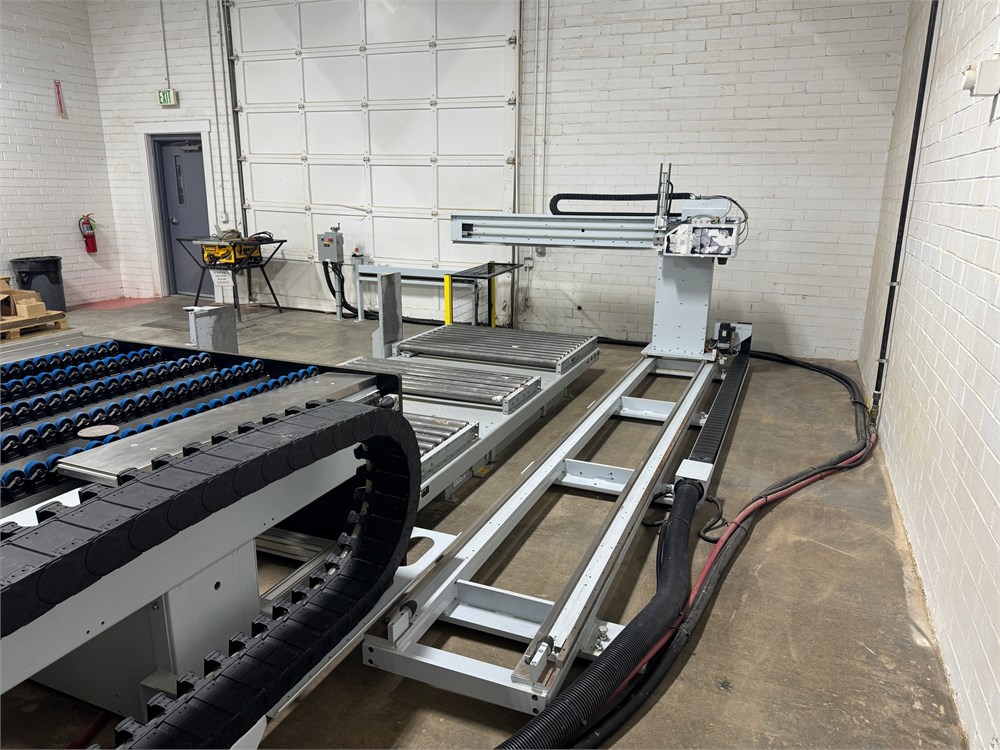

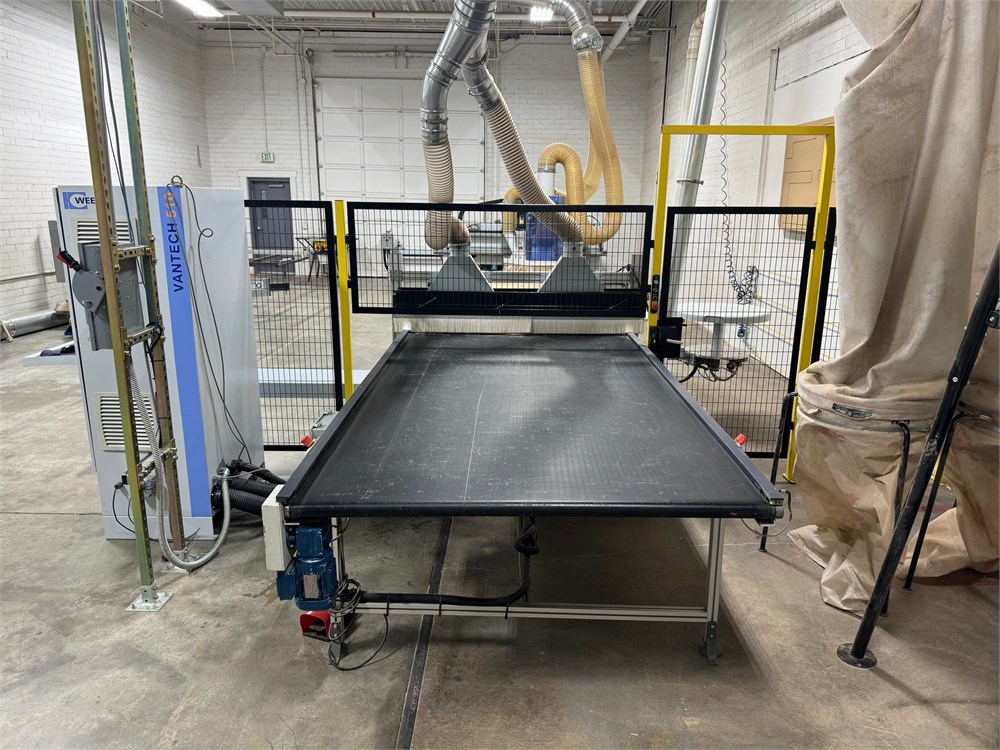

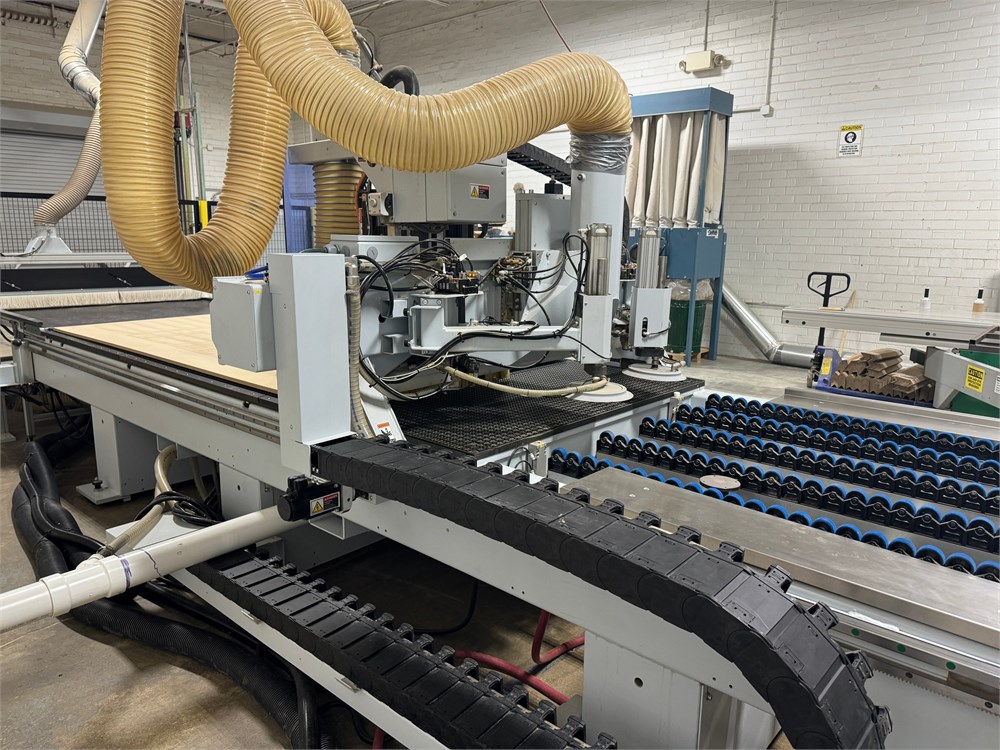

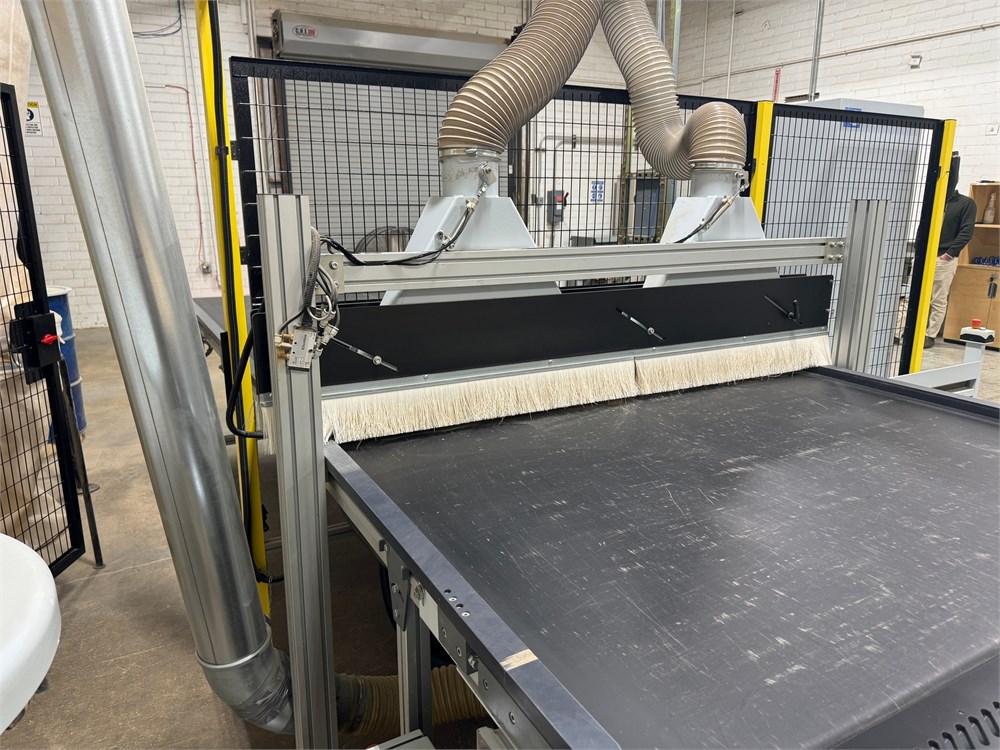

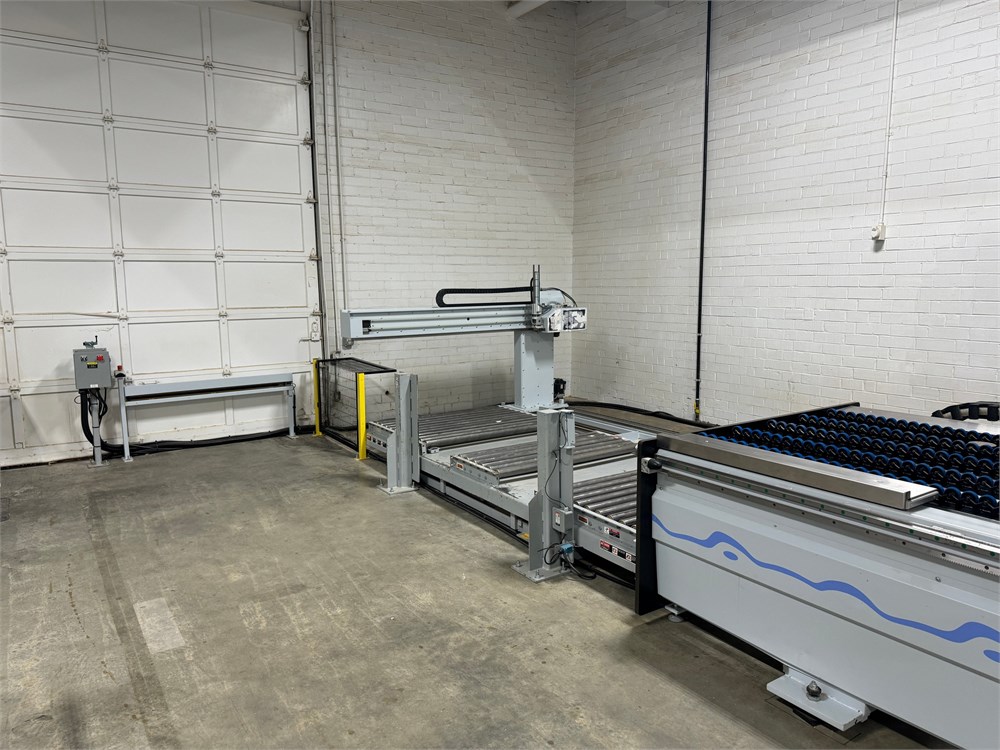

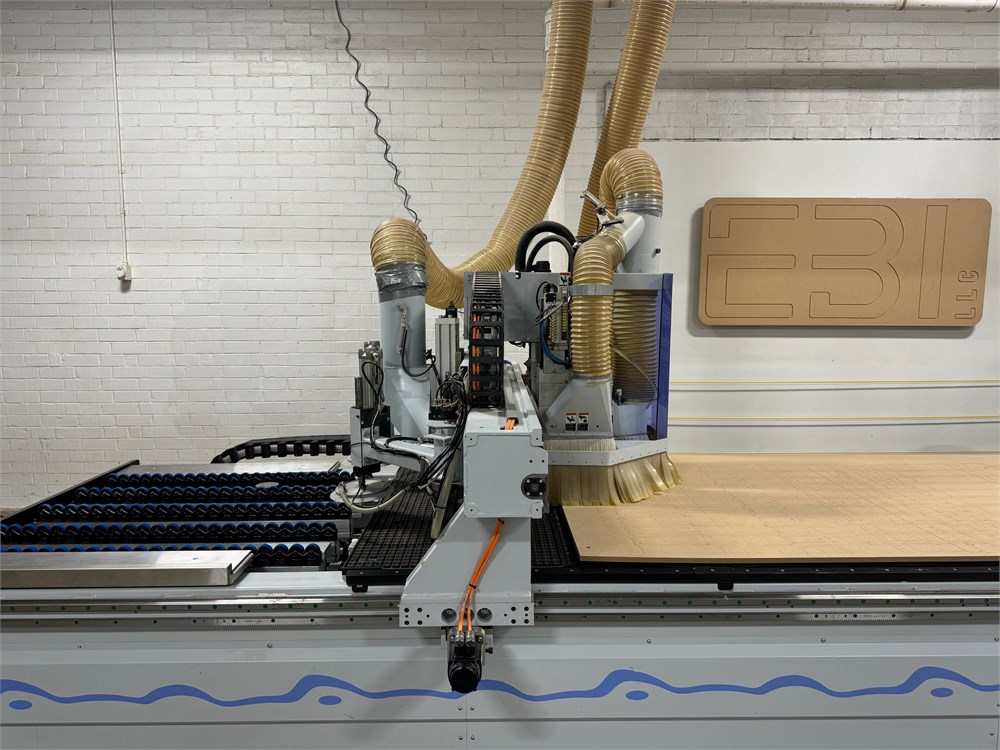

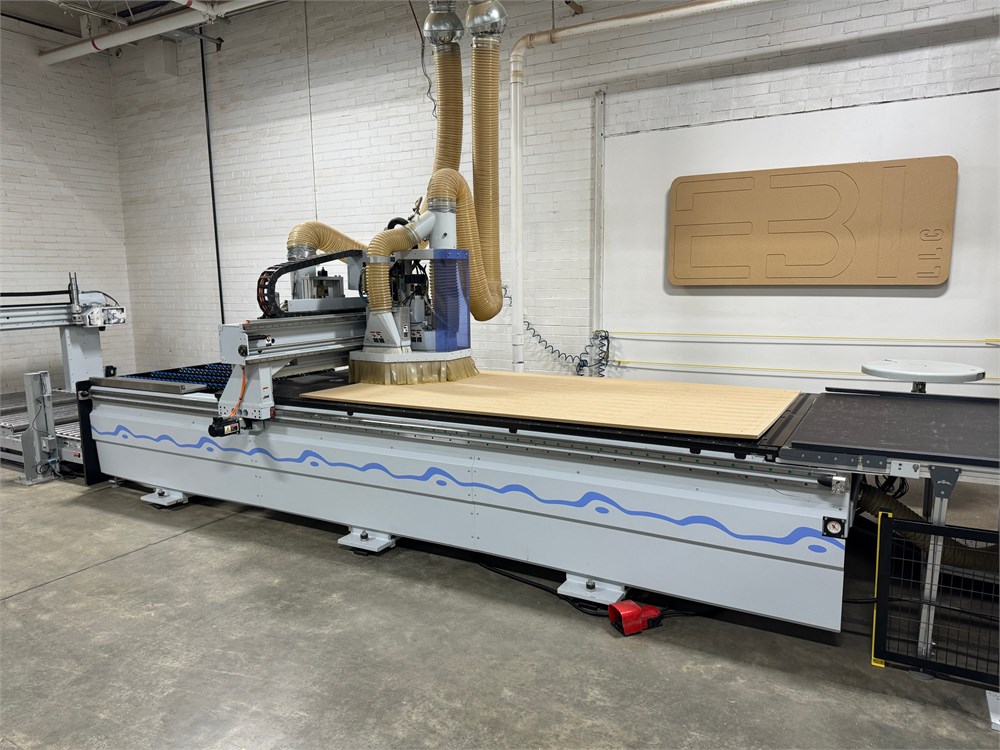

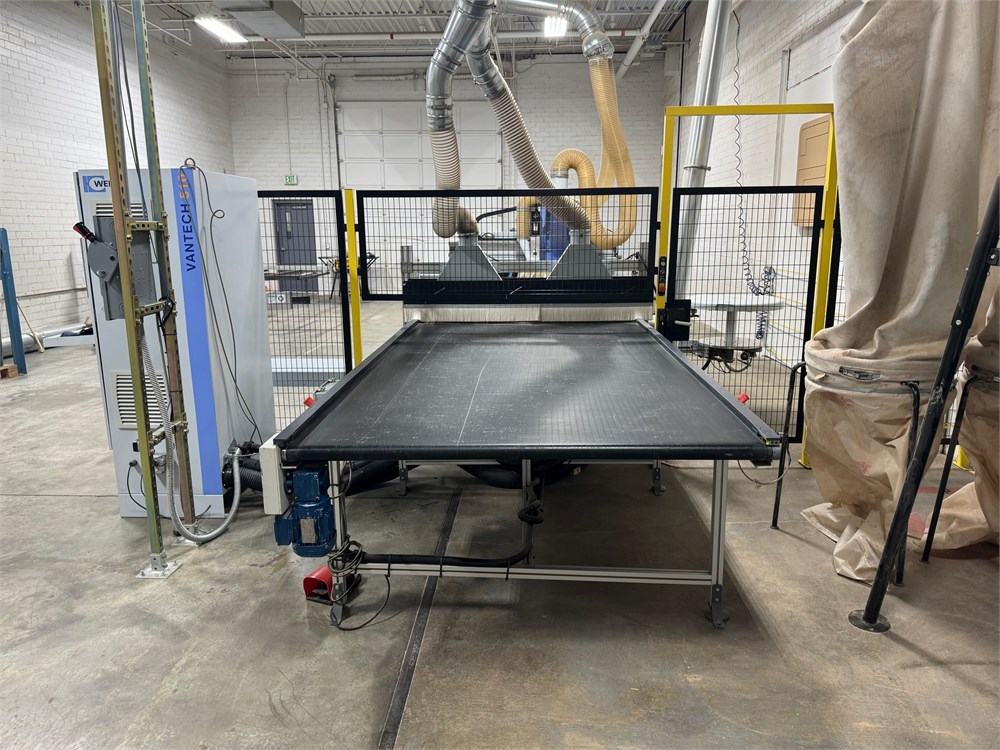

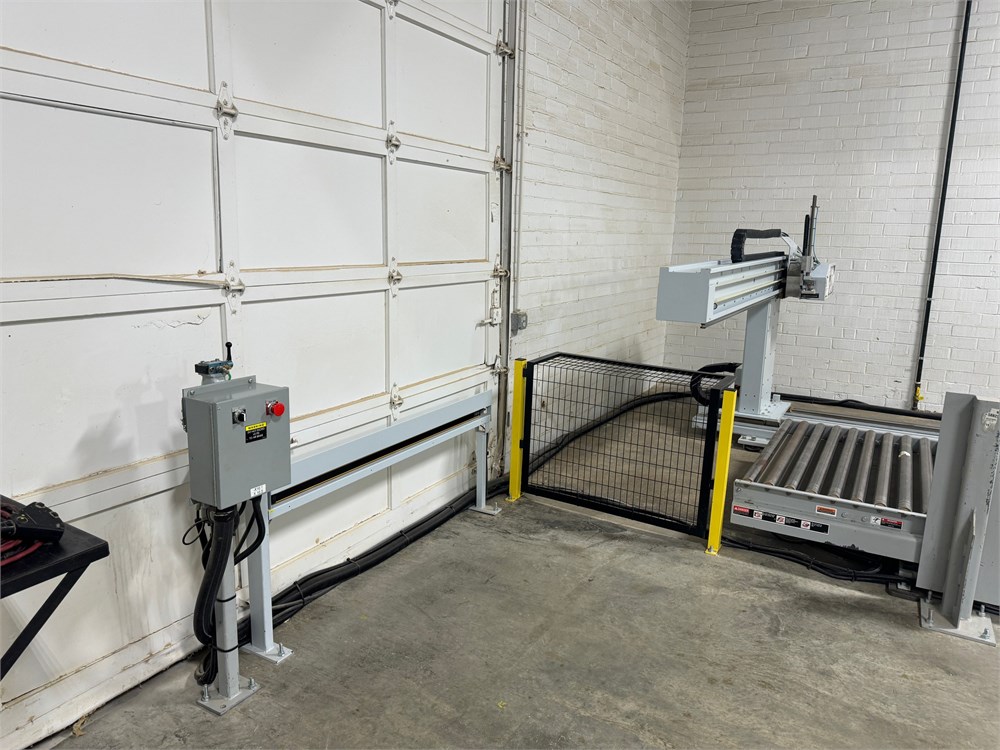

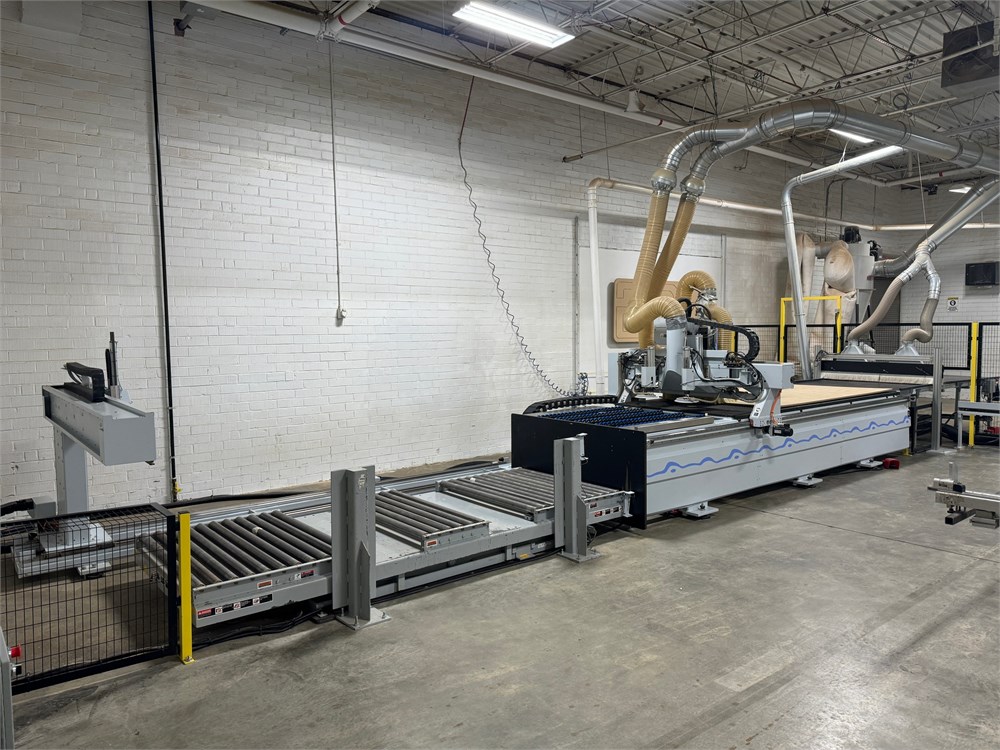

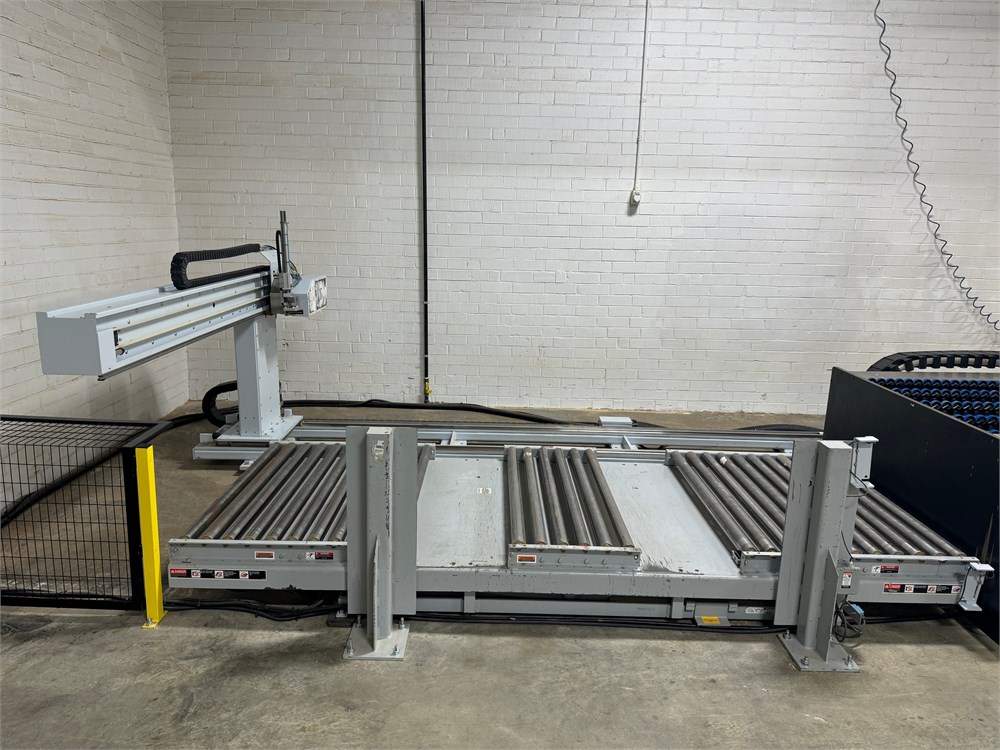

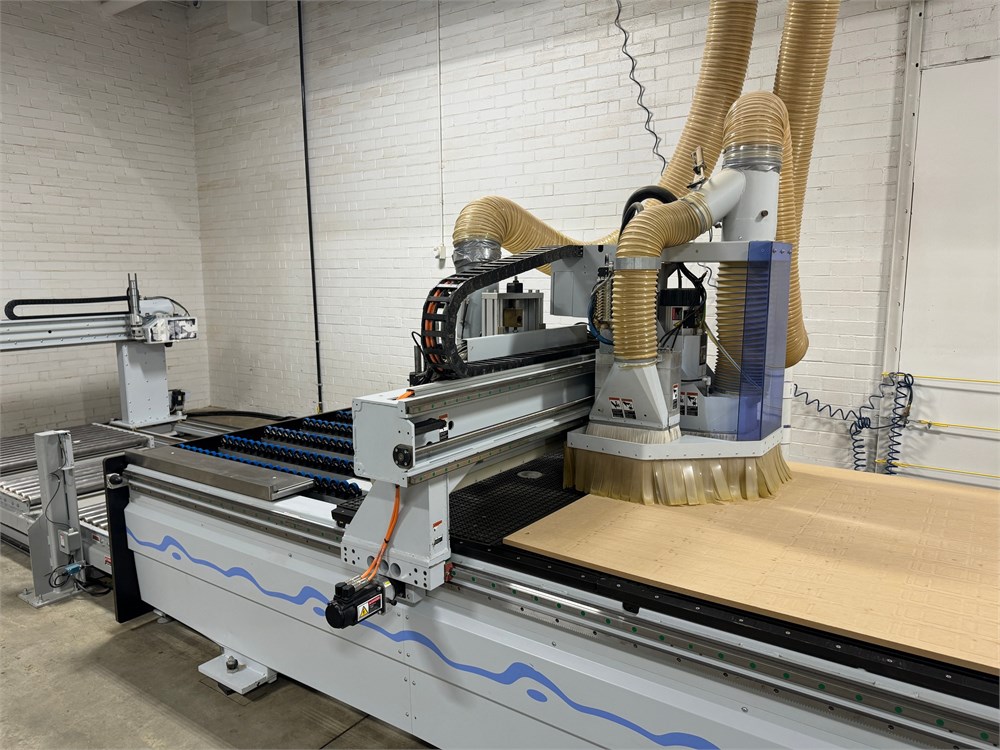

Weeke “Vantech 512 BHP 008” CNC Machining Center – Load/Unload 5′ x 12′ Flat Table “Bridge Gantry” machine with User-Friendly “S/C Tech” “MATRIX” grooved phenolic vacuum table; pneumatic reference stops “X” Axis is 145″ (3,683 mm), “Y” axis 61″ (1,550 mm), “Z” axis stroke is 9.6″ (243.8 mm), max. material thickness of 3.9″ (99 mm). “X” Axis is 236 FPM (72 MPM), “Y” axis is 203 FPM (62 MPM), “Z” axis 82 FPM (25 MPM); The head travels via AC brushless drives & THK linear motion guides on all axes. S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins. (1) 16 HP High speed electro-spindle router with “HSK F 63” adaptor; constant duty, variable speed from 1,250 – 24,000 RPM, RH or LH rotation. (1) 14-Position Rotary ATC located at the end of machine. Boring unit with 3.6 HP motor, (12) Independent vertical spindles with “Quick Change” drill bit holders; programmable variable speed from 1,500 – 7,500 RPM. Head sound enclosure Foot pedal operation 17″ TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports. (2) Vacuum pods for load/unload, 52″ roller top on infeed side of machine. Ink-jet printer on track to allow for on-the-fly labeling. Infeed scissor lift, 60″ x 144″ roller top, fork lift cut-outs, (2) alignment posts, 21″ max bunk height as configured (could be increased if lift is pit mounted). 61-1/2″ x 162″ Powered out-feed belt, top & bottom dust extraction. Front photo safety eyes Safety fencing with interlocked access door Vacuum pump(s), dust collectors, dust pipe and flex hose NOT included, offered in separate lots
Specifications:
Pick Up Location: 745 Kentuck Rd. Danville, VA 24540

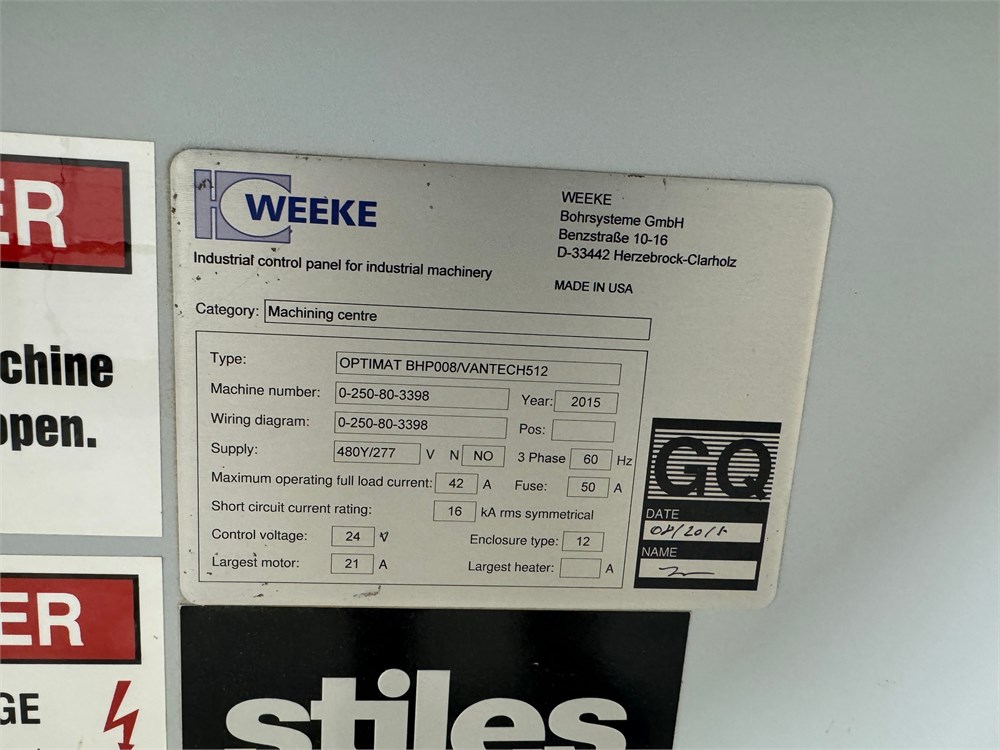

Make: Weeke
Model: Vantech 512 BHP 008
Serial Number: 0-250-80-3398
Year: 2015
Phase: 3 PHASE
Voltage: 480 VOLT
Estimated Dimensions: 40′ L x 17′ W x 8′ H (as setup for production)
Estimated Weight: 20,000 Pounds
Seller Comment: Buyer responsible for disassembly, packing and load out or hiring a rigger to do so.
